OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge 174
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Engine coolant temperature gauge 174
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil pressure gauge 175
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Vo ltme te r 176
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Tachometer 176
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Odometer and two trip meters 177
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 178
. . . . . . . . . . . . . .
SECTION 1 6

’06 TUNDRA_U (L/O 0508)
174
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Without tachometer
With tachometer

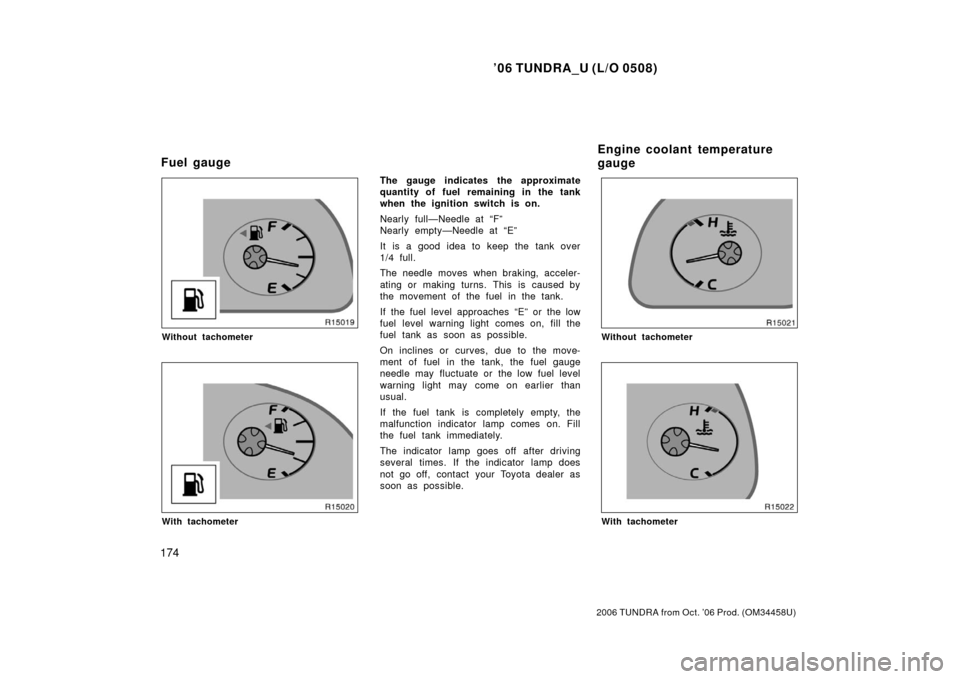

The gauge indicates the approximate
quantity of fuel remaining in the tank
when the ignition switch is on.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
The needle moves when braking, acceler-
ating or making turns. This is caused by
the movement of the fuel in the tank.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
Without tachometer
With tachometer
Fuel gauge Engine coolant temperature
gauge

’06 TUNDRA_U (L/O 0508)
175
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop−and− go traffic.
Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your ve-
hicle overheats” in Section 4.
Idling
Normal driving

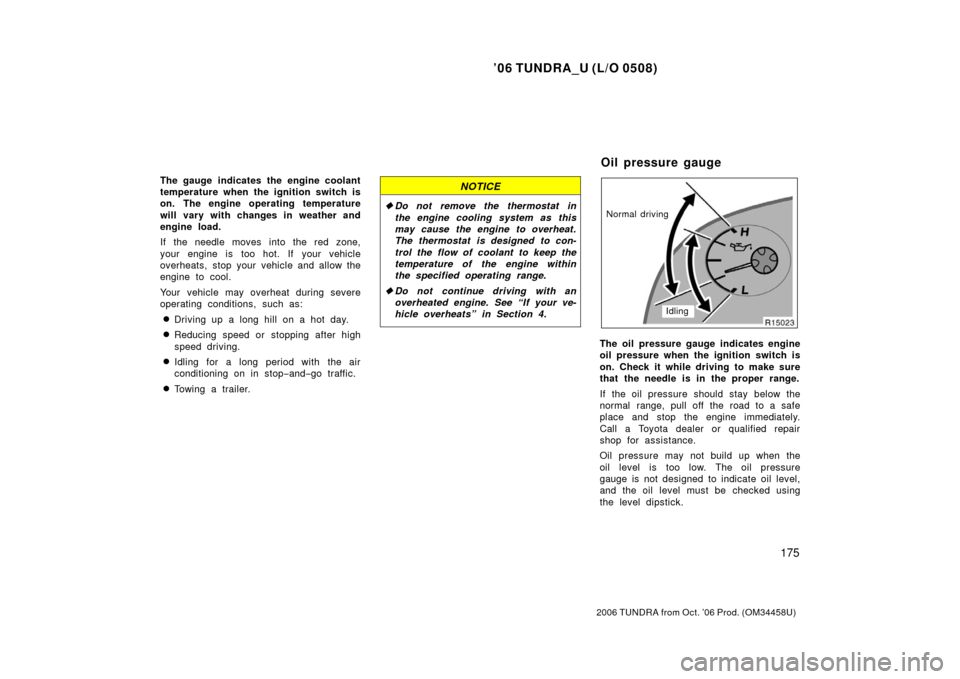

The oil pressure gauge indicates engine
oil pressure when the ignition switch is
on. Check it while driving to make sure
that the needle is in the proper range.
If the oil pressure should stay below the
normal range, pull off the road to a safe
place and stop the engine immediately.
Call a Toyota dealer or qualified repair
shop for assistance.
Oil pressure may not build up when the
oil level is too low. The oil pressure
gauge is not designed to indicate oil level,
and the oil level must be checked using
the level dipstick.
Oil pressure gauge

’06 TUNDRA_U (L/O 0508)
176
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
NOTICE
Do not drive the vehicle with the oil
pressure below the normal range until
the cause is fixed—it may ruin the
engine.

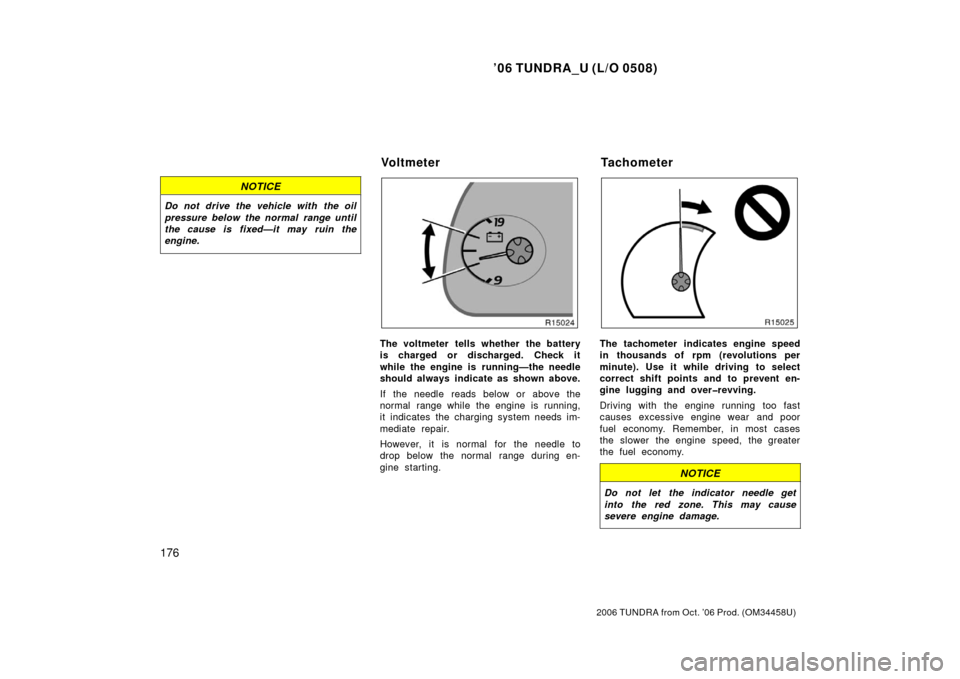

The voltmeter tells whether the battery
is charged or discharged. Check it
while the engine is running—the needle
should always indicate as shown above.
If the needle reads below or above the
normal range while the engine is running,
it indicates the charging system needs im-
mediate repair.
However, it is normal for the needle to
drop below the normal range during en-
gine starting.The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
Voltmeter Tachometer

’06 TUNDRA_U (L/O 0508)
177
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
This meter displays the odometer and
two trip meters.
1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected. 3. Trip meter reset knob—Resets the two
trip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
Odometer and two trip meters

’06 TUNDRA_U (L/O 0508)
178
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
If the indicator or buzzer comes on...Do this.
(a)
(indicator and buzzer∗)
If parking brake is off, stop immediately and contact Toyota dealer.
∗: For vehicles with the vehicle stability control system only
(b)
(indicator and buzzer)
Fasten driver ’s seat belt.
(c)Fasten front passenger ’s seat belt.
(d)Stop immediately and contact Toyota dealer.
(e)Stop and check.
(f)Take vehicle to Toyota dealer.
(g)Fill up tank.
Service reminder indicators and warning buzzers

’06 TUNDRA_U (L/O 0508)
179
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
If the indicator or buzzer comes on...Do this.
(h)orTake vehicle to Toyota dealer.
(i)Take vehicle to Toyota dealer.
(j)Close all doors.
(k)Take vehicle to Toyota dealer immediately.
(l)Adjust tire inflation pressure (including spare tire). If the light blinks, contact Toyota
dealer.
(m)Stop and check.
(n)Add washer fluid.
(o)Replace engine oil.

’06 TUNDRA_U (L/O 0508)
180
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
If the indicator or buzzer comes on...Do this.
(p)Key reminder buzzerRemove key.
(q)Four−wheel drive system
warning buzzerShift the transfer mode correctly.
