2006 TOYOTA TUNDRA Owners Manual

’06 TUNDRA_U (L/O 0508)
237
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Compact disc player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release the “SCAN” but-
ton. “SCAN” will appear on the display
and the player will scan all the tracks on
the disc you are listening to. To stop
scanning, push this button again. If the
player scanned all the tracks on the disc,
it will stop scanning.
Scanning the first tracks of all the discs
in the magazine:
Push the “SCAN” button until you hear a
beep. “
·SCAN” will appear on the dis-
play and the player will scan the first
track of the next disc. To stop scanning,
push this button again. If the auto changer
has scanned all the di scs, it will stop
scanning. SEEK/TRACK (Seeking/Track up/down)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release “
” or “ ” side of the “SEEK/
TRACK” button. Do this again to find the
station after that.
Cassette Player
Use this button to skip up or down to
locate a song or recording.
You can select up to nine recordings (in-
cluding current one).
A blank space of at least 3 seconds is
considered to be a start of a recording.
When beginning of a tape is reached, the
player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken word, live, or classical
recordings. Compact disc player
Use this button to skip up or down to a
different track.
Push “
” or “ ” side of the “SEEK/
TRACK” button until the number of the
track you want to listen to appears on the
display. If you want to return to the begin-
ning of the current track, quickly push the
down side of the button one time.
Vehicles with rear seat entertainment sys-
tem—
While the DVD player is in operation, the
chapter or track can be changed by push-
ing the “ ” or “ ” side of the “SEEK/
TRACK” button.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TA P E
Push the “TAPE” button to play a cassette
tape.

’06 TUNDRA_U (L/O 0508)
238
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
TEXT
Radio
This button is operational only in RDS
mode.
When an RDS radio station transmits a
text message, “TEXT” will be displayed. At
this time, push the “TEXT” button to view
the text message. The message display
will be canceled if any button that affects
the display is pushed. To view the mes-
sage again, push this button again. After
the entire message has been displayed,
the message will disappear.
The RDS audio system has memory to
store three 64−character messages. To
store a message in memory, push and
hold the “TEXT” button until you hear a
beep.
If three messages are already stored in
memory, the oldest message will be over-
written by the new message.
To recall a radio text message, push the
“TEXT” button momentarily. This will dis-
play the most recent message. Each push
of the button will display messages in the
order of most to least recent. If no messages have been stored, or if
there are no more messages to be re-
called, “NO MESSAGE” will appear on the
display, and the message display will be
canceled.
The message display will be canceled if
you activate any function that affects the
display.
Compact disc player
This button is used to change the display
for the compact disc that contains text
data.
To change the display, quickly push and
release the “TEXT” button while the com-
pact disc is playing. The display changes
in the order from the elapsed time to disc
title to track title, then back to the
elapsed time.
If this button is pushed while a compact
disc that does not contain text data is
playing, “NO TITLE” will appear on the
display.
If the entire disc or track title does not
appear on the display, push and hold the
button until you hear a beep. The rest of
the title will appear.TRAF (Traffic)
This button turns the traffic announcement
(TA) feature on and off. This button is
operational only in FM mode.
By pushing the “TRAF” button, “TRAF
SEEK” will flash on the display and the
radio will start seeking any traffic program
station.
When a traffic program station is found,
“TRAF” will be displayed and you will hear
a beep.
After the traffic announcement program is
over, the display returns to the previous
mode.
If no traffic program station is found, “NO
TRAF INFO” appears on the display for a
few seconds and the display returns to
the previous mode.
To cancel the traffic announcement, push
this button again.
TUNE (Tuning)
Turn the “TUNE” knob clockwise to step
up the frequency. Turn the knob counter-
clockwise to step down the frequency.

’06 TUNDRA_U (L/O 0508)
239
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
TYPE (Program Types)
When you push the “TYPE” button while
receiving an RDS station, the current pro-
gram type appears on the display.
Each time you push this button, the pro-
gram type changes as in the following:
ROCK
EASY LIS (Easy listening)
CLS/JAZZ (Classical music and Jazz)
R&B (Rhythm and Blues)
INFORM (Information)
RELIGION
MISC (Miscellaneous)
ALERT (Emergency message)

’06 TUNDRA_U (L/O 0508)
240
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

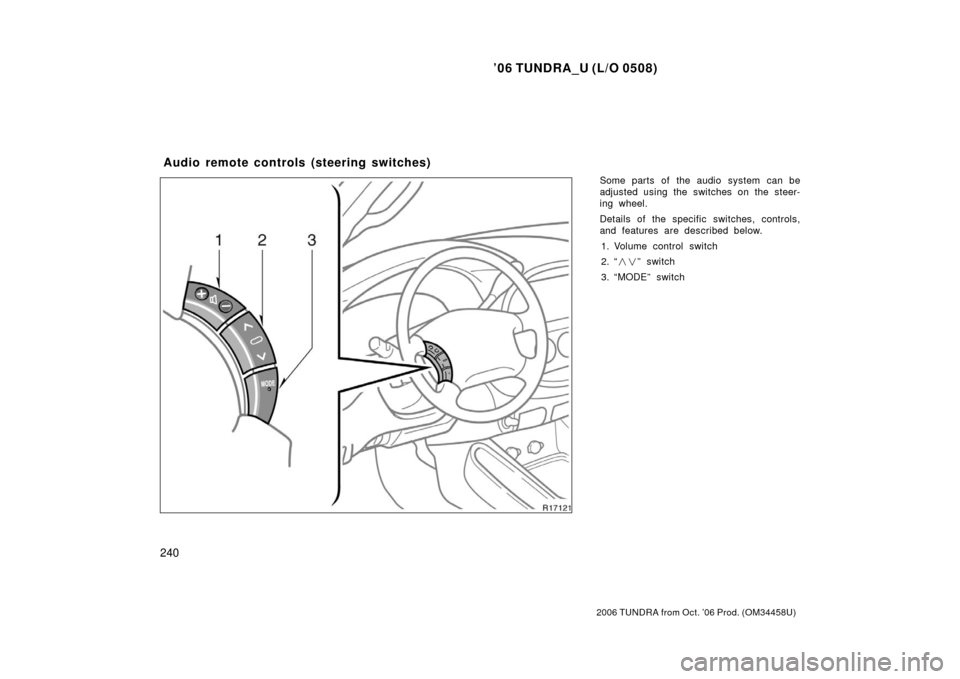

Some parts of the audio system can be
adjusted using the switches on the steer-
ing wheel.
Details of the specific switches, controls,
and features are described below.
1. Volume control switch
2. “ ” switch
3. “MODE” switch
Audio remote controls (steering switches)

’06 TUNDRA_U (L/O 0508)
241
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
1. Volume control switch
Push “+” to increase the volume. The vol-
ume continues to increase while the
switch is being pushed.
Push “ −” to decrease the volume. The
volume continues to decrease while the
switch is being pushed.
2. “ ” switch
Radio
This switch has the following features—
To select a preset station:
Quickly push and release the “ ” or “ ”
side of the switch. Do this again to select
the next preset station.
To seek a station:
Push and hold the “ ” or “” side of the
switch until you hear a beep. Do this
again to find the next station. If you push
the switch on either side during the seek
mode, seeking will be cancelled.
Cassette player
This switch has the following features—
To skip to a different track in either direc-
tion:
Quickly push and release the “ ” or “ ”
side of the switch. “FF 1” or “REW 1” will
appear on the display. Next, push either side of the track switch
until the track you want to listen to is set.
If you push the switch ten times, the skip
function will turn off. (You can skip up to
nine tracks at a time.)
When counting the number of the tracks
you want to rewind, remember to count
the current track as well. For example, if
you want to rewind to a song that is two
tracks before the song you are listening
to, push the “
” side of the switch three
times.
If you push the track switch further than
you wanted to, push the other side of the
switch. The track number will be in-
creased or reduced.
The track number you select is not valid
if it is higher than the number of the
tracks remaining on the current side of
the cassette.
When the tape reaches to the begin-
ning, the player will automatically start
playing that side.
After the tape reaches to the end, the
player will automatically reverse and
start playing the other side. There must be at least 3 seconds of blank
space between tracks for the track switch
to work correctly. In addition, the feature
may not work well with some spoken, live,
or classical recordings.
To f a s t
−forward or reverse:
Push and hold the “ ” side of the switch
to fast− forward a cassette tape. “FF” will
appear on the display. Push and hold the
“  ” side of the switch to rewind a tape.
“REW” will appear on the display.
To stop the tape while it is fast −forward-
ing, push the “ ” side of the switch. To
stop the tape while it is rewinding, push
the “ ” side of the switch.
If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fast −forwards completely,
the cassette will play the other side of the
tape using the auto −reverse feature.
Compact disc player
Use this switch to skip up or down to a
different track in either direction.
Quickly push and release the “ ” or “ ”
side of the switch until the track you want
to listen to is set. If you want to return
to the beginning of the current track, push
the “ ” side of the switch once, quickly.

’06 TUNDRA_U (L/O 0508)
242
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
With compact disc changer only—
Push and hold the “” or “” side of the
switch until the disc you want to listen to
is set.
3. “MODE” switch
Push “MODE” switch to select an audio
mode. Each push changes the mode se-
quentially if the desired mode is ready to
use. The DVD player will be selectable if
a rear seat entertainment system is
installed in your vehicle.
To turn the audio system on, push the
“MODE” switch.
To turn the audio system off, push and
hold the “MODE” switch until the system
turns off. The rear seat audio system is designed
for the rear seat passengers to enjoy the
audio sound separately between the front
seats and the rear seats.
The rear seat audio system can be turned
on with the rear audio system controller
even if the front audio system is off.
When the front audio is turned off, the
rear audio system will be turned off simul-
taneously.
The rear passengers can enjoy all the
modes (AM and FM radio, cassette tape
player and compact disc player with
changer) with the rear seat audio system
when a cassette tape and a compact disc
are loaded in the front audio system.
When the same mode is selected on the
front and rear audio systems at the same
time, the system can be operated on the
front audio system.
If the radio mode is selected on the front
and rear audio systems at the same time,
AM and FM modes cannot be changed on
the rear seat audio system.
You can enjoy the rear seat audio system
with commercial headphone. See “—Head-
phone ja
cks” in this Section for details.CAUTION
Do not operate a motor vehicle while
using headphones. Doing so may
cause an accident, resulting in death
or serious injury.
Rear seat audio system—

’06 TUNDRA_U (L/O 0508)
243
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
The rear seat audio system consists of
following components.
1. Front audio system
2. Rear seat audio system display
3. Rear seat audio system controller
4. Headphone volume control dials
5. Headphone jacks
6. Controller holder The rear seat audio system can be oper-
ated with the rear seat audio system con-
troller.
CAUTION
Do not disassemble or modify the
controller. It may cause an accident,
fire or electric shock.
NOTICE
Keep the controller away from direct
sunlight, high heat and high humidity.
These conditions could cause the
case to deform or the battery to ex-
plode or leak.
—Rear seat audio system
controller

’06 TUNDRA_U (L/O 0508)
244
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
BEFORE USING THE CONTROLLER
(for new vehicle owners)
A battery is already set in the control-
ler with an insulating sheet, which pre-
vents the battery from being dis-
charged. Before using the controller,
remove the insulating sheet.
USING THE CONTROLLER
To use the rear seat audio system con-
troller, direct the signal output portion
of the controller to the signal reception
portion of the rear seat audio system
display.
The rear seat audio system controller can
be operated when the ignition switch is in
the “ACC” or “ON” position.
The controller does not operate properly
when the signal reception portion of the
display is exposed to direct sunlight.
Block the display from direct sunlight.
Details of specific buttons, controls, and
features of the controller, see
“CONTROLLER FEATURES” in this
Section.
NOTICE
Observe the followings, otherwise the
controller may be damaged.
Do not drop or strongly knock the
controller against hard objects.
 Do not sit on or place heavy ob-
jects on the controller.
