2006 TOYOTA TUNDRA Owners Manual

’06 TUNDRA_U (L/O 0508)
53
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

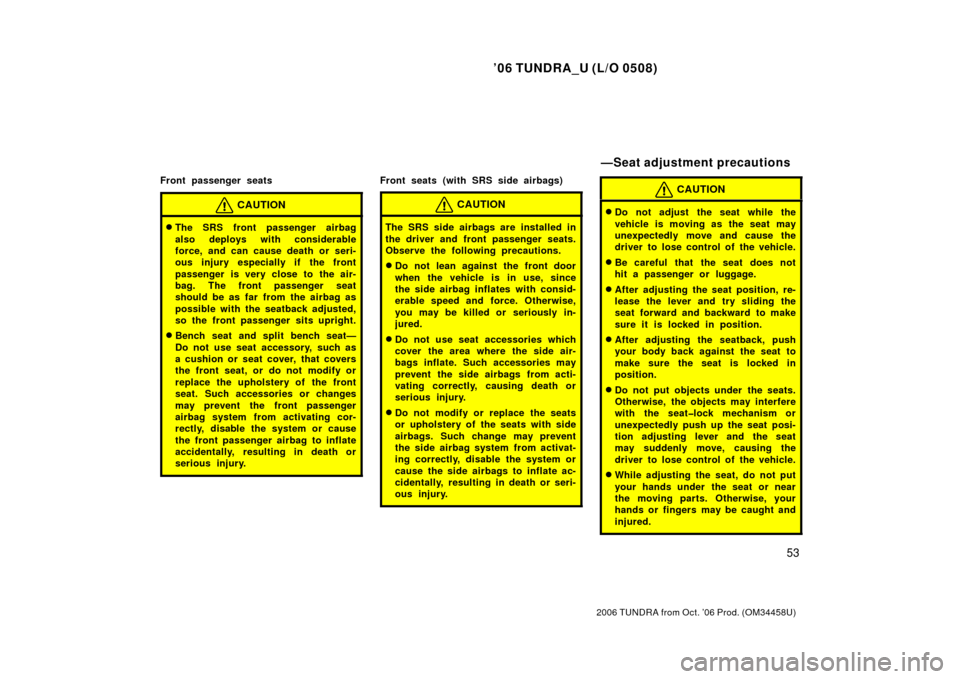

Front passenger seats
CAUTION
The SRS front passenger airbag
also deploys with considerable
force, and can cause death or seri-
ous injury especially if the front
passenger is very close to the air-
bag. The front passenger seat
should be as far from the airbag as
possible with the seatback adjusted,
so the front passenger sits upright.
Bench seat and split bench seat—
Do not use seat accessory, such as
a cushion or seat cover, that covers
the front seat, or do not modify or
replace the upholstery of the front
seat. Such accessories or changes
may prevent the front passenger
airbag system from activating cor-
rectly, disable the system or cause
the front passenger airbag to inflate
accidentally, resulting in death or
serious injury.
Front seats (with SRS side airbags)
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.
Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with consid-
erable speed and force. Otherwise,
you may be killed or seriously in-
jured.
Do not use seat accessories which
cover the area where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such change may prevent
the side airbag system from activat-
ing correctly, disable the system or
cause the side airbags to inflate ac-
cidentally, resulting in death or seri-
ous injury.
CAUTION
Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seatlock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, your
hands or fingers may be caught and
injured.
—Seat adjustment precautions

’06 TUNDRA_U (L/O 0508)
54
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

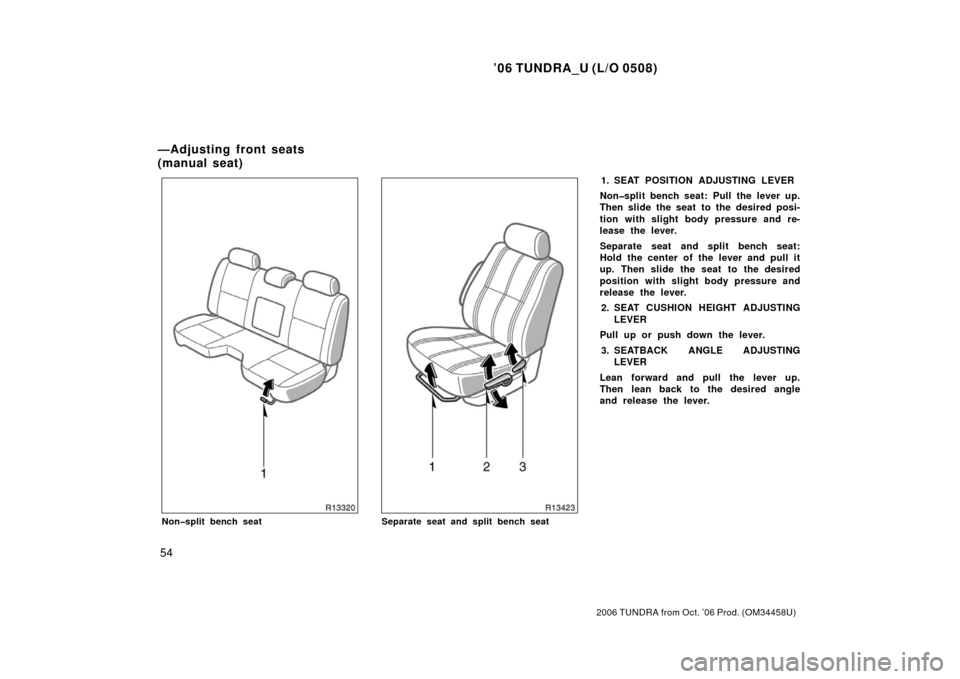

Nonsplit bench seatSeparate seat and split bench seat
1. SEAT POSITION ADJUSTING LEVER
Nonsplit bench seat: Pull the lever up.
Then slide the seat to the desired posi-
tion with slight body pressure and re-
lease the lever.
Separate seat and split bench seat:
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever. 2. SEAT CUSHION HEIGHT ADJUSTING LEVER
Pull up or push down the lever.
3. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
—Adjusting front seats
(manual seat)

’06 TUNDRA_U (L/O 0508)
55
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or personal injury.

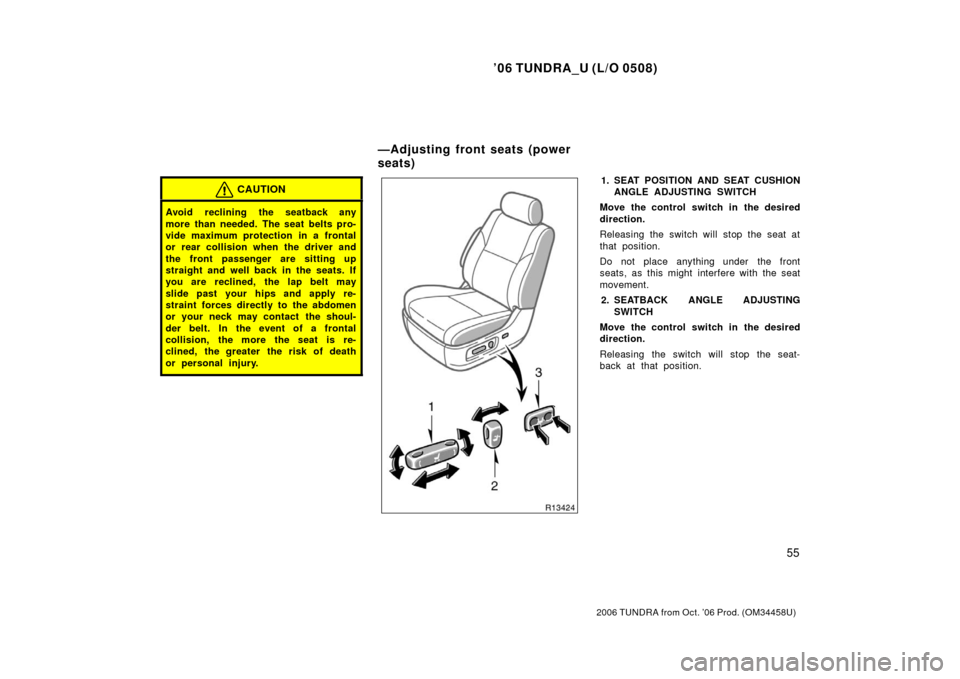

1. SEAT POSITION AND SEAT CUSHION
ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement. 2. SEATBACK ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.
—Adjusting front seats (power
seats)

’06 TUNDRA_U (L/O 0508)
56
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or personal injury.
3. SEAT LUMBAR SUPPORT
ADJUSTING SWITCH
Push the control switch on either way.
The amount of lumbar support will change
while the switch is pushed.

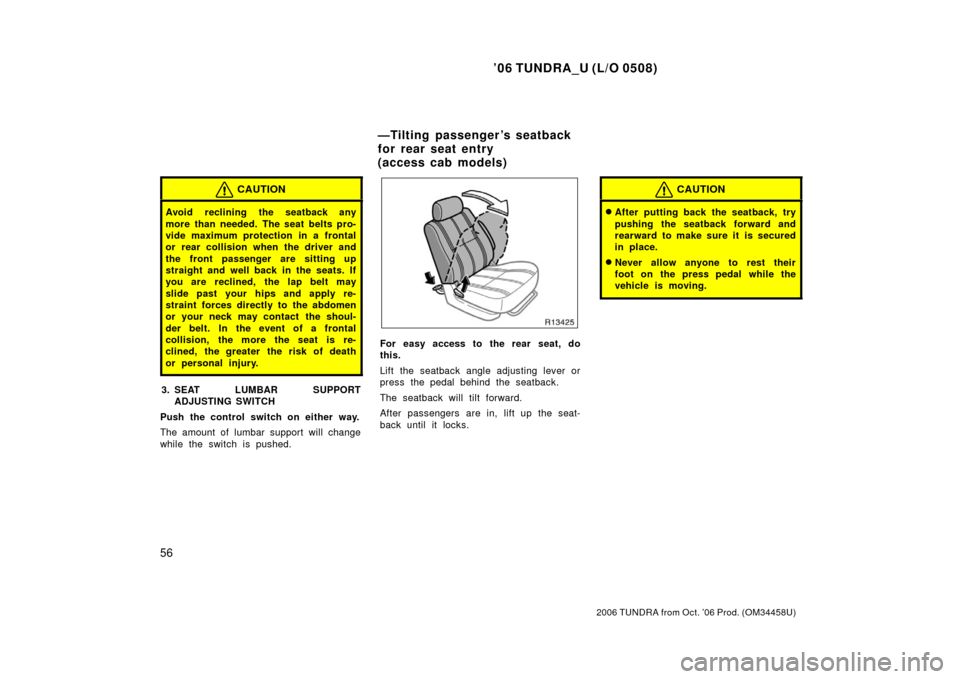

For easy access to the rear seat, do
this.
Lift the seatback angle adjusting lever or
press the pedal behind the seatback.
The seatback will tilt forward.
After passengers are in, lift up the seat-
back until it locks.
CAUTION
After putting back the seatback, try
pushing the seatback forward and
rearward to make sure it is secured
in place.
Never allow anyone to rest their
foot on the press pedal while the
vehicle is moving.
—Tilting passenger ’s seatback
for rear seat entry
(access cab models)

’06 TUNDRA_U (L/O 0508)
57
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

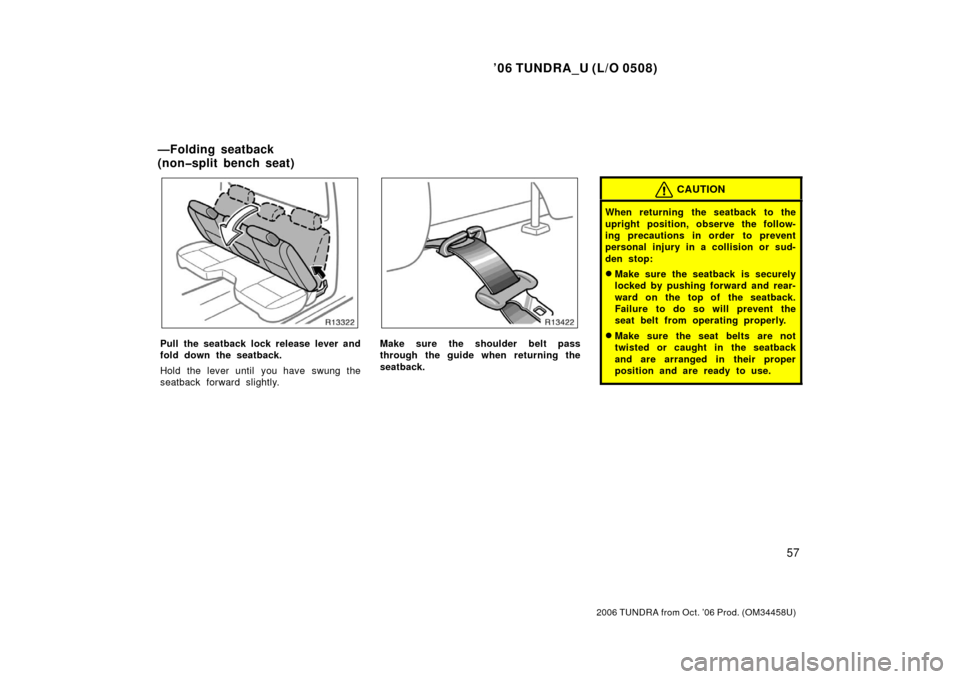

Pull the seatback lock release lever and
fold down the seatback.
Hold the lever until you have swung the
seatback forward slightly.Make sure the shoulder belt pass
through the guide when returning the
seatback.
CAUTION
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
personal injury in a collision or sud-
den stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.
—Folding seatback
(nonsplit bench seat)

’06 TUNDRA_U (L/O 0508)
58
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

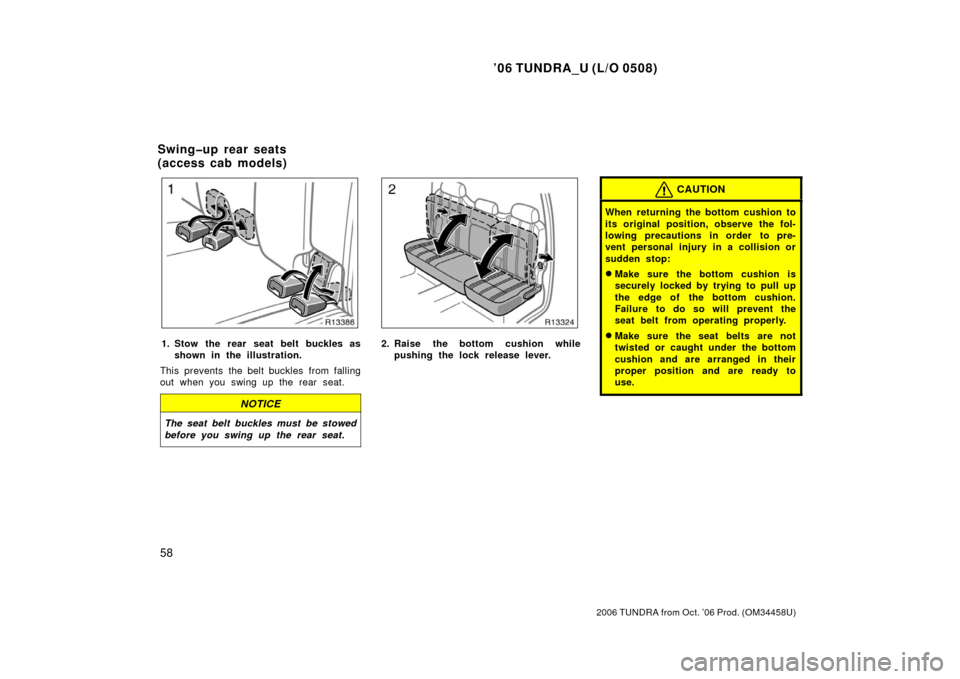

1. Stow the rear seat belt buckles as
shown in the illustration.
This prevents the belt buckles from falling
out when you swing up the rear seat.
NOTICE
The seat belt buckles must be stowed
before you swing up the rear seat.
2. Raise the bottom cushion while pushing the lock release lever.
CAUTION
When returning the bottom cushion to
its original position, observe the fol-
lowing precautions in order to pre-
vent personal injury in a collision or
sudden stop:
Make sure the bottom cushion is
securely locked by trying to pull up
the edge of the bottom cushion.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught under the bottom
cushion and are arranged in their
proper position and are ready to
use.
Swingup rear seats
(access cab models)

’06 TUNDRA_U (L/O 0508)
59
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

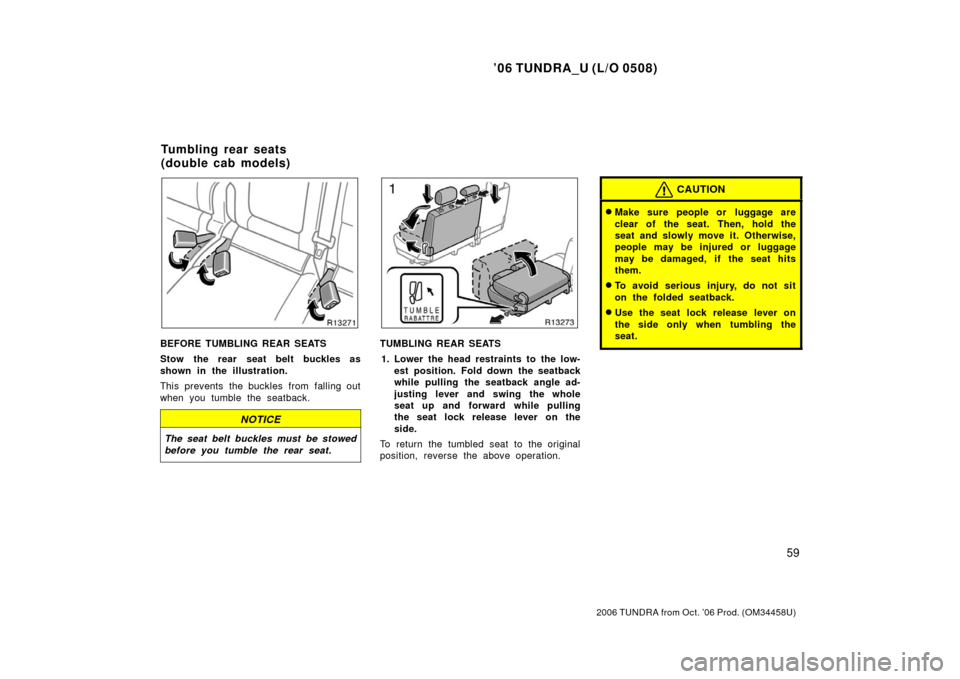

BEFORE TUMBLING REAR SEATS
Stow the rear seat belt buckles as
shown in the illustration.
This prevents the buckles from falling out
when you tumble the seatback.
NOTICE
The seat belt buckles must be stowed
before you tumble the rear seat.
TUMBLING REAR SEATS
1. Lower the head restraints to the low- est position. Fold down the seatback
while pulling the seatback angle ad-
justing lever and swing the whole
seat up and forward while pu lling
the seat lock release lever on the
side.
To return the tumbled seat to the original
position, reverse the above operation.
CAUTION
Make sure people or luggage are
clear of the seat. Then, hold the
seat and slowly move it. Otherwise,
people may be injured or luggage
may be damaged, if the seat hits
them.
To avoid serious injury, do not sit
on the folded seatback.
Use the seat lock release lever on
the side only when tumbling the
seat.
Tumbling rear seats
(double cab models)

’06 TUNDRA_U (L/O 0508)
60
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

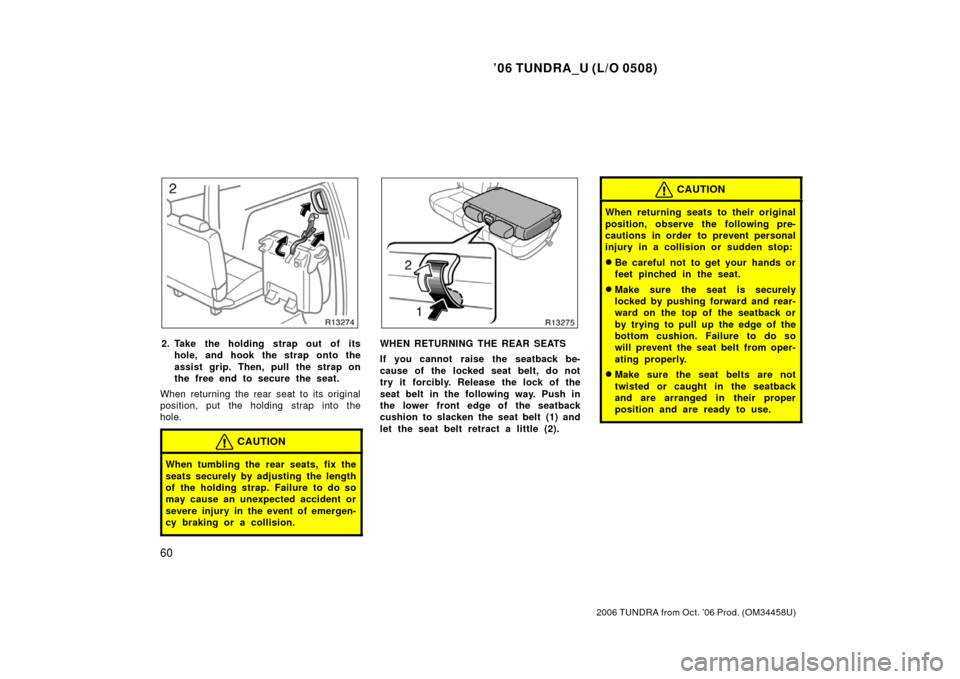

2. Take the holding strap out of its
hole, and hook the strap onto the
assist grip. Then, pull the strap on
the free end to secure the seat.
When returning the rear seat to its original
position, put the holding strap into the
hole.
CAUTION
When tumbling the rear seats, fix the
seats securely by adjusting the length
of the holding strap. Failure to do so
may cause an unexpected accident or
severe injury in the event of emergen-
cy braking or a collision.
WHEN RETURNING THE REAR SEATS
If you cannot raise the seatback be-
cause of the locked seat belt, do not
try it forcibly. Release the lock of the
seat belt in the following way. Push in
the lower front edge of the seatback
cushion to slacken the seat belt (1) and
let the seat belt retract a little (2).
CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent personal
injury in a collision or sudden stop:
Be careful not to get your hands or
feet pinched in the seat.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.
