2006 TOYOTA TUNDRA Owners Manual

’06 TUNDRA_U (L/O 0508)
37
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

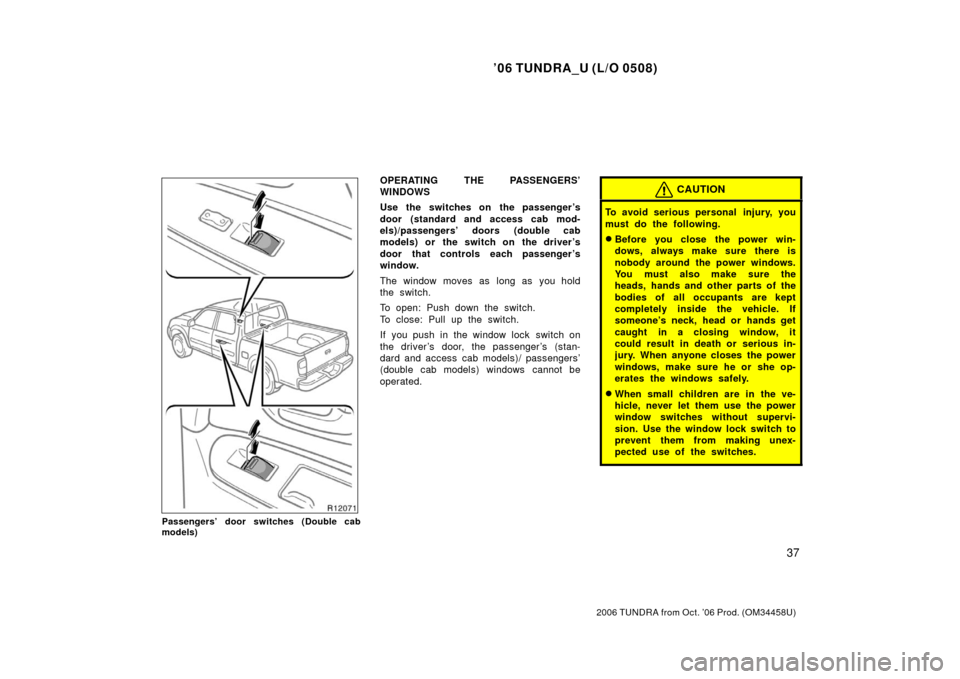

Passengers’ door switches (Double cab
models)
OPERATING THE PASSENGERS’
WINDOWS
Use the switches on the passenger ’s
door (standard and access cab mod-
els)/passengers’ doors (double cab
models) or the switch on the driver’s
door that controls each passenger ’s
window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passenger ’s (stan-
dard and access cab models)/ passengers’
(double cab models) windows cannot be
operated.CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.

’06 TUNDRA_U (L/O 0508)
38
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.

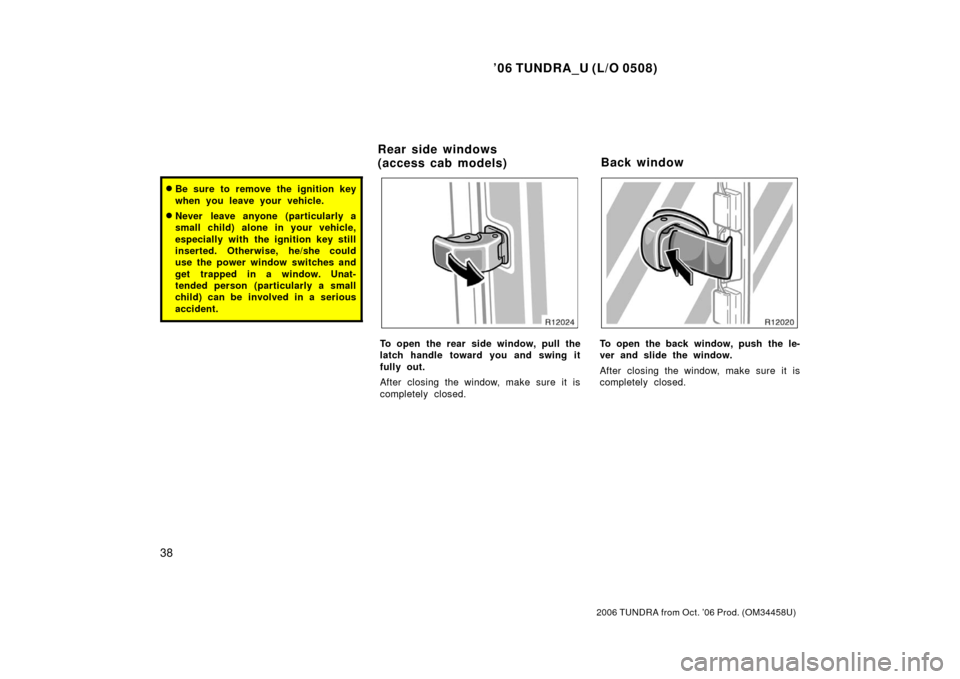

To open the rear side window, pull the
latch handle toward you and swing it
fully out.
After closing the window, make sure it is
completely closed.To open the back window, push the le-
ver and slide the window.
After closing the window, make sure it is
completely closed.
Rear side windows
(access cab models) Back window

’06 TUNDRA_U (L/O 0508)
39
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

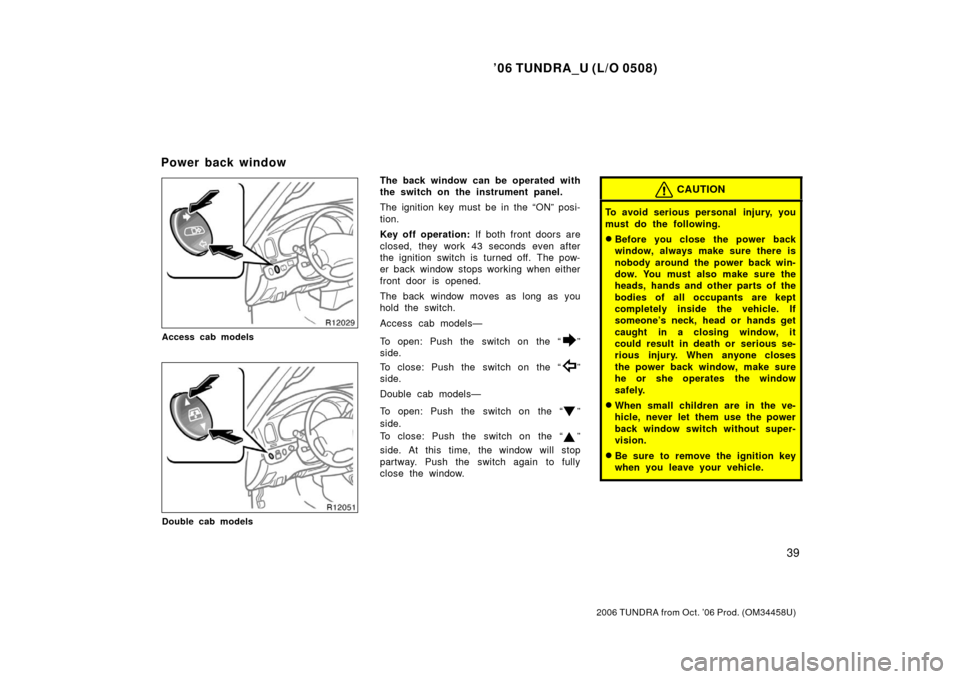

Access cab models
Double cab models
The back window can be operated with
the switch on the instrument panel.
The ignition key must be in the “ON” posi-
tion.
Key off operation: If both front doors are
closed, they work 43 seconds even after
the ignition switch is turned off. The pow-
er back window stops working when either
front door is opened.
The back window moves as long as you
hold the switch.
Access cab models—
To open: Push the switch on the “
”
side.
To close: Push the switch on the “
”
side.
Double cab models—
To open: Push the switch on the “
”
side.
To close: Push the switch on the “
”
side. At this time, the window will stop
partway. Push the switch again to fully
close the window.
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power back
window, always make sure there is
nobody around the power back win-
dow. You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious se-
rious injury. When anyone closes
the power back window, make sure
he or she operates the window
safely.
When small children are in the ve-
hicle, never let them use the power
back window switch without super-
vision.
Be sure to remove the ignition key
when you leave your vehicle.
Power back window

’06 TUNDRA_U (L/O 0508)
40
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power back window switch
and get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Keep the back window closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.

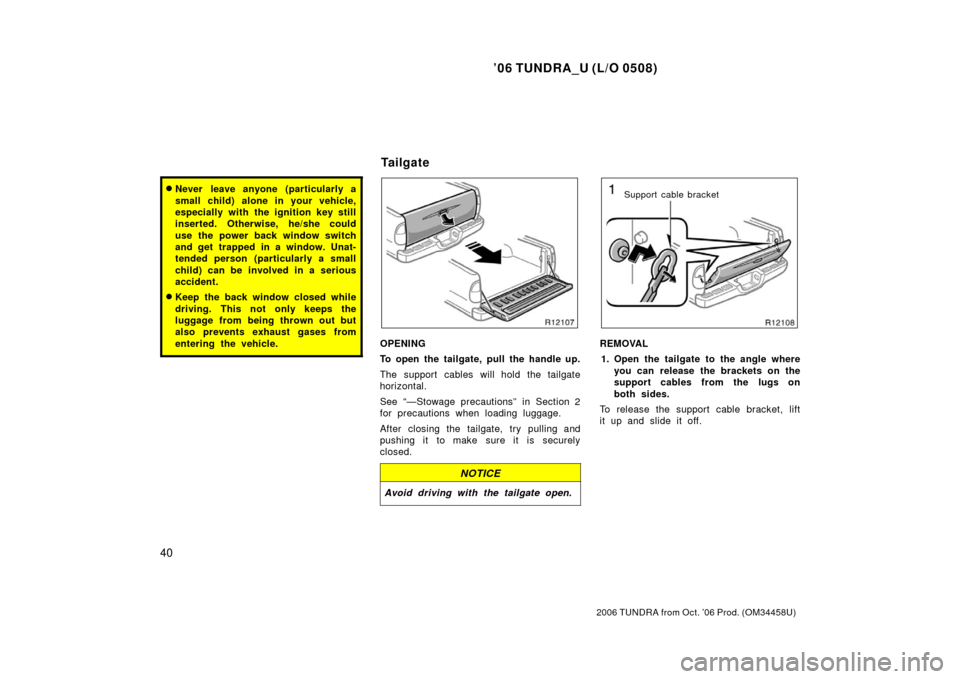

OPENING
To open the tailgate, pull the handle up.
The support cables will hold the tailgate
horizontal.
See “—Stowage precautions” in Section 2
for precautions when loading luggage.
After closing the tailgate, try pulling and
pushing it to make sure it is securely
closed.
NOTICE
Avoid driving with the tailgate open.
Support cable bracket
REMOVAL
1. Open the tailgate to the angle where you can release the brackets on the
support cables from the lugs on
both sides.
To release the support cable bracket, lift
it up and slide it off.
Tailgate

’06 TUNDRA_U (L/O 0508)
41
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

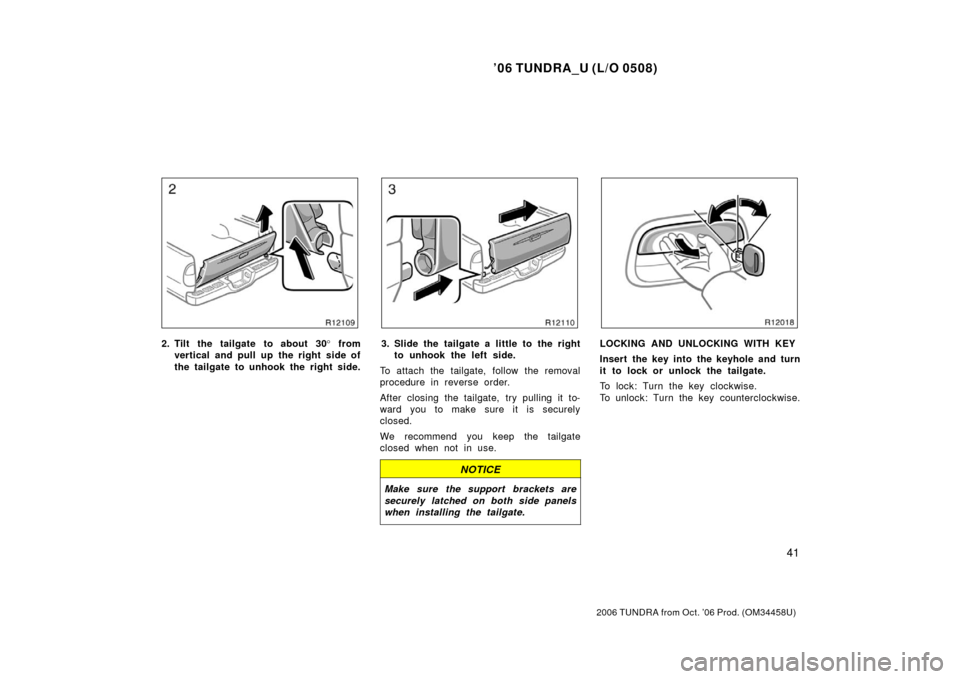

2. Tilt the tailgate to about 30 ° from
vertical and pull up the right side of
the tailgate to unhook the right side.3. Slide the tailgate a little to the right to unhook the left side.
To attach the tailgate, follow the removal
procedure in reverse order.
After closing the tailgate, try pulling it to-
ward you to make sure it is securely
closed.
We recommend you keep the tailgate
closed when not in use.
NOTICE
Make sure the support brackets are
securely latched on both side panels
when installing the tailgate.
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it to lock or unlock the tailgate.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.

’06 TUNDRA_U (L/O 0508)
42
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

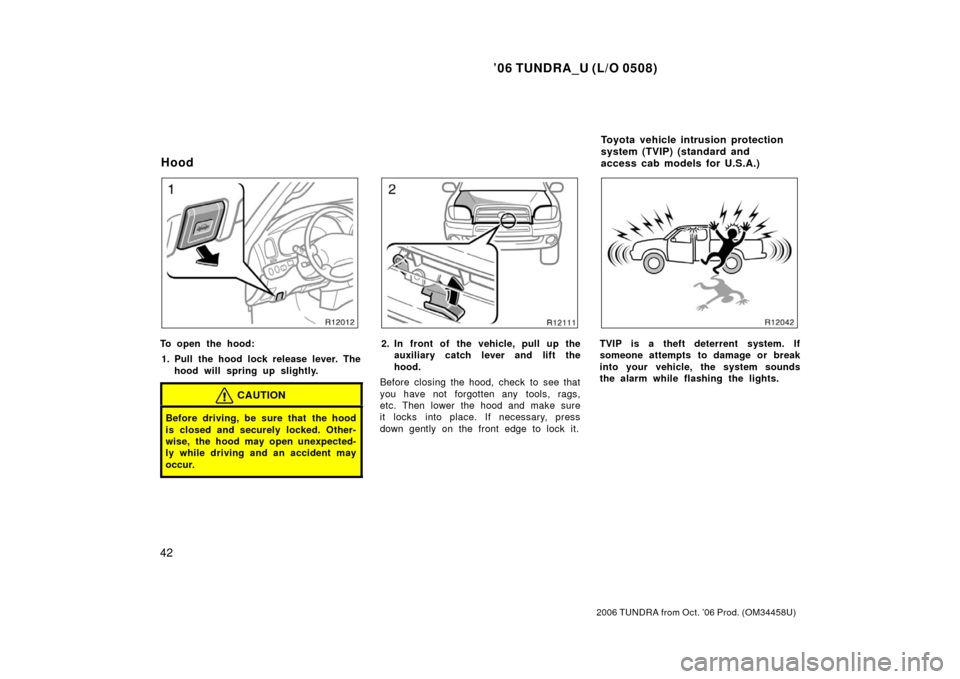

To open the hood:
1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.TVIP is a theft deterrent system. If
someone attempts to damage or break
into your vehicle, the system sounds
the alarm while flashing the lights.
Hood
Toyota vehicle intrusion protection
system (TVIP) (standard and
access cab models for U.S.A.)

’06 TUNDRA_U (L/O 0508)
43
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

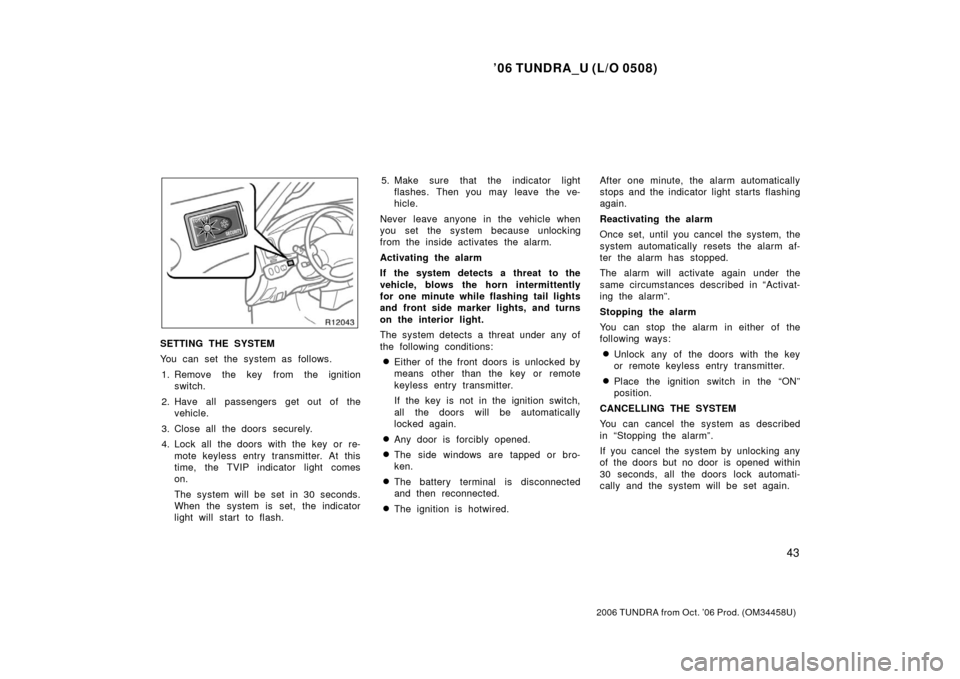

SETTING THE SYSTEM
You can set the system as follows.
1. Remove the key from the ignition switch.
2. Have all passengers get out of the vehicle.
3. Close all the doors securely.
4. Lock all the doors with the key or re- mote keyless entry transmitter. At this
time, the TVIP indicator light comes
on.
The system will be set in 30 seconds.
When the system is set, the indicator
light will start to flash. 5. Make sure that the indicator light
flashes. Then you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system because unlocking
from the inside activates the alarm.
Activating the alarm
If the system detects a threat to the
vehicle, blows the horn intermittently
for one minute while flashing tail lights
and front side marker lights, and turns
on the interior light.
The system detects a threat under any of
the following conditions:
Either of the front doors is unlocked by
means other than the key or remote
keyless entry transmitter.
If the key is not in the ignition switch,
all the doors will be automatically
locked again.
Any door is forcibly opened.
The side windows are tapped or bro-
ken.
The battery terminal is disconnected
and then reconnected.
The ignition is hotwired. After one minute, the alarm automatically
stops and the indicator light starts flashing
again.
Reactivating the alarm
Once set, until you cancel the system, the
system automatically resets the alarm af-
ter the alarm has stopped.
The alarm will activate again under the
same circumstances described in “Activat-
ing the alarm”.
Stopping the alarm
You can stop the alarm in either of the
following ways:
Unlock any of the doors with the key
or remote keyless entry transmitter.
Place the ignition switch in the “ON”
position.
CANCELLING THE SYSTEM
You can cancel the system as described
in “Stopping the alarm”.
If you cancel the system by unlocking any
of the doors but no door is opened within
30 seconds, all the doors lock automati-
cally and the system will be set again.

’06 TUNDRA_U (L/O 0508)
44
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
NOTE: If your vehicle’s tail lights and
front side marker lights turn on
and the buzzer sounds for 2 sec-
onds when the system is can-
celed, the trigger memory was ac-
tivated; an alarm was triggered
while you were away from the ve-
hicle.
TESTING THE SYSTEM
You can check the system operation as
follows.
1. Open all the windows.
2. Set the system as described in “SETTING THE SYSTEM”.
3. Unlock the driver’s door with the inside lock knob. The system should activate
and the alarm should sound.
4. Stop the alarm as described in “Stop- ping the alarm”.
5. Repeat steps 2 to 4 for the passen- ger ’s door.
If the system does not work properly,
have it checked by your Toyota dealer.

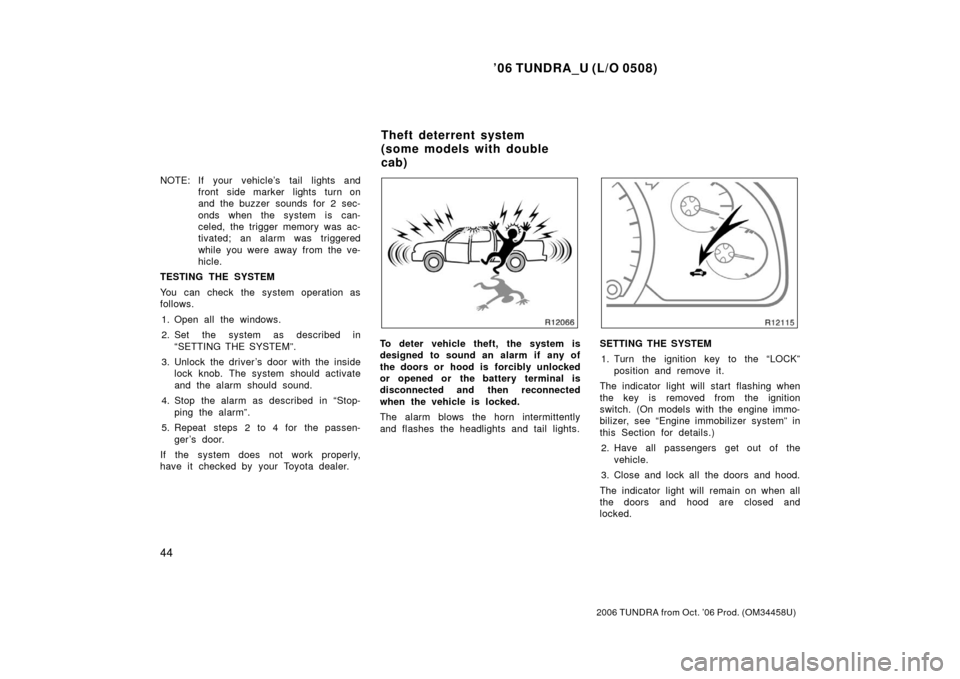

To deter vehicle theft, the system is
designed to sound an alarm if any of
the doors or hood is forcibly unlocked
or opened or the battery terminal is
disconnected and then reconnected
when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.SETTING THE SYSTEM 1. Turn the ignition key to the “LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (On models with the engine immo-
bilizer, see “Engine immobilizer system” in
this Section for details.) 2. Have all passengers get out of the vehicle.
3. Close and lock all the doors and hood.
The indicator light will remain on when all
the doors and hood are closed and
locked.
Theft deterrent system
(some models with double
cab)
