2006 TOYOTA TUNDRA Owners Manual

’06 TUNDRA_U (L/O 0508)
333
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Remove spacers from the center panel.
Place the largest spacer on the pin that
would be below transmitter button when
the cover is closed. Close the cover.When the garage door opener transmitter
is properly installed, you can operate the
transmitter by pushing the center panel of
the cover.If the center panel does not contact your
garage door opener transmitter:
Check to see if spacer is on the cor-
rect pin.
Attach another spacer to the top of
original spacer. Check operation. If re-
quired, continue to add spacers until
contact is achieved.
If the transmitter is clattering during driv-
ing, fill in a piece of felt or pad to prevent
the transmitter from clattering.

’06 TUNDRA_U (L/O 0508)
334
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the garage door
opener box closed while driving.
Keep the remaining spacers away
from children.
Standard and access cab models only—
The auxiliary box (stored in the glove
box) and garage door opener box are
interchangeable.
Removing the cover—
Half open the cover. Pinch each hinge and
pull it out of its pivot one at a time as
shown above.
Do not remove the cover forcibly.Installing the cover—
Align the hinges to the pivots, and press
each hinge until you hear a click.
Make sure that the cover opens and
closes smoothly.

’06 TUNDRA_U (L/O 0508)
335
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
To use the auxiliary boxes, open the
lids as shown in the following illustra-
tions.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
Type A and B only—As these hold-
ers are designed for holding a light
object such as an eyeglass, do not
place any heavy objects in them.
Heavy objects may cause the holder
to open and contents to fly out re-
sulting in injuries.
NOTICE
Type A and B only—During hot weath-
er, the interior of the vehicle becomes
very hot. Do not leave anything flam-
mable or deformable such as a light-
er, glasses, etc. inside.
Ty p e A
Ty p e BTy p e C
Auxiliary boxes

’06 TUNDRA_U (L/O 0508)
336
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Ty p e D
Front
Type E (under the rear seat of access cab
models)
Front
Type F (under the rear seat of double cab
models)
Rear console box (type A)

’06 TUNDRA_U (L/O 0508)
337
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
UPPER TRAY
To access the upper tray, raise the con-
sole box lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the upper tray closed
while driving.
CONSOLE BOX
To access the rear console box, raise
the upper tray by pulling up the lock
release lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
Rear console box (type B)

’06 TUNDRA_U (L/O 0508)
338
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
UPPER TRAY
To access the upper tray, raise the con-
sole box upper lid while pushing the
lock release button.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the upper tray closed
while driving.
CONSOLE BOX
To access the rear console box, raise
the console box lid by pulling up the
lock release lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
Coin holder (type A)

’06 TUNDRA_U (L/O 0508)
339
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
The rear console box is equipped with
a coin holder.
To use the coin holder:
1. Raise the console box lid.
2. Push coins down into the holder.The rear console box is equipped with
a coin holder.
To use the coin holder:1. Raise the console box upper lid while pushing the lock release button.
2. Push coins down into the holder.
The coin holder is detachable.
Coin holder (type B)

’06 TUNDRA_U (L/O 0508)
340
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

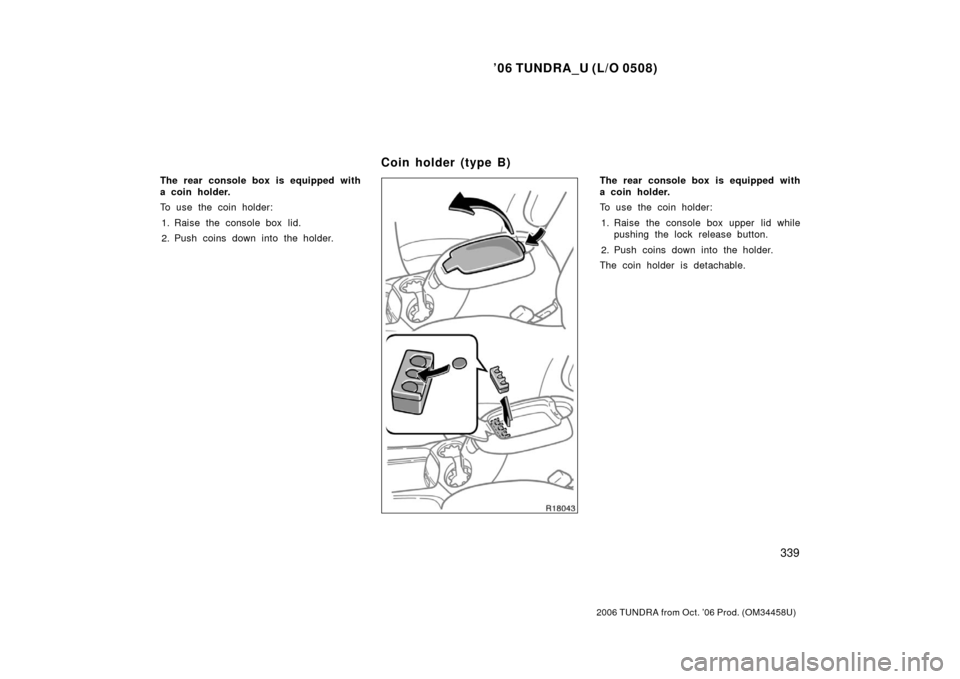

The coin holder can be set in the con-
sole box.
To set the coin holder in the console box,
raise the console box lid by pulling up the
lock release lever.
Coin holder (type C)
