2006 MERCEDES-BENZ E WAGON Owner's Manual

480 Technical dataMain dimensions and weightMain dimensionsModel
E350
E500
1
1Not available in the U.S.
E55AMG
Overall vehicle length
191.7 in (4 868 mm)
191.7 in (4 868 mm)
191.8 in (4 871 mm)
Overall vehicle width (exterior view
mirrors folded out)
78.3 in (1990 mm)
78.3 in (1990 mm)
78.3 in (1990 mm)
Overall vehicle height
58.9 in (1 495 mm)
Overall vehicle height (Airmatic DC*)
(optional on E 350; standard on
E500/E55AMG)
58.4 in (1 483 mm)
58.5 in (1 485 mm)
58.5 in (1 485 mm)
Wheelbase
112.4 in (2 854 mm)
112.4 in (2 854 mm)
112.4 in (2 854 mm)
Track, front
61.4 in (1 559 mm)
61.7 in (1 567 mm)
62.3 in (1583 mm)
Track, rear
61.1 in (1 552 mm)
61.4 in (1 560 mm)
61.3 in (1558 mm)

481 Technical data
Main dimensions and weight
WeightModel
E3204MATIC
E5004MATIC
Overall vehicle length
191.7 in (4 868 mm)
191.7 in (4 868 mm)
Overall vehicle width (exterior view
mirrors folded out)
78.3 in (1990 mm)
78.3 in (1990 mm)
Overall vehicle height
58.9 in (1 495 mm)
Overall vehicle height (Airmatic DC*)
(optional on E 350; standard on E 500)
58.4 in (1 483 mm)
58.5 in (1 485 mm)
Wheelbase
112.4 in (2 854 mm)
112.4 in (2 854 mm)
Track, front
61.3 in (1 557 mm)
61.6 in (1 565 mm)
Track, rear
61.1 in (1 552 mm)
61.4 in (1 560 mm)
Max. roof load
220 lbs (100 kg)

482 Technical dataFuels, coolants, lubricants etc.CapacitiesVehicle components and their respective
lubricants must match. Therefore only use
products tested and approved by
Mercedes-Benz.Please refer to the Factory Approved Ser-
vice Products Pamphlet, or inquire at your
authorized Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants etc.
Engine with oil filter
E350
E3504MATIC
E5004MATIC
8.5 US qt (8.0 l)
Approved engine oils
E500
8.0 US qt (7.5 l)
E55AMG
9.0 US qt (8.5 l)
Automatic transmission
E350
E500
8.5 US qt (8.0 l)
MB Automatic Transmission Fluid
E3504MATIC
E5004MATIC
6.9 US qt (6.5 l)
E55AMG
8.0 US qt (7.5 l)
Front axle
E3504MATIC
E5004MATIC
0.63 US qt (0.6 l)
Hypoid gear oil SAE 85 W 90

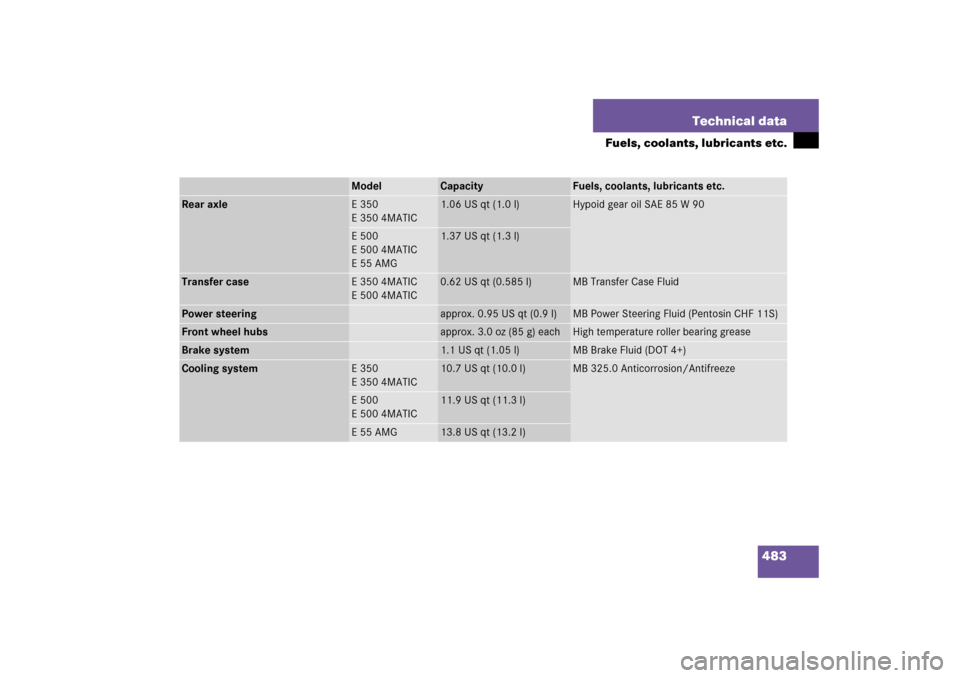

483 Technical data
Fuels, coolants, lubricants etc.
Model
Capacity
Fuels, coolants, lubricants etc.
Rear axle
E350
E3504MATIC
1.06 US qt (1.0 l)
Hypoid gear oil SAE 85 W 90
E500
E5004MATIC
E55AMG
1.37 US qt (1.3 l)
Transfer case
E3504MATIC
E5004MATIC
0.62 US qt (0.585 l)
MB Transfer Case Fluid
Power steering
approx. 0.95 US qt (0.9 l)
MB Power Steering Fluid (Pentosin CHF 11S)
Front wheel hubs
approx. 3.0 oz (85 g) each
High temperature roller bearing grease
Brake system
1.1 US qt (1.05 l)
MB Brake Fluid (DOT 4+)
Cooling system
E350
E3504MATIC
10.7 US qt (10.0 l)
MB 325.0 Anticorrosion/Antifreeze
E500
E5004MATIC
11.9 US qt (11.3 l)
E55AMG
13.8 US qt (13.2 l)

484 Technical dataFuels, coolants, lubricants etc.
Model
Capacity
Fuels, coolants, lubricants etc.
Fuel tank
21.12 US gal (80.0 l)
Gasoline engines:
Premium unleaded gasoline
Minimum Posted Octane 91 (Avg. of 96
RON/86 MON)
Diesel engine:
Diesel fuels according to ASTM D 975 grades
1-D and 2-D
including a reserve of
all except
E55AMG
2.38 US gal (9.0 l)
including a reserve of
E55AMG
3.7 US gal (14.0 l)
Air conditioning system
R-134a refrigerant and special PAG lubricant
oil (never R-12)
Windshield washer
4.8 US qt (4.5 l)
MB Windshield Washer Concentrate
1
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and commercially available pre-
mixed windshield washer solvent/antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 490).Windshield washer and head-
lamp cleaning system
7.4 US qt (7.0 l)
MB Windshield Washer Concentrate
1

485 Technical data
Fuels, coolants, lubricants etc.
Engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for
our service intervals. Therefore, only use
approved engine oils and oil filters re-
quired for vehicles with Maintenance Sys-
tem (U.S. vehicles) or FSS PLUS (Canada
vehicles). For a listing of approved engine
oils and oil filters, refer to the Factory Ap-
proved Service Products pamphlet, or con-
tact an authorized Mercedes-Benz Center.
Engine oil additives
Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil are used in the air condition-
ing system.
Never use R-12 (CFC) or mineral-based lu-
bricating oil. Otherwise damage to the
system will occur.
Brake fluid
During vehicle operation, the boiling point
of the brake fluid is continuously reduced
through the absorption of moisture from
the atmosphere.
Only brake fluid approved by
Mercedes-Benz is recommended. Your au-
thorized Mercedes-Benz Center will pro-
vide you with additional information.
!Using engine oils and oil filters of spec-
ification other than those expressly re-
quired for the Maintenance System
(U.S. vehicles) or FSS PLUS (Canada
vehicles), or changing of oil and oil filter
at change intervals longer than those
called for by the Maintenance System
(U.S. vehicles) or FSS PLUS (Canada
vehicles) will result in engine damage
not covered by the Mercedes-Benz
Limited Warranty.
Please follow Maintenance System
(U.S. vehicles) or FSS PLUS (Canada
vehicles) recommendations for sched-
uled oil changes. Failure to do so could
result in engine damage not covered by
the Mercedes-Benz Limited Warranty.
Warning!
G
Under extremely strenuous operating condi-
tions, this moisture content can lead to the
formation of bubbles in the system, thus re-
ducing the system’s efficiency.
Therefore, the brake fluid must be replaced
regularly. Refer to your vehicle’s Mainte-
nance Booklet for replacement interval.

486 Technical dataFuels, coolants, lubricants etc.Premium unleaded gasoline
Gasoline additives
A major concern among engine manufac-
turers is carbon build-up caused by gaso-
line. Mercedes-Benz recommends only the
use of quality gasoline containing additives
that prevent the build-up of carbon depos-
its.
After an extended period of using fuels
without such additives, carbon deposits
can build up especially on the intake valves
and in the combustion area, leading to en-
gine performance problems such as:

Warm-up hesitation


Unstable idle


Knocking/pinging


Misfire


Power loss
Warning!
G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious inju-
ry. Whenever you are around gasoline, avoid
inhaling fumes and skin contact, extinguish
all smoking materials. Never allow sparks,
flame or smoking materials near gasoline!
!To maintain the engine’s durability and
performance, premium unleaded gaso-
line must be used. If premium unleaded
gasoline is not available and low octane
fuel is used, follow these precautions:

Have the fuel tank only partially
filled with unleaded regular and fill
up with premium unleaded as soon
as possible


Avoid full throttle driving and abrupt
acceleration


Do not exceed an engine speed of
3 000 rpm if the vehicle is loaded
with a light load such as two per-
sons and no luggage


Do not exceed
2/3 of maximum ac-
celerator pedal position if the vehi-
cle is fully loaded or operating in
mountainous terrain

487 Technical data
Fuels, coolants, lubricants etc.
In areas where carbon deposits may be en-
countered due to lack of availability of
gasolines which contain these additives,
Mercedes-Benz recommends the use of
additives approved by us for use on
Mercedes-Benz vehicles. Refer to Factory
Approved Service Products Pamphlet for a
listing of approved product(s). Follow di-
rections on product label.
Do not blend other fuel additives with fuel.
This only results in unnecessary costs and
may be harmful to the engine operation.
Damage or malfunction resulting from
poor fuel quality or from blending addition-
al fuel additives other than those tested
and approved by us for use on
Mercedes-Benz vehicles listed in the Fac-
tory Approved Service Products pamphlet
are not covered by the Mercedes-Benz
Limited Warranty.
Fuel requirements
Use only premium unleaded gasoline
meeting ASTM standard D 439:

The octane number (posted at the
p um p) mu st b e 9 1 m i n. It is a n ave ra ge
of both the Research (R) Octane Num-
ber and the Motor (M) Octane Number:
(R+M) / 2). This is also known as the
ANTI-KNOCK INDEX.
Unleaded gasoline containing oxygenates
such as ethanol, IPA, IBA and TBA can be
used provided the ratio of any one of these
oxygenates to gasoline does not exceed
10%; MTBE must not exceed 15%.
The ratio of methanol to gasoline must not
exceed 3% plus additional cosolvents.
Using mixtures of ethanol and methanol is
not allowed. Gasohol, which contains 10%
ethanol and 90% unleaded gasoline, can be
used.
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure, etc.
Coolants
The engine coolant is a mixture of water
and anticorrosion/antifreeze, which pro-
vides:

Corrosion protection


Freeze protection


Boiling protection (by increasing the
boiling point)
The cooling system was filled at the factory
with a coolant providing freeze protection
to approximately -22°F (-30°C) and corro-
sion protection.
If the antifreeze mixture is effective to
-22°F (-30°C), the boiling point of the cool-
ant in the pressurized cooling system is
reached at approximately 266°F (130°C).
The coolant solution must be used
year-round to provide the necessary corro-
sion protection and increase boil-over pro-
tection. Refer to Maintenance Booklet for
replacement interval.
