465 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main dimensions and weight
Fuels, coolants, lubricants etc.

466 Technical dataThe “Technical data” section provides the
necessary technical data for your vehicle.Parts service
All authorized Mercedes-Benz Centers
maintain a stock of Genuine
Mercedes-Benz parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, Genuine Mercedes-Benz parts
should be installed.
!The use of non-genuine Mercedes-Benz
parts and accessories not authorized
by Mercedes-Benz could damage the
vehicle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s dura-
bility or safety.

467 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information Booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed in the vehicle in accordance
with the terms of the following warranties:

New Car Limited Warranty


Emission System Warranty


Emission Performance Warranty


California, Maine, Massachusetts, and
Vermont Emission Control System
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories Warranties, copies of which
are available at any authorized
Mercedes-Benz Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information Booklet, have your authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.

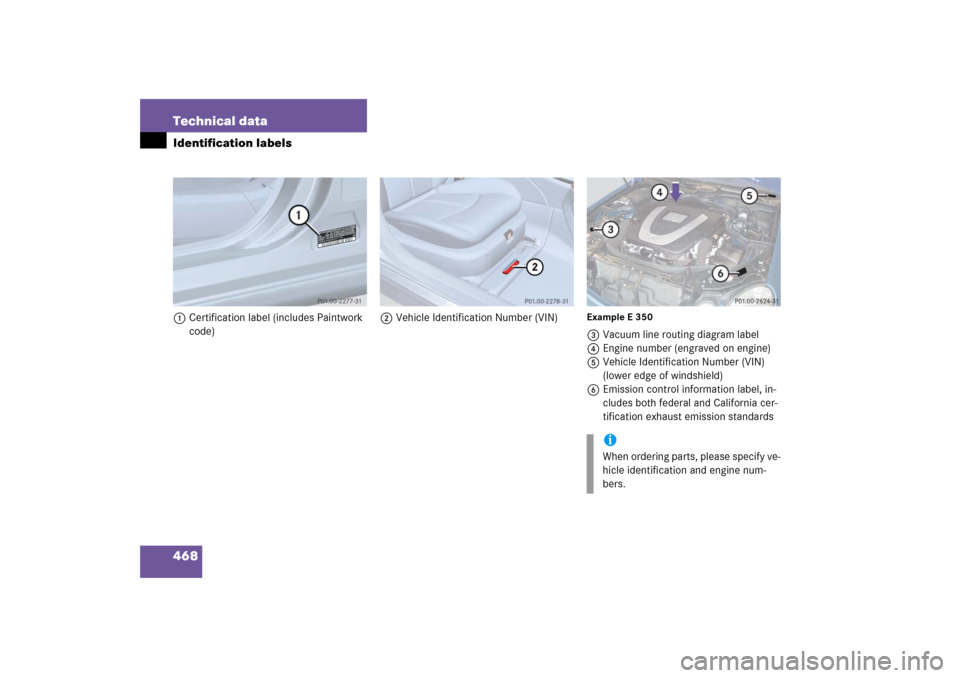

468 Technical dataIdentification labels1Certification label (includes Paintwork
code)2Vehicle Identification Number (VIN)
Example E 3503Vacuum line routing diagram label
4Engine number (engraved on engine)
5Vehicle Identification Number (VIN)
(lower edge of windshield)
6Emission control information label, in-
cludes both federal and California cer-
tification exhaust emission standards
iWhen ordering parts, please specify ve-
hicle identification and engine num-
bers.

469 Technical data
Layout of poly-V-belt drive
Layout of poly-V-belt drive
E 350/E 350 4MATIC
1Idler pulley
2Idler pulley
3Automatic belt tensioner
4Power steering pump
5Air conditioning compressor
6Crankshaft
7Coolant pump
8Generator (alternator)
E500/E5004MATIC
1Automatic belt tensioner
2Power steering pump
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
E55AMGThe E 55 AMG has two poly-V-belts (belt one
shown in purple/belt two shown in black).1Idler pulley
2Automatic belt tensioner
3Power steering pump
4Air conditioning compressor
5Crankshaft
6Coolant pump
7Generator (alternator)
8Idler pulley
9Automatic belt tensioner
aSuper charger

470 Technical dataEngineModel
E 350 (211.256
1)
E 350 4MATIC (211.287
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
E 500
2 (211.270
1)
E 500 4MATIC (211.283
1)
2Not available in the U.S.Engine
272
113
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
6
8
Bore
3.66 in (92.90 mm)
3.82 in (97.00 mm)
Stroke
3.39 in (86.00 mm)
3.31 in (84.00 mm)
Total piston displacement
213.5 cu in (3 498 cm
3)
303.0 cu in (4 966 cm
3)
Compression ratio
10.7:1
10:1
Output acc. to SAE J 1349
268 hp / 6 000 rpm
3
(200 kW / 6 000 rpm)
3Premium fuel required. Performance may vary with fuel octane rating.
302 hp/5 600 rpm
2
(225 kW/5 600 rpm)
Maximum torque acc. to SAE J 1349
258 lb-ft / 2 400 rpm - 5 000 rpm
(350 Nm / 2 400 rpm - 5 000 rpm)
339 lb-ft/2 700 rpm - 4 250 rpm
(460 Nm/2 700 rpm - 4 250 rpm)
Maximum engine speed
6500 rpm
6300 rpm
Firing order
1-4-3-6-2-5
1-5-4-2-6-3-7-8
Poly-V-belt
2404 mm
2390 mm

471 Technical data
Engine
Model

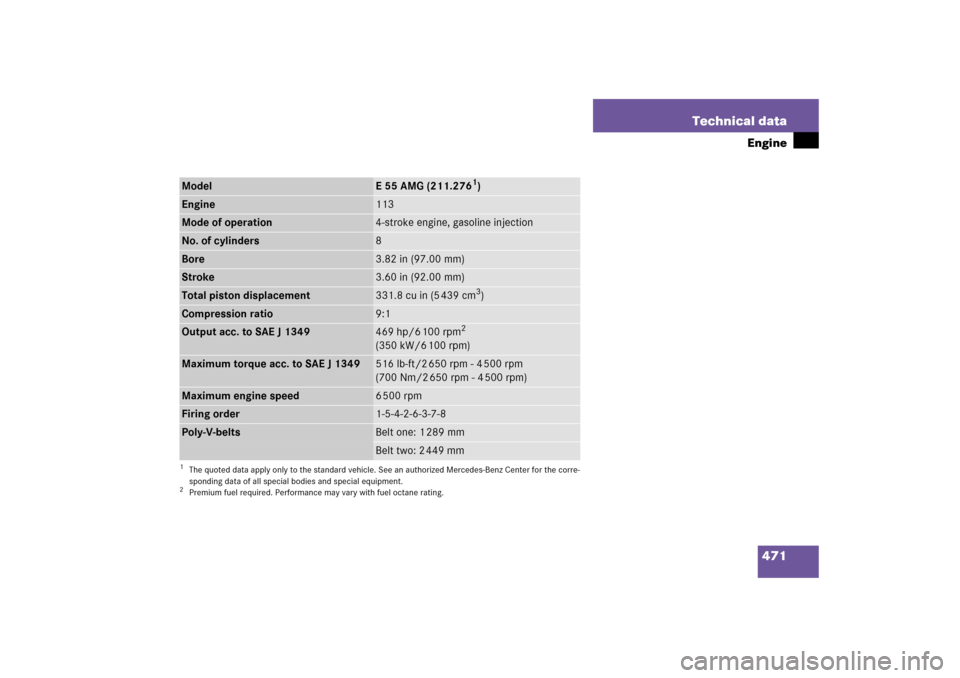

E55AMG (211.276
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corre-
sponding data of all special bodies and special equipment.Engine
113
Mode of operation
4-stroke engine, gasoline injection
No. of cylinders
8
Bore
3.82 in (97.00 mm)
Stroke
3.60 in (92.00 mm)
Total piston displacement
331.8 cu in (5 439 cm
3)
Compression ratio
9:1
Output acc. to SAE J 1349
469 hp/6 100 rpm
2
(350 kW/6 100 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.Maximum torque acc. to SAE J 1349
516 lb-ft/2 650 rpm - 4 500 rpm
(700 Nm/2 650 rpm - 4 500 rpm)
Maximum engine speed
6500 rpm
Firing order
1-5-4-2-6-3-7-8
Poly-V-belts
Belt one: 1 289 mmBelt two: 2 449 mm
