136 Controls in detailSeatsSeat ventilation*
The switch is located on the center con-
sole. Seat ventilation can be activated
manually with the ignition on, or by the
summer opening feature (
page 234).
The blue indicator lamps on the switch
show the ventilation level selected:
1Seat ventilation switch

Switch on the ignition (
page 36).
Switching seat ventilation on

Press button1 repeatedly until the
desired ventilation level is set.Switching seat ventilation off

Press button1 repeatedly until all in-
dicator lamps go out.
Level3
Three indicator lamps on
(highest level)
2
Two indicator lamps on
1
One indicator lamp on
(lowest level)
off
No indicator lamp on
iThe seat ventilation is automatically set
to the highest level if activated via sum-
mer opening feature (
page 234).
iIf one or more of the lamps on the seat
ventilation switch are flashing, there is
insufficient voltage available since too
many electrical consumers are turned
on. The seat ventilation switches off au-
tomatically.
The seat ventilation will switch back on
again automatically as soon as suffi-
cient voltage is available.

137 Controls in detailSeats
Folding bench seat in cargo compart-mentFolding out the folding bench seat
1Release handle for seat backrest
2Release handle for seat cushion
Before folding out the seat backrest, you
must:


fold the rear seat backrests into an up-
right position and lock them into place


move the handle for the twin roller
blind into the upper position
iThe folding bench seat in the cargo
compartment is approved only for per-
sons up to a height of 4.6 ft (1.40 m)
and a maximum weight of 110 lbs
(50 kg).
The twin roller blind must be installed
when the folding bench seat is in use.Warning!
G
When using the folding bench seat in the
cargo compartment, the seats in front of it
must be in the driving position.
Only drive when the head restraints for the
folding bench seat have been properly ad-
justed. The head restraints should be adjust-
e d so t ha t th e ba c k of th e h ea d is s uppo r te d
at approximately eye level. This can reduce
a child’s risk of injury in the event of an ac-
cident.
Warning!
G
Make sure that the seat belt is positioned
correctly on the body and is engaged in the
seat belt buckle.
Damaged covers should be replaced with
original covers only.
Do not leave children unattended in the ve-
hicle, even when they are secured in a child
restraint system.
Make sure that luggage and other objects
are adequately secured. The load could oth-
erwise injure someone in the event of an ac-
cident, during hard braking or steering
maneuvers.
iThe rear seat backrests can be adjust-
ed to a more reclined position to make
the folding bench seat more comfort-
able (
page 262).

138 Controls in detailSeats
Pull release handle 1 and fold seat
backrest for the folding bench seat up-
ward.
3Mountings for seat belts

Hook seat belts into mountings 3.

Pull release handle 2 and fold seat
cushion for the folding bench seat into
sitting position.

Press seat cushion as far down as it will
go.
The backrest will then also engage
properly.

Fold head restraints into upright posi-
tion.Removing and installing seat cushions
Removing
1Seat guides
2Seat cushion

Fold seat cushion 2 upward and re-
move it from seat guides 1.Installing

Insert seat cushion 2 into seat guides
1 from behind 3 at a slight angle.

Fold seat cushion 2 back into original
position 4 until it engages.
iYou must remove the seat cushion
when you want to raise the loading
floor, e.g. in the event of a flat tire.

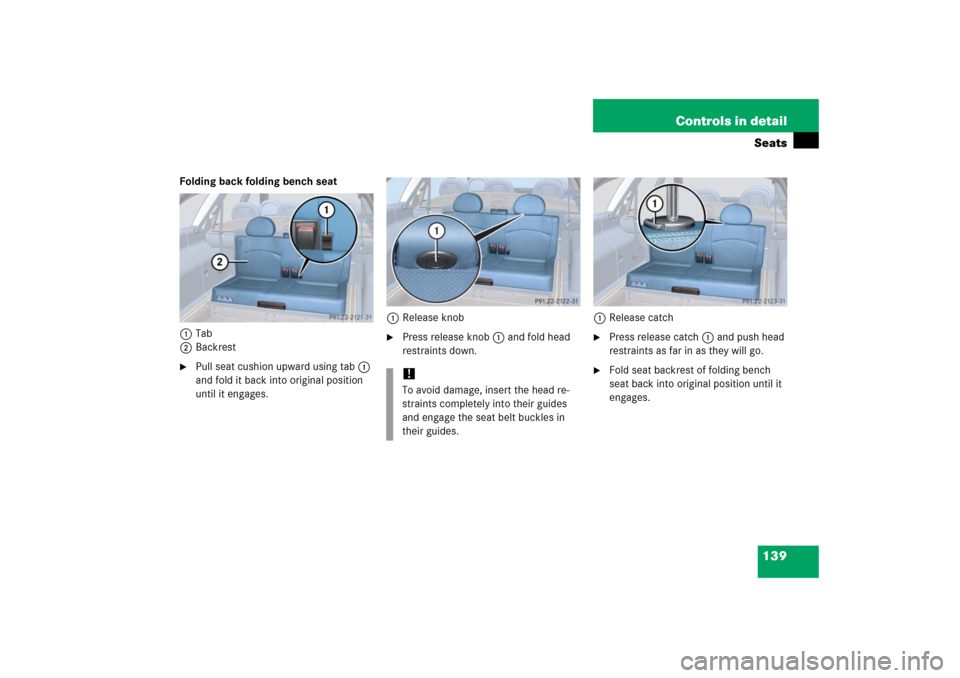

139 Controls in detailSeats
Folding back folding bench seat
1Tab
2Backrest
Pull seat cushion upward using tab 1
and fold it back into original position
until it engages.1Release knob

Press release knob 1 and fold head
restraints down.1Release catch

Press release catch 1 and push head
restraints as far in as they will go.

Fold seat backrest of folding bench
seat back into original position until it
engages.
!To avoid damage, insert the head re-
straints completely into their guides
and engage the seat belt buckles in
their guides.

140 Controls in detailMemory functionPrior to operating the vehicle, the driver
should check and adjust the seat height,
seat position fore and aft, and seat back-
rest angle if necessary, to ensure adequate
control, reach and comfort. The head re-
straint should also be adjusted for proper
height. See also the section on air bags
(page 67) for more information on prop-
er seat positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, operation
and comfort. Both the interior and outside
rear view mirrors should be adjusted for
adequate rear vision.
Fasten seat belts. Infants and small chil-
dren should be seated in a properly se-
cured restraint system that complies with
U.S. Federal Motor Vehicle Safety Stan-
dards 213 and 225 and Canadian Motor
Vehicle Safety Standards 213 and 210.2.The following settings are stored when
using the buttons on the driver’s door:


Driver’s seat, backrest and head
restraint position and settings for
multicontour seat


Steering wheel position


Exterior rear view mirror positions
The following settings are stored when us-
ing the buttons on the front passenger
door:


Front passenger seat, backrest and
head restraint position and settings for
multicontour seatThe memory button and memory position
buttons are located on the door.
MMemory button
1, 2, 3Memory position button

Switch on the ignition (
page 36).
or

Open the respective door.
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

141 Controls in detail
Memory function
Storing positions into memory
Adjust the seats, steering wheel and
exterior rear view mirrors to the de-
sired position (
page 40).

Press memory buttonM.

Release memory buttonM and press
memory position button 1, 2 or 3 with-
in 3 seconds.
All the settings are stored at the select-
ed position.
Recalling positions from memory
Press and hold memory position
button1, 2 or3 until the seat, steering
wheel and exterior rear view mirrors
have completely moved to the stored
positions.Storing exterior rear view mirror park-
ing position
For easier parking, you can adjust the
passenger-side exterior rear view mirror so
that you can see the right rear wheel as
soon as you engage reverse gearR.
For information on activating the parking
position, see “Activating exterior rear view
mirror parking position” (
page 198).
!Do not operate the power seats using
the memory button if the seat backrest
is in an excessively reclined position.
Doing so could cause damage to front
or rear seats.iReleasing the memory position button
stops movement to the stored posi-
tions immediately.

142 Controls in detailMemory function1Passenger side, exterior rear view mir-
ror
2Adjustment button
Stop the vehicle.

Switch on the ignition (
page 36).

Press button1.
The passenger-side exterior rear view
mirror is selected.

Adjust the exterior rear view mirror
with button2 so that you see the rear
wheel and the road curb.

Press memory button M.

Within 3 seconds, press bottom of ad-
justment button2.
The parking position is stored if the
mirror does not move.iIf the mirror does move, repeat the
above steps. After the setting is stored,
you can move the mirror again.

143 Controls in detail
Lighting
Lighting
For information on how to switch on the
headlamps and use the turn signals, see
“Switching on headlamps” (
page 54)
and see “Turn signals” (
page 54).
Exterior lamp switch
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.Exterior lamp switchMOff
Daytime running lamp mode
(
page 144)
UAutomatic headlamp mode
Daytime running lamp mode
(page 144)
CParking lamps (also tail lamps,
license plate lamps, side marker
lamps, instrument panel lamps)BLow beam headlamps (or high
beam headlamps when the combi-
nation switch is pushed forward)
and parking lamps
ˆStanding lamps, right (turn left one
stop)
‚Standing lamps, left (turn left two
stops)
¥Indicator lamp for front fog lamps
¨Indicator lamp for rear fog lamp
iIf you drive in countries where vehicles
drive on the other side of the road than
the country where the vehicle is regis-
tered, you must have the headlamps
modified for symmetrical low beams.
Relevant information can be obtained
at your authorized Mercedes-Benz
Center.iVehicles equipped with active
Bi-Xenon* headlamps:
The active Bi-Xenon headlamps moni-
tor your steering angle and driving
speed, then automatically shift their
beams to either side to better follow
the curvature of the road ahead, in-
creasing usable illumination over con-
ventional headlamps.
iWith the SmartKey removed from the
starter switch or the engine turned off
with KEYLESS-GO* and the driver’s
door open, a warning sounds if the
parking lamps or low beam headlamps
are switched on.
The message
Switch off lamps
ap-
pears in the multifunction display.
