208 Controls in detailDual-zone automatic climate control (USA only)Adjusting air distribution
Use air distribution control4
(page 204) to adjust the air distribution.
The following symbols are located on the
air distribution display8 (
page 204):

Use air distribution control4
(page 204) until the desired symbol
appears in the display 8
(page 204).
The indicator lamp on buttonU
goes out.
Opening the cockpit air vent and center
air vents

Turn thumbwheels 1 and 5
(page 202) upward.
The cockpit air vent 3 and the center
air vents 2 and 4 are open.Closing the cockpit air vent and center
air vents

Turn thumbwheels 1 and 5
(page 202) downward.
The cockpit air vent 3 and the center
air vents 2 and 4 are closed.
Opening the side air vents

Turn thumbwheels 8 and a
(page 202) upward.
The side air vents 7 and b are open.
Closing the side air vents

Turn thumbwheels 8 and a
(page 202) downward.
The side air vents 7 and b are
closed.
Symbol
Function
a
Directs air through the cock-
pit, side and rear passenger
compartment air vents
Z
Directs air to the windows
X
Directs air into the entire
vehicle interior
Y
Directs air to the footwells
iYou can also turn the air distribution
control to a position between two sym-
bols.

209 Controls in detail
Dual-zone automatic climate control (USA only)
Adjusting air volume
Nine blower speeds are available.
Press button
to decrease
orQ to increase air volume
(page 204) to the desired level.
The indicator lamp on buttonU
(page 204) goes out. The automatic
operation of air volume switches off.
The selected blower speed is shown in
the air volume displaya
(page 204).
Front defroster
You can use this setting to defrost the
windshield, for example if it is iced up.
You can also defog the windshield and the
side windows.Activating

Press button0 (
page 204).
The indicator lamp on the button
comes on.
The air conditioning switches
automatically to the following func-
tions:


cooling on to dehumidify


maximum blowing and heating
power (depends on cooling
temperature)


air flows onto the windshield
and the front side windows


the air recirculation mode is
switched off
Deactivating

Press button0 (
page 204) again.
The indicator lamp on the button goes
out. Defrosting is turned off.
The previous settings are once again in
effect.Windshield fogged on the outside

Switch the windshield wipers on
(page 55).

Close the cockpit air vent.

Press buttonU (
page 204).
The indicator lamp on the button
comes on. The air volume and air distri-
bution are adjusted automatically.
If the automatic air distribution is switched
off:

Turn air distribution control4 to a
or Y (
page 204).
iKeep this setting selected only until the
windshield or the side windows are
clear again.
iThe cooling remains switched on.iKeep this setting selected only until the
windshield is clear again.

210 Controls in detailDual-zone automatic climate control (USA only)Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside (e.g. before a driving
through a tunnel). This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment.Activating

Briefly press button,
(page 204).
The indicator lamp on the button
comes on.
Warning!
G
Fogged windows impair visibility, endanger-
ing you and others. If the windows begin to
fog on the inside, switching off the air
recirculation mode immediately should clear
interior window fogging. If interior window
fogging persists, make sure the air
conditioning (
page 212) is activated, or
press button
0
.
iThe air recirculation mode is activated
automatically at high outside tempera-
tures.
The indicator lamp on button, is
not lit when the air recirculation mode
is automatically switched on.
A quantity of outside air is added after
approximately 30 minutes.
If you have turned off the air condition-
ing (
page 212) or the outside
temperature is below 41°F (5°C), the
air recirculation mode will not switch
on automatically.
Warning!
G
Never operate the windows and tilt/sliding
sunroof* if there is the possibility of anyone
being harmed by the opening or closing pro-
cedure.
In case the procedure causes potential dan-
ger:
The closing of the side windows can be im-
mediately halted by pressing or pulling the
respective window switch. The closing of the
tilt/sliding sunroof can be immediately halt-
ed by moving the switch for the tilt/sliding
sunroof in any direction.
The closing of the side windows and the
tilt/sliding sunroof can be reversed by again
pressing and holding the, button.

211 Controls in detail
Dual-zone automatic climate control (USA only)
Deactivating
Press button, (
page 204).
The indicator lamp on the button goes
out.
iPress and hold button, for approx-
imately 2 seconds. The side windows
and tilt/sliding sunroof* will close. You
can release button, once the clos-
ing procedure has begun. The windows
and tilt/sliding sunroof* continue clos-
ing until they are fully closed.
iThe air recirculation mode is
deactivated automatically:

after 5 minutes if the outside tem-
perature is below approximately
41°F (5°C)


after 5 minutes if the air condition-
ing is turned off


after 30 minutes if the outside tem-
perature is above approximately
41°F (5°C)
iPress and hold button, for approx-
imately 2 seconds. The side windows
and/or tilt/sliding sunroof* will return
to their previous position. You can re-
lease button, once the opening
procedure has begun. The windows
and tilt/sliding sunroof* continue
opening until they have reached their
previous position.
A window or tilt/sliding sunroof* will
only return to its previous position if it
has not been moved to another posi-
tion using the respective window
switch or tilt/sliding sunroof* switch
after it was closed with button,.
A window or tilt/sliding sunroof* that
has been moved will remain in its cur-
rent position if button, is used to
re-open the remaining windows or
tilt/sliding sunroof*.

212 Controls in detailDual-zone automatic climate control (USA only)Air conditioning
The cooling function, only operational
when the engine is running, cools the vehi-
cle interior down to the selected tempera-
ture. The cooling function also
dehumidifies the air in the vehicle interior,
thus preventing the windows from fogging
up.Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the climate
control system. The air in the vehicle will
then no longer be cooled or dehumidified.

Press button2 (
page 204).
The indicator lamp on the button goes
out.
Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condition-
ing.

Press button2 (
page 204)
again.
The indicator lamp on the button
comes on.
The air conditioning uses the refrigerant
R134a. This refrigerant is free of CFCs
which are harmful to the ozone layer.
iCondensation may drip out from under-
neath the vehicle. This is normal and
not an indication of a malfunction.Warning!
G
If you turn off the cooling function, the
vehicle will not be cooled when weather
conditions are warm. The windows can fog
up more quickly. Window fogging may
impair visibility and endanger you and
others.
!If the air conditioning cannot be turned
on again, this indicates that the air con-
ditioning is losing refrigerant. The com-
pressor has turned itself off.
Have the air conditioning checked at
the nearest authorized Mercedes-Benz
Center.

213 Controls in detail
Dual-zone automatic climate control (USA only)
Rear passenger compartment adjustable air vents
The air conditioning for the rear passenger
compartment is controlled via the climate
control panel (
page 204).The air vents for the rear passenger
compartment are located in the rear
center console.
1Left center air vent
2Right center air vent
3Thumbwheel for air volume control for
right rear center air vent
4Thumbwheel for air volume control for
left rear center air ventAdjusting air distribution

Push the slide for the left center
vent1 or right center vent2 to the
left, right, up or down.
The air flow is directed in the corre-
sponding direction.
Adjusting air volume

Turn thumbwheel3 or4 up or down.
The air volume is increased or
decreased.
iThe temperature at the center air vents
for the rear passenger
compartment1 and2 is the same as
at the dashboard center air vents.
iFor draft-free ventilation, push
slides1 and2 upward.

214 Controls in detail4-zone automatic climate control*

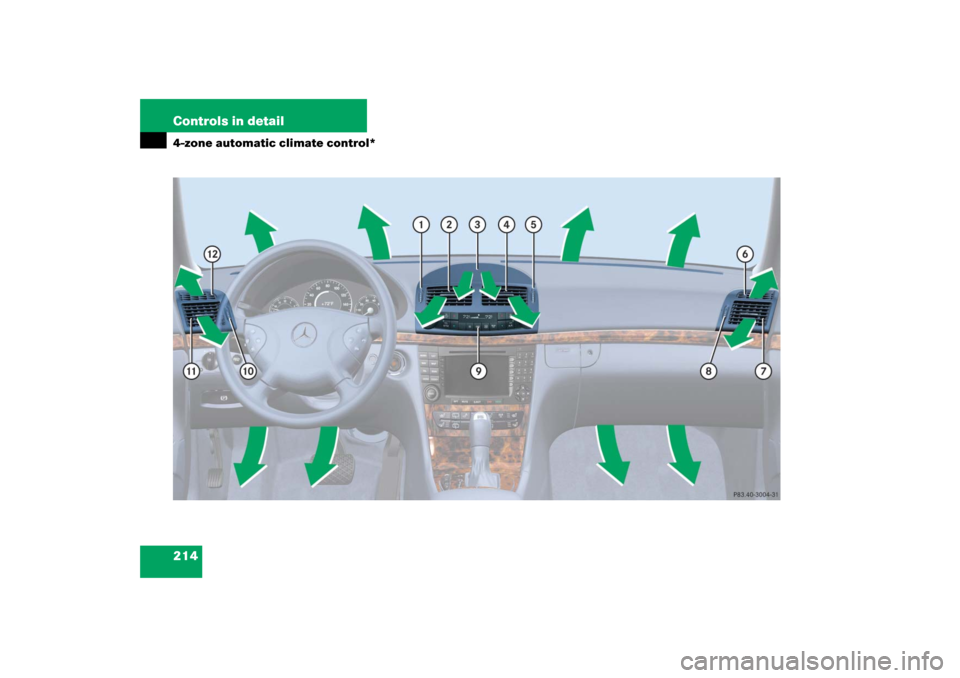

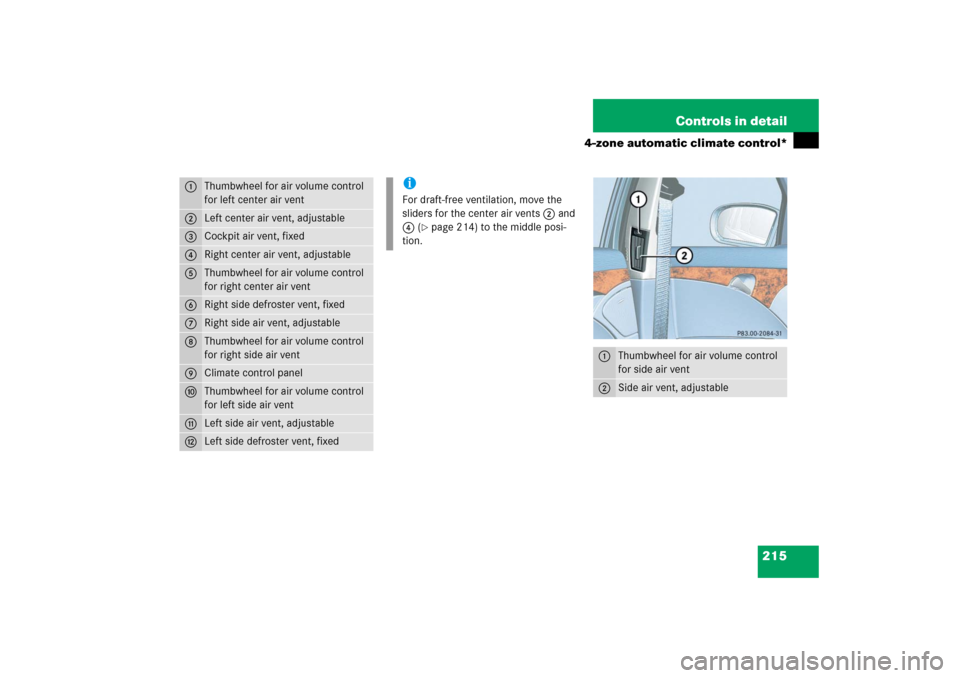

215 Controls in detail
4-zone automatic climate control*
1
Thumbwheel for air volume control
for left center air vent
2
Left center air vent, adjustable
3
Cockpit air vent, fixed
4
Right center air vent, adjustable
5
Thumbwheel for air volume control
for right center air vent
6
Right side defroster vent, fixed
7
Right side air vent, adjustable
8
Thumbwheel for air volume control
for right side air vent
9
Climate control panel
a
Thumbwheel for air volume control
for left side air vent
b
Left side air vent, adjustable
c
Left side defroster vent, fixed
iFor draft-free ventilation, move the
sliders for the center air vents 2 and
4 (
page 214) to the middle posi-
tion.
1
Thumbwheel for air volume control
for side air vent
2
Side air vent, adjustable
