2006 MERCEDES-BENZ E WAGON Owner's Manual

472 Technical dataRims and tires
!
Only use tires which have been tested
and approved for your vehicle by
Mercedes-Benz. Tires approved by
Mercedes-Benz are developed to pro-
vide best possible performance in con-
junction with the driving safety
systems on your vehicle such as ABS or
ESP
®. Tires specially developed for
your vehicle and tested and approved
by Mercedes-Benz can be identified by
finding the following on the tire’s side-
wall:


MO = M
ercedes-Benz O
riginal
equipment tires
AMG vehicles:
Does not apply to all approved tires
on AMG vehicles. For information
on tested and approved tires for
AMG vehicles, contact an autho-
rized Mercedes-Benz Center.


MOE = M
ercedes-Benz O
riginal
E
xtended (tires with limited run-flat
characteristics) original equipment
tires
Using tires other than those approved
by Mercedes-Benz may result in dam-
age that is not covered by the
Mercedes-Benz Limited Warranty.
iFor information on driving with
MOExtended tires, see
“MOExtendedsystem*” (
page 451).
!Using tires other than those approved
by Mercedes-Benz can have detrimen-
tal effects, such as

poor handling characteristics


increased noise


increased fuel consumption
Moreover, tires and rims not approved
by Mercedes-Benz may, under load,
exhibit dimensional variations and dif-
ferent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle may be the result.

473 Technical data
Rims and tires
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A placard with
the recommended tire inflation pres-
sures is located on the driver’s door
B-pillar. Some vehicles may have sup-
plemental tire inflation pressure infor-
mation for driving at high speeds
(page 334) or for vehicle loads less
than the maximum loaded vehicle con-
dition. If such information is provided,
it can be found on the placard located
on the inside of the fuel filler flap. The
tire inflation pressure should be
checked regularly and should only be
adjusted on cold tires. Follow tire man-
ufacturer’s maintenance recommenda-
tion included with the vehicle.
iThe following pages also list the ap-
proved wheel rim and tire sizes for
equipping your vehicles with winter
tires. Winter tires are not available as
standard or optional factory-equip-
ment, but can be purchased from an
authorized Mercedes-Benz Center.
Depending on vehicle model and the
standard or optional factory-equipped
wheel rim/tire configuration on your
vehicle (Appearance Package, Sport
Package etc.), equipping your vehicle
with winter tires approved for your ve-
hicle model may also require the pur-
chase of two or four wheel rims of the
recommended size for use with these
winter tires. See an authorized
Mercedes-Benz Center for more infor-
mation.

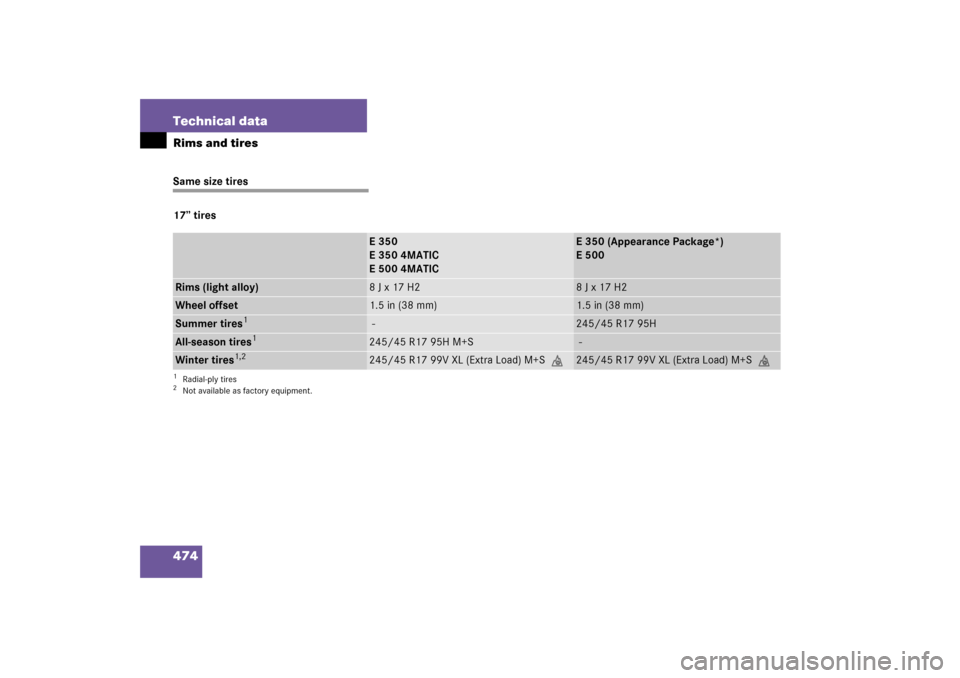

474 Technical dataRims and tiresSame size tires
17’’ tires
E350
E3504MATIC
E5004MATIC
E 350 (Appearance Package*)
E500
Rims (light alloy)
8 J x 17 H2
8 J x 17 H2
Wheel offset
1.5 in (38 mm)
1.5 in (38 mm)
Summer tires
1
1Radial-ply tires
-
245/45 R17 95H
All-season tires
1
245/45 R17 95H M+S
-
Winter tires
1,2
2Not available as factory equipment.
245/45 R17 99V XL (Extra Load) M+S.
245/45 R17 99V XL (Extra Load) M+S.

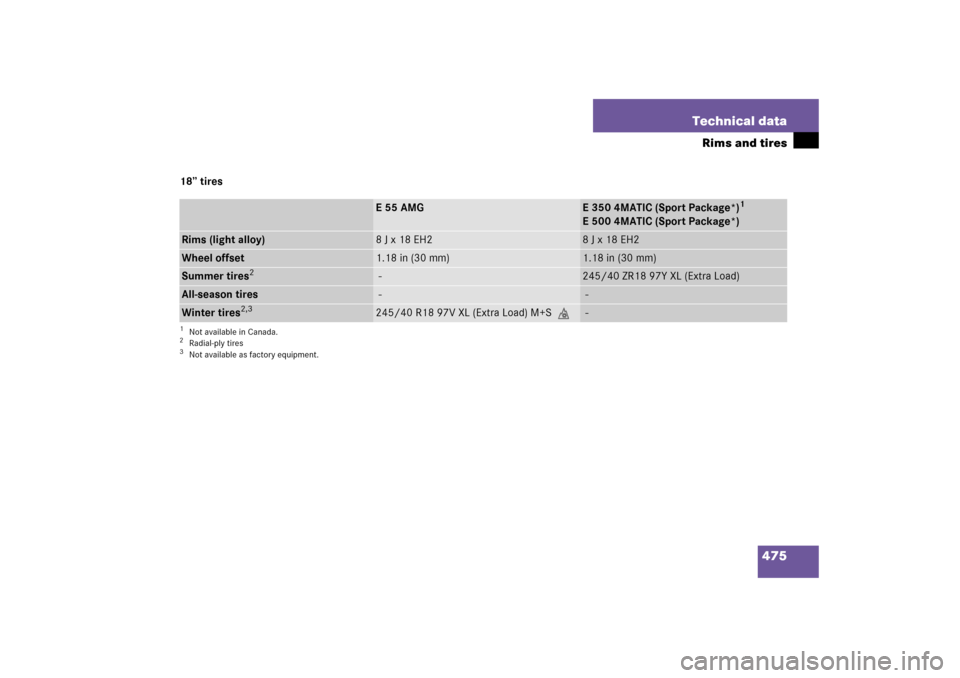

475 Technical data
Rims and tires
18’’ tires
E55AMG
E3504MATIC (Sport Package*)
1
E5004MATIC (Sport Package*)
1Not available in Canada.Rims (light alloy)
8 J x 18 EH2
8 J x 18 EH2
Wheel offset
1.18 in (30 mm)
1.18 in (30 mm)
Summer tires
2
2Radial-ply tires
-
245/40 ZR18 97Y XL (Extra Load)
All-season tires
-
-
Winter tires
2,3
3Not available as factory equipment.
245/40 R18 97V XL (Extra Load) M+S.
-

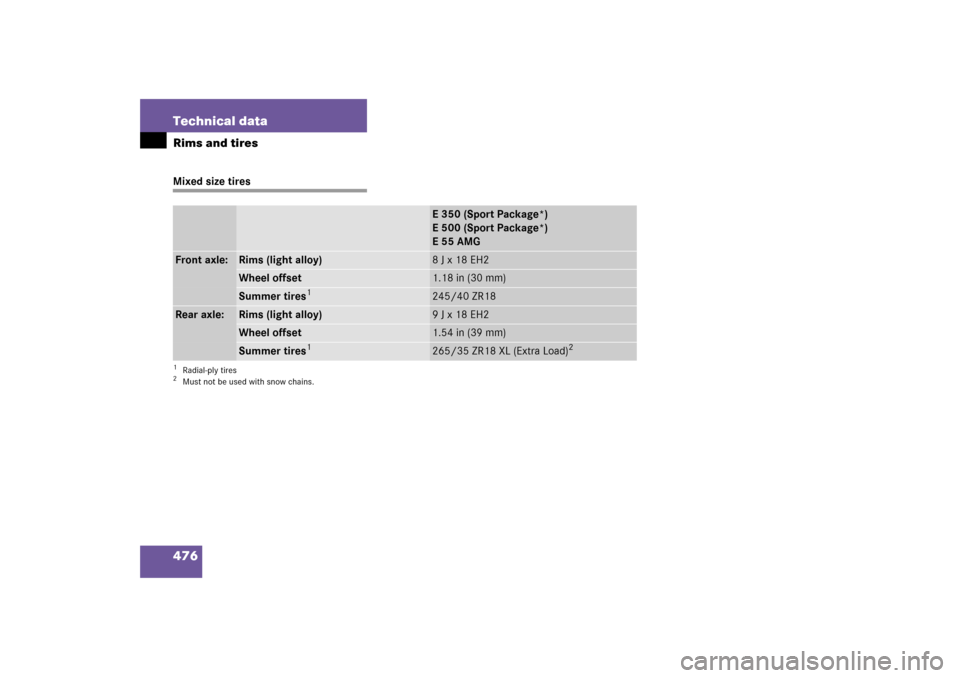

476 Technical dataRims and tiresMixed size tires
E350(Sport Package*)
E500(Sport Package*)
E55AMG
Front axle:
Rims (light alloy)
8 J x 18 EH2
Wheel offset
1.18 in (30 mm)
Summer tires
1
1Radial-ply tires
245/40 ZR18
Rear axle:
Rims (light alloy)
9 J x 18 EH2
Wheel offset
1.54 in (39 mm)
Summer tires
1
265/35 ZR18 XL (Extra Load)
2
2Must not be used with snow chains.

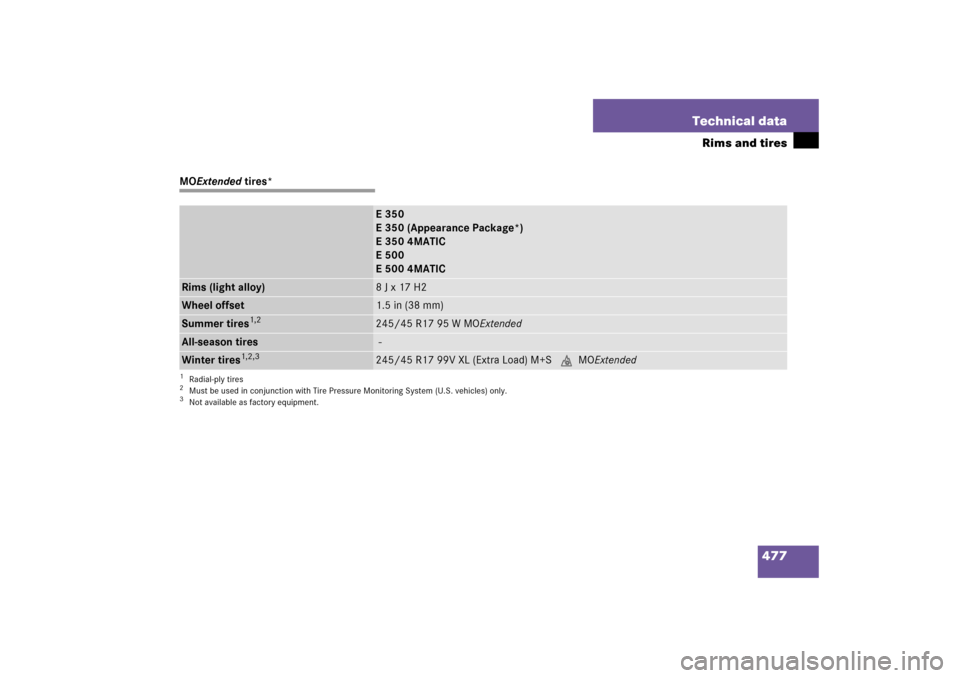

477 Technical data
Rims and tires
MOExtended tires*
E350
E 350 (Appearance Package*)
E 350 4MATIC
E500
E 500 4MATIC
Rims (light alloy)
8 J x 17 H2
Wheel offset
1.5 in (38 mm)
Summer tires
1,2
1Radial-ply tires2Must be used in conjunction with Tire Pressure Monitoring System (U.S. vehicles) only.
245/45 R17 95 W MOExtended
All-season tires
-
Winter tires
1,2,3
3Not available as factory equipment.
245/45 R17 99V XL (Extra Load) M+S .MOExtended

478 Technical dataRims and tiresSpare wheel Minispare wheel (except E 55 AMG) Collapsible tire (E 55 AMG without fold-
ing third row seat only)
!Please compare the recommended tire
inflation pressure for your vehicle with
the tire inflation pressure on the yellow
label located on the spare wheel rim.
If the tire inflation pressure on the yel-
low label on the spare wheel rim differs
from the values given in this Operator’s
Manual, inflate the spare wheel tire to
the recommended tire inflation pres-
sure given on the yellow label on the
spare wheel rim.iPlease note that the tire inflation pres-
sure of the Minispare and the collaps-
ible tire differs from the tire inflation
pressure of the road tires.
Make sure the Minispare wheel is in-
flated to approximately 61 psi (4.2 bar).
Inflate the collapsible tire (
page 449)
to approximately 51 psi (3.5 bar).
Rim
4 B x 17
Wheel offset
1.34 (34 mm)
Tire
T 155/70 R17 110 M
1
1Must not be used with snow chains.
Rim
6 B x 18
Wheel offset
0.98 (25 mm)
Tire
175/55-18 95P
1
1Must not be used with snow chains.iE 55 AMG with folding third row seat is
equipped with TIREFIT (
page 440).

479 Technical data
Electrical system
Electrical system
Model
E 350, E 350 4MATIC
E 500, E 500 4MATIC
E55AMG
Generator (alternator)
14 V/150 A
14 V/150 A
14 V/180 A
Starter motor
14 V/1.7 kW
14 V/1.7 kW
14 V/1.7 kW
Battery (auxiliary)
12 V/12 Ah
12 V/12 Ah
12 V/12 Ah
Battery (main)
12 V/95 Ah
12 V/95 Ah
12 V/95 Ah
Spark plugs
Bosch Platin Y 7 MPP33
NGK PLKR 6A
Bosch F8 DPP 332U
NGK PFR 5R-11
NGK IL FR 6 A
Electrode gap
0.031 in (0.8 mm)
0.039 in (1.00 mm)
0.031 in (0.8 mm)
Tightening torque
15 - 22 lb-ft (20 - 30 Nm)
18.5 - 22 lb-ft (25 - 30 Nm)
18.5 - 22 lb-ft (25 - 30 Nm)
