80 Safety and SecurityOccupant safety

If you have to place a child in a
forward-facing child restraint on the
front passenger seat, move the seat as
far back as possible, use the proper
child restraint recommended for the
age, size and weight of the child, and se-
cure child restraint with the vehicle’s
seat belt according to the child seat
manufacturer’s instructions. For
children larger than the typical
12-month-old child, the front passenger
air bag may or may not be activated
(page 82).
Warning!
G
Infants and small children should never
share a seat belt with another occupant.
During an accident, they could be crushed
between the occupant and seat belt.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
Children too big for a toddler restraint must
ride in seats using regular seat belts. Posi-
tion shoulder belt across chest and shoul-
der, not face or neck. A booster seat may be
necessary to achieve proper belt positioning
for children from 41 lbs until they reach a
height where a lap/shoulder belt fits proper-
ly without a booster.
When the child restraint is not in use, re-
m o v e i t f r o m t h e v e h i c l e o r s e c u r e i t w i t h t h e
seat belt to prevent the child restraint from
becoming a projectile in the event of an ac-
cident.
Do not leave children unattended in the ve-
hicle, even if the children are secured in a
child restraint system. Unsupervised chil-
dren in a child restraint system may use ve-
hicle equipment and may cause an accident
and/or serious personal injury.


81 Safety and Security
Occupant safety
Occupant Classification System
The Occupant Classification System (OCS)
automatically turns the front passenger
front air bag on or off based on the classi-
fied occupant weight category determined
by weight sensor readings from the front
passenger seat.
Occupants must sit properly belted in a
nearly upright position with their back
against the seat backrest and feet on the
floor to be correctly classified. If the occu-
pant’s weight is transferred to another
object in the vehicle (e.g. by leaning on
armrests), the OCS may not be able to
properly approximate the occupant’s
weight category. Furthermore, the occupant weight may ap-
pear to increase or decrease due to
objects hanging on the seat, other passen-
gers pushing on the seat, objects lodged
underneath the seat or stuffed between
seat and middle console or between seat
and door or due to objects applying pres-
sure on the back of the seat. Always make
sure that the seat has clearance in all di-
rections at all times.
Both driver and the front passenger should
always use the 75indicator
lamp as an indication of whether or not the
front passenger is properly positioned.
iThe system does not deactivate the
front passenger side impact air bag,
the window curtain air bag and the
emergency tensioning device.
iIf your seat, including your trim cover
and cushion needs to be serviced in
any way, take the vehicle to your autho-
rized Mercedes-Benz Center.
Only seat accessories approved by
Mercedes-Benz may be used.
Warning!
G
If the 75indicator lamp illumi-
nates when an adult or someone larger than
a small individual is in the front passenger
seat, have the front passenger re-position
himself or herself in the seat until the light
goes out, or check whether objects are
caught under or around the seat.
More information about air bag display mes-
sages (
page 390).
In the event of a collision, the air bag control
unit will not allow front passenger front
air bag deployment when the OCS classified
the front passenger seat occupant as being
up to or less than the weight of a typical
12-month-old child in a standard child re-
straint or if the front passenger seat is
sensed as being empty.


82 Safety and SecurityOccupant safetyWhen the OCS senses that the front passen-
ger seat occupant is classified as being up
to or less than the weight of a typical
12-month-old child in a standard child re-
straint, the 75indicator lamp will
illuminate when the engine is started and re-
main illuminated, indicating that the front
passenger front air bag is deactivated.
When the OCS senses that the front passen-
ger seat is classified as being empty, the
75indicator lamp will illuminate
when the engine is started and remain illu-
minated, indicating that the front passenger
front air bag is deactivated.
When the OCS senses that the front passen-
ger seat occupant is classified as being
heavier than the weight of a typical
12-month-old child seated in a standard
child restraint or as being a small individual
(such as a young teenager or a small adult),
the 75indicator lamp will illumi-
nate for approximately 6 seconds when the
engine is started and then, depending on oc-
cupant weight sensor readings from the
seat, remain illuminated or go out. With the
75indicator lamp illuminated, the
front passenger front air bag is deactivated.
With the 75indicator lamp out,
the front passenger front air bag is activat-
ed.
When the OCS senses that the front passen-
ger seat occupant is classified as an adult or
someone larger than a small individual, the
75indicator lamp will illuminate
for approximately 6 seconds when the en-
gine is started and then go out, indicating
that the front passenger front air bag is acti-
vated.
If the 75indicator lamp is illumi-
nated, the front passenger front air bag is
deactivated and will not be deployed.
If the 75indicator lamp is not
illuminated, the front passenger front air
bag is activated and will be deployed:

in the event of certain frontal impacts


if impact exceeds a preset deployment
threshold


independently of the side impact
air bags.
If the front passenger front air bag is
deployed, the rate of inflation will be
influenced by:


the rate of relevant vehicle deceleration
as assessed by the air bag control unit


front passenger’s weight category as
identified by the Occupant Classification
System (OCS).


83 Safety and Security
Occupant safety

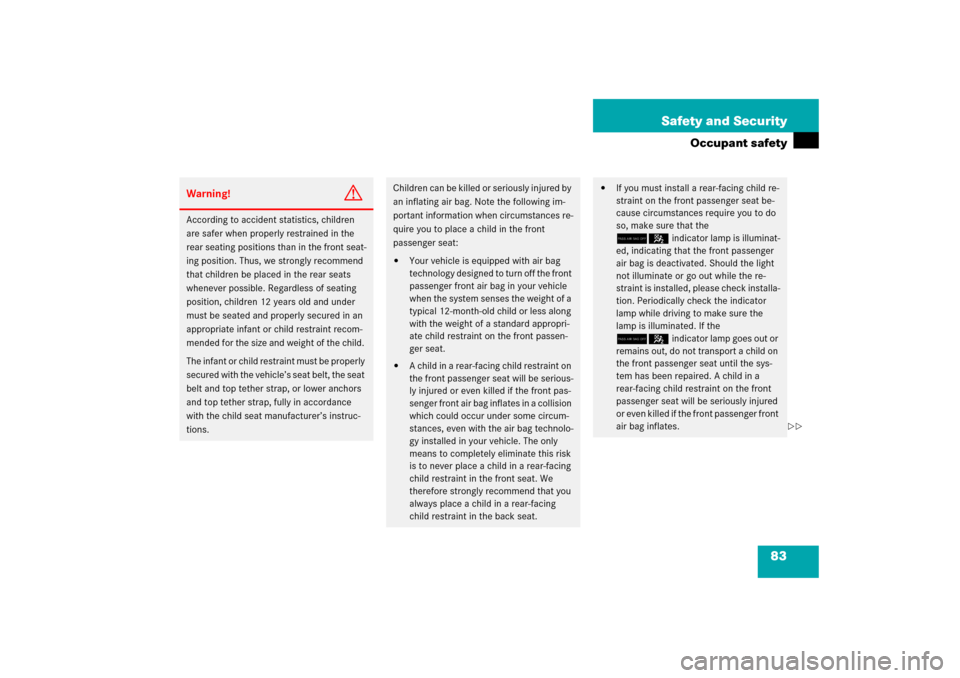

Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant or child restraint recom-
mended for the size and weight of the child.
The infant or child restraint must be properly
secured with the vehicle’s seat belt, the seat
belt and top tether strap, or lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer’s instruc-
tions.
Children can be killed or seriously injured by
an inflating air bag. Note the following im-
portant information when circumstances re-
quire you to place a child in the front
passenger seat:

Your vehicle is equipped with air bag
technology designed to turn off the front
passenger front air bag in your vehicle
when the system senses the weight of a
typical 12-month-old child or less along
with the weight of a standard appropri-
ate child restraint on the front passen-
ger seat.


A child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front pas-
senger front air bag inflates in a collision
which could occur under some circum-
stances, even with the air bag technolo-
gy installed in your vehicle. The only
means to completely eliminate this risk
is to never place a child in a rear-facing
child restraint in the front seat. We
therefore strongly recommend that you
always place a child in a rear-facing
child restraint in the back seat.


If you must install a rear-facing child re-
straint on the front passenger seat be-
cause circumstances require you to do
so, make sure that the
75indicator lamp is illuminat-
ed, indicating that the front passenger
air bag is deactivated. Should the light
not illuminate or go out while the re-
straint is installed, please check installa-
tion. Periodically check the indicator
lamp while driving to make sure the
lamp is illuminated. If the
75indicator lamp goes out or
remains out, do not transport a child on
the front passenger seat until the sys-
tem has been repaired. A child in a
rear-facing child restraint on the front
passenger seat will be seriously injured
or even killed if the front passenger front
air bag inflates.


84 Safety and SecurityOccupant safety
The 75indicator lamp is located
in the center console.
1Indicator lamp


If you have to place a child in a
forward-facing child restraint on the
front passenger seat, move the seat as
far back as possible, use the proper
child restraint recommended for the
age, size and weight of the child, and se-
cure child restraint with the vehicle’s
seat belt according to the child seat
manufacturer’s instructions. For
children larger than the typical
12-month-old child, the front passenger
air bag may or may not be activated
(page 82).
iDeployment of the driver front air bag
does not mean that the front passenger
front air bag also should have de-
ployed.
The Occupant Classification System
(page 81) may have determined:


that the seat was empty or occu-
pied by the weight up to or less than
that of a typical 12-month-old child
seated in a standard child restraint
- both instances where the system
suppresses deployment of the pas-
senger front air bag even though
the impact met the criteria and was
of sufficient severity to deploy the
driver front air bag.


that the seat was occupied by a
small individual (such as a young
teenager or a small adult) or a child
weighing more than the weight of a
typical 12-month-old child in a stan-
dard child restraint - instances
where the system may suppress de-
ployment of the passenger front air
bag even though the impact met
the criteria and was of sufficient se-
verity to deploy the driver front air
bag.


85 Safety and Security
Occupant safety
The 75indicator lamp1 will be
illuminated, except with the SmartKey
removed or in starter switch position0.Self-test Occupant Classification Sys-
tem
After turning the SmartKey in the starter
switch to position1 or2 or pressing the
KEYLESS-GO* start/stop button once or
twice, the 75indicator lamp1
located in the center console illuminates. If
an adult occupant is properly sitting on the
front passenger seat and the system sens-
es the occupant as being an adult, the
75indicator lamp will illuminate
and go out after approximately 6 seconds.
If the seat is not occupied and the system
senses the front passenger seat as being
empty, the 75indicator lamp

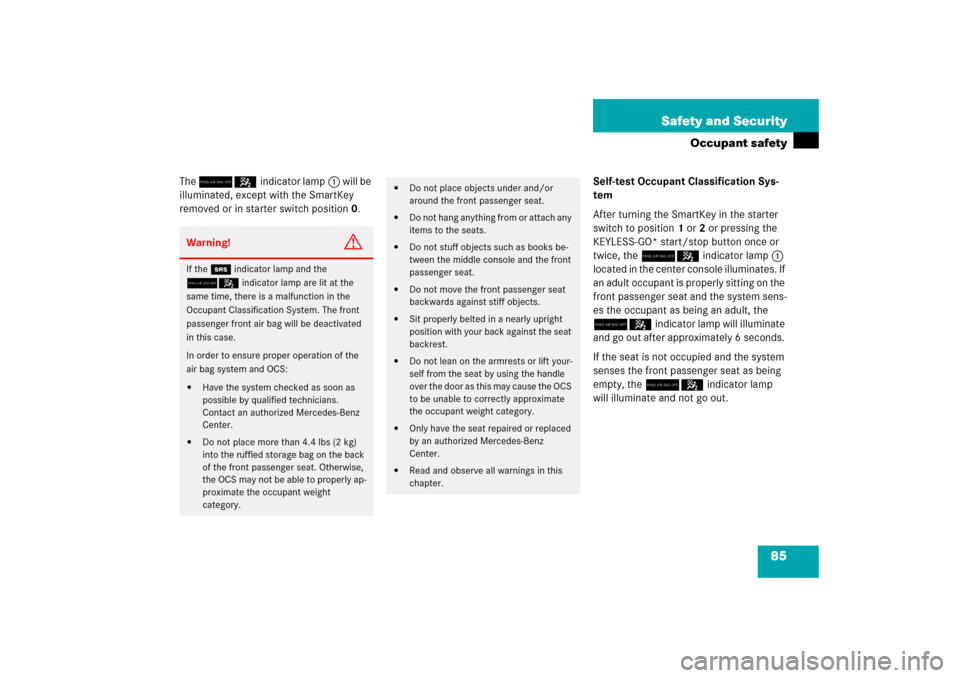

will illuminate and not go out. Warning!
G
If the 1indicator lamp and the
75indicator lamp are lit at the
same time, there is a malfunction in the
Occupant Classification System. The front
passenger front air bag will be deactivated
in this case.
In order to ensure proper operation of the
air bag system and OCS:

Have the system checked as soon as
possible by qualified technicians.
Contact an authorized Mercedes-Benz
Center.


Do not place more than 4.4 lbs (2 kg)
into the ruffled storage bag on the back
of the front passenger seat. Otherwise,
the OCS may not be able to properly ap-
proximate the occupant weight
category.


Do not place objects under and/or
around the front passenger seat.


Do not hang anything from or attach any
items to the seats.


Do not stuff objects such as books be-
tween the middle console and the front
passenger seat.


Do not move the front passenger seat
backwards against stiff objects.


Sit properly belted in a nearly upright
position with your back against the seat
backrest.


Do not lean on the armrests or lift your-
self from the seat by using the handle
over the door as this may cause the OCS
to be unable to correctly approximate
the occupant weight category.


Only have the seat repaired or replaced
by an authorized Mercedes-Benz
Center.


Read and observe all warnings in this
chapter.

86 Safety and SecurityOccupant safetyFor more information, see the “Practical
hints” section (
page 390).Installation of infant and child restraint
systems
Prior to installing a tether strap, note the
following steps:

Roll up retractable luggage cover and
partition net.

Remove storage box (if so equipped)
(page 269).
If the storage box is not removed:


the top tether anchorage ring located
on the floor (
page 87) for use with a
child restraint in the rear center seat
position cannot be accessed.


the hook of the top tether strap when
attached to the anchorage ring on an
outer rear seat backrest may push
against the storage box and prevent
the backrest from properly locking into
position.

If you place a child seat in the left or
center rear seat position, remove twin
roller blind (
page 271) and return
seat to its original position.

If you place a child seat in the right rear
seat position, the twin roller blind can
remain installed if so desired.

Fold the rear backrest slightly forward
(page 260).

Guide top tether strap between head
restraint and top of seat back.
Head restraints must be installed (if re-
movable) and positioned such that the
top tether strap can pass freely
between the head restraint and top of
the seat back.
Make sure the tether strap is not twist-
ed.

Fold the rear backrest back until it
locks in place (
page 261).

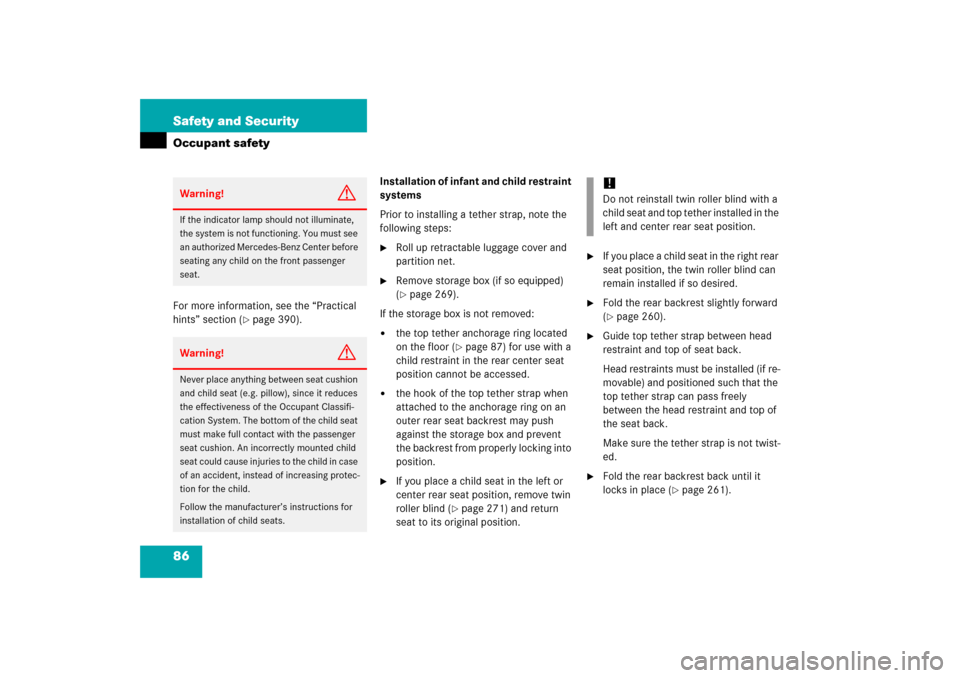

Warning!
G
If the indicator lamp should not illuminate,
the system is not functioning. You must see
an authorized Mercedes-Benz Center before
seating any child on the front passenger
seat.Warning!
G
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the Occupant Classifi-
cation System. The bottom of the child seat
must make full contact with the passenger
seat cushion. An incorrectly mounted child
seat could cause injuries to the child in case
of an accident, instead of increasing protec-
tion for the child.
Follow the manufacturer’s instructions for
installation of child seats.
!Do not reinstall twin roller blind with a
child seat and top tether installed in the
left and center rear seat position.

87 Safety and Security
Occupant safety
Anchorage rings1 are located on the
back side of the outer rear backrests and
on the floor behind the rear center seat.
1Anchorage ring
2Hook
Fold up anchorage ring1.

Securely fasten hook2, which is part
of the tether strap, to anchorage
ring1.1Anchorage ring
2Hook
Once the top tether anchorage hook is
attached, the child restraint itself can be
secured. Secure the child restraint and
tighten the top tether strap according to
the child restraint manufacturer’s instruc-
tions.
iWith a child seat and top tether in-
stalled in the right rear seat position
and twin roller blind installed, make
sure the top tether strap is positioned
between seat backrest and twin roller
blind. Warning!
G
Always lock backrest in its upright position
when rear seat bench is occupied by pas-
sengers, or the extended cargo compart-
ment is not in use. Check for secure locking
by pushing and pulling on the backrest.
iFor safety, make sure the hook has
attached to the ring beyond the safety
catch, as illustrated below.
