72 Safety and SecurityOccupant safetyThe passenger front air bag will only be
deployed if:

the system, based on OCS weight sen-
sor readings, senses that the front pas-
senger seat is occupied


the 75indicator lamp in the
center console is not lit (
page 84)


the impact exceeds a preset deploy-
ment threshold
Side impact air bags, window curtain
air bags
1Side impact air bags
2Window curtain air bagThe side impact air bags1 and window
curtain air bags2 are deployed:


on the impacted side of the vehicle


in impacts exceeding a preset deploy-
ment threshold


independently of the front air bags
In addition, the window curtain air bags 2
are deployed:


in certain vehicle rollovers
The side impact air bags1 and window
curtain air bags2 are not deployed in im-
pacts which do not exceed the system’s
deployment threshold.
Seat belts
When the engine is started the seat belt
telltale< illuminates for a maximum of
6 seconds and a warning chime sounds to
remind you and your passengers to fasten
your seat belts.
If after these 6 seconds, the driver’s or the
front passenger’s seat belt (with the front
passenger seat occupied) are not fastened
with all doors closed,

and the vehicle speed does not exceed
15 mph (25 km/h), the seat belt tell-
tale < remains illuminated for as
long as either the driver’s or front pas-
senger’s seat belt is not fastened.

73 Safety and Security
Occupant safety


and the vehicle speed exceeds 15 mph
(25 km/h), the seat belt telltale <
starts flashing and a warning chime
sounds with increasing intensity until
both the driver’s and front passenger’s
seat belt are fastened, or for a maxi-
mum of 60 seconds from the time the
vehicle speed exceeded 15 mph
(25 km/h) if either the driver’s or front
passenger’s seat belt remains unfas-
tened.
If the driver’s or front passenger’s seat
belt remains unfastened after
60 seconds, the seat belt telltale<
stops flashing and the warning chime
stops sounding. The seat belt
telltale< then continues to be illu-
minated for as long as either the driv-
er’s or front passenger’s seat belt are
not fastened.
The seat belt telltale < will only go out
if both the driver’s and front passenger’s
seat belt (with the front passenger seat oc-
cupied) are fastened, or the vehicle is
standing still and a front door is opened. For more information, see “Practical hints”
(
page 377).
Always wear your seat belt. All vehicle oc-
cupants always need to have their seat
belts fastened and wear them properly.
In addition, applicable motor vehicle safety
laws require you to wear seat belts. Even
where this is not the case, we strongly rec-
ommend that all vehicle occupants have
their seat belts fastened and wear them
properly.
For more information, see “Fastening the
seat belts” (
page 47).
iFor information on infants and children
traveling with you in the vehicle and
restraint systems for infants and chil-
dren, see “Children in the vehicle”
(page 77).
Warning!
G
Always fasten your seat belt before driving
off. Always make sure all of your passengers
are properly restrained, even those sitting in
the rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are properly wearing
your seat belt. Air bags can only protect as
they are designed if the occupants are prop-
erly wearing their seat belts.

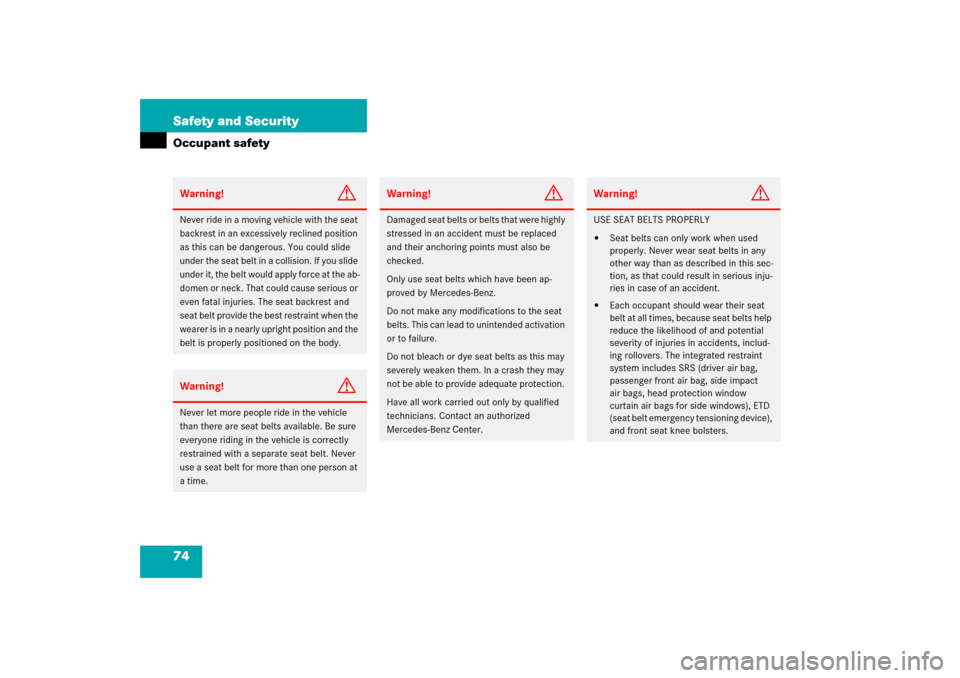

74 Safety and SecurityOccupant safetyWarning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly
restrained with a separate seat belt. Never
use a seat belt for more than one person at
a time.
Warning!
G
Damaged seat belts or belts that were highly
stressed in an accident must be replaced
and their anchoring points must also be
checked.
Only use seat belts which have been ap-
proved by Mercedes-Benz.
Do not make any modifications to the seat
belts. This can lead to unintended activation
or to failure.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Have all work carried out only by qualified
technicians. Contact an authorized
Mercedes-Benz Center.
Warning!
G
USE SEAT BELTS PROPERLY

Seat belts can only work when used
properly. Never wear seat belts in any
other way than as described in this sec-
tion, as that could result in serious inju-
ries in case of an accident.


Each occupant should wear their seat
belt at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents, includ-
ing rollovers. The integrated restraint
system includes SRS (driver air bag,
passenger front air bag, side impact
air bags, head protection window
curtain air bags for side windows), ETD
(seat belt emergency tensioning device),
and front seat knee bolsters.

75 Safety and Security
Occupant safety
The system is designed to enhance the
protection offered to properly belted oc-
cupants in certain frontal (front air bags
and ETD) and side (side impact and win-
dow curtain air bags and ETD) impacts
which exceed preset deployment
thresholds and in certain rollovers (win-
dow curtain air bags and ETD).


Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a frontal crash, your body would
move too far forward. That would in-
crease the chance of head and neck in-
juries. The belt would also apply too
much force to the ribs or abdomen,
which could severely injure internal or-
gans such as your liver or spleen.


Never wear belts over rigid or breakable
objects in or on your clothing, such as
eyeglasses, pens, SmartKeys etc., as
these might cause injuries.


Position the lap belt as low as possible
on your hips and not across the abdo-
men. If the belt is positioned across your
abdomen, it could cause serious injuries
in a crash.


Never use a seat belt for more than one
person at a time. Do not fasten a seat
belt around a person and another per-
son or other objects.


Belts should not be worn twisted. In a
crash, you wouldn’t have the full width
of the belt to distribute impact forces.
The twisted belt against your body could
cause injuries.


Pregnant women should also use a
lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible pres-
sure on the abdomen.


Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.


When using a seat belt to secure infant
or toddler restraints or children in boost-
er seats, always follow the child seat
manufacturer’s instructions.

76 Safety and SecurityOccupant safetyEmergency tensioning device (ETD),
seat belt force limiter
The seat belts for the front and rear outer
seats are equipped with emergency ten-
sioning devices and belt force limiters.
The ETD is designed to activate in the fol-
lowing cases:

in frontal or rear-end impacts exceed-
ing a preset severity level


in certain vehicle rollovers


if the restraint systems are operational
and functioning correctly, see
1indicator lamp (
page 66)In an impact, emergency tensioning devic-
es remove slack from the belts. Belt force
limiters reduce the force exerted by the
seat belts on occupants during a crash.
Automatic comfort-fit feature seat belt
An automatic comfort-fit feature for front
seats reduces the retracting force of the
seat belts when they are in normal use.
Active head restraints
The active head restraints are intended to
offer the driver and front passenger in-
creased protection from head and neck in-
jury. In the event of a rear-end collision,
the head restraints on the driver’s and
front passenger’s seats are designed to
move forward in the direction of travel,
providing the head with increased support
earlier on in the collision sequence. The ac-
tive head restraints move forward whether
the seat is occupied or not.
iThe ETDs for the front seats will only
activate if the front seat belts are fas-
tened (latch plate properly inserted
into buckle).
The ETDs for the rear outer seats will
activate with or without the respective
seat belts fastened.
Warning!
G
An emergency tensioning device (ETD) that
was activated must be replaced.
When disposing of the emergency tension-
ing device, our safety instructions must be
followed. These are available at your autho-
rized Mercedes-Benz Center.
Warning!
G
Only use seat or head restraint covers which
have been tested and approved by
Mercedes-Benz for your vehicle model. Us-
ing other seat or head restraint covers may
interfere with or prevent the activation of
the active head restraints. Contact your au-
thorized Mercedes-Benz Center for availabil-
ity.

77 Safety and Security
Occupant safety
You cannot remove the active head re-
straint on the driver’s and passenger’s
seats.
For removal of the active head restraints
we recommend that you contact an autho-
rized Mercedes-Benz Center.
For information on reseting the activated
active head restraints, see “Resetting acti-
vated head restraints” (
page 428).
For information on head restraint adjust-
ment, see “Seats” (
page 40).
Children in the vehicle
If an infant or child is traveling with you in
the vehicle:

Secure the child using an infant or child
restraint appropriate to the age and
size of the child.


Make sure that the infant or child is
properly secured at all times while the
vehicle is in motion.
Infant and child restraint seats and
information on choosing an appropriate
restraint system can be obtained from any
Mercedes-Benz Center.
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the center of
the head restraint supports the back of the
head at eye level. This will reduce the poten-
tial for injury to the head and neck in the
event of an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.

78 Safety and SecurityOccupant safetyInfant and child restraint systems
We recommend all infants and children be
properly restrained at all times while the
vehicle is in motion.
All lap-shoulder belts except the driver’s
seat belt have special seat belt retractors
for secure fastening of child restraints.
To fasten a child restraint, follow child
restraint instructions for mounting. Then
pull the shoulder belt out completely and
let it retract. During seat belt retraction, a
ratcheting sound can be heard to indicate
that the special seat belt retractor is acti-
vated. The belt is now locked. Push down
on child restraint to take up any slack.
To deactivate, release seat belt buckle and
let seat belt retract completely. The seat
belt can again be used in the usual man-
ner.
iInformation on child seats with mount-
ing fittings for tether anchorages
(page 86).
For information on LATCH-type child
seat mounts (
page 88).
!The use of infant or child restraints is
required by law in all 50 states, the Dis-
trict of Columbia, the U.S. territories
and all Canadian provinces.
Infants and small children should be
seated in an appropriate infant or child
restraint system properly secured by a
lap/shoulder belt or, if so equipped, a
top tether anchorage point and a child
restraint lower anchorage system that
complies with U.S. Federal Motor Vehi-
cle Safety Standards 213 and 225 and
Canadian Motor Vehicle Safety Stan-
dards 213 and 210.2.
Warning!
G
Never release the seat belt buckle while the
vehicle is in motion, since the special seat
belt retractor will be deactivated.!A statement by the child restraint
manufacturer of compliance with this
standard can be found on the
instruction label on the restraint and in
the instruction manual provided with
the restraint.
When using any infant or child restraint
system, be sure to carefully read and
follow all manufacturer’s instructions
for installation and use.
Please read and observe warning labels
affixed to the inside of the vehicle and
to infant or child restraints.

79 Safety and Security
Occupant safety
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant or child restraint recom-
mended for the size and weight of the child.
The infant or child restraint must be properly
secured with the vehicle’s seat belt, the seat
belt and top tether strap, or lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer’s instruc-
tions.
Children can be killed or seriously injured by
an inflating air bag. Note the following im-
portant information when circumstances re-
quire you to place a child in the front
passenger seat:

Your vehicle is equipped with air bag
technology designed to turn off the front
passenger front air bag in your vehicle
when the OCS senses the weight of a
typical 12-month-old child or less along
with the weight of a standard appropri-
ate child restraint on the front passen-
ger seat.


A child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front pas-
senger front air bag inflates in a collision
which could occur under some circum-
stances, even with the air bag technolo-
gy installed in your vehicle. The only
means to completely eliminate this risk
is to never place a child in a rear-facing
child restraint in the front seat. We
therefore strongly recommend that you
always place a child in a rear-facing
child restraint in the back seat.


If you must install a rear-facing child re-
straint on the front passenger seat be-
cause circumstances require you to do
so, make sure that the
75indicator lamp is illuminat-
ed, indicating that the front passenger
air bag is deactivated. Should the light
not illuminate or go out while the re-
straint is installed, please check installa-
tion. Periodically check the indicator
lamp while driving to make sure the
lamp is illuminated. If the
75indicator lamp goes out or
remains out, do not transport a child on
the front passenger seat until the sys-
tem has been repaired. A child in a
rear-facing child restraint on the front
passenger seat will be seriously injured
or even killed if the front passenger front
air bag inflates.
