2006 MERCEDES-BENZ E WAGON Owner's Manual

200 Controls in detailGood visibility6Mounting
7Additional visor*
8Sun visor
If sunlight enters through a side window:
Disengage sun visor 8 from
mounting6.

Pivot sun visor 8 to the side.

Adjust the sun visor 8 by pushing or
pulling in direction of the arrows.
Roller sunblind* in the rear doors
Pull the roller sunblind out using the
hooks.

Attach the hooks at the top.
Rear window defroster
The rear window defroster uses a large
amount of power. To keep the battery
drain to a minimum, switch off the defrost-
er as soon as the rear window is clear. The
defroster is automatically deactivated af-
ter approximately 6 to 17 minutes of oper-
ation depending on the outside
temperature.
Activating
Press buttonF (
page 216) or
(
page 217) or1(
page 204) on
the respective climate control panel.
The indicator lamp on the button
comes on.
iClose mirror cover2 (if open) before
you disengage the sun visor 8 from
mounting 6 and pivot it to the side.
!Always guide the sunblind by hand. Do
not let it snap back, as the retractor
could be damaged.

201 Controls in detail
Good visibility
Deactivating
Press buttonF or1 again.
The indicator lamp on the button goes
out.Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.
!If the rear window defroster switches
off too soon and the indicator lamp
starts flashing, this means that too
many electrical consumers are operat-
ing simultaneously and there is insuffi-
cient voltage in the battery. The system
responds automatically by deactivating
the rear window defroster.
As soon as the battery has sufficient
voltage, the rear window defroster
automatically turns itself back on.

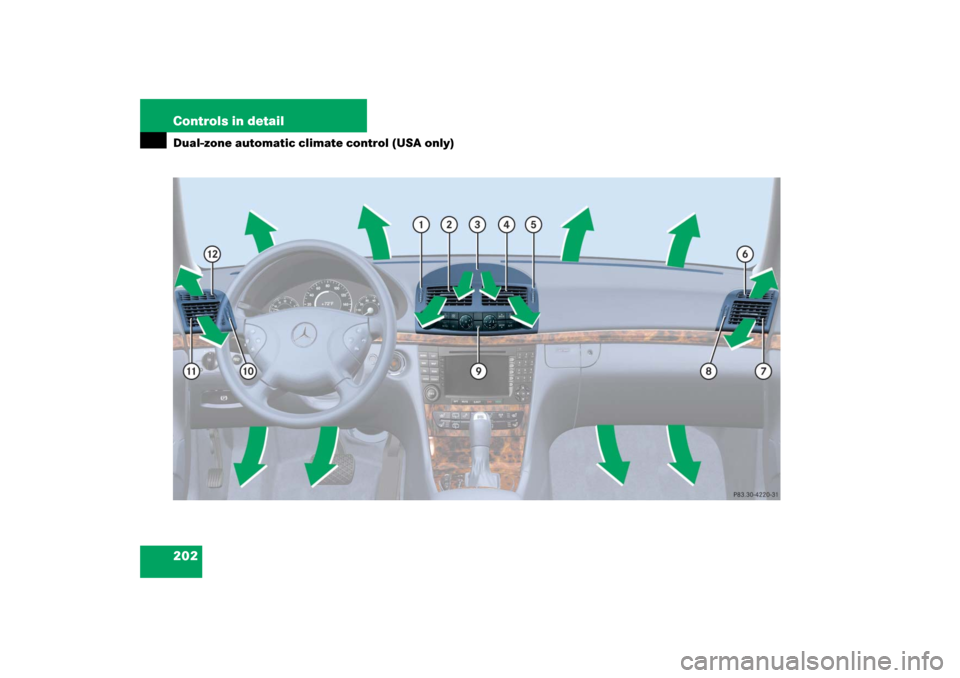

202 Controls in detailDual-zone automatic climate control (USA only)

203 Controls in detail
Dual-zone automatic climate control (USA only)
1
Thumbwheel for air volume control
for left center air vent
2
Left center air vent, adjustable
3
Cockpit air vent, fixed
4
Right center air vent, adjustable
5
Thumbwheel for air volume control
for right center air vent
6
Right side defroster vent, fixed
7
Right side air vent, adjustable
8
Thumbwheel for air volume control
for right side air vent
9
Climate control panel
a
Thumbwheel for air volume control
for left side air vent
b
Left side air vent, adjustable
c
Left side defroster vent, fixed
iFor draft-free ventilation, move the
sliders for the center air vents 2 and
4 to the middle position.

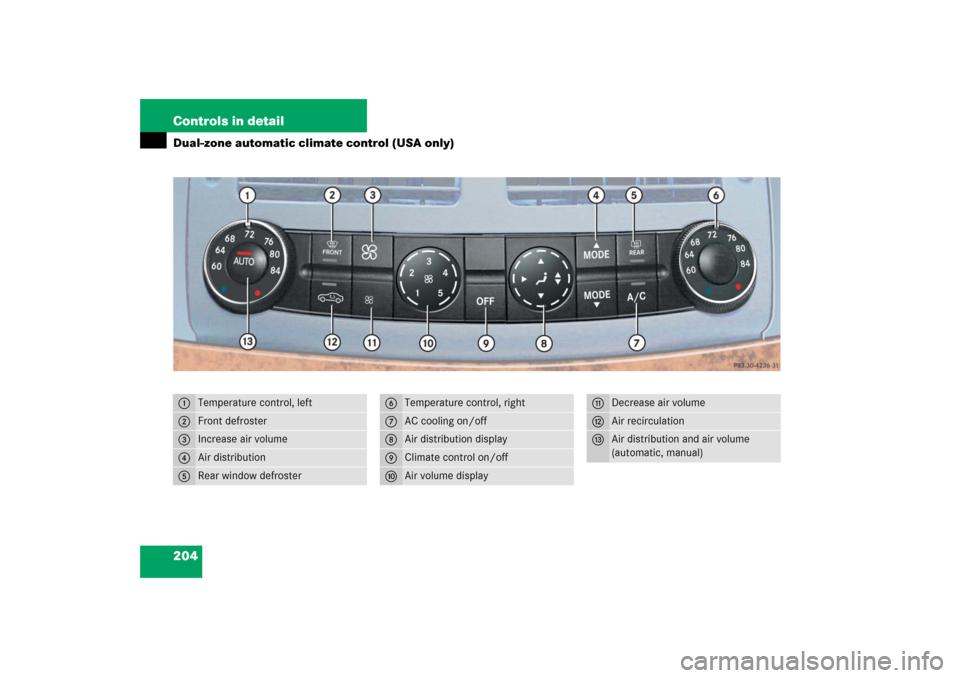

204 Controls in detailDual-zone automatic climate control (USA only)1
Temperature control, left
2
Front defroster
3
Increase air volume
4
Air distribution
5
Rear window defroster
6
Temperature control, right
7
AC cooling on/off
8
Air distribution display
9
Climate control on/off
a
Air volume display
b
Decrease air volume
c
Air recirculation
d
Air distribution and air volume
(automatic, manual)

205 Controls in detail
Dual-zone automatic climate control (USA only)
The climate control is operational whenev-
er the engine is running. You can operate
the climate control system in either the au-
tomatic or manual mode. The system cools
or heats the interior depending on the se-
lected interior temperature and the cur-
rent outside temperature.Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the A/C mode is deactivated
(
page 212).
Warning!
G
When operating the climate control, the air
that enters the passenger compartment
through the air vents can be very hot or very
cold (depending on the set temperature).
This may cause burns or frostbite to unpro-
tected skin in the immediate area of the air
vents. Always keep sufficient distance be-
tween unprotected parts of the body and the
air vents. If necessary, use the air distribu-
tion control (
page 204) to direct the air to
air vents in the vehicle interior that are not
in the immediate area of unprotected skin.
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
iSevere conditions (e.g. strong air pollu-
tion) may require replacement of the fil-
ter before its scheduled interval.
A clogged filter will reduce the air vol-
ume to the interior.
If the vehicle interior is hot, ventilate
the interior before driving off, see
“Summer opening feature”
(page 234). The climate control will
then adjust the interior temperature to
the set value much faster.
Keep the air intake grille in front of the
windshield free of snow and debris.
Do not obstruct air flow by placing ob-
jects on the air flow-through exhaust
slots below the rear window.

206 Controls in detailDual-zone automatic climate control (USA only)Deactivating the climate control system
Deactivating
Press button´ (
page 204).
Reactivating

Make sure the ignition is switched on.

Press button´ (
page 204) again.
The previous settings are once again in
effect.Operating the climate control system
in automatic modeActivating

Press buttonU (
page 204) while
the engine is running.
The indicator lamp on the button
comes on. The air volume and air distri-
bution are adjusted automatically.

Use temperature controls1 and6
(page 204) to separately adjust the
air temperature on each side of the
passenger compartment.
The temperature of the vehicle interior
is adjusted automatically.
iWhen the climate control system is de-
activated, the outside air supply and
circulation are also deactivated. Only
choose this setting for a short time.
Otherwise the windows could fog up.iTo switch the system on, you can also
press another button, with the excep-
tion of 1.
iWhen operating the climate control
system in automatic mode, you will
only rarely need to adjust the tempera-
ture, air volume and air distribution.
In automatic mode, cooling with dehu-
midify is switched on. This function can
be switched off if necessary.

207 Controls in detail
Dual-zone automatic climate control (USA only)
Deactivating
Press button
orQ
(page 204).
The indicator lamp on the buttonU
goes out. The automatic operation of
air volume switches off. The selected
blower speed is shown in the air
volume displaya (
page 204).
or

Press air distribution button4
(page 204).
The indicator lamp on the buttonU
goes out. The automatic operation of
air distribution switches off. The select-
ed air distribution is shown in the air
distribution display8 (
page 204).
Setting the temperature
Use temperature controls1 and6
(page 204) to separately adjust the air
temperature on each side of the passenger
compartment. You should raise or lower
the temperature setting in small incre-
ments, preferably starting at 72°F (22°C).
The climate control will adjust to the set
temperature as fast as possible.
Increasing

Turn temperature control 1 and/or
6 (
page 204) slightly clockwise.
The climate control system will corre-
spondingly adjust the interior air tem-
perature.Decreasing

Turn temperature control1 and/or
6 (
page 204) slightly counterclock-
wise.
The climate control system will corre-
spondingly adjust the interior air tem-
perature.
