2006 MERCEDES-BENZ E WAGON Owner's Manual

48 Getting startedDriving
1Belt outlet
2Latch plate
3Buckle
4Release button
With a smooth motion, pull the belt
from belt outlet1.
Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly
restrained with a separate seat belt. Never
use a seat belt for more than one person at
a time.
Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the
abdomen or neck. That could cause serious
or even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.Warning!
G
Read and observe the additional warning no-
tices printed in the “Safety and Security”
section (
page 70) and (
page 73).

49 Getting started
Driving

Place the shoulder portion of the belt
across the top of your shoulder and the
lap portion across your hips.

Push latch plate2 into buckle3 until
it clicks.

If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.
Belt outlet height adjustment
1Release button

Press release button1 and move the
seat belt height adjuster upward or
downward.Proper use of seat belts


Do not twist the belt when fastening.


Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm.


Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.


Place the seat backrest in a nearly
upright position.


Never use a seat belt for more than one
person at a time.


Do not fasten a seat belt around a
person and another object at the same
time. When using a seat belt to secure
infant or toddler restraints or children
in booster seats, always follow the
child seat manufacturer’s instructions.


Check your seat belt periodically
during travel to make sure that it is
properly positioned.


Make sure that the seat belt is always
fitted snugly. Take special care of this
when wearing loose clothing. Warning!
G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz
Center.

50 Getting startedDrivingStarting the engine Automatic transmission
Gearshift pattern for automatic
transmissionPPark position with gear selector lever
lock
RReverse gear
NNeutral
DDrive position
For more information, see the “Controls in
detail” section (
page 184). Starting with the SmartKey
For information on turning off the engine
with the SmartKey, see “Turning off en-
gine” (
page 61).

Make sure the gear selector lever is set
to P.

Do not depress the accelerator.

Turn the SmartKey in the starter switch
to position3 and hold until the engine
starts (
page 36).
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and possible death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive only with at least one win-
dow fully open.
iYou can also use the “touch-start”
function. Turn the SmartKey to
position3 and release it again immedi-
ately. The engine then starts automati-
cally.

51 Getting started
Driving
Starting with KEYLESS-GO*
You can start your vehicle without the
SmartKey in the starter switch using the
KEYLESS-GO start/stop button on the
gear selector lever.
For information on turning off the engine
with KEYLESS-GO, see “Turning off with
KEYLESS-GO*” (
page 61).
The SmartKey with KEYLESS-GO must be
located in the vehicle.
KEYLESS-GO start/stop button1USA only
2Canada only
Make sure the gear selector lever is set
toP.

Depress the brake pedal during the
starting procedure. Do not depress ac-
celerator.
The gear selector lever lock is released.

Press KEYLESS-GO start/stop button
once.
The engine starts if the SmartKey with
KEYLESS-GO is in the vehicle.Starting difficulties
If the engine does not start as described,
carry out the following steps:

If you are starting the engine with the
SmartKey, turn SmartKey in starter
switch to position0 and repeat starting
procedure.

If you are starting the engine with
KEYLESS-GO: Close any doors that
may be open to allow for better detec-
tion of the SmartKey with
KEYLESS-GO.
Or:
Start the engine with the SmartKey as
radio signals from another source may
be interfering with the SmartKey with
KEYLESS-GO.

Repeat the starting procedure
(page 50). Remember that extended
starting attempts can drain the battery.

Get a jump start (
page 456).
Warning!
G
As long as the SmartKey with KEYLESS-GO
i s i n y o u r v e h i c l e , t h e v e h i c l e c a n b e s t a r t e d .
Therefore, never leave children unattended
in the vehicle, as they could otherwise acci-
dentally start the engine.
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle.

52 Getting startedDrivingIf the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.
Notify an authorized Mercedes-Benz
Center.

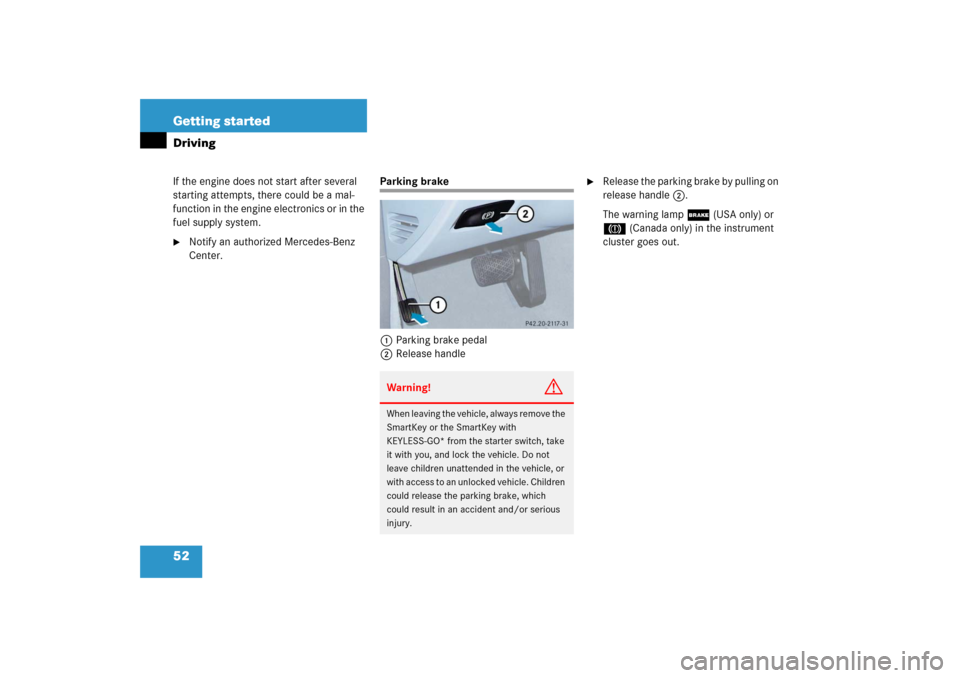

Parking brake
1Parking brake pedal
2Release handle

Release the parking brake by pulling on
release handle2.
The warning lamp ; (USA only) or
3 (Canada only) in the instrument
cluster goes out.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle. Do not
leave children unattended in the vehicle, or
w i t h a c c e s s t o a n u n l o c k e d v e h i c l e . C h i l d r e n
could release the parking brake, which
could result in an accident and/or serious
injury.

53 Getting started
Driving
Driving
Depress the brake pedal.

Move the gear selector lever to
positionDorR.

Release the brake pedal.

Carefully depress the accelerator
pedal.
Once the vehicle is in motion, the automat-
ic central locking system engages and the
locking knobs drop down.After a cold start, the automatic transmis-
sion engages at a higher revolution. This al-
lows the catalytic converter to heat up
more quickly to operating temperature.
For more information on driving, see “Driv-
ing instructions” (
page 301).
iWait for the gear selection process to
complete before setting the vehicle in
motion.iYou can open a locked door from the
inside. Open door only when conditions
are safe to do so.
!If you hear a warning signal and the
message
Release parking brake
ap-
pears in the multifunction display when
driving off, you have forgotten to re-
lease the parking brake.
Release the parking brake.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.
Warning!
G
It is dangerous to shift the gear selector le-
ver out ofP orN if the engine speed is high-
er than idle speed. If your foot is not firmly
on the brake pedal, the vehicle could accel-
erate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.!Simultaneously depressing the acceler-
ator pedal and applying the brake re-
duces engine performance and causes
premature brake and drivetrain wear.

54 Getting startedDrivingSwitching on headlamps
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.Exterior lamp switch1Off
2Low beam headlamps on
Turn the exterior lamp switch to
positionB.
The low beam headlamp indicator
lampB in the instrument cluster
comes on (
page 143).High beam
The combination switch is located on the
left of the steering column.
Combination switch1High beam
2High beam flasher
Push the combination switch in direc-
tion of arrow1.
The high beam headlamp indicator
lampA in the instrument cluster
comes on (
page 24).
For more information on headlamps, see
“Lighting” (
page 143).
Turn signals
The combination switch is located on the
left of the steering column.Combination switch1Turn signals, right
2Turn signals, left
Press the combination switch in direc-
tion of arrow1 or2.
The corresponding turn signal indicator
lamp L or K in the instrument
cluster flashes.

55 Getting started
Driving
The combination switch resets automati-
cally after major steering wheel move-
ments.
Windshield wipers
The combination switch is located on the
left of the steering column.Combination switch1Single wipe
Wiping with windshield washer fluid
2Switching on windshield wipers
Switch on the ignition (
page 36).Switching on windshield wipers

Turn the combination switch to the de-
sired position depending on the inten-
sity of the rain.
0Windshield wipers off
IIntermittent wiping
IINormal wiper speed
IIIFast wiper speed
iTo signal minor directional changes
such as changing lanes, press the com-
bination switch only to point of resis-
tance and release. The corresponding
turn signals will flash three times.
!Do not operate the windshield wipers
when the windshield is dry. Dust that
accumulates on a windshield might
scratch the glass and/or damage the
wiper blades when wiping occurs on a
dry windshield. If it is necessary to op-
erate the windshield wipers in dry
weather conditions, always operate the
windshield wipers with windshield
washer fluid (
page 56).
