2006 MERCEDES-BENZ CLK COUPE Owner's Manual

232 Controls in detailAudio systemSwitching on the telephone
Switching on the telephone
Pressh button.
If the telephone was previously
switched off,
PROCESSING
appears in
the display and you will then be
prompted to enter your PIN.
Switching off the telephone

Pressh button for approximately
three seconds.PROCESSING
appears in the display until
the telephone is off. Afterward,
PHONE OFF
appears in the display.PIN entry

Enter PIN number using buttons 1
to R.

If necessary, correct number entered
with the
CLR
soft key. Press soft key
briefly to delete the last digit entered;
press soft key and hold to delete the
complete number.

Press
OK soft key after entering correct
PIN.

READY
or
ROAMING
will appear in the dis-
play.Adjusting the volume

Turn rotary control of N button dur-
ing a telephone call.
The volume will increase or decrease
depending on the direction turned.
Adjusting sound

Adjust sound during a telephone call.
Sound adjustment (
page 213).
iIf the PIN is entered incorrectly three
times,
NEED PUK
will appear in the dis-
play. Enter PUK via your telephone.
Please refer to the separate telephone
operating instructions for more infor-
mation.
iThe volume can be adjusted separately
for telephone mode and audio mode.

233 Controls in detail
Audio system
Placing a call
Entering a telephone number and
starting the dialing process
Enter desired telephone number using
buttons 1 to R.
The number can have up to 32 digits,
but only twelve of these are visible in
the display.

If necessary, correct number entered
with the
CLR
soft key. Press soft key
briefly to delete the last digit entered;
press soft key and hold to delete the
complete number.

After correct telephone number has
been entered, press s button.
Phone book
The numbers stored in the phone book of
the telephone can be called up either by
name or number.
In addition, incoming calls are stored in the
phone book.


Searching and calling up telephone
book entries by name
You can access your mobile phone’s
phone book using the audio system.
You can access both the main entries
and the sub-entries of your phone
book.
iIf the telephone number has been
saved together with a name in the tele-
phone book, the name will appear in
the display.
iThis is only possible, however, when
the call information transmitted in-
cludes the number of the person call-
ing. If the telephone number is not
transmitted,
NO NUMBER
will be stored
in the phone book.


234 Controls in detailAudio system

Press
MEM
soft key or press
‚orƒ.

Press desired numerical key
2to 9.
The stored entries are selected ac-
cording to the alphabetical order of
the initial letters (e.g. for S-Schneider, press button 7
four times).
or

Press and hold button
‚orƒ.
The system jumps from one initial
letter to the next in ascending or
descending order.

Press and hold button
‚orƒ until desired initial
letter has been reached.
or

Press button ‚orƒ repeat-
edly until desired entry has been
reached.
The stored entries are selected in
alphabetical order with the sub-en-
tries.

When you have selected a number,
press s button.
The call will be made.


Viewing the telephone number of a
telephone book entry
Search for desired entry.

Press
NUM
soft key.
The telephone number of the phone
book entry appears in the display.


Returning calls received
iSeveral sub-entries can be stored for
each main entry (name). These entries
are marked by a corresponding abbre-
viation that appears in the upper
left-hand corner of the display. The fol-
lowing abbreviations for sub-entries
are possible:
CEL = Mobile phone
HOM = Home
WOR = Work
FAX = Fax
PAG = Pager
TEL = Main


235 Controls in detail
Audio system

Press
MEM
soft key or press
‚orƒ.

Press
RCV
soft key (received calls).
The number of received calls and
then the call last received appear
briefly in the display.

Select desired telephone number
with button ‚orƒ.
The letter
R and the number of the
memory position appear in the up-
per left-hand corner of the display.
The numbers are stored in the order
of the calls received.

When you have selected a number,
press s button.
The call will be made.


Speed dial
If you have stored telephone numbers
as speed dial numbers in your tele-
phone, you can also enter these with
buttons 1 to R on the radio
head unit.
Press desired button 1 to R
briefly.

Press s button.
The call will be made.


Turbo dial
If you have stored telephone numbers
as turbo dial numbers in your tele-
phone, you can also enter these with
buttons 1 to R on the radio
head unit.
Press desired button 1 to R
until the call is made.Redial
If the number you have dialed is busy, you
can again place calls to the last ten tele-
phone numbers dialed using the redial
function.


Manual redialiIf you have activated the automatic re-
dial function on your telephone, the
number of the person being called is
automatically redialed after a short
waiting period if there is a busy signal.
Refer to the separate operating instruc-
tions for the mobile phone.


236 Controls in detailAudio system

Press s button.
The telephone number last dialed
will appear in the display.

Select desired telephone number
with button ‚orƒ.
The letter
L and the number of the
memory position appears in the
left-hand corner of the display. The
numbers are stored in the order of
the calls made.

When you have selected a number,
press s button.
The call will be made.Accepting an incoming call
If the telephone is active in the background
(reception symbol is visible in the display),
the audio source is muted when an incom-
ing call is received. A ringing tone can be
heard and the caller’s telephone number,
or the name under which the telephone
number has been saved in the phone book,
appears in the display. If the caller’s num-
ber is not transmitted with the call,
CALL

will appear in the display.

Press s button.
The call is accepted.Muting a call
It is possible to mute a call; the caller is
then no longer able to hear you.


Mute on
Press
MUT
soft key.

MIC MUTE
will appear in the display.


Mute off
Press
MUT
soft key again.
Terminating a call

Press t button.
The current call is terminated and the
muted audio source becomes active
again.


237 Controls in detail
Audio system
Talking with two callers at the same
time
If you wish to receive or place another call
during an already active call, you can ac-
cept or place the second call and switch
between the callers or combine them into
one call. Note that the features described
here are depending on availability from
your mobile phone service provider.

Placing/accepting a second call
Place new call by entering tele-
phone number manually.

Press s button.
You are connected to the second
caller; the first caller is kept on
hold.
or

Press s button to accept a sec-
ond call.You are connected with the second
caller; the first caller is kept on hold.


Switching between calls
Press 2 and s buttons.
This switches between the calls.
The non-active call is kept on hold.


Terminating a call
Press t button.
The current call is terminated. You
are again connected with the caller
previously placed on hold.


Combining two calls
Press 3 and s buttons.
The calls are combined into one
call.


Terminating a combined call
Press t button.
The connection to both callers is
terminated.
iYou will be notified of the second call
acoustically, but you will not see this in
the display.

238 Controls in detailAudio systemTDMA or CDMA network phonesUsing your Mercedes-Benz specified mo-
bile phone*, a number of functions and op-
erating steps can be performed and
displayed in the audio system display.
Further operating instructions not covered
here can be found in the operating instruc-
tions for the multifunction steering wheel
and the mobile phone*.
If your audio system is set up for telephone
operation, the t symbol will appear in
the display.
When you insert your Mercedes-Benz
specified mobile phone* into the tele-
phone cradle, you will be prompted to en-
ter your PIN for 30 seconds (
page 238).
This display disappears when you press
any button.
When your mobile phone is inserted into
the telephone cradle, you will see the re-
ception strength in the upper right-hand
corner of the display.Switching on the telephone
Switching on the telephone

Press h button.

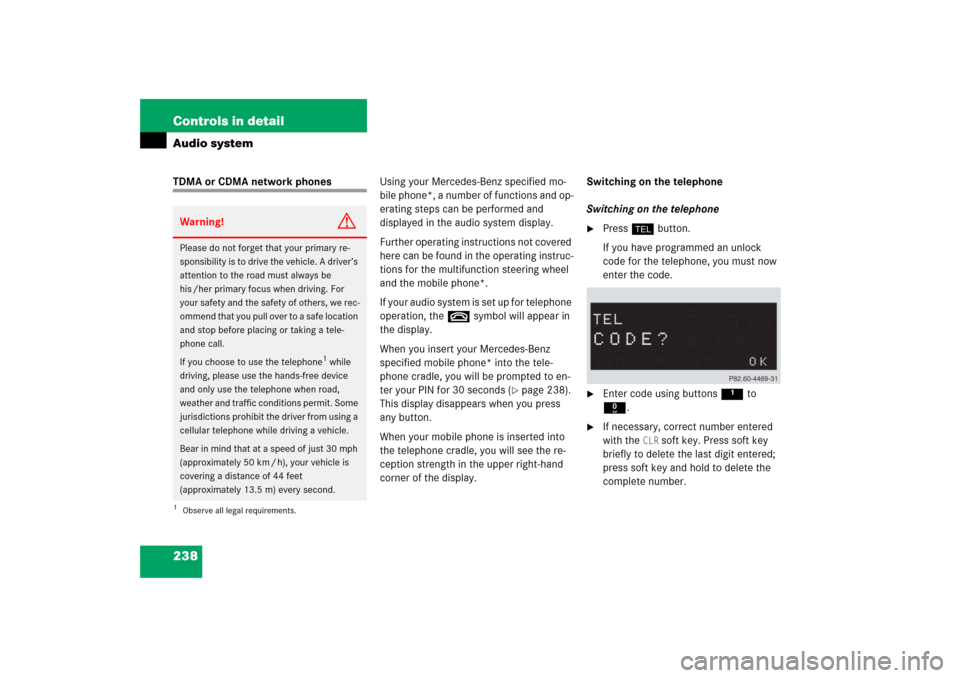

If you have programmed an unlock
code for the telephone, you must now
enter the code.

Enter code using buttons 1 to
R.

If necessary, correct number entered
with the
CLR
soft key. Press soft key
briefly to delete the last digit entered;
press soft key and hold to delete the
complete number.
Warning!
G
Please do not forget that your primary re-
sponsibility is to drive the vehicle. A driver’s
attention to the road must always be
his /her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call.
If you choose to use the telephone
1 while
driving, please use the hands-free device
and only use the telephone when road,
weather and traffic conditions permit. Some
jurisdictions prohibit the driver from using a
cellular telephone while driving a vehicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km / h), your vehicle is
covering a distance of 44 feet
(approximately 13.5 m) every second.
1Observe all legal requirements.

239 Controls in detail
Audio system

Press
OK soft key after entering correct
code.
The telephone is unlocked. If you have
entered an incorrect code, you must
enter the correct code.
Switching off the telephone

Press h button for approximately
three seconds.PROCESSING
appears in the display until
the telephone is off. Afterward,
PHONE
OFF
appears in the display.
Adjusting the volume

Turn rotary control of N button dur-
ing a telephone call.
The volume will increase or decrease
depending on the direction turned.Adjusting sound

Adjust sound during a telephone call.
Sound adjustment (
page 213).
Placing a call
Entering a telephone number and
starting the dialing process

Enter desired telephone number using
buttons 1 to R.
The number can have up to 32 digits,
but only twelve of these are visible in
the display.

If necessary, correct number entered
with the
CLR
soft key. Press soft key
briefly to delete the last digit entered;
press soft key and hold to delete the
complete number.

After correct telephone number has
been entered, press s button.
Phone book
The numbers stored in the phone book of
the mobile phone can be called up either
by name or number.
In addition, incoming calls are stored in the
phone book.
iThe volume can be adjusted separately
for telephone mode and audio mode.
iIf the telephone number has been
saved together with a name in the
phone book, the name will appear in
the display.
