2006 MERCEDES-BENZ CLK COUPE Owner's Manual

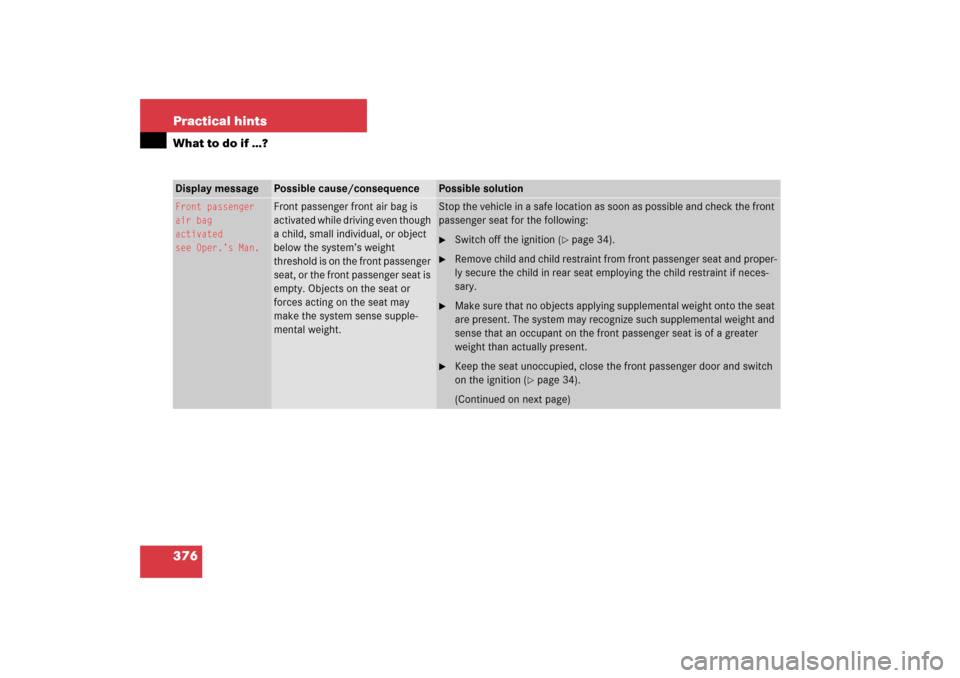

376 Practical hintsWhat to do if …?Display message
Possible cause/consequence
Possible solution
Front passenger
air bag
activated
see Oper.’s Man.
Front passenger front air bag is
activated while driving even though
a child, small individual, or object
below the system’s weight
threshold is on the front passenger
seat, or the front passenger seat is
empty. Objects on the seat or
forces acting on the seat may
make the system sense supple-
mental weight.
Stop the vehicle in a safe location as soon as possible and check the front
passenger seat for the following:
Switch off the ignition (
page 34).

Remove child and child restraint from front passenger seat and proper-
ly secure the child in rear seat employing the child restraint if neces-
sary.

Make sure that no objects applying supplemental weight onto the seat
are present. The system may recognize such supplemental weight and
sense that an occupant on the front passenger seat is of a greater
weight than actually present.

Keep the seat unoccupied, close the front passenger door and switch
on the ignition (
page 34).
(Continued on next page)

377 Practical hints
What to do if …?
Display message
Possible cause/
consequence
Possible solution
Front passenger
air bag
activated
see Oper.’s Man.
Monitor the 56indicator lamp on the center console (
page 27) and the mul-
tifunction display in the instrument cluster (
page 24) for the following:
With the seat unoccupied and the ignition turned on,


the 56indicator lamp on the center console should illuminate and remain
illuminated, indicating that the OCS (
page 77) has deactivated the air bag.


the message
Front passenger air bag activated see Oper.’s Man.
or the mes-
sage
Front passenger air bag deactivated see Oper.’s Man.
should not ap-
pear in the multifunction display at any time the seat is unoccupied. Wait at last
60 seconds for the system to complete the necessary check cycles and to make
sure neither message appears in the multifunction display.
If above conditions are met, you can occupy the front passenger seat again. Depend-
ing on the front passenger classification sensed by the OCS (
page 77), the
56indicator lamp will remain illuminated or go out.
If above conditions are not met, the system is not working properly. Have the system
checked as soon as possible by an authorized Mercedes-Benz Center.
Warning!
G
If the 56indicator lamp remains
out even after performing the above correc-
tive steps, do not have any children 12 years
old and under and other small individuals
use the front passenger seat until the sys-
tem has been repaired.

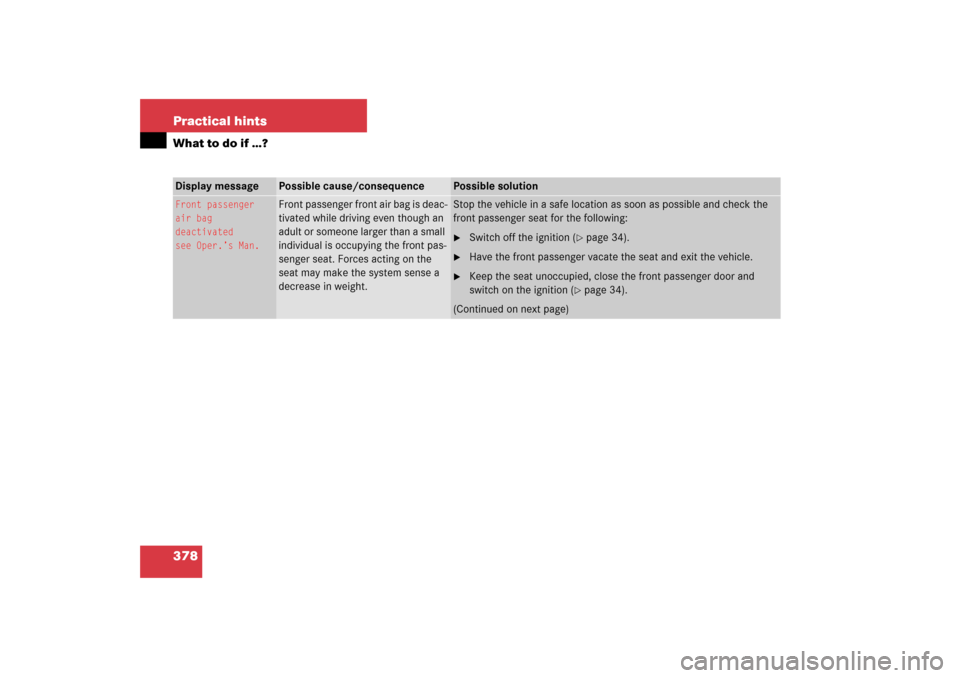

378 Practical hintsWhat to do if …?Display message
Possible cause/consequence
Possible solution
Front passenger
air bag
deactivated
see Oper.’s Man.
Front passenger front air bag is deac-
tivated while driving even though an
adult or someone larger than a small
individual is occupying the front pas-
senger seat. Forces acting on the
seat may make the system sense a
decrease in weight.
Stop the vehicle in a safe location as soon as possible and check the
front passenger seat for the following:
Switch off the ignition (
page 34).

Have the front passenger vacate the seat and exit the vehicle.

Keep the seat unoccupied, close the front passenger door and
switch on the ignition (
page 34).
(Continued on next page)

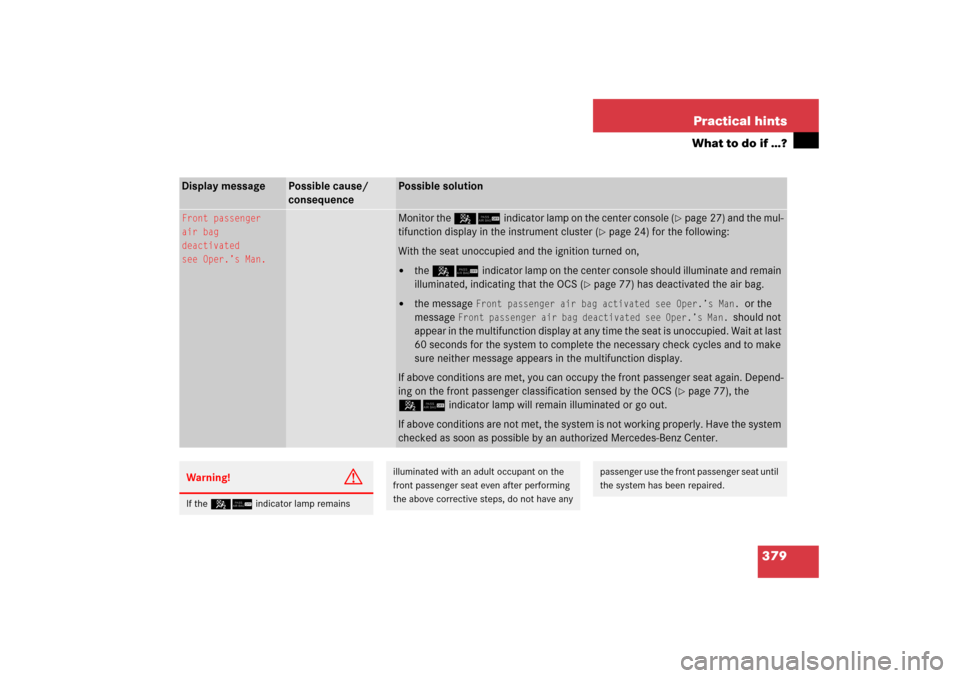

379 Practical hints
What to do if …?
Display message
Possible cause/
consequence
Possible solution
Front passenger
air bag
deactivated
see Oper.’s Man.
Monitor the 56indicator lamp on the center console (
page 27) and the mul-
tifunction display in the instrument cluster (
page 24) for the following:
With the seat unoccupied and the ignition turned on,


the 56indicator lamp on the center console should illuminate and remain
illuminated, indicating that the OCS (
page 77) has deactivated the air bag.


the message
Front passenger air bag activated see Oper.’s Man.
or the
message
Front passenger air bag deactivated see Oper.’s Man.
should not
appear in the multifunction display at any time the seat is unoccupied. Wait at last
60 seconds for the system to complete the necessary check cycles and to make
sure neither message appears in the multifunction display.
If above conditions are met, you can occupy the front passenger seat again. Depend-
ing on the front passenger classification sensed by the OCS (
page 77), the
56indicator lamp will remain illuminated or go out.
If above conditions are not met, the system is not working properly. Have the system
checked as soon as possible by an authorized Mercedes-Benz Center.
Warning!
G
If the 56indicator lamp remains
illuminated with an adult occupant on the
front passenger seat even after performing
the above corrective steps, do not have any
passenger use the front passenger seat until
the system has been repaired.

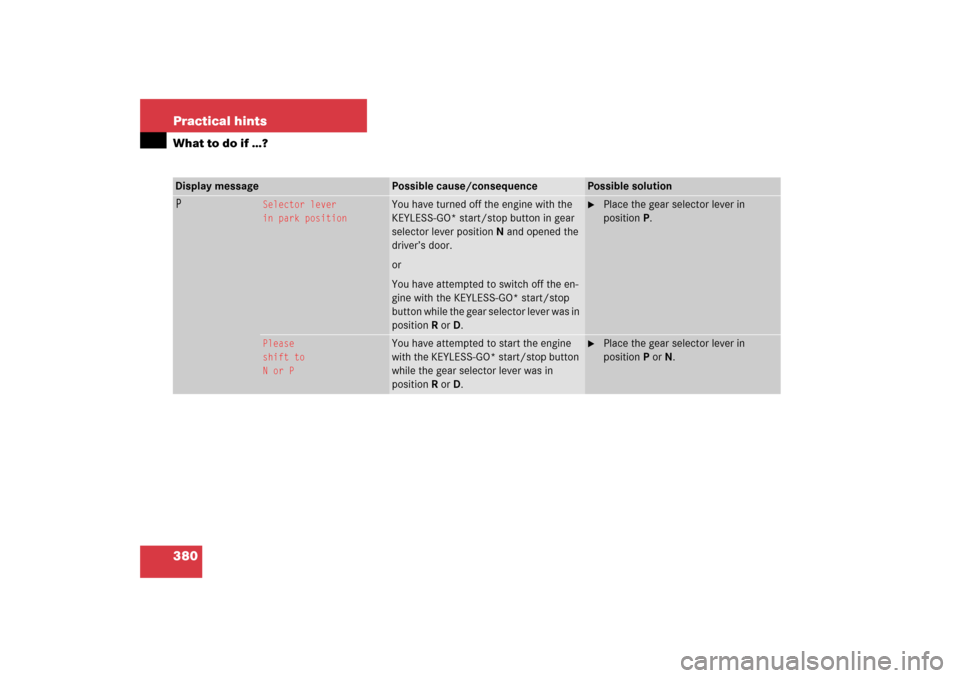

380 Practical hintsWhat to do if …?Display message
Possible cause/consequence
Possible solution
P
Selector lever
in park position
You have turned off the engine with the
KEYLESS-GO* start/stop button in gear
selector lever positionN and opened the
driver’s door.
or
You have attempted to switch off the en-
gine with the KEYLESS-GO* start/stop
button while the gear selector lever was in
positionR orD.

Place the gear selector lever in
positionP.
Please
shift to
N or P
You have attempted to start the engine
with the KEYLESS-GO* start/stop button
while the gear selector lever was in
positionR orD.

Place the gear selector lever in
positionP or N.

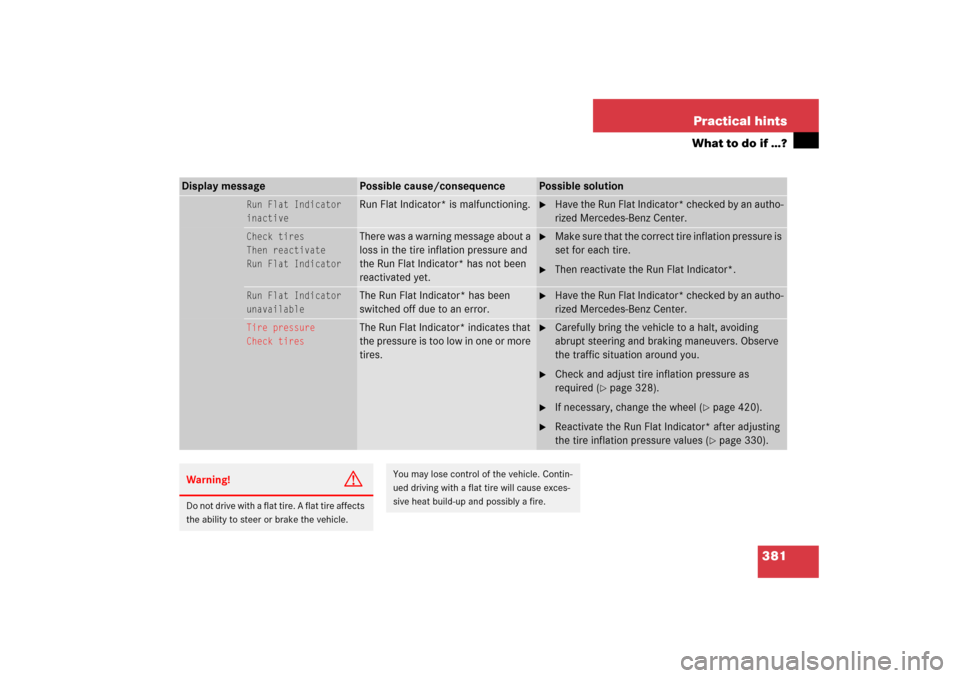

381 Practical hints
What to do if …?
Display message
Possible cause/consequence
Possible solution
Run Flat Indicator
inactive
Run Flat Indicator* is malfunctioning.

Have the Run Flat Indicator* checked by an autho-
rized Mercedes-Benz Center.
Check tires
Then reactivate
Run Flat Indicator
There was a warning message about a
loss in the tire inflation pressure and
the Run Flat Indicator* has not been
reactivated yet.

Make sure that the correct tire inflation pressure is
set for each tire.

Then reactivate the Run Flat Indicator*.
Run Flat Indicator
unavailable
The Run Flat Indicator* has been
switched off due to an error.

Have the Run Flat Indicator* checked by an autho-
rized Mercedes-Benz Center.
Tire pressure
Check tires
The Run Flat Indicator* indicates that
the pressure is too low in one or more
tires.

Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers. Observe
the traffic situation around you.

Check and adjust tire inflation pressure as
required (
page 328).

If necessary, change the wheel (
page 420).

Reactivate the Run Flat Indicator* after adjusting
the tire inflation pressure values (
page 330).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

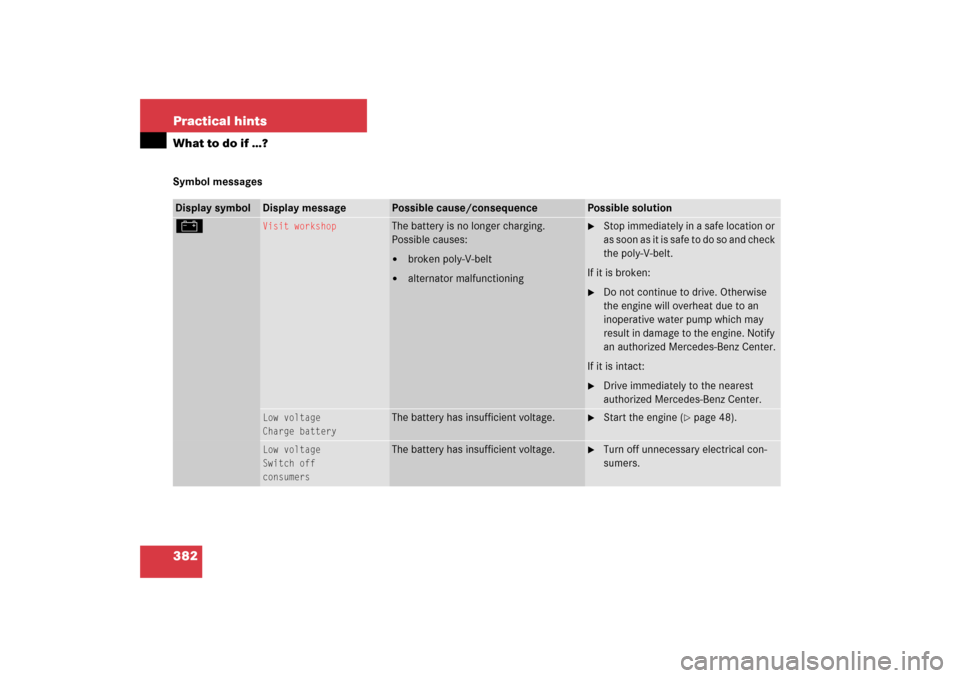

382 Practical hintsWhat to do if …?Symbol messagesDisplay symbol
Display message
Possible cause/consequence
Possible solution
#
Visit workshop
The battery is no longer charging.
Possible causes:

broken poly-V-belt


alternator malfunctioning

Stop immediately in a safe location or
as soon as it is safe to do so and check
the poly-V-belt.
If it is broken:

Do not continue to drive. Otherwise
the engine will overheat due to an
inoperative water pump which may
result in damage to the engine. Notify
an authorized Mercedes-Benz Center.
If it is intact:

Drive immediately to the nearest
authorized Mercedes-Benz Center.
Low voltage
Charge battery
The battery has insufficient voltage.

Start the engine (
page 48).
Low voltage
Switch off
consumers
The battery has insufficient voltage.

Turn off unnecessary electrical con-
sumers.

383 Practical hints
What to do if …?
Display symbol
Display message
Possible cause/consequence
Possible solution
2
Brake wear
Visit workshop
The brake pads have reached their
wear limit.

Have the brake pads replaced as soon as
possible.
;
(USA only)
!
(Canada only)
Release parking
brake
You are driving with the parking brake
set.

Release the parking brake (
page 50).
3
Brake fluid
Visit workshop
There is insufficient brake fluid in the
reservoir.

Risk of accident! Stop the vehicle in a safe
location or as soon as it is safe to do so
and notify an authorized Mercedes-Benz
Center. Do not add brake fluid! This will
not solve the problem.
Warning!
G
Driving with the message “
Brake fluid
Visit workshop
” displayed can result in
an accident. Have your brake system
checked immediately. Do not add brake flu-
id before checking the brake system. Over-
filling the brake fluid reservoir can result in
spilling brake fluid on hot engine parts and
the brake fluid catching fire. You can be se-
riously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.
!Brake pad thickness must be visually
checked by a qualified technician at the
intervals specified in the Maintenance
Booklet.
