432 Practical hintsTowing the vehicleTowing the vehicle
Mercedes-Benz recommends that the vehi-
cle be transported with all wheels off the
ground using flatbed or appropriate wheel
lift/dolly equipment.When circumstances do not permit the
recommended towing methods, the vehi-
cle may be towed with all wheels on the
ground or front wheels raised only so far as
necessary to have the vehicle moved to a
safe location where the recommended
towing methods can be employed.
!Do not tow-start the vehicle.!Use flatbed or wheel lift/dolly equip-
ment with SmartKey in starter switch
turned to position0.
Do not tow with sling-type equipment.
Towing with sling-type equipment over
bumpy roads will damage radiator and
supports.
To prevent damage during transport,
do not tie down vehicle by its chassis or
suspension parts.
Switch off the tow-away alarm
(page 95) and the automatic central
locking (
page 163).
!If the vehicle is towed with the front
axle raised, the engine must be shut off
(SmartKey in starter switch position0
or1). Otherwise, the ESP
® will immedi-
ately be engaged and will apply the rear
wheel brakes.
When towing the vehicle with all wheels
on the ground, the gear selector lever
must be in positionN and the
SmartKey must be in starter switch
position2.
When towing the vehicle with all wheels
on the ground or the front axle raised,
the vehicle may be towed only for
30 miles (50 km) and up to 30 mph
(50 km/h).!To be certain to avoid a possibility of
damage to the transmission, however,
we recommend the drive shaft be dis-
connected at the rear axle drive flange
for any towing beyond a short tow to a
nearby garage.

433 Practical hints
Towing the vehicle

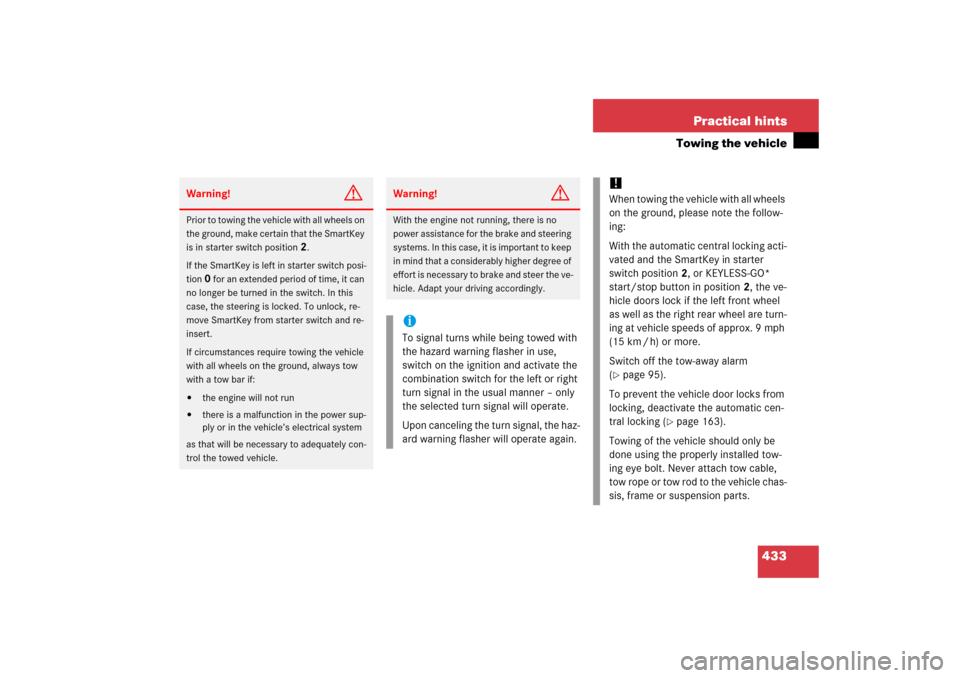

Warning!
G
Prior to towing the vehicle with all wheels on
the ground, make certain that the SmartKey
is in starter switch position
2.
If the SmartKey is left in starter switch posi-
tion
0 for an extended period of time, it can
no longer be turned in the switch. In this
case, the steering is locked. To unlock, re-
move SmartKey from starter switch and re-
insert.
If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if:


the engine will not run


there is a malfunction in the power sup-
ply or in the vehicle’s electrical system
as that will be necessary to adequately con-
trol the towed vehicle.
Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle. Adapt your driving accordingly.iTo signal turns while being towed with
the hazard warning flasher in use,
switch on the ignition and activate the
combination switch for the left or right
turn signal in the usual manner – only
the selected turn signal will operate.
Upon canceling the turn signal, the haz-
ard warning flasher will operate again.
!When towing the vehicle with all wheels
on the ground, please note the follow-
ing:
With the automatic central locking acti-
vated and the SmartKey in starter
switch position2, or KEYLESS-GO*
start/stop button in position2, the ve-
hicle doors lock if the left front wheel
as well as the right rear wheel are turn-
ing at vehicle speeds of approx. 9 mph
(15 km / h) or more.
Switch off the tow-away alarm
(page 95).
To prevent the vehicle door locks from
locking, deactivate the automatic cen-
tral locking (
page 163).
Towing of the vehicle should only be
done using the properly installed tow-
ing eye bolt. Never attach tow cable,
tow rope or tow rod to the vehicle chas-
sis, frame or suspension parts.

434 Practical hintsTowing the vehicle
Installing towing eye bolt

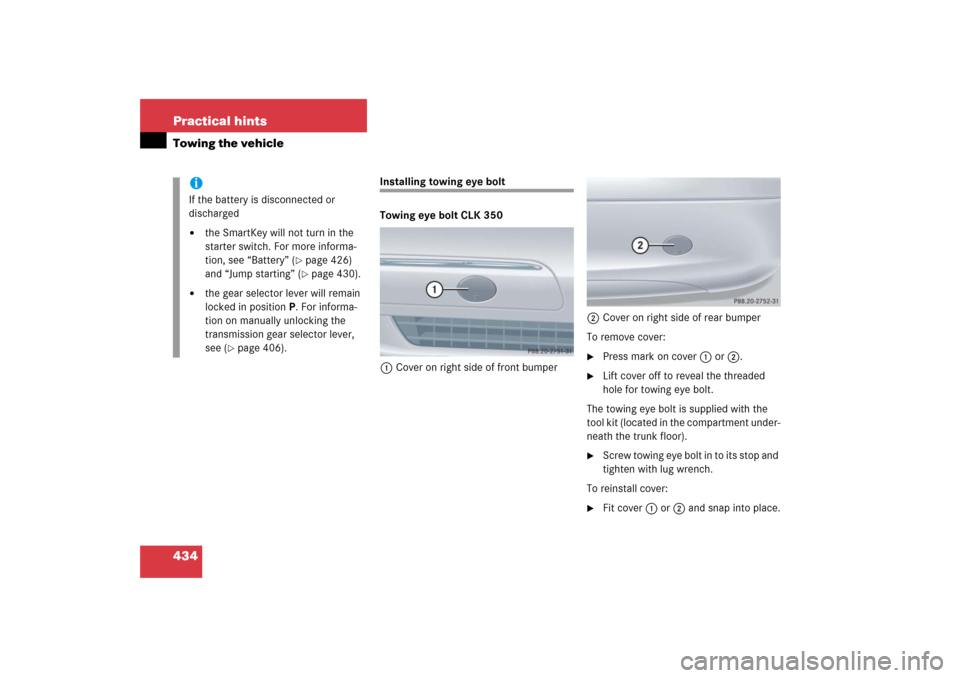

Towing eye bolt CLK 350
1Cover on right side of front bumper2Cover on right side of rear bumper
To remove cover:

Press mark on cover 1 or 2.

Lift cover off to reveal the threaded
hole for towing eye bolt.
The towing eye bolt is supplied with the
tool kit (located in the compartment under-
neath the trunk floor).

Screw towing eye bolt in to its stop and
tighten with lug wrench.
To reinstall cover:

Fit cover 1 or 2 and snap into place.
iIf the battery is disconnected or
discharged

the SmartKey will not turn in the
starter switch. For more informa-
tion, see “Battery” (
page 426)
and “Jump starting” (page 430).


the gear selector lever will remain
locked in positionP. For informa-
tion on manually unlocking the
transmission gear selector lever,
see (
page 406).

435 Practical hints
Towing the vehicle
Towing eye bolt CLK 500
Towing eye bolt in front bumper
The cover for the towing eye bolt in the
front bumper is identical to the cover on
the CLK 350.
To remove and to reinstall cover, see “Tow-
ing eye bolt CLK 350” (
page 434).

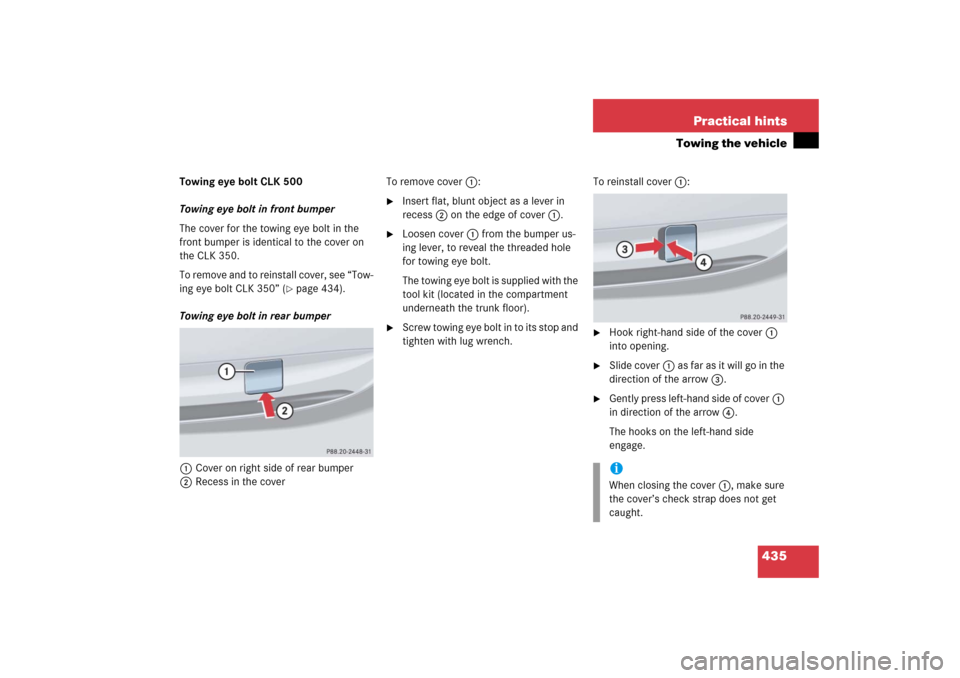

Towing eye bolt in rear bumper
1Cover on right side of rear bumper
2Recess in the coverTo remove cover 1:

Insert flat, blunt object as a lever in
recess 2 on the edge of cover 1.

Loosen cover 1 from the bumper us-
ing lever, to reveal the threaded hole
for towing eye bolt.
The towing eye bolt is supplied with the
tool kit (located in the compartment
underneath the trunk floor).

Screw towing eye bolt in to its stop and
tighten with lug wrench.To reinstall cover 1:

Hook right-hand side of the cover1
into opening.

Slide cover1 as far as it will go in the
direction of the arrow3.

Gently press left-hand side of cover1
in direction of the arrow4.
The hooks on the left-hand side
engage.iWhen closing the cover1, make sure
the cover’s check strap does not get
caught.

436 Practical hintsFusesFuses are designed to protect the electri-
cal circuits in your vehicle from a short cir-
cuit. If a fuse is blown, the component(s)
and systems secured by that fuse will stop
operating.
The following aids are available to help you
replace fuses (
page 436):


Fuse chart


Spare fuses


Fuse extractor
The electrical fuses are located in different
fuse boxes:


Main fuse box in passenger
compartment (
page 437)


Fuse box in engine compartment
(page 437)


Fuse box in trunk (
page 438)
Aids for replacing fuses
Fuse chart
The fuse chart is located in the main fuse
box in the passenger compartment
(page 437). The amperages of the fuses
are also given there.
Spare fuses
Spare fuses are located in the vehicle tool
kit in the spare wheel well (
page 399).
Fuse extractor
The fuse extractor is located in the cover of
the auxiliary fuse box in the trunk
(
page 438).
Warning!
G
Only use fuses approved for Mercedes-Benz
with the specified amperage for the system
in question. Using other fuses may cause an
overload leading to a fire, and/or cause
damage to electrical components and/or
systems.
!Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Center.!Keep the fuse boxes free by contamina-
tion and wetness. Otherwise, electrical
parts or systems could be damaged.

437 Practical hintsFuses
Main fuse box in passenger compartment
The main fuse box is located in the passen-
ger compartment on the driver’s side of
the cockpit.

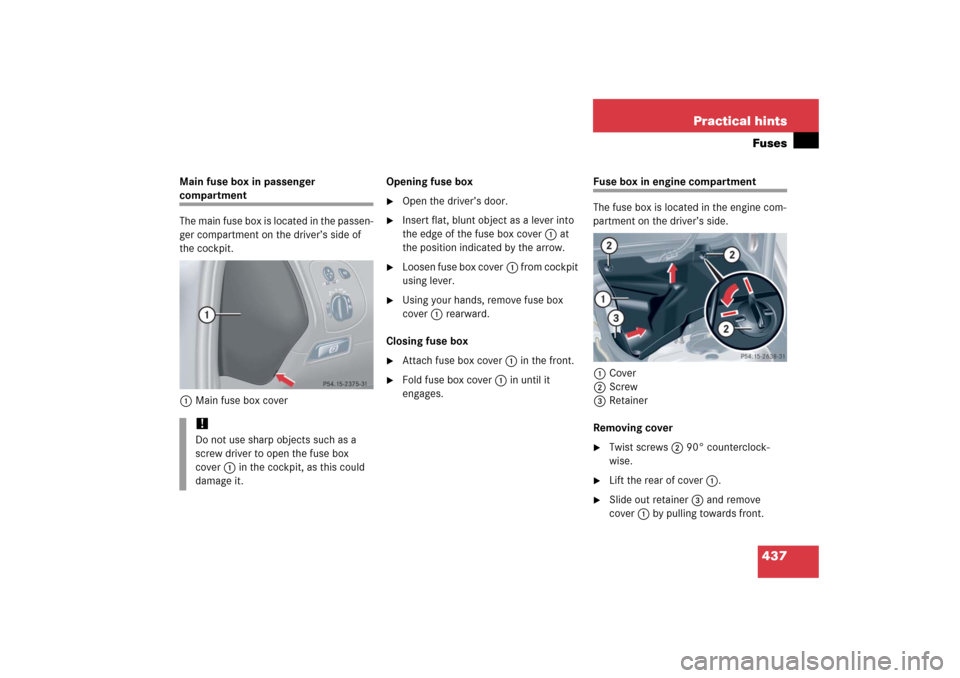

1Main fuse box coverOpening fuse box

Open the driver’s door.

Insert flat, blunt object as a lever into
the edge of the fuse box cover1 at
the position indicated by the arrow.

Loosen fuse box cover1 from cockpit
using lever.

Using your hands, remove fuse box
cover1 rearward.
Closing fuse box

Attach fuse box cover1 in the front.

Fold fuse box cover1 in until it
engages.
Fuse box in engine compartment
The fuse box is located in the engine com-
partment on the driver’s side.
1Cover
2Screw
3Retainer
Removing cover
Twist screws2 90° counterclock-
wise.

Lift the rear of cover1.

Slide out retainer3 and remove
cover1 by pulling towards front.
!Do not use sharp objects such as a
screw driver to open the fuse box
cover1 in the cockpit, as this could
damage it.

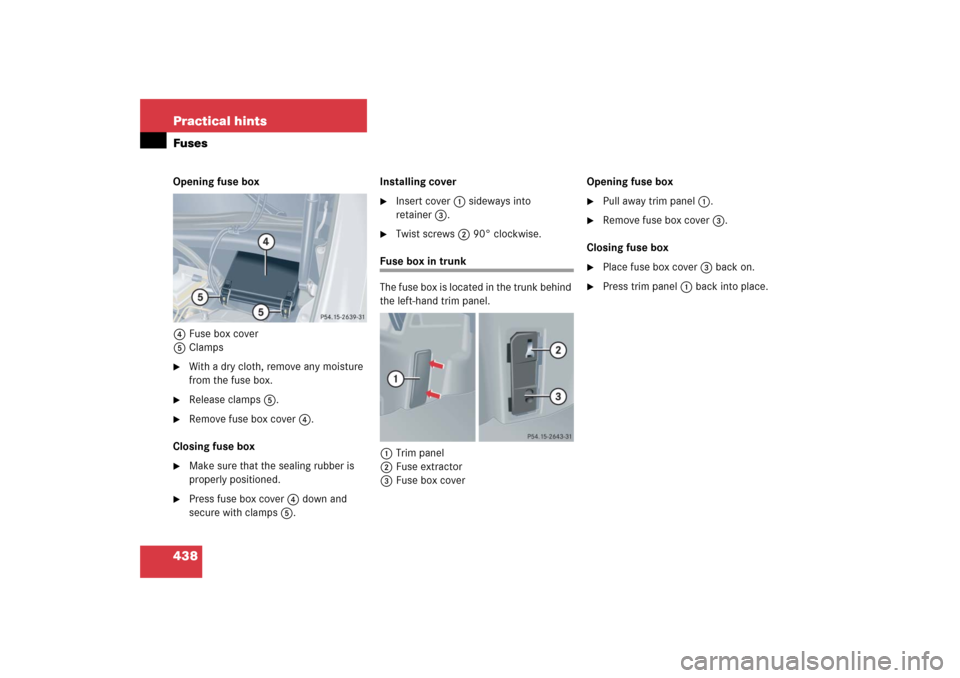

438 Practical hintsFusesOpening fuse box
4Fuse box cover
5Clamps
With a dry cloth, remove any moisture
from the fuse box.

Release clamps5.

Remove fuse box cover4.
Closing fuse box

Make sure that the sealing rubber is
properly positioned.

Press fuse box cover4 down and
secure with clamps5.Installing cover

Insert cover1 sideways into
retainer3.

Twist screws2 90° clockwise.
Fuse box in trunk
The fuse box is located in the trunk behind
the left-hand trim panel.
1Trim panel
2Fuse extractor
3Fuse box coverOpening fuse box

Pull away trim panel1.

Remove fuse box cover3.
Closing fuse box

Place fuse box cover3 back on.

Press trim panel1 back into place.
