2006 MERCEDES-BENZ CLK COUPE Owner's Manual

448 Technical dataRims and tiresMixed size tires
CLK 350
CLK 500
Front axle:
Rims (light alloy)
7.5 J x 17 H2
7.5 J x 17 H2
Wheel offset
1.42 in (36 mm)
1.46 in (37 mm)
Summer tires
1
1Radial-ply tires.
225/45 R17 91W
225/45 R17 91W
Summer tires
*1,2
2Must be used in conjunction with Run Flat Indicator* only.
225/45 R17 91W MOExtended
225/45 R17 91W MOExtended
Rear axle:
Rims (light alloy)
8.5 J x17 H2
8.5 J x17 H2
Wheel offset
1.18 in (30 mm)
1.18 in (30 mm)
Summer tires
1,3
3Must not be used with snow chains.
245/40 R17 91W
245/40 ZR17 91W
Summer tires
*1,2,3
245/40 R17 91W MOExtended
245/40 R17 91W MOExtended

449 Technical data
Rims and tires
Minispare wheel
All Models
Rim
3.5 B x 17 H2
Wheel offset
0.67 in (17 mm)
Tire
1
1Must not be used with snow chains.
T 125/80 R 17 99M
!Please compare the recommended tire
inflation pressure for your vehicle with
the tire inflation pressure on the yellow
label located on the spare wheel rim.
If the tire inflation pressure on the yel-
low label on the spare wheel rim differs
from the values given in this Operator’s
Manual, inflate the spare wheel tire to
the recommended tire inflation pres-
sure given on the yellow label on the
spare wheel rim.
iPlease note that the tire inflation pres-
sure of the Minispare tire differs from
the tire inflation pressure of the road
tires.
Make sure the Minispare tire is inflated
to approximately 60 psi (4.1 bar).

450 Technical dataElectrical systemModel
CLK 350
CLK 500
Generator (alternator)
14 V/150 A
14 V/150 A
Starter motor
14 V/1.4 KW
14 V/1.7 KW
Battery
12 V/100 Ah
12 V/100 Ah
Spark plugs
Bosch Platin Y 7 MPP 33
NGK PLKR 6A
Bosch F8 DPP 332
NGK PFR 5R-11
Electrode gap
0.031 in (0.8 mm)
0.039 in (1.00 mm)
Tightening torque
15 - 22 lb-ft (20 - 30 Nm)
18.5 - 22 lb-ft (25 - 30 Nm)

451 Technical data
Main dimensions and weights
Main dimensions and weights
Main dimensionsWeightsModel
CLK 350
CLK 500
Overall vehicle length
183.3 in (4 657 mm)
182.8 in (4 657 mm)
Overall vehicle width (exterior rear view
mirrors folded out)
78.4 in (1 991 mm)
78.4 in (1 991 mm)
Overall vehicle height
55.4 in (1 408 mm)
55.4 in (1 408 mm)
Wheelbase
106.9 in (2 715 mm)
106.9 in (2 715 mm)
Track, front
58.8 in (1 493 mm)
58.9 in (1 497 mm)
Track, rear
58.0 in (1 474 mm)
58.2 in (1 478 mm)
Roof load max.
220 lbs (100 kg)
Trunk load max.
220 lbs (100 kg)

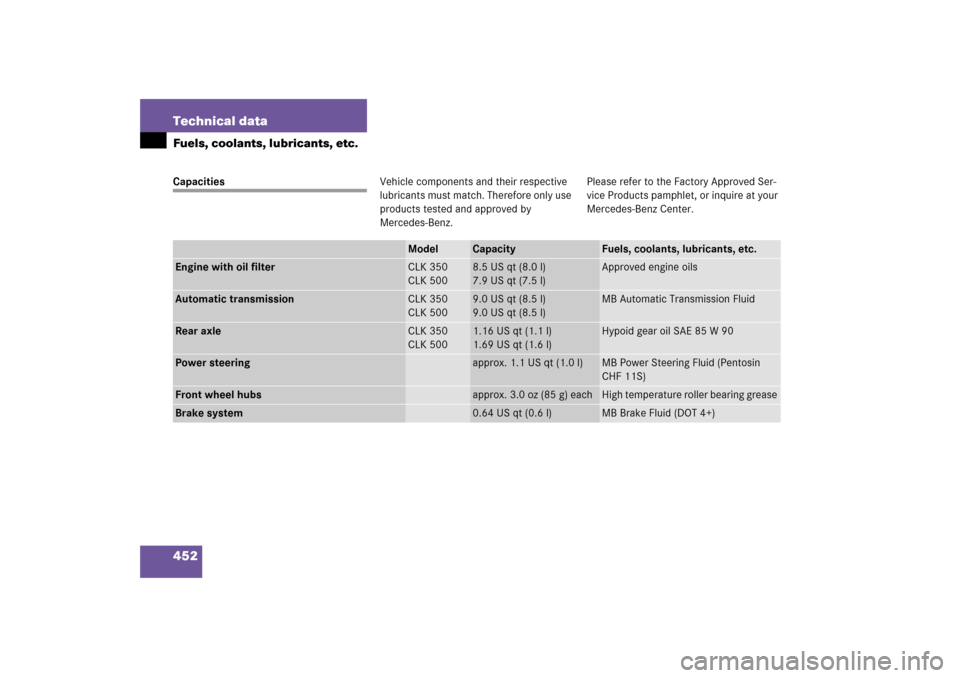

452 Technical dataFuels, coolants, lubricants, etc.CapacitiesVehicle components and their respective
lubricants must match. Therefore only use
products tested and approved by
Mercedes-Benz.Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
CLK 350
CLK 500
8.5 US qt (8.0 l)
7.9 US qt (7.5 l)
Approved engine oils
Automatic transmission
CLK 350
CLK 500
9.0 US qt (8.5 l)
9.0 US qt (8.5 l)
MB Automatic Transmission Fluid
Rear axle
CLK 350
CLK 500
1.16 US qt (1.1 l)
1.69 US qt (1.6 l)
Hypoid gear oil SAE 85 W 90
Power steering
approx. 1.1 US qt (1.0 l)
MB Power Steering Fluid (Pentosin
CHF 11S)
Front wheel hubs
approx. 3.0 oz (85 g) each
High temperature roller bearing grease
Brake system
0.64 US qt (0.6 l)
MB Brake Fluid (DOT 4+)

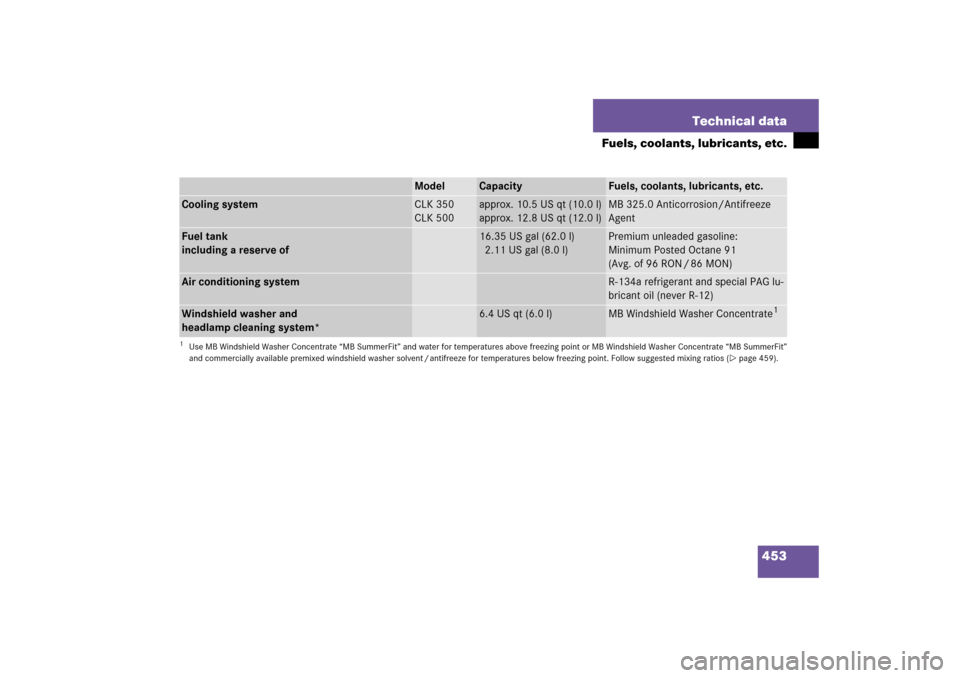

453 Technical data
Fuels, coolants, lubricants, etc.
Model
Capacity
Fuels, coolants, lubricants, etc.
Cooling system
CLK 350
CLK 500
approx. 10.5 US qt (10.0 l)
approx. 12.8 US qt (12.0 l)
MB 325.0 Anticorrosion/Antifreeze
Agent
Fuel tank
including a reserve of
16.35 US gal (62.0 l)
2.11 US gal (8.0 l)
Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg.of96RON/86MON)
Air conditioning system
R-134a refrigerant and special PAG lu-
bricant oil (never R-12)
Windshield washer and
headlamp cleaning system*
6.4 US qt (6.0 l)
MB Windshield Washer Concentrate
1
1Use MB Windshield Washer Concentrate “MB SummerFit” and water for temperatures above freezing point or MB Windshield Washer Concentrate “MB SummerFit”
and commercially available premixed windshield washer solvent / antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 459).

454 Technical dataFuels, coolants, lubricants, etc.Engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for
our service intervals. Therefore, only use
approved engine oils and oil filters re-
quired for vehicles with Maintenance
System (U.S. vehicles) or FSS (Canada
vehicles). For a listing of approved engine
oils and oil filters, refer to the Factory Ap-
proved Service Products Pamphlet, or
contact an authorized Mercedes-Benz
Center.
Engine oil additives
Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil are used in the air
conditioning system.
Never use R-12 (CFC) or mineral-based
lubricating oil. Otherwise damage to the
system will occur.
Brake fluid
During vehicle operation, the boiling point
of the brake fluid is continuously reduced
through the absorption of moisture from
the atmosphere.
Only brake fluid approved by
Mercedes-Benz is recommended. An
authorized Mercedes-Benz Center will
provide you with additional information.
!Using engine oils and oil filters of spec-
ification other than those expressly re-
quired for the Maintenance System
(U.S. vehicles) or FSS (Canada vehi-
cles), or changing of oil and oil filter at
change intervals longer than those
called for by the Maintenance System
(U.S. vehicles) or FSS (Canada vehi-
cles) will result in engine damage not
covered by the Mercedes-Benz Limited
Warranty.
Please follow Maintenance System
(U.S. vehicles) or FSS (Canada vehi-
cles) recommendations for scheduled
oil changes. Failure to do so will result
in engine damage not covered by the
Mercedes-Benz Limited Warranty.
Warning!
G
Under extremely strenuous operating condi-
tions, this moisture content can lead to the
formation of bubbles in the system, thus re-
ducing the system’s efficiency.
Therefore, the brake fluid must be replaced
regularly. Refer to your vehicle's Mainte-
nance Booklet for replacement interval.

455 Technical data
Fuels, coolants, lubricants, etc.
Premium unleaded gasoline
Fuel requirements
Only use premium unleaded fuel:

The octane number (posted at the
pump) must be 91 min. It is an average
of both the Research (R) octane num-
ber and the Motor (M) octane number:
(R+M) / 2). This is also known as the
ANTI-KNOCK INDEX.
Unleaded gasoline containing oxygenates
such as ethanol, IPA, IBA and TBA can be
used provided the ratio of any one of these
oxygenates to gasoline does not
exceed 10%; MTBE not to exceed 15%.
The ratio of methanol to gasoline must not
exceed 3% plus additional cosolvents.
Using mixtures of ethanol and methanol is
not allowed. Gasohol, which contains 10%
ethanol and 90% unleaded gasoline, can be
used.
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure, etc.
Warning!
G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious
injury. Whenever you are around gasoline,
avoid inhaling fumes and skin contact, extin-
guish all smoking materials. Never allow
sparks, flame or smoking materials near
gasoline!
!To maintain the engine’s durability and
performance, premium unleaded gaso-
line must be used. If premium unleaded
is not available and low octane fuel is
used, follow these precautions:

Have the fuel tank only partially
filled with unleaded regular and fill
up with premium unleaded as soon
as possible.


Avoid full throttle driving and abrupt
acceleration.


Do not exceed an engine speed
of 3 000 rpm if the vehicle is loaded
with a light load such as two per-
sons and no luggage.


Do not exceed
2/3 of maximum ac-
celerator pedal position if the vehi-
cle is fully loaded or operating in
mountainous terrain.
