2006 MERCEDES-BENZ CLK COUPE Owner's Manual

248 Controls in detailPower windowsFully closing the door windows
(Express-close)
Pull switch1 or2 past the
resistance point and release.
The corresponding window closes
completely.
Stopping windows during
Express-operation

Press or pull the respective power win-
dow switch again.
Synchronizing power windows
The power windows must be resynchro-
nized each time

after the battery has been
disconnected.


if the power windows cannot be fully
opened (Express-open) or closed
(Express-close).

Switch on the ignition (
page 36).

Pull the power window switches until
the side windows are closed.

Hold the switches for approximately
one second.
The power windows are synchronized.
!If the upward movement of a door win-
dow is blocked during the closing pro-
cedure, the door window will stop and
open slightly.
Remove the obstruction, pull the
switch again past the resistance point
and release.
If the door window still does not close
when there is no obstruction, then pull
the switch and hold it. The door window
will then close without the obstruction
sensor function.
Warning!
G
Driver’s door only:
If within five seconds you again pull the
switch past the resistance point and re-
lease, the automatic reversal will not
function.

249 Controls in detail
Power windows
Summer opening feature
If the weather is warm, you can ventilate
the vehicle before driving off by simulta-
neously:

opening the side windows


opening the tilt/sliding sunroof


turning on the seat ventilation* for the
driver’s seat

Aim transmitter eye of the SmartKey or
SmartKey with KEYLESS-GO* at the
driver’s outside door handle. The
SmartKey or SmartKey with
KEYLESS-GO* must be in close proxim-
ity to the diver’s door handle.

Press and hold button Πafter un-
locking the vehicle until the windows
and tilt/sliding sunroof have reached
the desired position.
The windows and tilt/sliding sunroof
begin to open after approximately one
second.

Release button Πto interrupt
procedure.
Warning!
G
Never operate the windows or tilt/sliding
sunroof* if there is the possibility of anyone
being harmed by the opening or closing pro-
cedure.
In the event that the procedure causes
potential danger, the procedure can be
immediately halted by releasing the button
on the SmartKey. To reverse direction of
movement, press Œ for opening or ‹
for closing.
iThe seat ventilation* for the driver’s
seat is automatically set to the highest
level if activated via summer opening
feature.

250 Controls in detailPower windowsConvenience closing feature
When you lock the vehicle, you can close
the windows and tilt/sliding sunroof* si-
multaneously.

Aim transmitter eye of the SmartKey or
SmartKey with KEYLESS-GO* at the
driver’s outside door handle
(page 249). The SmartKey or
SmartKey with KEYLESS-GO* must be
in close proximity to the driver’s door
handle.

Press and hold button ‹until the
windows and tilt/sliding sunroof* are
completely closed.
The windows and tilt/sliding sunroof*
begin to close after approximately one
second.

Release button ‹to interrupt
procedure.Vehicles with KEYLESS-GO*:

Press and hold the lock button on an
outside door handle (
page 60) until
the side windows and the tilt/sliding
sunroof are completely closed.

Release the lock button on the outside
door handle to interrupt procedure.
Make sure all side windows and the
tilt/sliding sunroof* are properly closed
before leaving the vehicle.
Warning!
G
When closing the side windows and the
tilt/sliding sunroof, make sure that there is
no danger of anyone being harmed by the
closing procedure.
If potential danger exists, proceed as fol-
lows:

Release button
‹
to stop the clos-
ing procedure. To open, press and hold
button
Œ
. To continue the closing
procedure after making sure that there
is no danger of anyone being harmed by
the closing procedure, press and hold
button
‹
.
Vehicles with KEYLESS-GO*:


Release the lock button (
page 60) on
exterior door handle to stop the closing
procedure.


Immediately pull on the same outside
door handle and hold firmly. The side
windows and the tilt/sliding sunroof will
open for as long as the door handle is
held but the door is not opened.

251 Controls in detail

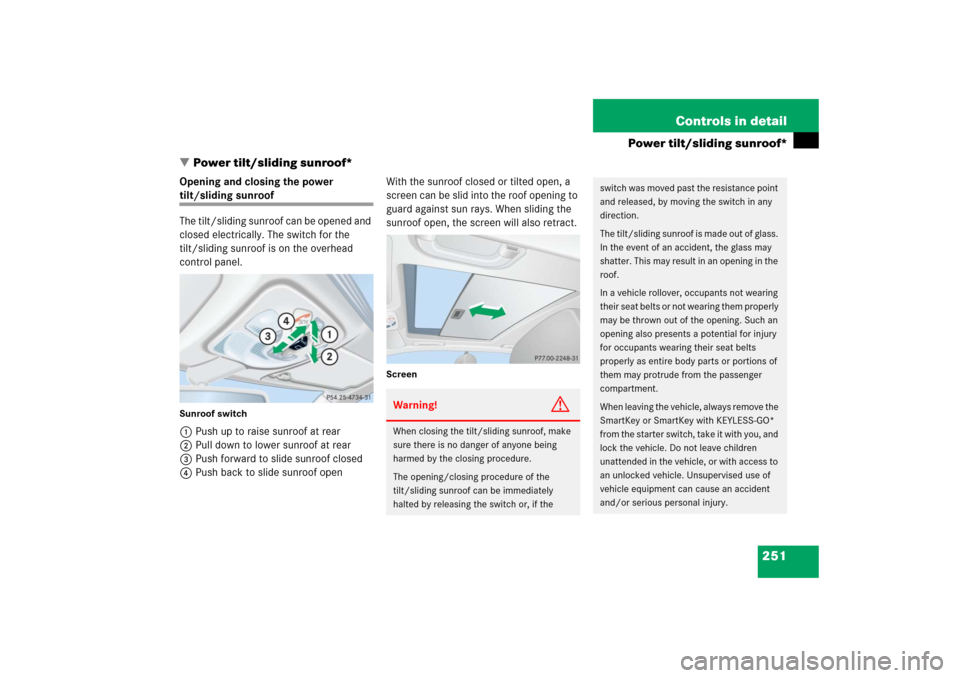

Power tilt/sliding sunroof*
Power tilt/sliding sunroof*
Opening and closing the power tilt/sliding sunroof
The tilt/sliding sunroof can be opened and
closed electrically. The switch for the
tilt/sliding sunroof is on the overhead
control panel.Sunroof switch1Push up to raise sunroof at rear
2Pull down to lower sunroof at rear
3Push forward to slide sunroof closed
4Push back to slide sunroof openWith the sunroof closed or tilted open, a
screen can be slid into the roof opening to
guard against sun rays. When sliding the
sunroof open, the screen will also retract.
ScreenWarning!
G
When closing the tilt/sliding sunroof, make
sure there is no danger of anyone being
harmed by the closing procedure.
The opening/closing procedure of the
tilt/sliding sunroof can be immediately
halted by releasing the switch or, if the
switch was moved past the resistance point
and released, by moving the switch in any
direction.
The tilt/sliding sunroof is made out of glass.
In the event of an accident, the glass may
shatter. This may result in an opening in the
roof.
In a vehicle rollover, occupants not wearing
their seat belts or not wearing them properly
may be thrown out of the opening. Such an
opening also presents a potential for injury
for occupants wearing their seat belts
properly as entire body parts or portions of
them may protrude from the passenger
compartment.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle. Unsupervised use of
vehicle equipment can cause an accident
and/or serious personal injury.

252 Controls in detailPower tilt/sliding sunroof*

Switch on the ignition (
page 36).
Opening and closing the power
tilt/sliding sunroof

To open, close, raise, or lower the
tilt/sliding sunroof, move the sunroof
switch to resistance point in the
required direction of arrows1 to4.
Release the sunroof switch when the
tilt/sliding sunroof has reached the
desired position.Fully opening (Express-open) and
closing (Express-close) the power
tilt/sliding sunroof

To open, close, raise, or lower the
tilt/sliding sunroof, move the sunroof
switch past the resistance point in the
required direction of arrow1 to4
and release.
The tilt/sliding sunroof opens or closes
completely.
!To avoid damaging the seals, do not
transport any objects with sharp edges
which can stick out of the tilt/sliding
sunroof.
Do not open the tilt/sliding sunroof if
there is snow or ice on the roof, as this
could result in malfunctions.
The tilt/sliding sunroof can be opened
or closed manually should an electrical
malfunction occur (
page 407).
iYou can also open or close the
tilt/sliding sunroof using the:

SmartKey (summer opening/con-
venience feature) (
page 249)
Depending on current position, the
tilt/sliding sunroof may also open or
close when:


the air recirculation button, in
the control panel of the climate
control (
page 187) or
automatic climate control
(page 197) is pressed and held
or


the charcoal filter buttone in
the control panel of the automatic
climate control (
page 197) is
pressed and held.

253 Controls in detail
Power tilt/sliding sunroof*
Stopping the power tilt/sliding sunroof
during Express-operation
Move the sunroof switch in any
direction.Synchronizing the power tilt/sliding
sunroof
The tilt/sliding sunroof must be
synchronized each time after:

the battery has been disconnected or
discharged


the tilt/sliding sunroof has been closed
manually (
page 407)


the tilt/sliding sunroof does not open
smoothly


a malfunction

Switch on the ignition (
page 36).

Move and hold the sunroof switch in
the direction of arrow 1 (
page 251)
until the tilt/sliding sunroof is fully
raised at the rear.
Hold the sunroof switch for
approximately one second.

Check the Express-open feature
(page 252).
If the tilt/sliding sunroof opens
completely, the tilt/sliding sunroof is
synchronized. Otherwise repeat the
above steps.
iIf the movement of the tilt/sliding
sunroof is blocked during the
Express-close procedure, the tilt/slid-
ing sunroof will stop and re-open slight-
ly.

254 Controls in detailDriving systemsThe driving systems of your vehicle are de-
scribed on the following pages:

Cruise control, with which the vehicle
can maintain a preset speed.


Parktronic* (Canada only), which
serves as a parking assistant.
For information on the BAS, ABS, and
ESP®, see “Driving safety systems”
(
page 87).
Cruise control
Cruise control automatically maintains the
speed you set for your vehicle.
Use of cruise control is recommended for
driving at a constant speed for extended
periods of time.
You can set or resume cruise control at any
speed over 20 mph (30 km/h).
The cruise control function is operated by
means of the cruise control lever.
The cruise control lever is the uppermost
lever on the left-hand side of the steering
column (
page 22).
Warning!
G
Cruise control is a convenience system de-
signed to assist the driver during vehicle op-
eration. The driver is and must always
remain responsible for the vehicle’s speed
and for safe brake operation.
Only use cruise control if the road, traffic
and weather conditions make it advisable to
travel at a steady speed.

The use of cruise control can be danger-
ous on winding roads or in heavy traffic
because conditions do not allow safe
driving at a steady speed.


The use of cruise control can be danger-
ous on slippery roads. Rapid changes in
tire traction can result in wheel spin and
loss of control.


Deactivate cruise control when driving
in fog.
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

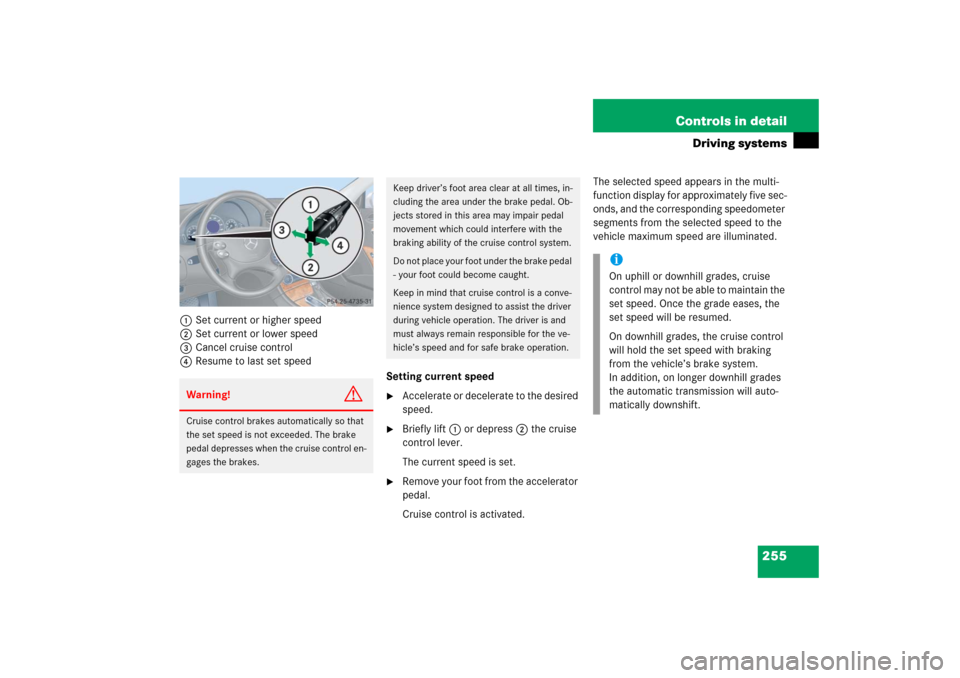

255 Controls in detail
Driving systems
1Set current or higher speed
2Set current or lower speed
3Cancel cruise control
4Resume to last set speed
Setting current speed

Accelerate or decelerate to the desired
speed.

Briefly lift1 or depress2 the cruise
control lever.
The current speed is set.

Remove your foot from the accelerator
pedal.
Cruise control is activated.The selected speed appears in the multi-
function display for approximately five sec-
onds, and the corresponding speedometer
segments from the selected speed to the
vehicle maximum speed are illuminated.
Warning!
G
Cruise control brakes automatically so that
the set speed is not exceeded. The brake
pedal depresses when the cruise control en-
gages the brakes.
Keep driver’s foot area clear at all times, in-
cluding the area under the brake pedal. Ob-
jects stored in this area may impair pedal
movement which could interfere with the
braking ability of the cruise control system.
Do not place your foot under the brake pedal
- your foot could become caught.
Keep in mind that cruise control is a conve-
nience system designed to assist the driver
during vehicle operation. The driver is and
must always remain responsible for the ve-
hicle’s speed and for safe brake operation.
iOn uphill or downhill grades, cruise
control may not be able to maintain the
set speed. Once the grade eases, the
set speed will be resumed.
On downhill grades, the cruise control
will hold the set speed with braking
from the vehicle’s brake system.
In addition, on longer downhill grades
the automatic transmission will auto-
matically downshift.
