2006 MERCEDES-BENZ CLK COUPE Owner's Manual

64 Safety and SecurityOccupant safetyWarning!
G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to wear their
respective seat belts.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and make sure that it is prop-
erly positioned on your body.
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured or killed by an air bag as it inflates
with great force in the blink of an eye:

Sit properly belted in a nearly upright
position with your back against the seat
backrest.


Adjust the driver’s seat as far as possi-
ble rearward, still permitting proper op-
eration of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover
on the steering wheel must be at least
10 in (25 cm) or more. You should be
able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see an authorized
Mercedes-Benz Center.


Do not lean your head or chest close to
the steering wheel or dashboard.


Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver’s front air bag inflates.


Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.
Failure to follow these instructions can re-
sult in severe injuries to you or other occu-
pants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety in-
formation. Be sure to give the buyer this Op-
erator’s Manual.

65 Safety and Security
Occupant safety
Warning!
G
Accident research shows that the safest
place for children in an automobile is in the
rear seat.
It should be noted that with respect to both
front side impact air bags and rear side im-
pact air bags* there is a possibility for a side
impact air bag related injury if occupants,
especially children, are not properly seated
or restrained when next to a front side im-
pact air bag and/or rear side impact air
bag* which needs to deploy rapidly in a side
impact in order to do its job.
To help avoid the possibility of injury, please
follow these guidelines:
(1) Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door or the rear
side trim panel where the front side im-
pact air bag and/or the rear side impact
air bag* inflates.
This could result in serious injuries or
death should the front side impact air
bag and/or the rear side impact air bag*
be deployed.
(2) Always sit nearly upright, properly use
the seat belts and for children 12 years
old and under, use an appropriately
sized infant or toddler restraint or boost-
er seat recommended for the size and
weight of the child.
(3) Always wear seat belts properly.
If you believe that, even with the use of
these guidelines, it would be safer for your
rear seat occupants to have the rear mount-
ed side impact air bags* deactivated, then
deactivation can be accomplished upon
your written request to do so at an autho-
rized Mercedes-Benz Center at an additional
cost.
Please contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.
iAir bags are designed to deploy only in
certain frontal impacts (front air bags)
and in side impacts (front side impact
air bags, rear side impact air bags*,
and head protection window curtain air
bags) which exceed preset thresholds.
Only during these events will they pro-
vide their supplemental protection.
The driver and passenger should al-
ways wear their seat belts. Otherwise it
is not possible for the air bags to pro-
vide their supplemental protection.
In case of other types of impacts and
impacts below air bag deployment
thresholds, air bags will not deploy. The
driver and passenger will then be pro-
tected to the extent possible by a prop-
erly fastened seat belt. A properly
fastened seat belt is also needed to
provide the best possible protection in
a rollover.

66 Safety and SecurityOccupant safety
Safety guidelines for the seat belt,
emergency tensioning device and
air bag We caution you not to rely on the pres-
ence of the air bags in order to avoid
wearing your seat belt.
It is important to your safety and that of
your passengers that you replace de-
ployed air bags and repair any malfunc-
tioning air bags to make sure that the
vehicle will continue to provide supple-
mental crash protection for occupants.Warning!
G


Damaged seat belts or belts that were
highly stressed in an accident must be
replaced and their anchoring points
must also be checked. Only use belts in-
stalled or supplied by an authorized
Mercedes-Benz Center.


Air bags and emergency tensioning de-
vices (ETDs) are designed to function on
a one-time-only basis. An air bag or ETD
that is deployed must be replaced.


Do not pass belts over sharp edges.
They could tear.


Do not make any modification that could
change the effectiveness of the belts.


Do not bleach or dye seat belts as this
may severely weaken them. In a crash
they may not be able to provide ade-
quate protection.


No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or
removing any component or part of the
SRS, the installation of additional trim
material, badges, etc. over the steering
wheel hub, front passenger front air bag
cover, outboard sides of the front seat
backrest, door trim panels, or door
frame trims, and installation of addition-
al electrical/electronic equipment on or
near SRS components and wiring. Keep
area between air bags and occupants
free from objects (e.g. packages, purs-
es, umbrellas, etc.).


Do not hang items such as coat hangers
from the coat hooks or handles over the
door. These items may turn into projec-
tiles and cause head and other injuries
when curtain air bag is deployed.


Air bag system components will be hot
after an air bag has inflated. Do not
touch.


Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.

67 Safety and Security
Occupant safety
When you sell your vehicle, we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in
the Operator’s Manual.Front air bags
1Driver air bag
2Passenger air bag
Driver and front passenger air bags are
deployed:


in the event of certain frontal impacts


if impact exceeds a preset deployment
threshold


independently of the front side impact
air bag and/or the rear side impact air
bag*


In addition, improper repair work on the
SRS creates a risk of rendering the SRS
inoperative or causing unintended air
bag deployment. Work on the SRS must
therefore only be performed by qualified
technicians. Contact an authorized
Mercedes-Benz Center.


For your protection and the protection
of others, when scrapping the air bag
unit or emergency tensioning device,
our safety instructions must be fol-
lowed. These instructions are available
from your authorized Mercedes-Benz
Center.


Given the considerable deployment
speed, required inflation volume, and
the textile structure of the air bags,
there is the possibility of abrasions or
other, potentially more serious injuries
resulting from air bag deployment.
iThe front air bags in this vehicle have
been designed to inflate in two stages.
This allows the air bag to have different
rates of inflation that are based on the
rate of relevant vehicle deceleration as
assessed by the air bag control unit.
On the front passenger side, the front
air bag deployment is additionally influ-
enced by the passenger’s weight cate-
gory as identified by the Occupant
Classification System (OCS)
(page 77).
The lighter the front passenger side oc-
cupant, the higher the vehicle deceler-
ation rate required for the second
stage inflation of the air bag.

68 Safety and SecurityOccupant safetyThe air bags will not deploy in impacts
which do not exceed the system’s deploy-
ment thresholds. You will then be protect-
ed by the fastened seat belts.
The front passenger front air bag will only
be deployed if:

the system, based on OCS weight sen-
sor readings, senses that the front pas-
senger seat is occupied


the 56 indicator lamp in the
center console is not lit (
page 81).


the impact exceeds a preset deploy-
ment thresholdFront side impact air bags, rear side im-
pact air bags*, window curtain air bags
1Front side impact air bag
2Rear side impact air bag*
3Window curtain air bagThe front side impact air bags, the rear
side impact air bags*, and the window
curtain air bags are deployed:


on the impacted side of the vehicle


in impacts exceeding a preset deploy-
ment threshold


independently of the front air bags
The front side impact air bags, the rear
side impact air bags*, and the window cur-
tain air bags are not deployed in impacts
which do not exceed the system’s deploy-
ment threshold.

69 Safety and Security
Occupant safety
Seat belts
The use of seat belts and infant and child
restraint systems is required by law in all
50 states, the District of Columbia, the
U.S. territories and all Canadian provinces.
Even where this is not the case, all vehicle
occupants should have their seat belts
fastened whenever the vehicle is in
motion.
For more information, see “Fastening the
seat belts” (
page 45).
iFor information on infants and children
traveling with you in the vehicle and
restraint systems for infants and
children, see “Children in the vehicle”
(page 74).
Warning!
G
Always fasten your seat belt before driving
off. Always make sure all of your passengers
are properly restrained, even those sitting in
the rear and pregnant women.
Failure to wear and properly fasten and
position your seat belt greatly increases
your risk of injuries and their likely severity
in an accident. You and your passengers
should always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are properly wearing
your seat belt. Air bags can only protect as
they are designed if the occupants are
properly wearing their seat belts.
Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the
abdomen or neck. That could cause serious
or even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Make
sure everyone riding in the vehicle is
correctly restrained with a separate seat
belt. Never use a seat belt for more than one
person at a time.

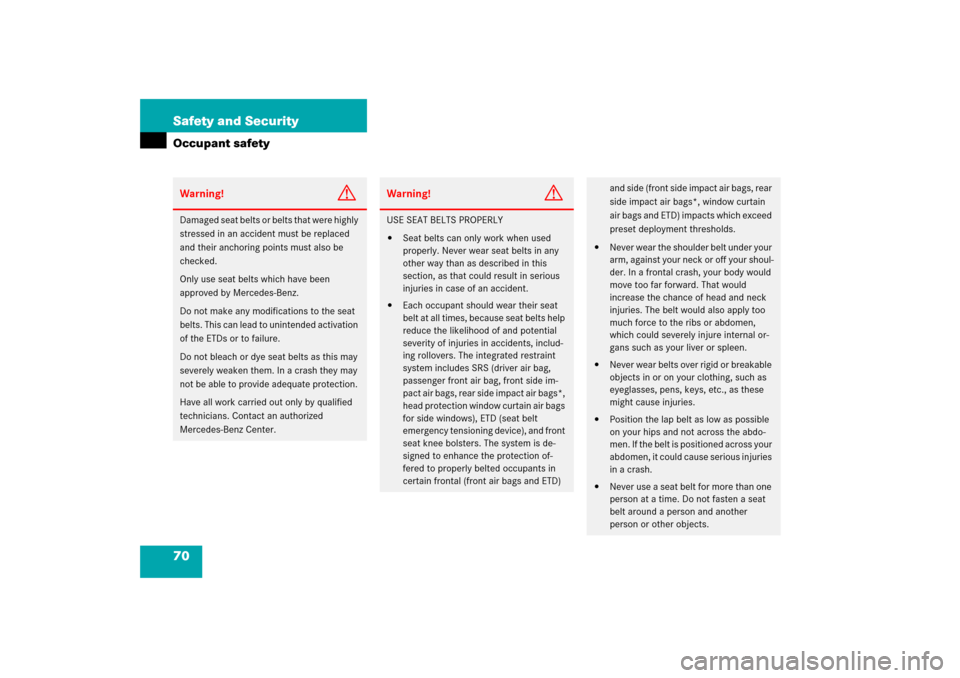

70 Safety and SecurityOccupant safetyWarning!
G
Damaged seat belts or belts that were highly
stressed in an accident must be replaced
and their anchoring points must also be
checked.
Only use seat belts which have been
approved by Mercedes-Benz.
Do not make any modifications to the seat
belts. This can lead to unintended activation
of the ETDs or to failure.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Have all work carried out only by qualified
technicians. Contact an authorized
Mercedes-Benz Center.
Warning!
G
USE SEAT BELTS PROPERLY

Seat belts can only work when used
properly. Never wear seat belts in any
other way than as described in this
section, as that could result in serious
injuries in case of an accident.


Each occupant should wear their seat
belt at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents, includ-
ing rollovers. The integrated restraint
system includes SRS (driver air bag,
passenger front air bag, front side im-
pact air bags, rear side impact air bags*,
head protection window curtain air bags
for side windows), ETD (seat belt
emergency tensioning device), and front
seat knee bolsters. The system is de-
signed to enhance the protection of-
fered to properly belted occupants in
certain frontal (front air bags and ETD)
and side (front side impact air bags, rear
side impact air bags*, window curtain
air bags and ETD) impacts which exceed
preset deployment thresholds.


Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a frontal crash, your body would
move too far forward. That would
increase the chance of head and neck
injuries. The belt would also apply too
much force to the ribs or abdomen,
which could severely injure internal or-
gans such as your liver or spleen.


Never wear belts over rigid or breakable
objects in or on your clothing, such as
eyeglasses, pens, keys, etc., as these
might cause injuries.


Position the lap belt as low as possible
on your hips and not across the abdo-
m e n . I f t h e b e l t i s p o s i t i o n e d a c r o s s y o u r
abdomen, it could cause serious injuries
in a crash.


Never use a seat belt for more than one
person at a time. Do not fasten a seat
belt around a person and another
person or other objects.

71 Safety and Security
Occupant safety
Depending on vehicle production date,
your vehicle is equipped with either a seat
belt reminder system or an enhanced seat
belt reminder system as follows:
Seat belt reminder system
When the engine is started the seat belt
telltale< illuminates for a maximum of
6 seconds and a warning chime sounds to
remind you and your passengers to fasten
your seat belts.
For more information on the seat belt
telltale<, see “Practical hints”
(page 366).Enhanced seat belt reminder system
When the engine is started the seat belt
telltale< illuminates for a maximum of
6 seconds and a warning chime sounds to
remind you and your passengers to fasten
your seat belts.
If after these 6 seconds, the driver’s or the
front passenger’s seat belt (with the front
passenger seat occupied) are not fastened
with all doors closed,


and the vehicle speed does not exceed
15 mph (25 km/h), the seat belt tell-
tale < remains illuminated for as
long as either the driver’s or front pas-
senger’s seat belt is not fastened.


and the vehicle speed exceeds 15 mph
(25 km/h), the seat belt telltale <
starts flashing and a warning chime
sounds with increasing intensity until
both the driver’s and front passenger’s
seat belt are fastened, or for a maxi-
mum of 60 seconds from the time the


Belts should not be worn twisted. In a
crash, you wouldn’t have the full width
of the belt to distribute impact forces.
The twisted belt against your body could
cause injuries.


Pregnant women should also use a
lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible
pressure on the abdomen.


Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.


When using a seat belt to secure infant
or toddler restraints or children in
booster seats, always follow the child
seat manufacturer’s instructions.
