2006 MERCEDES-BENZ CLK COUPE Owner's Manual

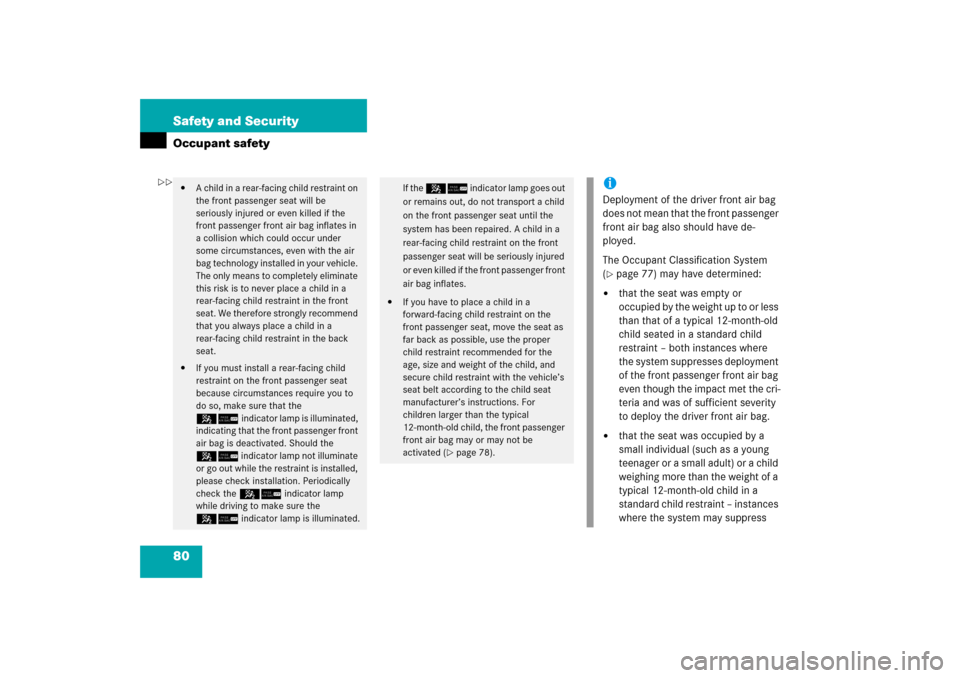

80 Safety and SecurityOccupant safety

A child in a rear-facing child restraint on
the front passenger seat will be
seriously injured or even killed if the
front passenger front air bag inflates in
a collision which could occur under
some circumstances, even with the air
bag technology installed in your vehicle.
The only means to completely eliminate
this risk is to never place a child in a
rear-facing child restraint in the front
seat. We therefore strongly recommend
that you always place a child in a
rear-facing child restraint in the back
seat.


If you must install a rear-facing child
restraint on the front passenger seat
because circumstances require you to
do so, make sure that the
56indicator lamp is illuminated,
indicating that the front passenger front
air bag is deactivated. Should the
56 indicator lamp not illuminate
or go out while the restraint is installed,
please check installation. Periodically
check the 56 indicator lamp
while driving to make sure the
56 indicator lamp is illuminated.
If the 56 indicator lamp goes out
or remains out, do not transport a child
on the front passenger seat until the
system has been repaired. A child in a
rear-facing child restraint on the front
passenger seat will be seriously injured
or even killed if the front passenger front
air bag inflates.


If you have to place a child in a
forward-facing child restraint on the
front passenger seat, move the seat as
far back as possible, use the proper
child restraint recommended for the
age, size and weight of the child, and
secure child restraint with the vehicle’s
seat belt according to the child seat
manufacturer’s instructions. For
children larger than the typical
12-month-old child, the front passenger
front air bag may or may not be
activated (
page 78).
iDeployment of the driver front air bag
does not mean that the front passenger
front air bag also should have de-
ployed.
The Occupant Classification System
(page 77) may have determined:


that the seat was empty or
occupied by the weight up to or less
than that of a typical 12-month-old
child seated in a standard child
restraint – both instances where
the system suppresses deployment
of the front passenger front air bag
even though the impact met the cri-
teria and was of sufficient severity
to deploy the driver front air bag.


that the seat was occupied by a
small individual (such as a young
teenager or a small adult) or a child
weighing more than the weight of a
typical 12-month-old child in a
standard child restraint – instances
where the system may suppress

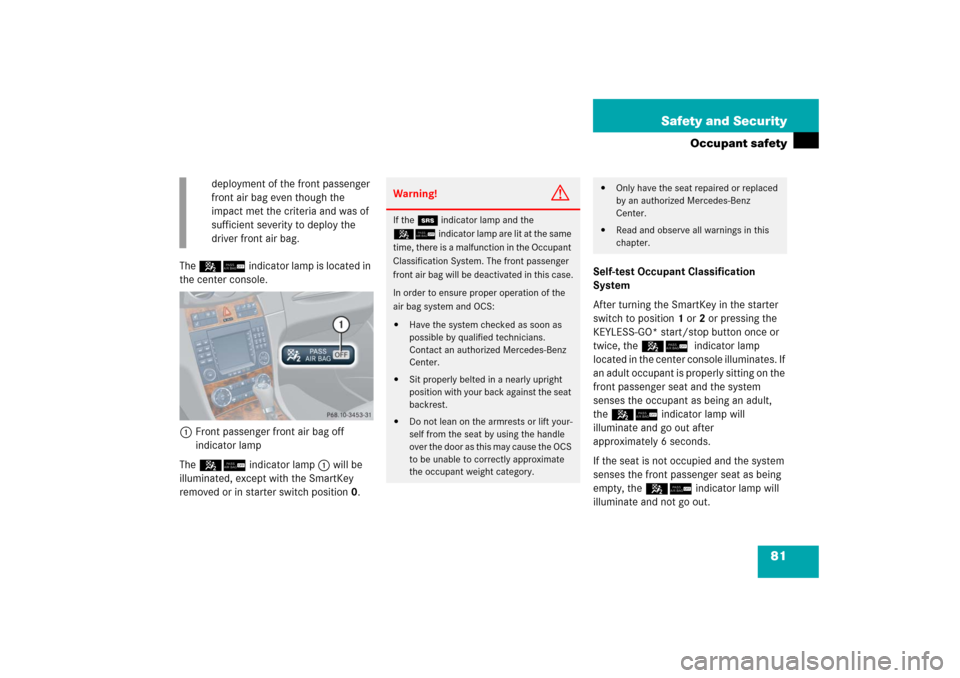

81 Safety and Security
Occupant safety
The 56indicator lamp is located in
the center console.
1Front passenger front air bag off
indicator lamp
The 56indicator lamp1 will be
illuminated, except with the SmartKey
removed or in starter switch position0.Self-test Occupant Classification
System
After turning the SmartKey in the starter
switch to position1 or2 or pressing the
KEYLESS-GO* start/stop button once or
twice, the 56 indicator lamp
located in the center console illuminates. If
an adult occupant is properly sitting on the
front passenger seat and the system
senses the occupant as being an adult,
the56 indicator lamp will
illuminate and go out after
approximately 6 seconds.
If the seat is not occupied and the system
senses the front passenger seat as being
empty, the 56 indicator lamp will
illuminate and not go out. deployment of the front passenger
front air bag even though the
impact met the criteria and was of
sufficient severity to deploy the
driver front air bag.
Warning!
G
If the 1indicator lamp and the
56indicator lamp are lit at the same
time, there is a malfunction in the Occupant
Classification System. The front passenger
front air bag will be deactivated in this case.
In order to ensure proper operation of the
air bag system and OCS:

Have the system checked as soon as
possible by qualified technicians.
Contact an authorized Mercedes-Benz
Center.


Sit properly belted in a nearly upright
position with your back against the seat
backrest.


Do not lean on the armrests or lift your-
self from the seat by using the handle
over the door as this may cause the OCS
to be unable to correctly approximate
the occupant weight category.


Only have the seat repaired or replaced
by an authorized Mercedes-Benz
Center.


Read and observe all warnings in this
chapter.

82 Safety and SecurityOccupant safetyMore information can be found in the
“Practical hints” section (
page 368).Installation of infant and child restraint
systems
This vehicle is equipped with tether
anchorages for a top tether strap at each
of the rear seating positions.
1Anchorage ring
2Hook

Open the trunk and release the rear
seat backrest (
page 266).

Fold rear seat backrest slightly for-
ward.

Guide top tether strap between head
restraint and top of seat back.
Head restraint must be installed and
positioned such that the top tether
strap can pass freely between the head
restraint and the top of seat back.
Make sure the tether strap is not
twisted.
1Anchorage ring
2Hook

Fold up anchorage ring1.

Securely fasten hook2, which is part
of the tether strap, to anchorage
ring1.
Warning!
G
If the 56 indicator lamp should not
illuminate, the system is not functioning.
You must see an authorized Mercedes-Benz
Center before seating any child on the front
passenger seat.Warning!
G
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the Occupant Classifi-
cation System. The bottom of the child seat
must make full contact with the passenger
seat cushion. An incorrectly mounted child
seat could cause injuries to the child in case
of an accident, instead of increasing protec-
tion for the child.
Follow the manufacturer’s instructions for
installation of child seats.

83 Safety and Security
Occupant safety

S w i n g r e a r s e a t b a c k r e s t t o t h e r e a r u n -
til it engages.

Check the rear seat backrest to be
locked in its upright position
(page 267).
Once the top tether anchorage hook is
attached, the child restraint itself can be
secured. Secure the child restraint and
tighten the top tether strap according to
the child restraint manufacturer’s instruc-
tions. Child seat anchors – LATCH type
This vehicle is equipped with two LATCH
(L
ower A
nchors and T
ethers for CH
ildren)
type anchors (at each of the rear seats) for
the installation of a LATCH-type child seat
with matching mounting fittings.
Depending on vehicle production date,
your vehicle is equipped with either
LATCH-type design A or B.
iFor safety, make sure the hook2 has
attached to the anchorage ring1 be-
yond the safety catch, as illustrated.Warning!
G
Always lock backrest in its upright position
when rear seat bench is occupied by pas-
sengers, or the extended cargo area is not in
use. Check for secure locking by pushing
and pulling on the backrest.
Warning!
G
Children too big for a toddler restraint must
ride in seats using regular seat belts.
Position shoulder belt across chest and
shoulder, not face or neck.
A booster seat may be necessary to achieve
proper belt positioning for children over
41 lbs until they reach a height where a
lap/shoulder belt fits properly without a
booster.
Install child seat according to manufactur-
er’s instructions.
The child seat must be firmly attached in the
right and left side anchor1.
An incorrectly mounted child seat may come
loose during an accident which could result
in serious injury or death to the child.
Damaged or impact damaged child seats or
child seat anchor fittings must be replaced.
Do not leave children unattended in the
vehicle, even if the children are secured in a
child restraint system.iNon-LATCH type child seats may also
be used and can be installed using the
vehicle’s seat belt system (
page 74).
Install child seat according to the
manufacturer’s instructions.

84 Safety and SecurityOccupant safetyLATCH-type anchors design A
The foldable LATCH-type anchors are
located between the seat cushion and the
backrest.
1Anchors
2Release button
To fold anchors out:
Grip inner side of anchors1 and fold
forward until they audibly lock in place.

Install child seat according to the
manufacturer’s instructions.
To fold anchors back:

Press down button2 on each
anchor1 and return the anchor1 to
its catch.LATCH-type anchors design B
The LATCH-type anchors are non-foldable
and located between the seat cushion and
the backrest.
1Anchors

Install child seat according to the
manufacturer’s instructions.
Warning!
G
Before installing the child seat, make sure
anchors1 are folded out and locked in
place.iIf a child seat is not installed, the
LATCH-type anchors can be folded
back between the seat cushion and the
seat backrest.

85 Safety and Security
Occupant safety
Blocking of rear side window operation
You can block the rear side window
operation (for instance when you have
children riding in the rear passenger
compartment).
The override switch is located on the door
control panel of the driver’s door.
1Deactivating override switch
2Activating override switch
3Override switchActivating override switch

Slide override switch3 to the right in
direction2.
The rear side windows can no longer be
operated using the respective switch
located in the rear trim panels.
Deactivating override switch

Slide override switch3 to the left in
direction1.
The rear side windows can be operated
using the respective switch located in
the rear trim panels.
For more information, see “Power win-
dows” (
page 246).
Warning!
G
Activate the override switch when children
are riding in the back seats of the vehicle.
The children may otherwise injure them-
selves, e.g. by becoming trapped in the win-
dow opening.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment can cause an accident
and/or serious personal injury.
iOperation of the rear side windows
with the switches located on the door
control panel of the driver’s door is still
possible.

86 Safety and SecurityPanic alarmAn audible alarm and flashing exterior
lamps will operate for approximately
21/2minutes.
1Â button
Activating
Press and hold button1 for at least
one second.
Deactivating
Press button1 again.
or

Insert the SmartKey or the SmartKey
with KEYLESS-GO* in the starter
switch.
or

Press the KEYLESS-GO* start/stop
button (
page 35).
The SmartKey with KEYLESS-GO* must
be inside the vehicle.
iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause interfer-
ence, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

87 Safety and Security
Driving safety systems
Driving safety systems
In this section you will find information on
the following driving safety systems:

ABS (A
ntilock B
rake S
ystem)


BAS (B
rake A
ssist S
ystem)


ESP
® (E
lectronic S
tability P
rogram)
ABS
The A
ntilock B
rake S
ystem (ABS) regulates
the brake pressure so that the wheels do
not lock during braking. This allows you to
maintain the ability to steer your vehicle.
The ABS is functional above a speed of ap-
proximately 5 mph (8 km/h) independent
of road surface conditions.
On slippery road surfaces, the ABS will
respond even to light brake pressure.
The - indicator lamp in the instrument
cluster (
page 24) comes on when you
switch on the ignition. It goes out when the
engine is running.
Warning!
G
The following factors increase the risk of
accidents:

Excessive speed, especially in turns


Wet and slippery road surfaces


Following another vehicle too closely
The ABS, BAS, and ESP
® cannot reduce this
risk.
Always adjust your driving style to the
prevailing road and weather conditions.
iIn winter operation, the maximum ef-
fectiveness of the ABS, the BAS, and
the ESP
® is only achieved with winter
tires (
page 346) or snow chains as
required.
Warning!
G
Do not pump the brake pedal. Use firm,
steady brake pedal pressure instead. Pump-
ing the brake pedal defeats the purpose of
the ABS and significantly reduces braking
effectiveness.
