2006 MERCEDES-BENZ CLK COUPE mirror controls

ContentsSafety and Security........................... 61
Occupant safety................................... 62
Air bags .......................................... 63
Seat belts ....................................... 69
Active head restraints .................... 73
Children in the vehicle .................... 74
Blocking of rear side
window operation ........................... 85
Panic alarm .......................................... 86
Activating ....................................... 86
Deactivating ................................... 86
Driving safety systems ......................... 87
ABS ................................................ 87
BAS ................................................ 89
ESP
®.............................................. 90
Anti-theft systems................................ 93
Immobilizer..................................... 93
Anti-theft alarm system .................. 93
Tow-away alarm* ........................... 95
Controls in detail............................... 97
Locking and unlocking ......................... 98
SmartKey ....................................... 98
SmartKey with KEYLESS-GO* ...... 103
Opening the doors
from the inside ............................. 110
Opening the trunk ........................ 111
Closing the trunk.......................... 113
Trunk emergency release ............. 118
Valet locking ................................ 119
Automatic central locking ............ 120
Locking and unlocking
from the inside ............................. 121
Seats ................................................. 122
Front seat active head restraints . 122
Rear seat head restraints ............. 122
Multicontour seat* ....................... 125
Seat heating* ............................... 126
Seat ventilation* .......................... 127
Memory function ............................... 128
Storing positions into memory ..... 129
Recalling positions from memory . 129
Storing exterior rear view
mirror parking position................. 130Lighting ............................................. 131
Exterior lamp switch .................... 131
Combination switch ..................... 135
Corner-illuminating front
fog lamps* (CLK with
Bi-Xenon* headlamps)................. 135
Hazard warning flasher ................ 137
Interior lighting ............................ 138
Door entry lamps ......................... 139
Trunk lamp ................................... 139
Instrument cluster ............................. 140
Instrument cluster illumination .... 140
Coolant temperature indicator ..... 141
Trip odometer .............................. 141
Tachometer.................................. 142
Clock............................................ 142
Outside temperature indicator ..... 142
Control system .................................. 143
Multifunction display.................... 144
Multifunction steering wheel........ 144
Menus .......................................... 146
Standard display menu ................ 148
AUDIO menu ................................ 149
NAV* menu .................................. 150
Vehicle status
message memory menu ............... 151

38 Getting startedAdjustingSeat adjustment
The seat adjustment switches are located
on the respective door.
1Head restraint height
2Seat height
3Seat cushion tilt
4Seat fore and aft adjustment
5Backrest tilt
Switch on the ignition (
page 34).
or

Open the respective door.Seat fore and aft adjustment

Press switch forward or backward in
the direction of arrow4.
Adjust seat to a comfortable seating
position that still allows you to reach
the accelerator / brake pedal safely.
The position should be as far to the rear
as possible, consistent with ability to
properly operate controls.Seat height

Press switch up or down in the direc-
tion of arrow2.
Seat cushion tilt

Press switch up or down in the direc-
tion of arrow3 until your upper legs
are lightly supported.
Seat backrest tilt

Press switch forward or backward in
the direction of arrow5 until your
arms are slightly angled when holding
the steering wheel.
Head restraint height

Press switch up or down in the direc-
tion of arrow1.
iThe memory function (
page 128) lets
you store the settings for the seat posi-
tion together with the settings for the
steering wheel and the exterior rear
view mirrors.
!When moving the seat, make sure
there are no items in the footwell or be-
hind the seats. Otherwise you could
damage the seats.

128 Controls in detailMemory functionPrior to operating the vehicle, the driver
should check and adjust the seat height,
seat position fore and aft, and seat back-
rest angle if necessary, to ensure adequate
control, reach and comfort. The head
restraint should also be adjusted for
proper height. See also the section on
air bags (
page 63) for proper seat
positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, operation
and comfort. Both the interior and exterior
rear view mirrors should be adjusted for
adequate rear vision.
Fasten seat belts. Infants and small chil-
dren should be seated in a properly se-
cured restraint system that complies with
U.S. Federal Motor Vehicle Safety
Standards 213 and 225 and
Canadian Motor Vehicle Safety Standards
213 and 210.2.The following settings are stored when
using the buttons on the driver’s door:


Driver’s seat, backrest and head
restraint position


Steering wheel position


Exterior rear view mirror position
The following settings are stored when us-
ing the buttons on the passenger door:


Front passenger seat, backrest and
head restraint positionThe memory button and memory position
switch are located on the door.
1Memory button
2Memory position switch

Switch on the ignition (
page 36).
or

Open the respective door and insert
the SmartKey in the starter switch.
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

129 Controls in detail
Memory function
Storing positions into memory
Adjust the seats, steering wheel and
exterior rear view mirrors to the
desired position (
page 38).

Turn memory position switch2 to the
desired memory position.

Press memory button1.

Release memory button1 and press
memory position switch2 within
three seconds.
All settings are stored to the selected
position.
Recalling positions from memory
Turn memory position switch2 to the
desired memory position.

Press and hold memory position
switch2 until the seat, steering wheel
and exterior rear view mirrors have
completely moved to the stored
positions.!Do not operate the seats using the
memory button if the seat backrest is
in an excessively reclined position.
Doing so could cause damage to front
or rear seats.
First move the seat backrest to an
upright position.
iReleasing the memory position switch
stops movement to the stored
positions immediately.

130 Controls in detailMemory functionStoring exterior rear view mirror park-ing position
For easier parking, you can adjust the
passenger-side exterior rear view mirror so
that you can see the right rear wheel as
soon as you engage reverse gearR.
For information on activating the parking
position feature, see “Setting parking posi-
tion for exterior rear view mirror”
(page 164) and “Activating exterior rear
view mirror parking position”
(page 182).1Memory button
2Adjustment button
3Passenger side exterior rear view
mirror button

Stop the vehicle.

Switch on the ignition (
page 36).

Press button3.
The passenger-side exterior rear view
mirror is selected.

Adjust the passenger-side exterior rear
view mirror with button2 so that you
see the rear wheel and the road curb.

Press memory button1.

Within three seconds, press bottom of
adjustment button2.
The parking position is stored if the
mirror does not move.iIf the mirror does move, repeat the
above steps. After the setting is stored
you can move the mirror again.

154 Controls in detailControl systemThe table below shows what settings can
be changed within the various menus. Detailed instructions on making individual
settings can be found on the following
pages.INSTRUMENT CLUSTER
TIME/Date
LIGHTING
VEHICLE
CONVENIENCE
Selecting speedometer
display mode
Setting time (hours)
Setting daytime running
lamp mode (USA only)
Setting automatic lock-
ing
Activate easy-entry/exit
feature
Selecting language
Setting time (minutes)
Setting locator lighting
Setting parking position for
exterior rear view mirror
Selecting display (speed
display or outside
temperature) for status
indicator
Setting the date (month)
Exterior lamps delayed
shut-off
Selecting display (speed
display or outside tem-
perature) for standard
display
Setting the date (day)
Interior lighting delayed
shut-off
Setting the date (year)

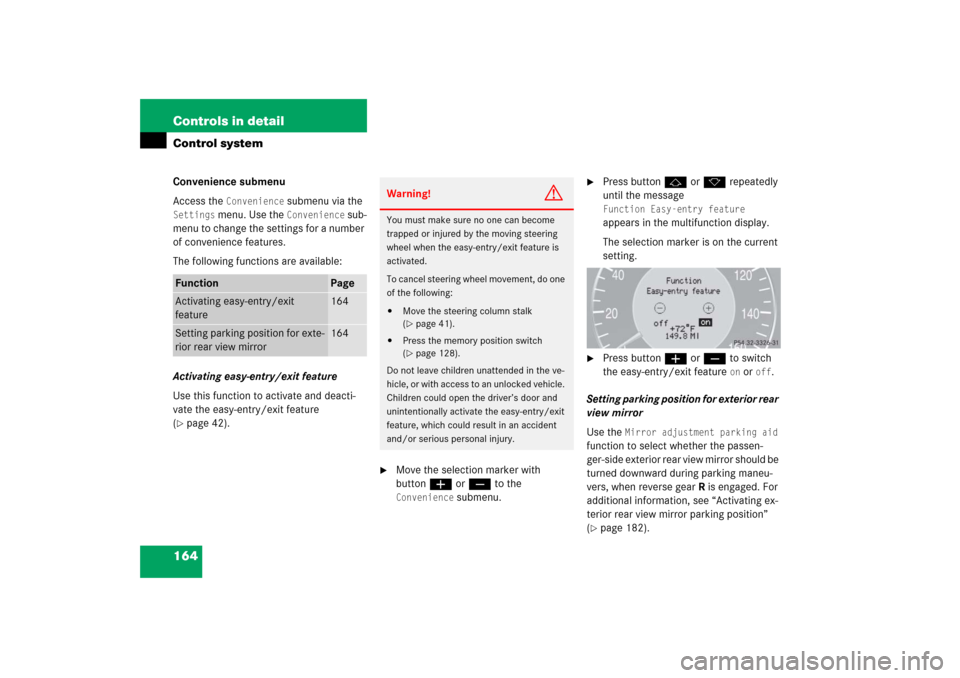

164 Controls in detailControl systemConvenience submenu
Access the
Convenience
submenu via the
Settings
menu. Use the
Convenience
sub-
menu to change the settings for a number
of convenience features.
The following functions are available:
Activating easy-entry/exit feature
Use this function to activate and deacti-
vate the easy-entry/exit feature
(
page 42).

Move the selection marker with
buttonæ orç to the

Convenience
submenu.

Press buttonj ork repeatedly
until the message Function Easy-entry feature

appears in the multifunction display.
The selection marker is on the current
setting.

Press buttonæ orç to switch
the easy-entry/exit feature
on or
off
.
Setting parking position for exterior rear
view mirror
Use the
Mirror adjustment parking aid

function to select whether the passen-
ger-side exterior rear view mirror should be
turned downward during parking maneu-
vers, when reverse gearR is engaged. For
additional information, see “Activating ex-
terior rear view mirror parking position”
(
page 182).
Function
Page
Activating easy-entry/exit
feature
164
Setting parking position for exte-
rior rear view mirror
164
Warning!
G
You must make sure no one can become
trapped or injured by the moving steering
wheel when the easy-entry/exit feature is
activated.
To cancel steering wheel movement, do one
of the following:

Move the steering column stalk
(page 41).


Press the memory position switch
(page 128).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.

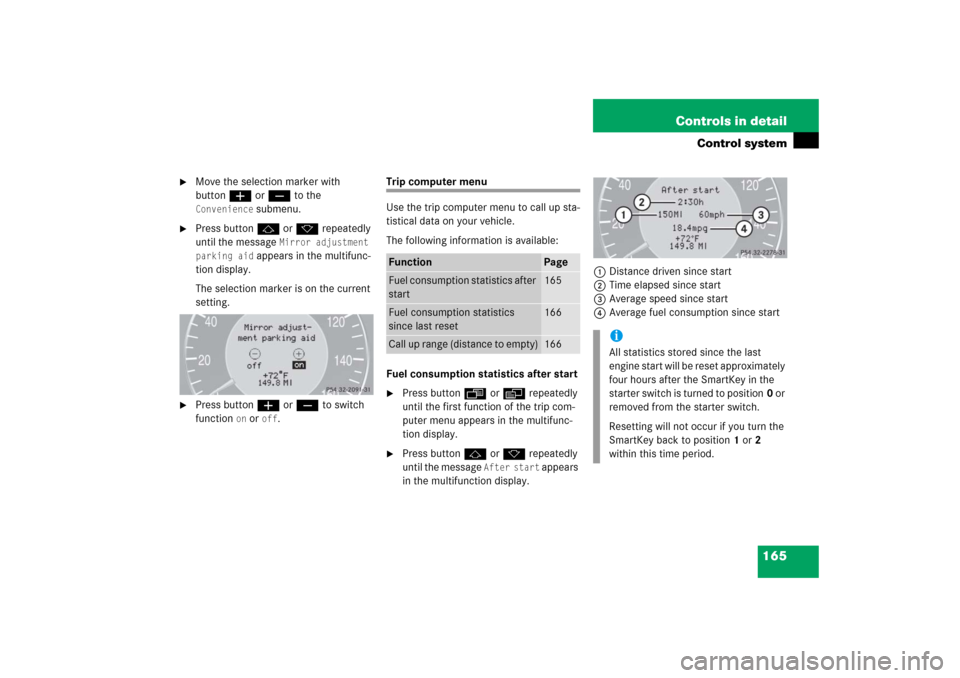

165 Controls in detail
Control system

Move the selection marker with
buttonæ orç to the Convenience
submenu.

Press buttonj ork repeatedly
until the message
Mirror adjustment
parking aid
appears in the multifunc-
tion display.
The selection marker is on the current
setting.

Press buttonæ orç to switch
function
on or
off
.
Trip computer menu
Use the trip computer menu to call up sta-
tistical data on your vehicle.
The following information is available:
Fuel consumption statistics after start
Press buttonÿ orè repeatedly
until the first function of the trip com-
puter menu appears in the multifunc-
tion display.

Press buttonj ork repeatedly
until the message
After start
appears
in the multifunction display.1Distance driven since start
2Time elapsed since start
3Average speed since start
4Average fuel consumption since start
Function
Page
Fuel consumption statistics after
start
165
Fuel consumption statistics
since last reset
166
Call up range (distance to empty)
166
iAll statistics stored since the last
engine start will be reset approximately
four hours after the SmartKey in the
starter switch is turned to position0 or
removed from the starter switch.
Resetting will not occur if you turn the
SmartKey back to position1 or2
within this time period.
