2006 MERCEDES-BENZ CLK COUPE Owner's Manual

392 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause/consequence
Possible solution
.
Brake lamp, left
The left brake lamp is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Brake lamp, right
The right brake lamp is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Display malfunction
Visit workshop
The display for the lamps or the system is
malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Front foglamp, left
The left front fog lamp is malfunctioning.

Replace the bulb as soon as possible.
Front foglamp, right
The right front fog lamp is malfunctioning.

Replace the bulb as soon as possible.
High beam, left
The left high beam lamp is malfunction-
ing.

Replace the bulb as soon as possible.
High beam, right
The right high beam lamp is malfunction-
ing.

Replace the bulb as soon as possible.
Light sensor
Drive to workshop
The light sensor is malfunctioning. The
headlamps switch on automatically.

In the control system, set lamp opera-
tion to manual (
page 160).

Switch on headlamps using the exteri-
or lamp switch.

Visit an authorized Mercedes-Benz
Center as soon as possible.
License plate lamp,
left
The left license plate lamp is malfunction-
ing.

Replace the bulb as soon as possible.

393 Practical hints
What to do if …?
Display symbol
Display message
Possible cause/consequence
Possible solution
.
License plate lamp,
right

The right license plate lamp is malfunc-
tioning.

Replace the bulb as soon as possible.
Low beam, left
The left low beam lamp is malfunctioning.
Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:

Visit an authorized Mercedes-Benz
Center as soon as possible.
Low beam, right
The right low beam lamp is malfunction-
ing.
Halogen headlamp:
Replace the bulb as soon as possible.
Bi-Xenon* headlamp:

Visit an authorized Mercedes-Benz
Center as soon as possible.
Parking lamp
front left

The left front parking lamp is
malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Parking lamp
front right

The right front parking lamp is
malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Rear foglamp
back-up lamp on

The foglamp is malfunctioning. A back-up
bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Reverse lamp, left
The left backup lamp is malfunctioning.

Replace the bulb as soon as possible.

394 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause/consequence
Possible solution
.
Reverse lamp, right
The right backup lamp is malfunctioning.

Replace the bulb as soon as possible.
Side marker lamp
front left
The front left side marker lamp is malfunc-
tioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Side marker lamp
front right
The front right side marker lamp is mal-
functioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Tail lamp left
back-up lamp on

The left tail lamp is malfunctioning. A
back-up bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Tail lamp right
back-up lamp on

The right tail lamp is malfunctioning. A
back-up bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Turn off lamps
Lamps have been turned on although the
SmartKey in the starter switch is in posi-
tion 0.

Turn off the headlamps.
Turn signal,
front left
The left front turn signal lamp is malfunc-
tioning.

Replace the bulb as soon as possible.
Turn signal,
front right

The right front turn signal lamp is malfunc-
tioning.

Replace the bulb as soon as possible.
Turn signal,
left mirror
The turn signal in the left exterior rear
view mirror is malfunctioning. This mes-
sage will only appear if all light emitting di-
odes have stopped working.

Have the LEDs replaced as soon as
possible.

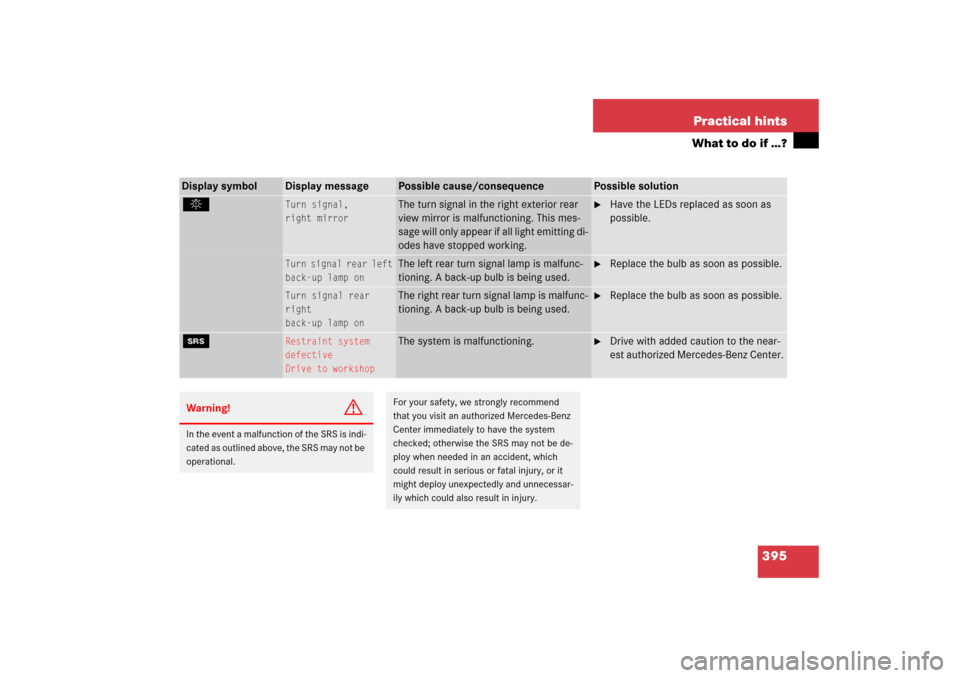

395 Practical hints
What to do if …?
Display symbol
Display message
Possible cause/consequence
Possible solution
.
Turn signal,
right mirror
The turn signal in the right exterior rear
view mirror is malfunctioning. This mes-
sage will only appear if all light emitting di-
odes have stopped working.

Have the LEDs replaced as soon as
possible.
Turn signal rear left
back-up lamp on

The left rear turn signal lamp is malfunc-
tioning. A back-up bulb is being used.

Replace the bulb as soon as possible.
Turn signal rear
right
back-up lamp on

The right rear turn signal lamp is malfunc-
tioning. A back-up bulb is being used.

Replace the bulb as soon as possible.
1
Restraint system
defective
Drive to workshop
The system is malfunctioning.

Drive with added caution to the near-
est authorized Mercedes-Benz Center.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational.
For your safety, we strongly recommend
that you visit an authorized Mercedes-Benz
Center immediately to have the system
checked; otherwise the SRS may not be de-
ploy when needed in an accident, which
could result in serious or fatal injury, or it
might deploy unexpectedly and unnecessar-
ily which could also result in injury.

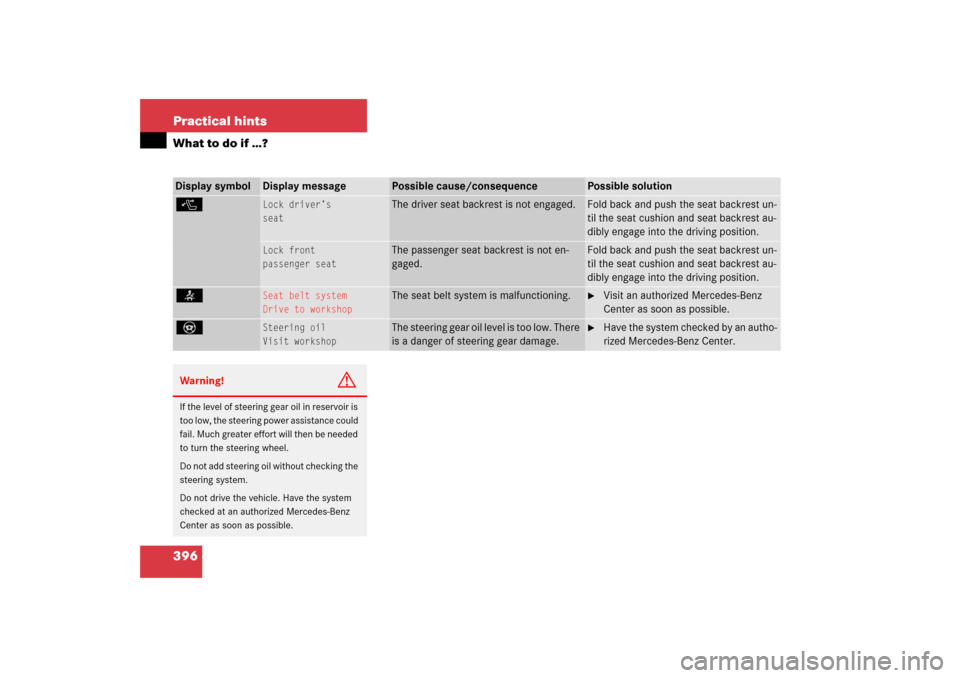

396 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause/consequence
Possible solution
(
Lock driver’s
seat
The driver seat backrest is not engaged.
Fold back and push the seat backrest un-
til the seat cushion and seat backrest au-
dibly engage into the driving position.
Lock front
passenger seat
The passenger seat backrest is not en-
gaged.
Fold back and push the seat backrest un-
til the seat cushion and seat backrest au-
dibly engage into the driving position.
<
Seat belt system
Drive to workshop
The seat belt system is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
_
Steering oil
Visit workshop
The steering gear oil level is too low. There
is a danger of steering gear damage.

Have the system checked by an autho-
rized Mercedes-Benz Center.
Warning!
G
If the level of steering gear oil in reservoir is
too low, the steering power assistance could
fail. Much greater effort will then be needed
to turn the steering wheel.
Do not add steering oil without checking the
steering system.
Do not drive the vehicle. Have the system
checked at an authorized Mercedes-Benz
Center as soon as possible.

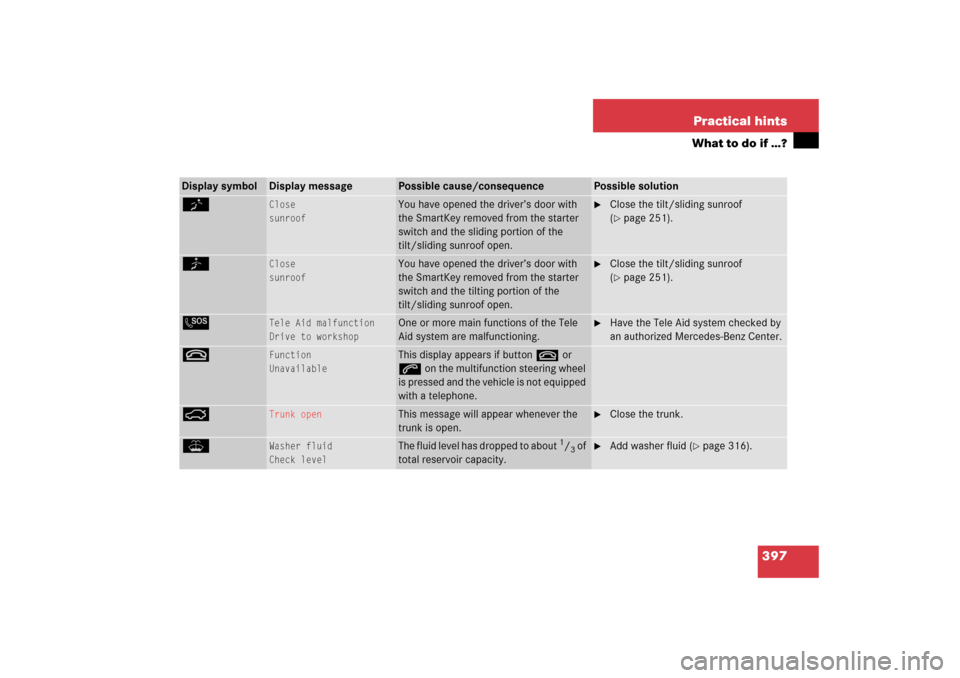

397 Practical hints
What to do if …?
Display symbol
Display message
Possible cause/consequence
Possible solution
K
Close
sunroof
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the sliding portion of the
tilt/sliding sunroof open.

Close the tilt/sliding sunroof
(page 251).
J
Close
sunroof
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the tilting portion of the
tilt/sliding sunroof open.

Close the tilt/sliding sunroof
(page 251).
L
Tele Aid malfunction
Drive to workshop
One or more main functions of the Tele
Aid system are malfunctioning.

Have the Tele Aid system checked by
an authorized Mercedes-Benz Center.
t
Function
Unavailable
This display appears if button t or
s on the multifunction steering wheel
is pressed and the vehicle is not equipped
with a telephone.
Ê
Trunk open
This message will appear whenever the
trunk is open.

Close the trunk.
W
Washer fluid
Check level
The fluid level has dropped to about
1/3 of
total reservoir capacity.

Add washer fluid (
page 316).

398 Practical hintsWhere will I find...?First aid kit
The first aid kit is located in the trunk on
the left side secured by a hook and loop
fastener.
Loosen hook and loop fastener.

Remove first aid kit.
Vehicle tool kit
The vehicle tool kit is located in the storage
compartment underneath the trunk floor.
The following is included:

Towing eye bolt


Wheel wrench


Alignment bolt


Vehicle jack


Collapsible wheel chock


Spare fuses


A pair of gloves
The spare wheel bolts are fixed at the
Minispare wheel.Removing the vehicle tool kit

Lift up trunk floor cover and engage
trunk floor handle in upper edge of
trunk.
1Retaining screw
2Storage well casing

Loosen retaining screw1 in the mid-
dle of storage well casing by turning it
counterclockwise.

Remove storage well casing2.
iCheck expiration dates and contents
for completeness at least once a year
and replace missing/expired items.

399 Practical hints
Where will I find...?
3Arrow
4Minispare wheel
5Vehicle tool kit storage well casing
6Vehicle tool kit
Remove vehicle tool kit6.Storing the vehicle tool kit

Place vehicle tool kit6 in vehicle tool
kit storage well casing5.

Place storage well casing2 over the
vehicle tool kit storage well casing5
and turn retaining screw1 clockwise
as far it will go to secure the Minispare
wheel.

Disengage trunk floor handle in upper
edge of trunk and lower trunk floor cov-
er.iArrow3 on vehicle tool kit storage
well casing5 must point in the direc-
tion of travel. Otherwise you cannot
place the storage well casing2 on top
and secure the Minispare wheel with
retaining screw1.
!To prevent damage, always disengage
trunk floor handle from upper edge of
trunk and lower trunk floor before
closing the trunk.
