2006 MERCEDES-BENZ CLK COUPE Owner's Manual

288 Controls in detailUseful featuresProgramming the integrated remote
control
Step 1:
Switch on the ignition (
page 36).
Step 2:

If you have previously programmed a
signal transmitter button and wish to
retain its programming, proceed to
step 3.
If you are programming the integrated
remote control for the first time, press
and hold the two outer signal transmit-
ter buttons2 and4 and release
them only when the indicator lamp1 begins to flash after approximately
20 seconds (do not hold the button for
longer than 30 seconds). This proce-
dure erases any previous settings for
all three channels and initializes the
memory.
If you later wish to program a second
and/or third hand-held transmitter to
the remaining two signal transmitter
buttons, do not repeat this step and be-
gin directly with step 3.
Step 3:

Hold the end of the hand-held remote
control5 of the device you wish to
train approximately 2 to 5 in
(5 to12 cm) away from the signal trans-
mitter button (2, 3 or4) to be pro-
grammed, while keeping the indicator
lamp1 in view.
Step 4:

Using both hands, simultaneously
press the hand-held remote control
button6 and the desired signal trans-mitter button (2, 3 or4). Do not
release the buttons until step 5 is com-
pleted.
The indicator lamp1 will flash, first
slowly and then rapidly.
Step 5:

After the indicator lamp1 changes
from a slow to a rapidly flashing light,
release the hand-held remote control
button and the signal transmitter but-
ton.
Step 6:

Press and hold the just-trained signal
transmitter button (2, 3 or4) and
observe the indicator lamp1.
When programming a garage door opener,
park the vehicle outside the garage.
Do not run the engine while programming
the integrated remote control. Inhalation of
exhaust gas is hazardous to your health. All
exhaust gas contains carbon monoxide
(CO), and inhaling it can cause unconscious-
ness and possible death.
iThe indicator lamp1 flashes immedi-
ately the first time the signal transmit-
ter button is programmed. If this button
has already been programmed, the in-
dicator lamp will only start flashing af-
ter 20 seconds.


289 Controls in detail
Useful features
If the indicator lamp1 stays on
constantly, programming is complete
and your device should activate when
the respective signal transmitter
button (2, 3 or4) is pressed and re-
leased.
Step 7:

To program the remaining two signal
transmitter buttons, repeat the steps
above starting with step 3.Rolling code programming
To train a garage door opener (or other
rolling code devices) with the rolling code
feature, follow these instructions after
completing the “Programming” portion
(steps 1 through 6) of this text. (A second
person may make the following training
procedures quicker and easier.)
Step 8:

Locate “training” button on the garage
door opener motor head unit.
Exact location and color of the button
may vary by garage door opener brand.
Depending on manufacturer, the
“training” button may also be referred
to as “learn”or “smart” button. If there
is difficulty locating the transmitting
button, refer to the garage door opener
operator’s manual.
Step 9:

Press the “training” button on the ga-
rage door opener motor head unit.
The “training light” is activated.You have 30 seconds to initiate the
following two steps.
Step 10:

Return to the vehicle and firmly press,
hold for 2 seconds and release the pro-
grammed signal transmitter button
(2, 3 or4).
Step 11:

Press, hold for 2 seconds and release
same signal transmitter button a sec-
ond time to complete the training
process.
iIf the indicator lamp1 flashes rapidly
for about 2 seconds and then turns to a
constant light, continue with
programming steps 8 through 12 as
your garage door opener may be
equipped with the “rolling code”
feature.
iSome garage door openers (or other
rolling code equipped devices) may
require you to press, hold for 2 seconds
and release the same signal transmit-
ter button a third time to complete the
training process.


290 Controls in detailUseful featuresStep 12:
Confirm the garage door operation by
pressing the programmed signal trans-
mitter button (2, 3 or4).
Step 13:

To program the remaining two signal
transmitter buttons, repeat the steps
above starting with step 3.
Gate operator/Canadian programming
Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission
which may not be long enough for the
integrated signal transmitter to pick up the
signal during programming. Similar to this
Canadian law, some U.S. gate operators
are designed to “time-out” in the same
manner.
If you live in Canada or if you are having
difficulties programming a gate operator
(regardless of where you live) by using the
programming procedures, replace step 4
with the following:Step 4:

Press and hold the signal transmitter
button (2, 3 or4). Do not release
this button until it has been successful-
ly trained.

While still holding down the signal
transmitter button (2, 3 or4),
“cycle” your hand-held remote control
button6 as follows: Press and hold
button6 for 2 seconds, then release
it for 2 seconds, and again press and
hold it for 2 seconds. Repeat this se-
quence on the hand-held remote con-
trol until the frequency signal has been
learned. Upon successful training, the
indicator lamp1 will flash slowly and
then rapidly after several seconds.

Proceed with programming step 5 and
step 6 to complete.Reprogramming a single signal trans-
mitter button
To program a device using a signal trans-
mitter button previously trained, follow
these steps:

Switch on the ignition (
page 36).

Press and hold the desired signal
transmitter button (2, 3 or4).
Do not release the button.iUpon completion of programming the
integrated remote control, make sure
you retain the hand-held remote con-
trol that came with the garage door
opener, gate operator or other device.
You may need it for use in other vehi-
cles, for future programming of an
integrated remote control, or simply for
continued use as a hand-held remote
control to operate the respective
device in other situations.


291 Controls in detail
Useful features

The indicator lamp1 will begin to
flash after 20 seconds. Without releas-
ing the signal transmitter button, pro-
ceed with programming starting with
step 3.
Operation of integrated remote control

Switch on the ignition (
page 36).

Select and press the appropriate
integrated signal transmitter button
(2, 3 or4) to activate the remote
controlled device.
The integrated remote control trans-
mitter continues to send the signal as
long as the button is pressed – up to
20 seconds.
Erasing the integrated remote control
memory

Switch on the ignition (
page 36).

Simultaneously press and hold down
the outer signal transmitter buttons2
and 4, for approximately 20 seconds, until the indicator lamp1 flashes rap-
idly. Do not hold for longer than
30 seconds.
The codes of all three channels are
erased.
Programming tips
If you are having difficulty programming
the integrated remote control, here are
some helpful tips:


Check the frequency of the hand-held
remote control5 (typically located on
the reverse side of the remote). The in-
tegrated remote control is compatible
with radio-frequency devices operating
between 288-399 MHz.


Put a new battery in the hand-held re-
mote control5. This will increase the
likelihood of the hand-held remote con-
trol sending a faster and more accurate
signal to the integrated remote control.


While performing step 3, hold the
hand-held remote control6 at differ-
ent lengths and angles from the signal
transmitter button (2, 3 or4) you
are programming. Attempt varying an-
gles at the distance of 2 to 5 inches
(5 to 12 cm) away or the same angle at
varying distances.


If another hand-held remote control is
available for the same device, try the
programming steps again using that
other hand-held remote control. Make
sure new batteries are in the hand-held
remote control before beginning the
procedure.


Straighten the antenna wire from the
garage door opener assembly. This
may help improve transmitting and/or
receiving signals.
iIf you sell your vehicle, erase the codes
of all three channels.

292 Controls in detailUseful features
iCertain types of garage door openers
are incompatible with the integrated
remote control. If you should experi-
ence further difficulties with program-
ming the integrated remote control,
contact an authorized Mercedes-Benz
Center, or call Mercedes-Benz
Customer Assistance Center (in the
USA only) at 1-800-FOR-MERCedes, or
Customer Service (in Canada) at
1-800-387-0100.
iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

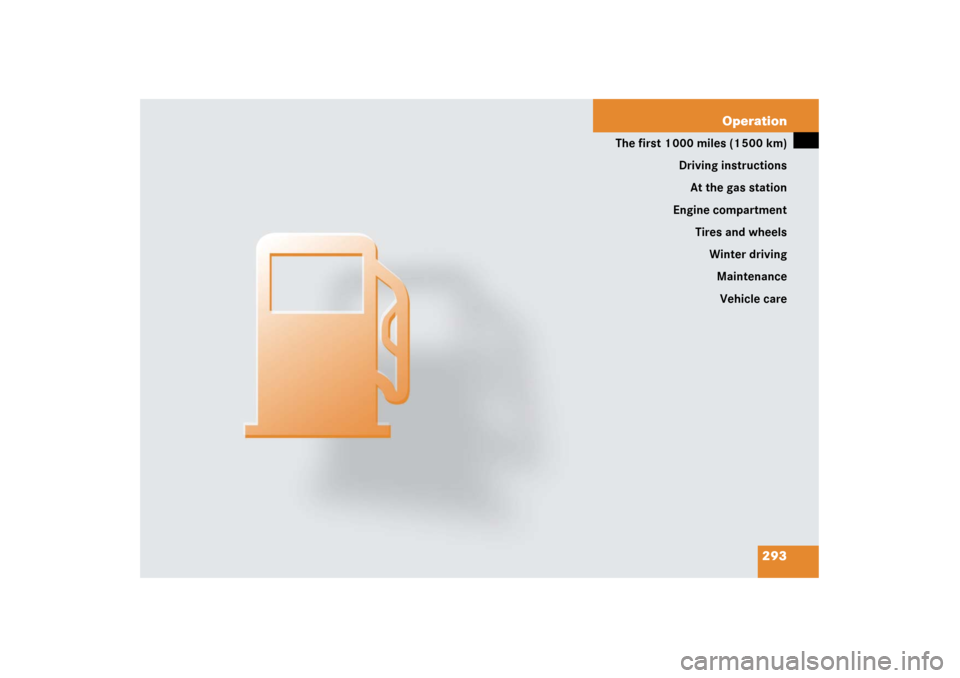

293 Operation
The first 1 000 miles (1 500 km)
Driving instructions
At the gas station
Engine compartment
Tires and wheels
Winter driving
Maintenance
Vehicle care

294 OperationIn the “Operation” section you will find
detailed information on operating,
maintaining and caring for your vehicle.The first 1 000 miles (1 500 km)
The more cautiously you treat your vehicle
during the break-in period, the more satis-
fied you will be with its performance later
on.

Drive your vehicle during the first
1 000 miles (1 500 km) at varying but
moderate vehicle and engine speeds.


During this period, avoid heavy loads
(full throttle driving) and excessive
engine speeds (no more than
2/3 of
maximum rpm in each gear).


Shift gears in a timely manner.


Avoid accelerating by kickdown.


Do not attempt to slow the vehicle
down by shifting to a lower gear using
the gear selector lever.


Select positions3,2or1 only when
driving at moderate speeds (for hill
driving).


Select modeC as the preferred shift
program (
page 176) for the first
1 000 miles (1 500 km).After 1 000 miles (1 500 km), you may
gradually increase vehicle and engine
speeds to the permissible maximum.
All of the above instructions, as may apply
to your vehicle type, also apply when
driving the first 1 000 miles (1 500 km)
after the engine or the rear differential has
been replaced.
iAlways obey applicable speed limits.

295 Operation
Driving instructions
Driving instructions
Drive sensibly – save fuel
Fuel consumption, to a great extent, de-
pends on driving habits and operating con-
ditions.
To save fuel you should:

Keep tires at the recommended tire
inflation pressures.


Remove unnecessary loads.


Remove roof rack when not in use.


Allow engine to warm up under low
load use.


Avoid frequent acceleration and decel-
eration.


Have all maintenance work performed
at the intervals specified in the
Maintenance Booklet and as required
by the Maintenance System (U.S. vehi-
cles) or FSS (Canada vehicles). Contact
an authorized Mercedes-Benz Center.
Fuel consumption is also increased by
driving in cold weather, in stop-and-go
traffic, on short trips and in hilly area.
Drinking and driving
PedalsPower assistance
Warning!
G
Drinking and driving and/or taking drugs
and driving are very dangerous combina-
tions. Even a small amount of alcohol or
drugs can affect your reflexes, perceptions
and judgment.
The possibility of a serious or even fatal ac-
cident are greatly increased when you drink
or take drugs and drive.
Do not drink or take drugs and drive or allow
anyone to drive who has been drinking or
taking drugs.
Warning!
G
Make sure that absolutely no objects are ob-
structing the pedals’ range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle.
