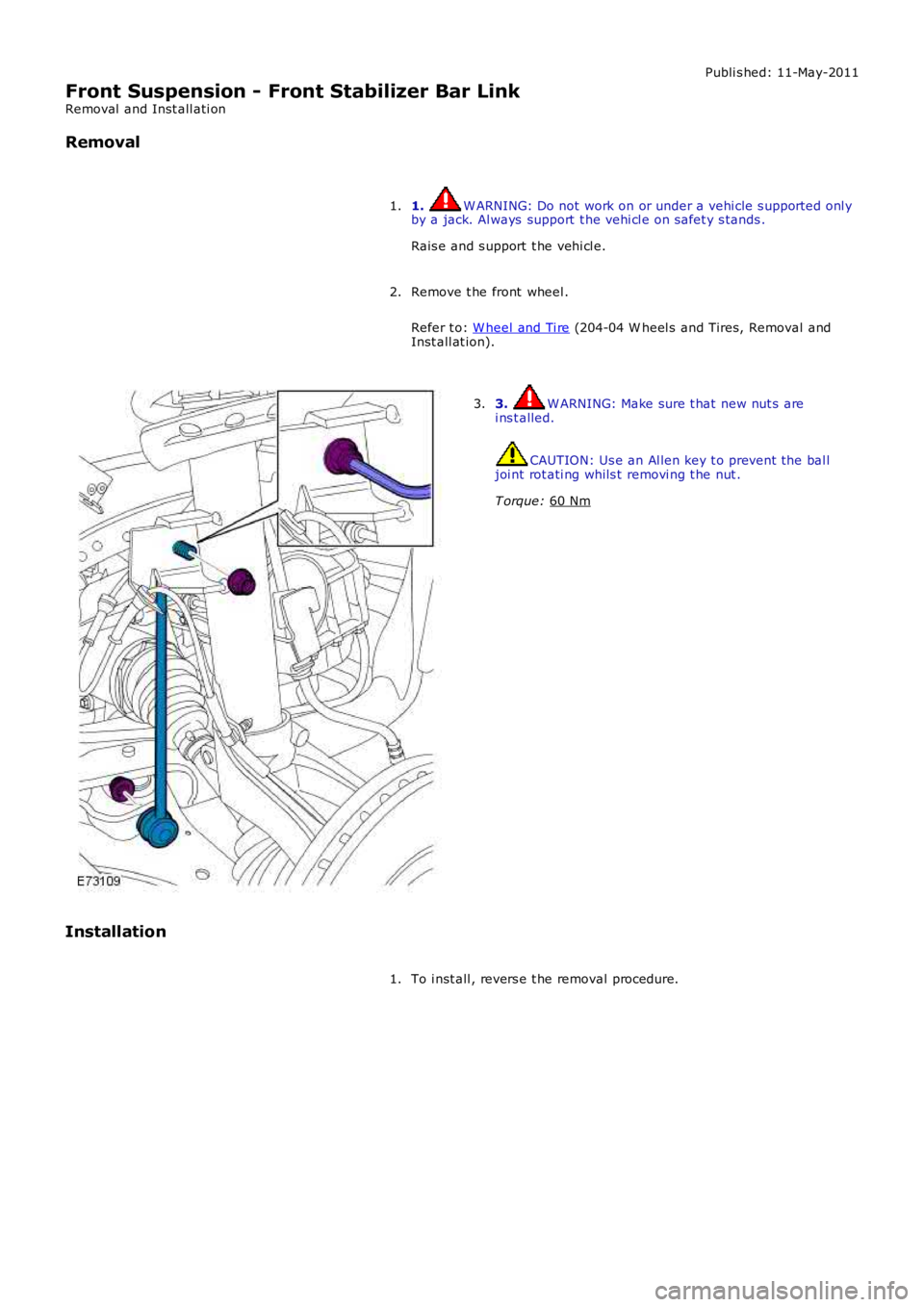

Front Suspension - Front Stabilizer Bar Link
Removal and Inst all ati on
Removal
1. W ARNING: Do not work on or under a vehi cle s upported onl y
by a jack. Al ways support t he vehi cl e on s afet y s tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he front wheel .
Refer t o: W heel and Ti re (204-04 W heel s and Tires, Removal and
Inst all at ion).
2. 3. W ARNING: Make sure t hat new nut s are
i ns t alled. CAUTION: Us e an Al len key t o prevent the bal l
joi nt rot ati ng whils t removi ng t he nut .
T orque: 60 Nm 3.
Installation To i nst all , revers e t he removal procedure.
1.

Publi s hed: 11-May-2011

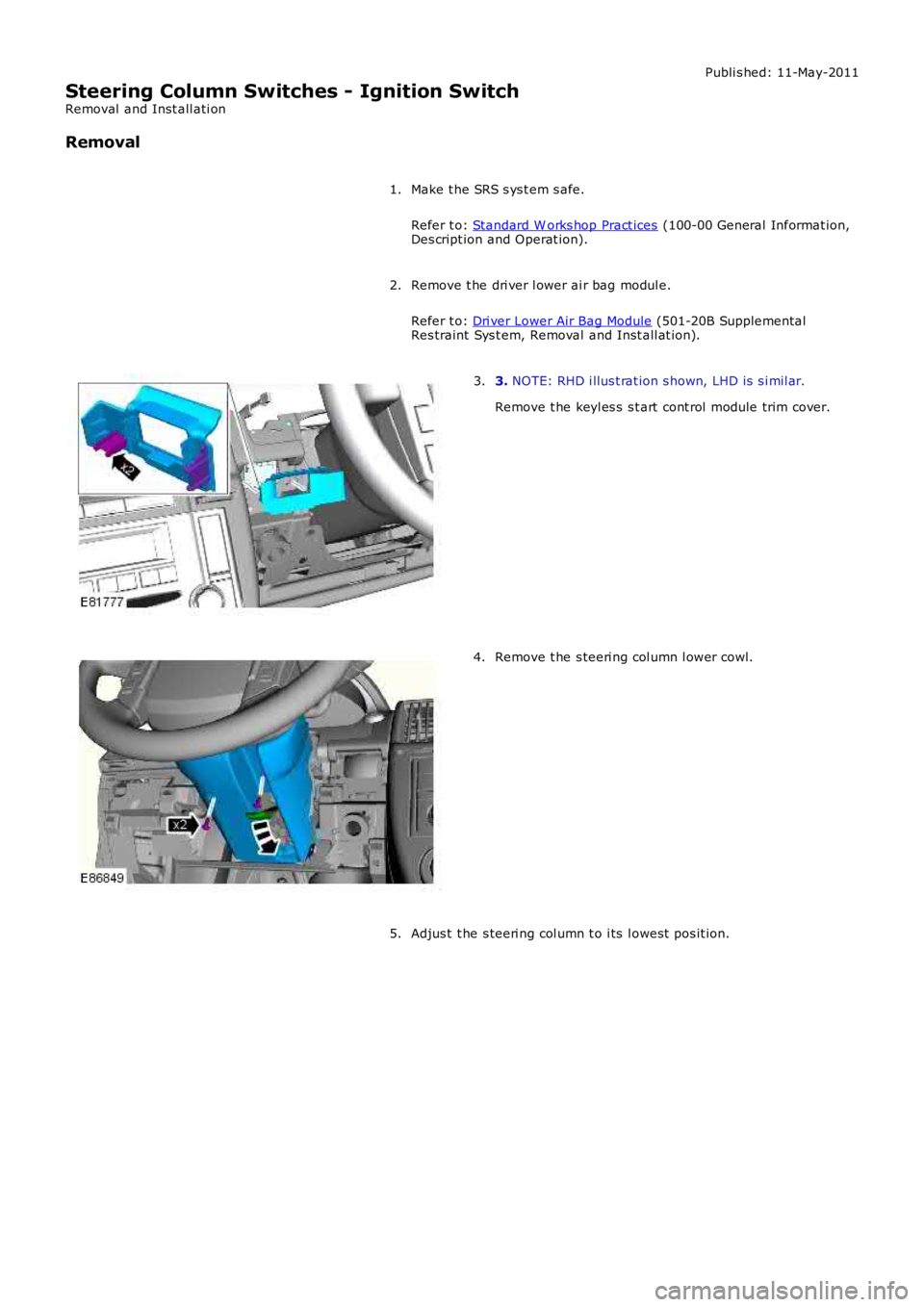

Steering Column Switches - Ignition Switch
Removal and Inst all ati on
Removal
Make t he SRS s ys t em s afe.
Refer t o: Standard W orks hop Pract ices (100-00 General Informat ion,Des cript ion and Operat ion).
1.
Remove t he dri ver l ower ai r bag modul e.
Refer t o: Dri ver Lower Air Bag Module (501-20B SupplementalRes traint Sys t em, Removal and Inst all at ion).
2.
3. NOTE: RHD i llus t rat ion s hown, LHD is s i mil ar.
Remove t he keyl es s s t art cont rol module trim cover.
3.
Remove t he s teeri ng col umn l ower cowl.4.
Adjus t t he s teeri ng col umn t o i ts l owest pos it ion.5.

ItemPart NumberDescription1-Seal2-Coolant pumpThe coolant pump is ins t alled on t he RH side of t he cylinder block rear face and is s ecured and s ealed via 6 bolt s and an 'O' ring.The coolant pump and power s t eering pump are bot h driven by a single pulley via a poly-vee belt . A keyed s haft at the front of t hepulley drives t he power s teering pump, while a driver mechanism at t ached to t he rear of t he pulley drives the coolant pump.
Coolant Inlet Pipe
ItemPart NumberDescription1-O ring2-Coolant inlet pipe3-Gas ket (2 off)4-Drain nippleThe coolant inlet pipe is locat ed on t he exhaus t s ide of the engine. The coolant is rout ed from t he coolant pump int o 2connect ions on the engine block via t he coolant inlet pipe and leaves t he engine block at t he rear end, via t he t hermos tat hous ing.
CYLINDER HEAD COMPONENTS
The main cylinder head component s are:
Cylinder headCylinder head gas ketO il s eparat orCams haft hous ingCams haftsIntake and exhaust valve ass embliesVariable Cams haft Timing (VCT) s olenoid and Cams haft Posit ion (CMP) sens orsSpark plugsCoilsFuel rail and injectorsVacuum pumpIntake manifoldExhaus t manifold
Cylinder Head

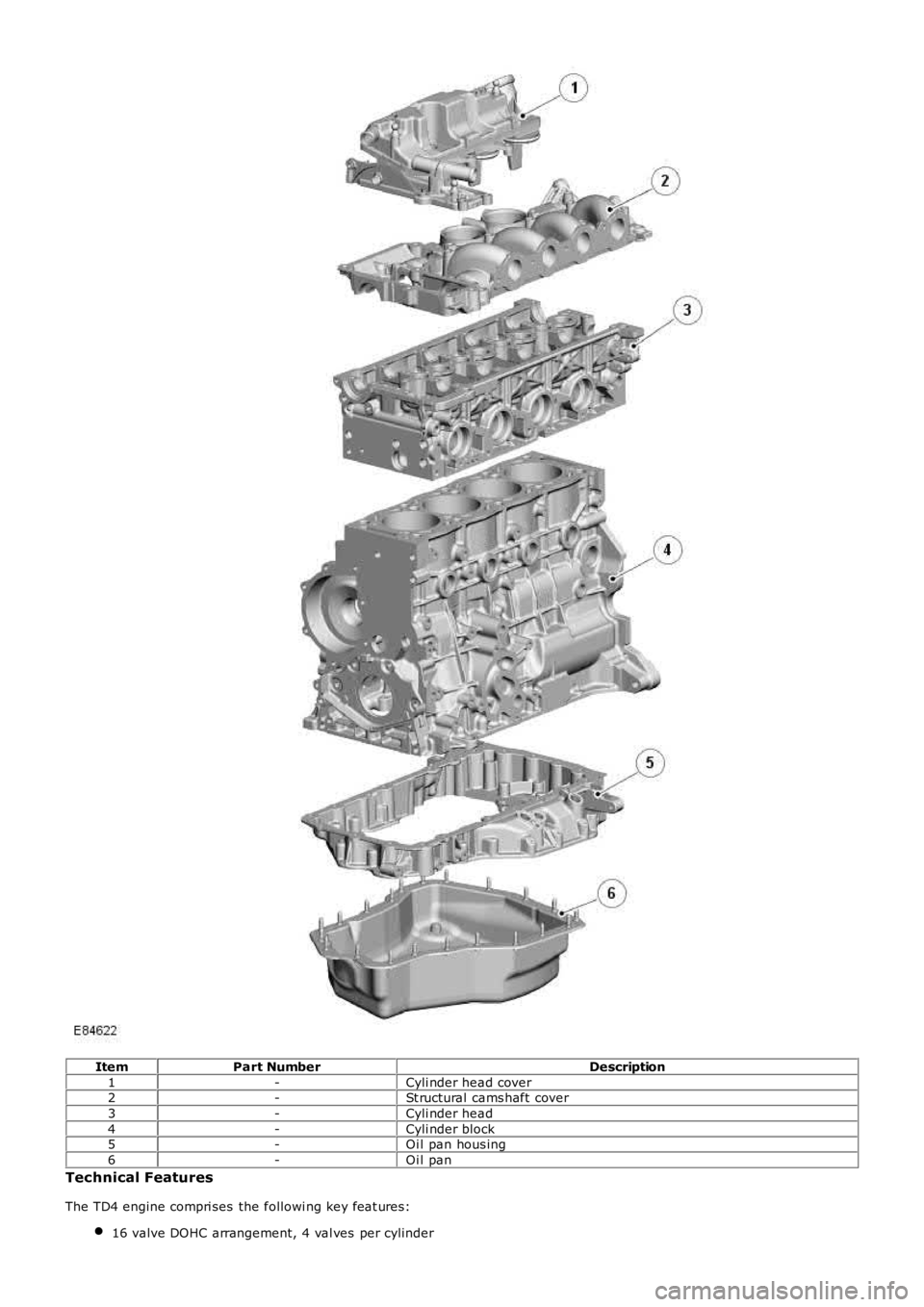

ItemPart NumberDescription
1-Cyli nder head cover2-St ructural cams haft cover
3-Cyli nder head
4-Cyli nder block5-Oi l pan hous ing
6-Oi l pan
Technical Features
The TD4 engine compri ses the followi ng key feat ures:
16 valve DOHC arrangement, 4 val ves per cylinder

ItemPart NumberDescription

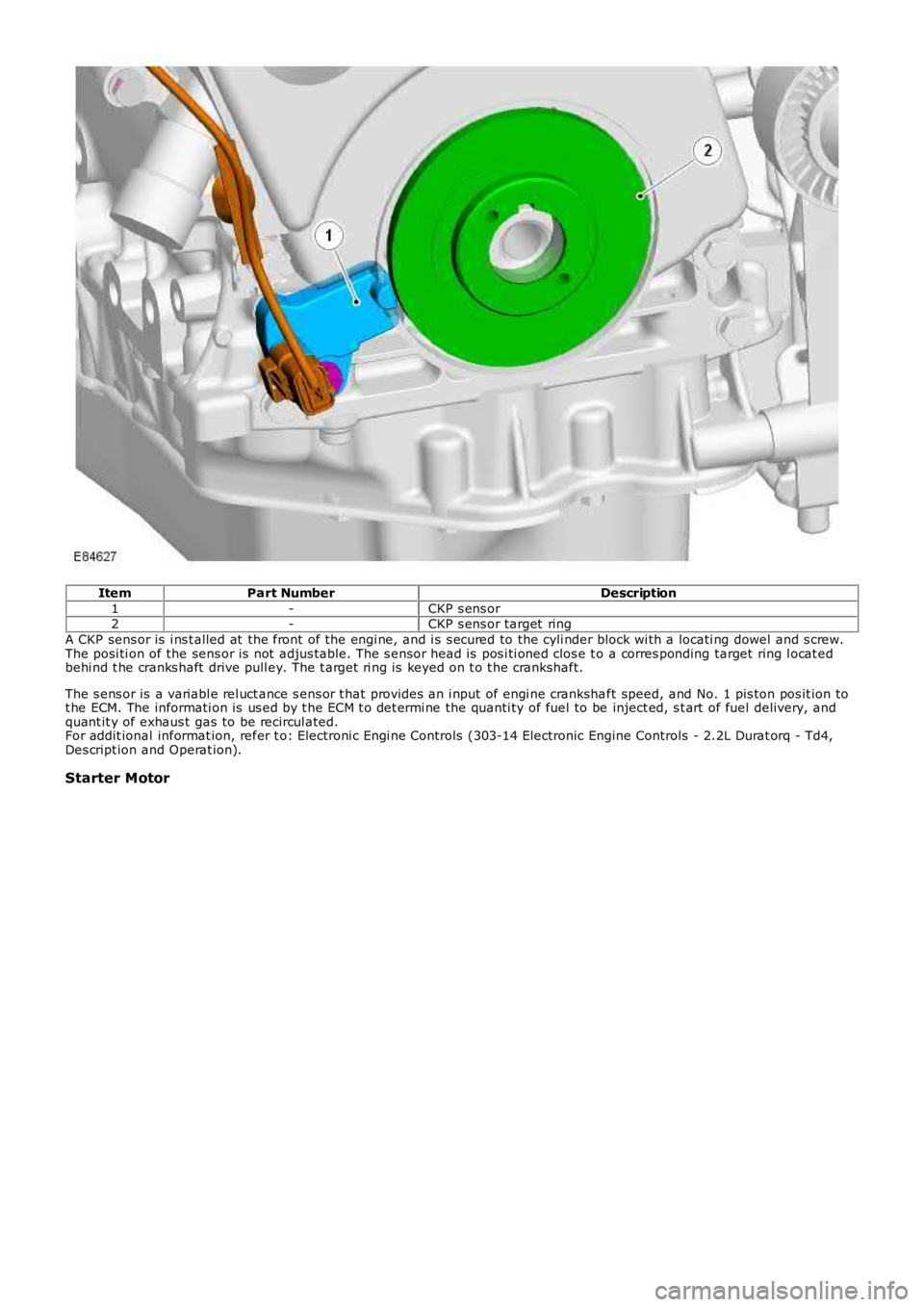

1-CKP s ens or2-CKP s ens or target ring
A CKP sens or is i ns t alled at the front of the engi ne, and i s s ecured to the cyli nder block wi th a locati ng dowel and s crew.The posi ti on of the sens or is not adjus table. The s ensor head is pos i ti oned clos e t o a corres ponding target ring l ocat edbehi nd t he cranks haft drive pull ey. The t arget ri ng is keyed on t o t he crankshaft.
The s ens or is a variabl e rel uct ance s ens or t hat provides an i nput of engi ne crankshaft speed, and No. 1 pis ton pos it ion tot he ECM. The informati on is us ed by t he ECM t o det ermi ne the quanti ty of fuel to be inject ed, s t art of fuel delivery, andquant it y of exhaus t gas to be recircul ated.For addit ional informat ion, refer t o: Electroni c Engi ne Controls (303-14 Electronic Engine Controls - 2.2L Durat orq - Td4,Des cript ion and Operat ion).
Starter Motor

12-Dual mas s flywheel (manual t rans mi ss i on vehi cl es )
13-Bol t (8 off)
14-Torque convert er flex-pl ate (automat ic trans mi ss i on vehi cl es)15-Mai n beari ng lower half s hel l (4 off)
16-Lower t hrus t washer (2 off)
17-Mai n beari ng hal f cap (5 off)18-Oil pump
19-Oil level gage tube (lower)
20-Bol t21-Locati ng dowel
22-Oil pan hous i ng
23-Oil pan hous i ng bol t (20 off)24-Oil pan capt ive bolt (21 off)
25-Oil drai n plug s eal
26-Oil drai n plug27-Oil pan
28-Oil t emperature s ens or
29-Screw (2 off)30-Oil level gage tube (upper)
31-Oil level gage
32-Oil pump drive chai n33-Cranks haft pull ey bolt
34-Pl ain was her
35-Cranks haft pull ey and t ors ional vi brati on damper36-CKP sens or target ring
37-W oodruff key (2 off)
Crankshaft and Main Bearings

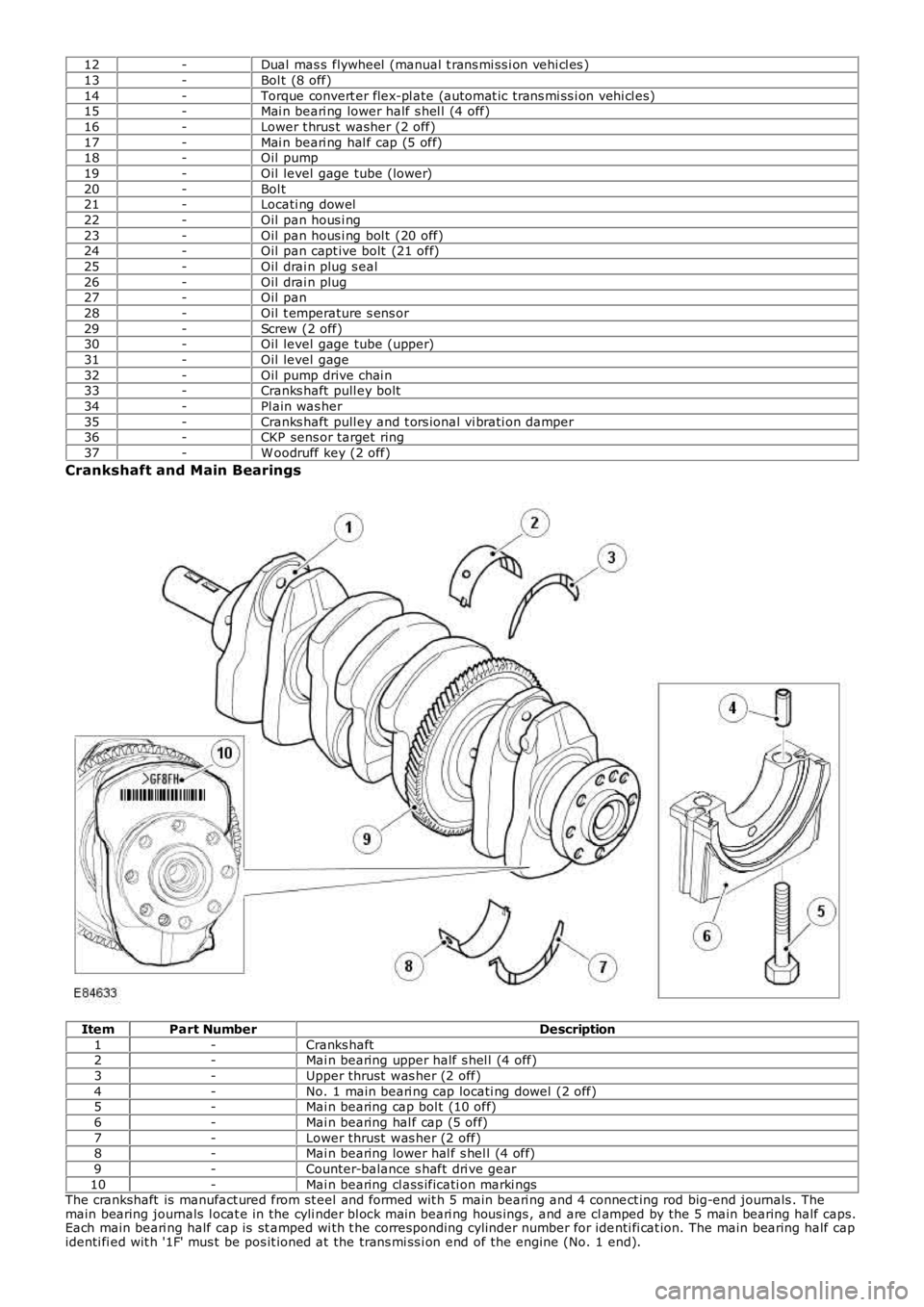

ItemPart NumberDescription
1-Cranks haft2-Mai n bearing upper half s hel l (4 off)
3-Upper thrust was her (2 off)
4-No. 1 main beari ng cap locati ng dowel (2 off)5-Mai n bearing cap bol t (10 off)
6-Mai n bearing hal f cap (5 off)
7-Lower thrust was her (2 off)8-Mai n bearing lower hal f s hel l (4 off)
9-Counter-balance s haft dri ve gear

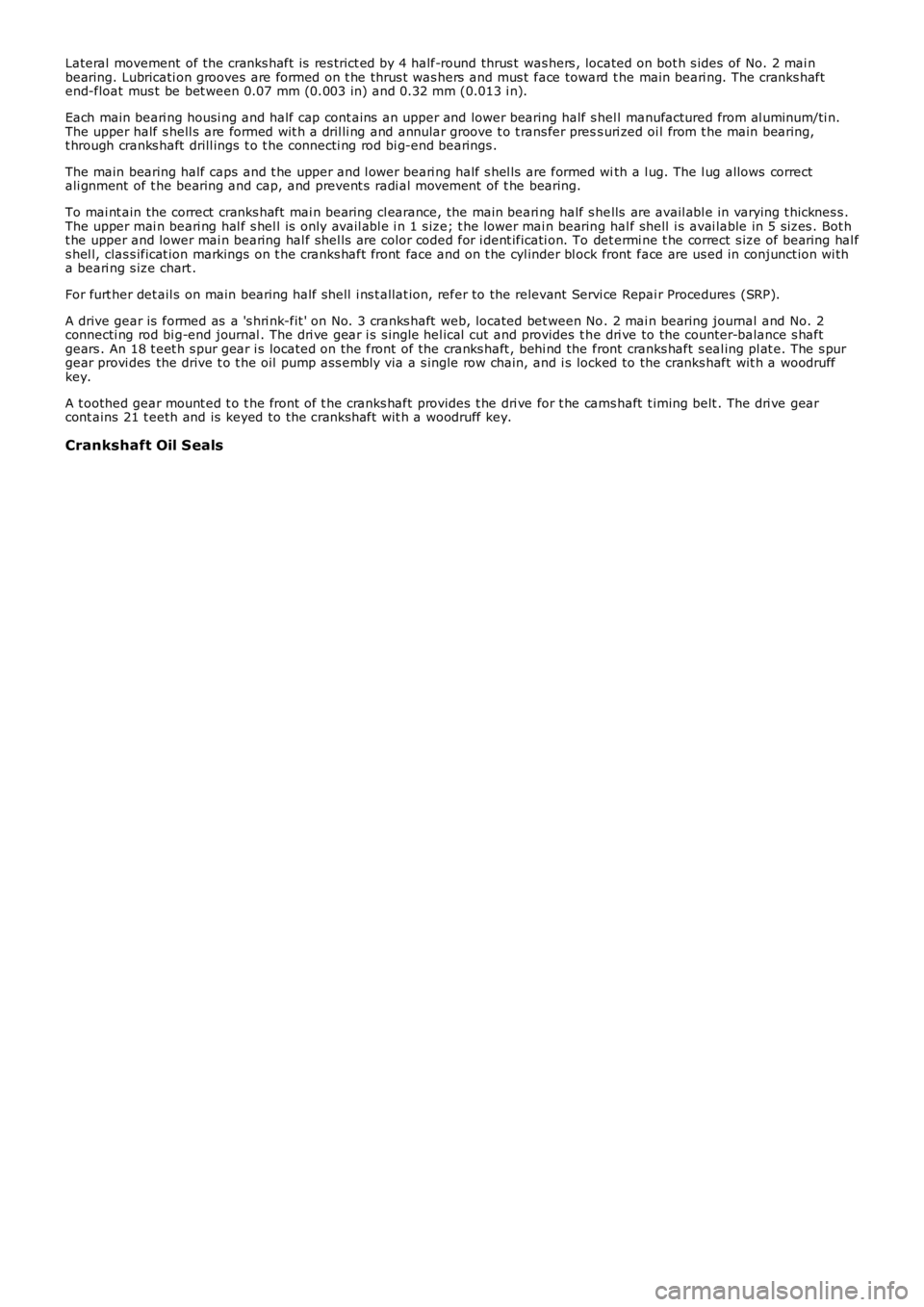

10-Mai n bearing cl ass ificati on marki ngsThe crankshaft is manufact ured from st eel and formed wit h 5 main beari ng and 4 connect ing rod big-end journals . Themain bearing journals l ocat e in the cyli nder bl ock mai n beari ng hous ings , and are clamped by the 5 main bearing half caps.Each main beari ng half cap is st amped wi th t he corresponding cylinder number for identi fi cat ion. The main bearing half capidenti fi ed wit h '1F' mus t be pos it ioned at the trans mi ss i on end of the engine (No. 1 end).

Lateral movement of the cranks haft is res trict ed by 4 half-round thrus t was hers , located on bot h s ides of No. 2 mai nbearing. Lubricati on grooves are formed on t he thrus t was hers and mus t face toward the main beari ng. The cranks haftend-float mus t be bet ween 0.07 mm (0.003 in) and 0.32 mm (0.013 i n).
Each main beari ng housi ng and half cap cont ains an upper and lower bearing half s hell manufactured from al uminum/ti n.The upper half s hell s are formed wit h a dril li ng and annular groove t o t rans fer press uri zed oi l from t he main bearing,t hrough cranks haft drill ings t o t he connecti ng rod bi g-end bearings .
The main bearing half caps and t he upper and l ower beari ng half s hel ls are formed with a l ug. The l ug allows correctali gnment of t he bearing and cap, and prevent s radi al movement of t he bearing.
To mai nt ain the correct cranks haft mai n bearing cl earance, the main beari ng half s hells are avail abl e in varying t hicknes s .The upper mai n beari ng hal f s hel l is only avail abl e i n 1 s ize; t he lower mai n bearing hal f shell i s avai lable in 5 si zes . Bot ht he upper and lower mai n bearing hal f shel ls are col or coded for i dent ificati on. To det ermi ne t he correct s ize of bearing hal fs hel l, clas s ificat ion markings on t he cranks haft front face and on t he cyl inder bl ock front face are us ed in conjunct ion wi tha beari ng s ize chart .
For furt her det ail s on main bearing half s hell i ns t allat ion, refer to the relevant Servi ce Repai r Procedures (SRP).
A drive gear is formed as a 's hri nk-fit ' on No. 3 cranks haft web, located bet ween No. 2 mai n bearing journal and No. 2connecti ng rod bi g-end journal . The dri ve gear i s s ingle hel ical cut and provides t he dri ve to the counter-balance s haftgears . An 18 t eet h s pur gear i s located on the front of the cranks haft , behi nd the front cranks haft s eal ing pl at e. The s purgear provi des the drive t o t he oil pump as s embly via a s ingle row chain, and i s locked to the cranks haft wit h a woodruffkey.
A t oothed gear mount ed t o t he front of t he cranks haft provides t he dri ve for t he cams haft t iming belt . The dri ve gearcont ains 21 t eeth and is keyed to the cranks haft wit h a woodruff key.
Crankshaft Oil Seals

ItemPart NumberDescription
1-Exhaus t cams haft2-Intake cams haft
3-No. 3 bearing (end-fl oat control)
4-Si ngl e row t imi ng chai n5-Exhaus t cams haft pull ey
The int ake and exhaus t cams haft s are manufactured from cast -iron. The 2 cams haft s are mount ed between the s t ructuralcamshaft cover and cyl inder head, wit h each camshaft locat ed i n 5 machined beari ng hous i ngs . Shel l bearings are not us edin the beari ng housi ngs , t he camshafts run direct ly in t he alumi num beari ng. Lateral movement of t he camshaft s i scont rol led by No. 3 cams haft beari ng, and i s not adjust able. The bearing is manufactured on both camshaft s t o provi de thecorrect end-float.
• NOTE: In product ion, t he camshaft end-fl oat i s 0.070 mm t o 0.168 mm (0.003 in t o 0.007 in). In s ervi ce, if t he end-floatis out of s peci fi cat ion t he cams haft(s ) and/or cyli nder head and s t ructural cams haft cover may requi re renewal.
Each cams haft has 8 machi ned lobes formed in pai rs al ong the length of t he cams haft. The cams haft lobes operat e t heinl et and exhaust valves t hrough hydraulic las h adjus ters and rol ler-t ype finger levers
A s pur gear wi th 19 teet h is formed on t he front end of each cams haft. The 2 gears are joined by a 40-li nk s ingle rowt imi ng chai n. The 2 cams haft gears are marked wit h a ti ming mark t hat coi ncides wi th the 2 col ored l inks on t he camshaftt imi ng chai n. A dri ve sl ot is formed in t he rear end of each camshaft to provi de t he drive to t he flange mounted vacuumpump and high-pres sure fuel pump. The vacuum pump is driven by t he inl et cams haft ; the hi gh-pres s ure fuel pump isdri ven by the exhaust cams haft .
The exhaus t camshaft is driven by t he cranks haft drive gear vi a a toothed t iming belt . The exhaus t camshaft pul leycont ains 42 t eeth and is keyed and bol ted to t he front of the exhaust cams haft . The int ake cams haft i s dri ven by theexhaus t camshaft vi a t he s ingle row chain.
The exhaus t camshaft pul ley i s manufactured wit h cut-out s and a not ch in the center hub. The cut -out s form t he t argetarea for the CMP s ens or. The not ch provides the locat ion for a cams haft t imi ng pin speci al tool. The s peci al tool is us ed i nconjunct ion wi th other s pecial t ool s t o s et the exhaus t cams haft duri ng engi ne ti ming.
For furt her det ail s on s ett ing t he engine valve t imi ng, refer t o t he rel evant Service Repair Procedures (SRP) manual.
Engi ne Valve Ti ming
The valve t imi ng val ues are s hown i n t he fol lowing t able:
ValvePositionInlet val ve opens15 degrees BTDC
Inlet val ve clos es12 degrees ABDC
Exhaus t valve opens23 degrees BBDCExhaus t valve clos es17 degrees ATDC
Key:
BTDC = Before Top Dead Cent erABDC = Aft er Bot t om Dead CenterBBDC = Before Bot t om Dead CenterATDC = Aft er Top Dead Cent er.
Camshaft Position (CMP) Sensor
