2004 MITSUBISHI ENDEAVOR display

NO: If the system is operated via the main panel, replace the rear display
unit assembly (overhead type). If the system is operated via the remote
control, refer to INSPECTION PROCEDURE 4: THE REMOTE CONTROL DOES NOT FUNCTION
.
INSPECTION PROCEDURE 2: IMAGE IS NOT DISPLAYED ALTHOUGH SOUND IS PLAYED
DIAGNOSTIC PROCEDURE
STEP 1. Confirm the disk.
Confirm that the disk complies with the market specifications.
Q: Is the check result normal?
YES: Go to Step 2.
NO: Use a disk, which complies with the market specifications.
STEP 2. Confirm that the disk is inserted with its correct side facing up.
Confirm that the disk is inserted with its correct side facing up.
Q: Is the check result normal?
YES: Go to Step 3.
NO: Confirm the disc face, and insert it again. (If the disc is single-sided,
its label should face up)
STEP 3. Confirm the disk.
Confirm that the disk is not contaminated or scratched.
Q: Is the check result normal?
YES: Go to Step 4.
NO: Clean the disk or use a clean disk
STEP 4. Substitute the rear display unit assembly (overhead type) and
retest the system.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

Substitute the rear display unit assembly (overhead type), and check that the
disc sound is played.
Q: Is the check result normal?
YES: If the system is operated via the main panel, replace the rear display
unit assembly (overhead type). If the system is operated via the remote
control, refer to INSPECTION PROCEDURE 4: THE REMOTE
CONTROL DOES NOT FUNCTION
.
NO: Go to Step 5.
STEP 5. Retest the system.
Check that the disk is played normally when it is inserted.
Q: Is the check result normal?
YES: The procedure is complete.
NO: Return to Step 3 .
INSPECTION PROCEDURE 3: SOUND IS NOT PLAYED ALTHOUGH IMAGE IS DISPLAYED
DIAGNOSTIC PROCEDURE
STEP 1. Confirm the disk.
Confirm that the disk complies with the market specifications.
Q: Is the check result normal?
YES: Go to Step 2.
NO: Use a disk, which complies with the market specifications.
STEP 2. Confirm that the disk is inserted with its correct side facing up.
Confirm that the disk is inserted with its correct side facing up.
Q: Is the check result normal?
YES: Go to Ste
p 3.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

Check the disk is being played in a normal mode without using special
functions such as rewinding, fast-forwarding, slow motion or pause.
Q: Is the check result normal?
YES: Go to Step 8.
NO: Check by playing the disk in a normal mode.
STEP 8. Confirm what type of sound does not come out.
Confirm what type of sound does not come out from the speakers.
Q: What type of sound does not come out? All types come out. : The
trouble can be an intermittent malfunction (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
).
No sound comes out: Go to Step 9.
The radio/CD player does not sound. : Go to Step 10 .
STEP 9. Substitute the rear display unit assembly (overhead type) and
retest the system.
Confirm that all the speakers sound when the rear display unit assembly
(overhead type) is substituted.
Q: Is the check result normal?
YES: If the system is operated via the main panel, replace the rear display
unit assembly (overhead type). If the system is operated via the remote
control, refer to INSPECTION PROCEDURE 4: THE REMOTE
CONTROL DOES NOT FUNCTION
.
NO: Check the wiring harnesses and the DIN cable between each speakers
and the rear display unit assembly (overhead type), and repair or replace if
necessary. Then go to Step 11 .
STEP 10. Substitute the M-bus adapter, and retest the system.
Confirm that all the s
peakers sound when the
M-bus ada
pter is substituted.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

Q: Is the check result normal?
YES: Replace the M-bus adapter.
NO: Check the wiring harnesses and the DIN cable between each speakers
and the M-bus adapter, and repair or replace if necessary. Then go to step
11.
STEP 11. Confirm the operation of all the speakers.
Confirm that the radio/CD player sound comes out from all the speakers.
Q: Is the check result normal?
YES: Go to Step 12.
NO: Diagnose the radio/CD player. Refer to RADIO WITH TAPE
PLAYER AND CD PLAYER, SPEAKER
.
STEP 12. Substitute the rear display unit assembly (overhead type) and
retest the system.
Confirm that radio/CD player sound comes out from all the speakers when the
rear display unit assembly (overhead type) is substituted.
Q: Is the check result normal?
YES: If the system is operated via the main panel, replace the rear display
unit assembly (overhead type), If the system is operated via the remote
control, refer to INSPECTION PROCEDURE 4: THE REMOTE
CONTROL DOES NOT FUNCTION
.
NO: Go to Step 13.
STEP 13. Substitute the radio/CD player, and retest the system.
Confirm that radio/CD player sound comes out from all the speakers when the
radio/CD player is substituted.
Q: Is the check result normal?
YES: Re
place the radio/CD
player.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

NO: Go to Step 8 .
INSPECTION PROCEDURE 4: THE REMOTE CONTROL DOES NOT FUNCTION
DIAGNOSTIC PROCEDURE
STEP 1. Confirm the remote control battery.
Confirm that the remote control battery is normal.
Q: Is the check result normal?
YES: Go to Step 2.
NO: Replace the remote control battery.
STEP 2. Retest the system.
Confirm that the remote control functions normally.
Q: Is the check result normal?
YES: The trouble can be an intermittent malfunction (Refer to HOW TO
COPE WITH INTERMITTENT MALFUNCTIONS
).
NO: Replace the remote control.
MAIN UNIT TERMINAL VOLTAGE REAR DISPLAY UNIT (OVERHEAD TYPE)
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

Fig. 12: Main Unit Terminal Voltage Rear Display Unit Chart (Overhead Type) (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 13: Main Unit Terminal Voltage Rear Display Unit Chart (Overhead
Type) (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REAR DISPLAY UNIT (OVERHEAD TYPE) REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

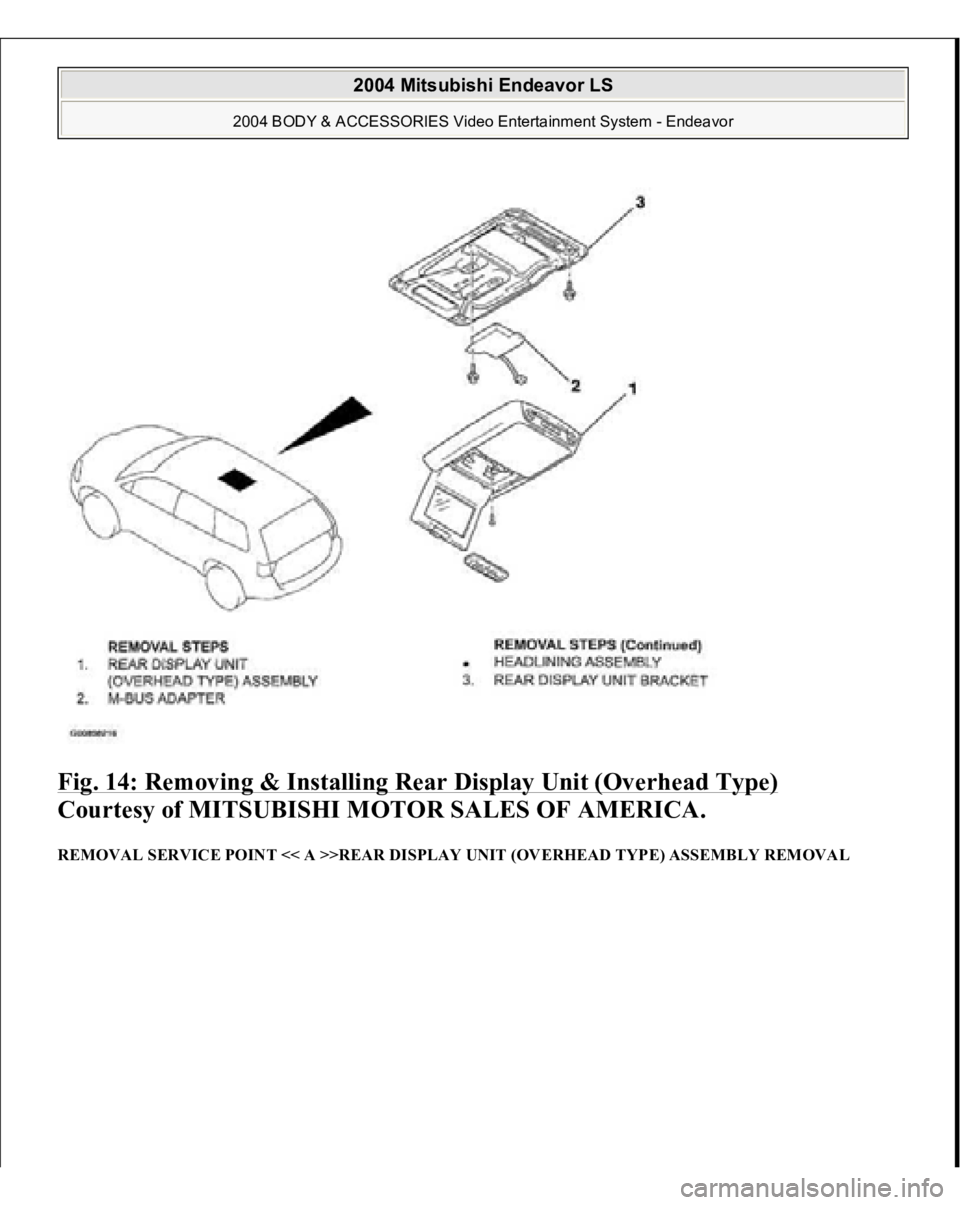

Fig. 14: Removing & Installing Rear Display Unit (Overhead Type)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL SERVICE POINT << A >>REAR DISPLAY UNIT (OVERHEAD TYPE) ASSEMBLY REMOVAL
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

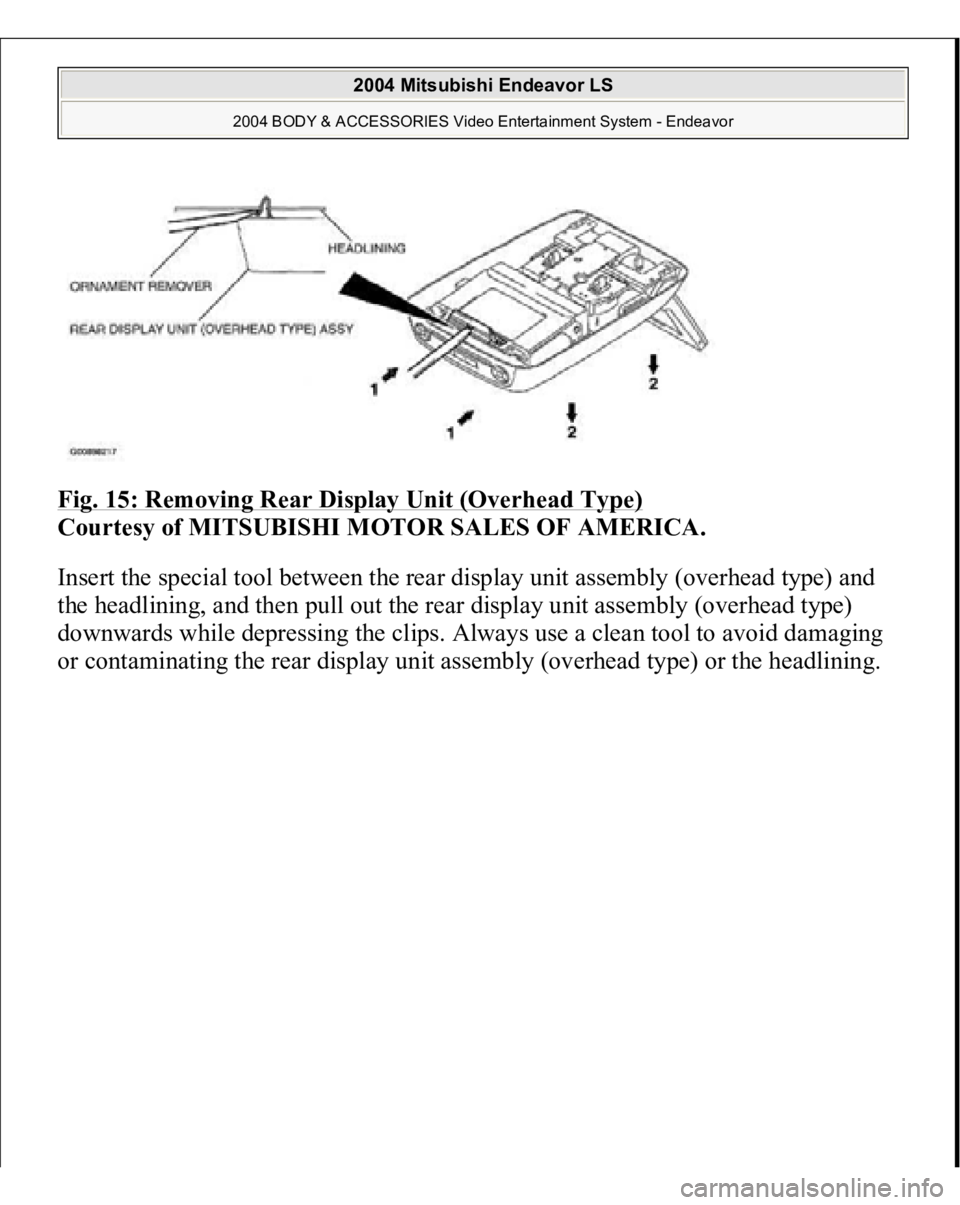

Fig. 15: Removing Rear Display Unit (Overhead Type)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Insert the special tool between the rear display unit assembly (overhead type) and
the headlining, and then pull out the rear display unit assembly (overhead type)
downwards while depressing the clips. Always use a clean tool to avoid damaging
or contaminatin
g the rear dis
play unit assembl
y (overhead t
ype) or the headlinin
g.
