Page 1824 of 3870
2004 BODY & ACCESSORIES
Video Entertainment System - Endeavor

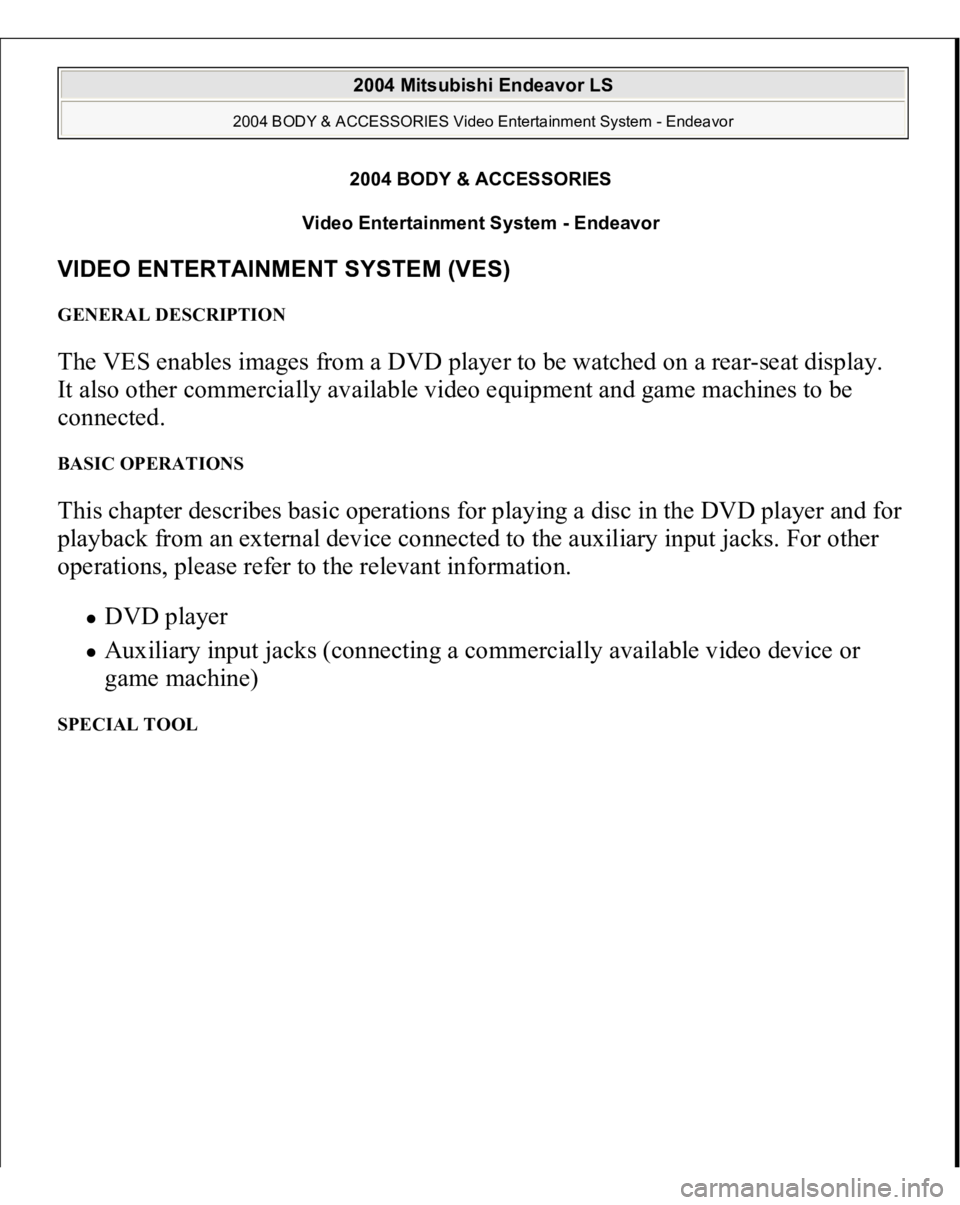

VIDEO ENTERTAINMENT SYSTEM (VES) GENERAL DESCRIPTION The VES enables images from a DVD player to be watched on a rear-seat display.
It also other commercially available video equipment and game machines to be
connected. BASIC OPERATIONS This chapter describes basic operations for playing a disc in the DVD player and for
playback from an external device connected to the auxiliary input jacks. For other
operations, please refer to the relevant information.
DVD player Auxiliary input jacks (connecting a commercially available video device or
game machine)
SPECIAL TOOL
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor
Page 1828 of 3870
Fig. 4: Identifying Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CIRCUIT OPERATION Power is supplied from the battery directly to the M-bus adapter. TECHNICAL DESCRIPTION (COMMENT) The cause is probably a faulty M-bus adapter power supply circuit system. TROUBLESHOOTING HINTS
Damaged wiring harness or connector Damaged DIN cable Malfunction of the M-bus adapter Malfunction of the rear display unit (overhead type)
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor
Page 1830 of 3870
Fig. 5: Identifying D
-36 Connector Terminals
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the check result normal?
YES: Go to Step 6.
NO: Repair the defective connector.
STEP 6. Measure the voltage at rear display connector D-36.
1. Disconnect the connector, and measure at the wirin
gharness side.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor
Page 1831 of 3870
Fig. 6: Disconnecting Connector D
-36
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Ignition switch: ACC
3. The voltage between rear display connector D-36 terminal No.1 and body
ground
OK: Battery positive voltage
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor
Page 1832 of 3870
Fig. 7: Measuring Voltage At Rear Display Connector D
-36
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the check result normal?
YES: Go to Step 8 .
NO: Go to Step 7.
STEP 7. Check the DIN cable.
Check whether the DIN cable between the M-bus adapter and the radio/CD
player is connected correctly.
Q: Is the check result normal?
YES: Go to Ste
p 8.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor
Page 1833 of 3870
NO: Replace the DIN cable.
STEP 8. Measure the resistance value at rear display connector D-36.
1. Disconnect the connector, and measure at the wiring harness side.
Fig. 8: Identifying D
-36 Connector Terminals
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Resistance between rear display connector D-36 terminal No.2 and body
ground
OK: 2 ohm or less
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor
Page 1834 of 3870
Fig. 9: Measuring The Resistance Value At Rear Display Connector D-36
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the check result normal?
YES: Go to Step 10 .
NO: Go to Step 9.
STEP 9. Check the wiring harness between rear display connector D-36
terminal No.2 and body ground.
Check the
ground wires for o
pen circuit.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor
Page 1835 of 3870

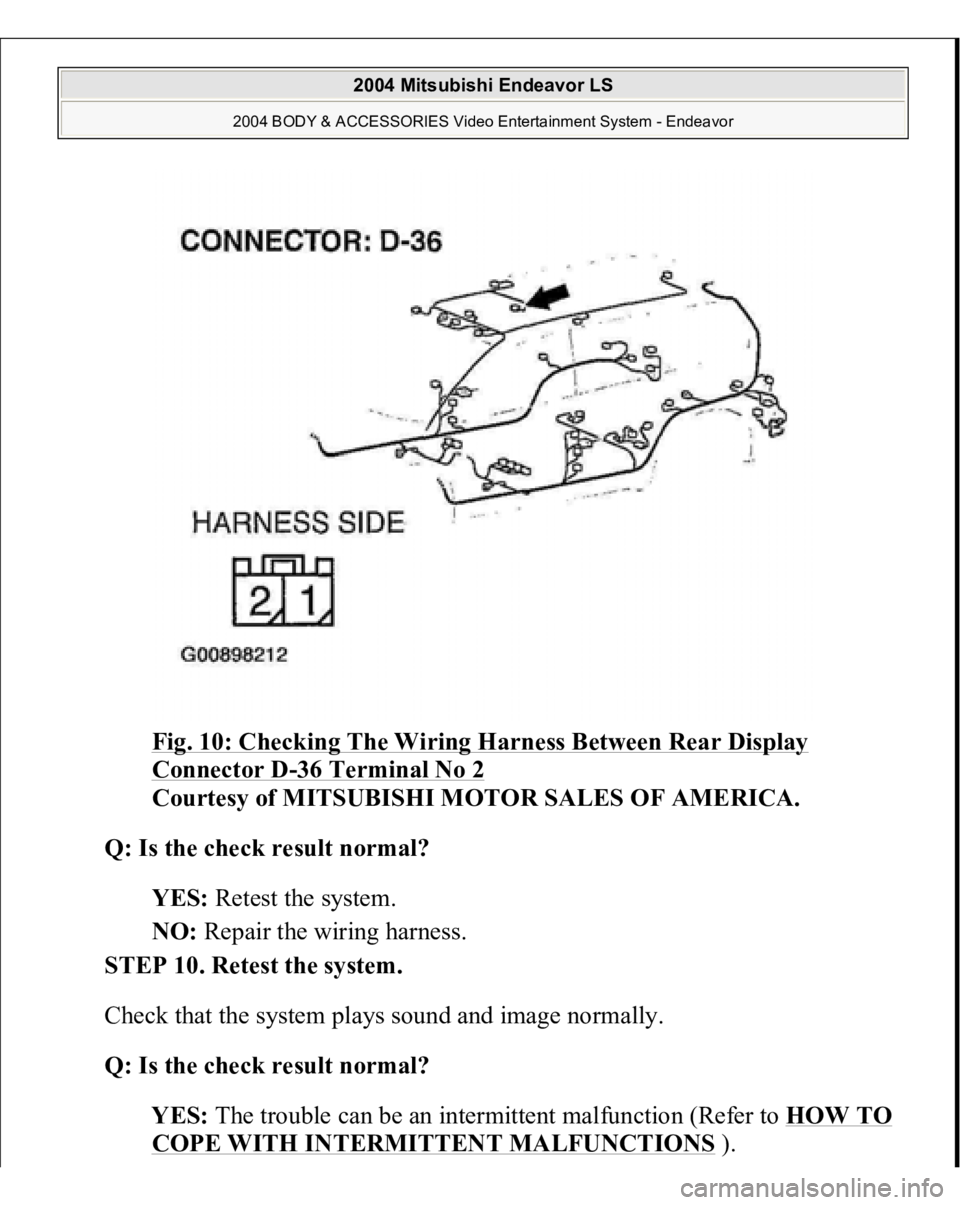

Fig. 10: Checking The Wiring Harness Between Rear Display Connector D
-36 Terminal No 2
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the check result normal?
YES: Retest the system.
NO: Repair the wiring harness.
STEP 10. Retest the system.
Check that the system plays sound and image normally.
Q: Is the check result normal?
YES: The trouble can be an intermittent malfunction (Refer to HOW TO
COPE WITH INTERMITTENT MALFUNCTIONS
).
