Use only engine oils displaying the ILSAC certification symbol ("Starburst"
symbol) on the container.
Fig. 12: Identifying ILSAC Certification Symbol (Up To December 2003)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If these oils are not available, an API classification SJ EC or SJ/CD EC can be used.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

2004 BODY & ACCESSORIES
Radio With Tape Player & Cd Player - Endeavor
RADIO WITH TAPE PLAYER AND CD PLAYER GENERAL DESCRIPTION < Vehicles with six speakers >
Radio and CD player Shows textual information regarding audio system operation on the low grade
type multi-center display.
< Vehicles with seven speakers > Radio, CD player and CD changer A woofer is fitted. Audio amplifier is fitted. Shows graphical information regarding audio system operation on the middle
grade type multi-center display.
RADIO WITH TAPE PLAYER AND CD PLAYER, SPEAKER AND ANTENNA DIAGNOSIS INTRODUCTION TO AUDIO SYSTEM DIAGNOSIS The diagnosis for symptoms such as noise being emitted, no sound being played, or
sound coming only out of one speaker (or set of speakers) is provided. AUDIO ERROR CODES If the radio and CD player or radio, or CD player and CD changer detects any
malfunction in itself or the inserted CD, the error codes below will be shown on the
multi-center dis
play.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor


2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

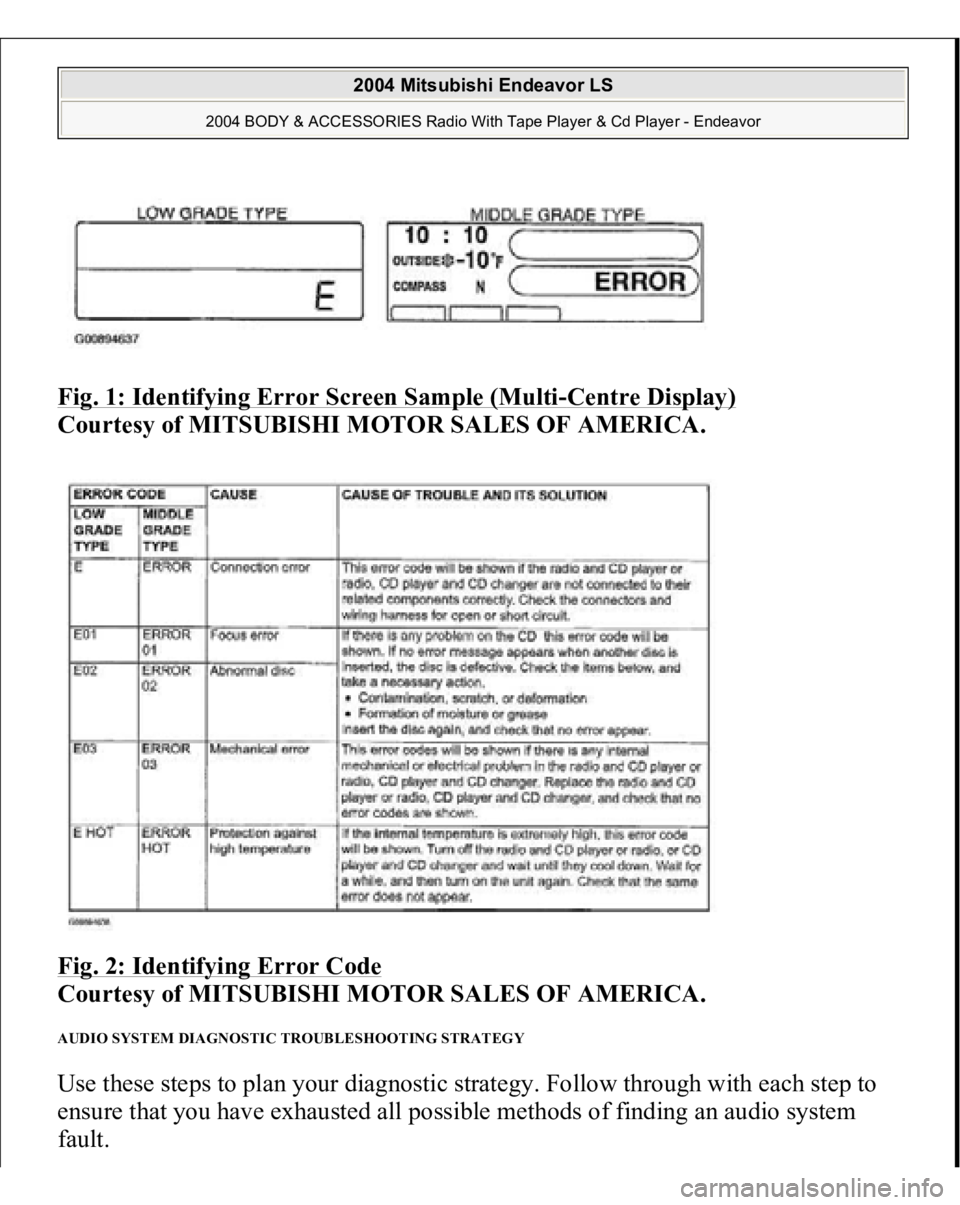

Fig. 1: Identifying Error Screen Sample (Multi
-Centre Display)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 2: Identifying Error Code

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
AUDIO SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY Use these steps to plan your diagnostic strategy. Follow through with each step to
ensure that you have exhausted all possible methods of finding an audio system
fault.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

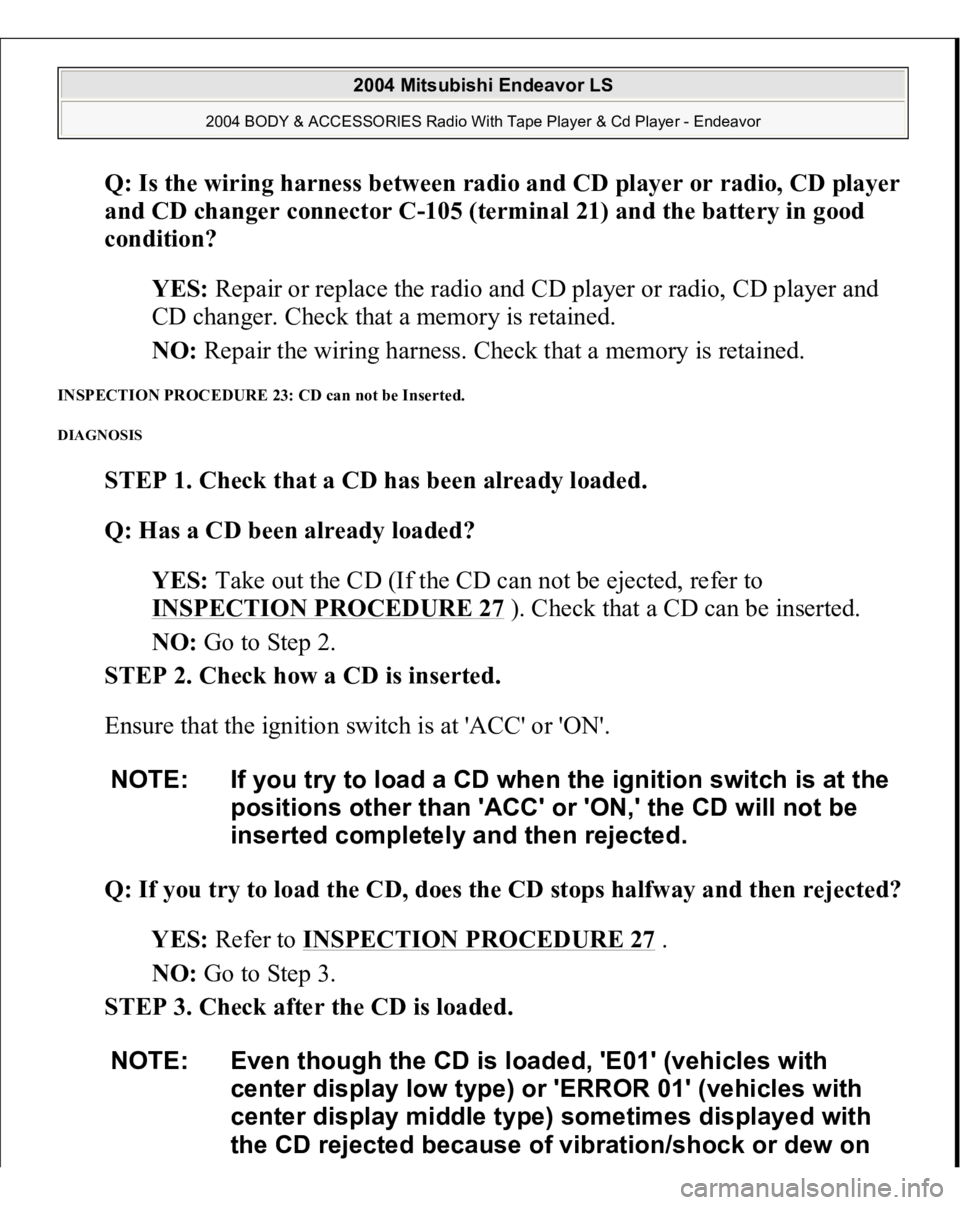

Q: Is the wiring harness between radio and CD player or radio, CD player
and CD changer connector C-105 (terminal 21) and the battery in good
condition?
YES: Repair or replace the radio and CD player or radio, CD player and
CD changer. Check that a memory is retained.
NO: Repair the wiring harness. Check that a memory is retained.
INSPECTION PROCEDURE 23: CD can not be Inserted. DIAGNOSIS
STEP 1. Check that a CD has been already loaded.
Q: Has a CD been already loaded?
YES: Take out the CD (If the CD can not be ejected, refer to
INSPECTION PROCEDURE 27
). Check that a CD can be inserted.
NO: Go to Step 2.
STEP 2. Check how a CD is inserted.
Ensure that the ignition switch is at 'ACC' or 'ON'.
Q: If you try to load the CD, does the CD stops halfway and then rejected?
YES: Refer to INSPECTION PROCEDURE 27
.
NO: Go to Step 3.
STEP 3. Check after the CD is loaded.
NOTE: If you try to load a CD when the ignition switch is at the
positions other than 'ACC' or 'ON,' the CD will not be
inserted completely and then rejected.
NOTE: Even though the CD is loaded, 'E01' (vehicles with
center display low type) or 'ERROR 01' (vehicles with
center display middle type) sometimes displayed with
the CD rejected because of vibration/shock or dew on

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

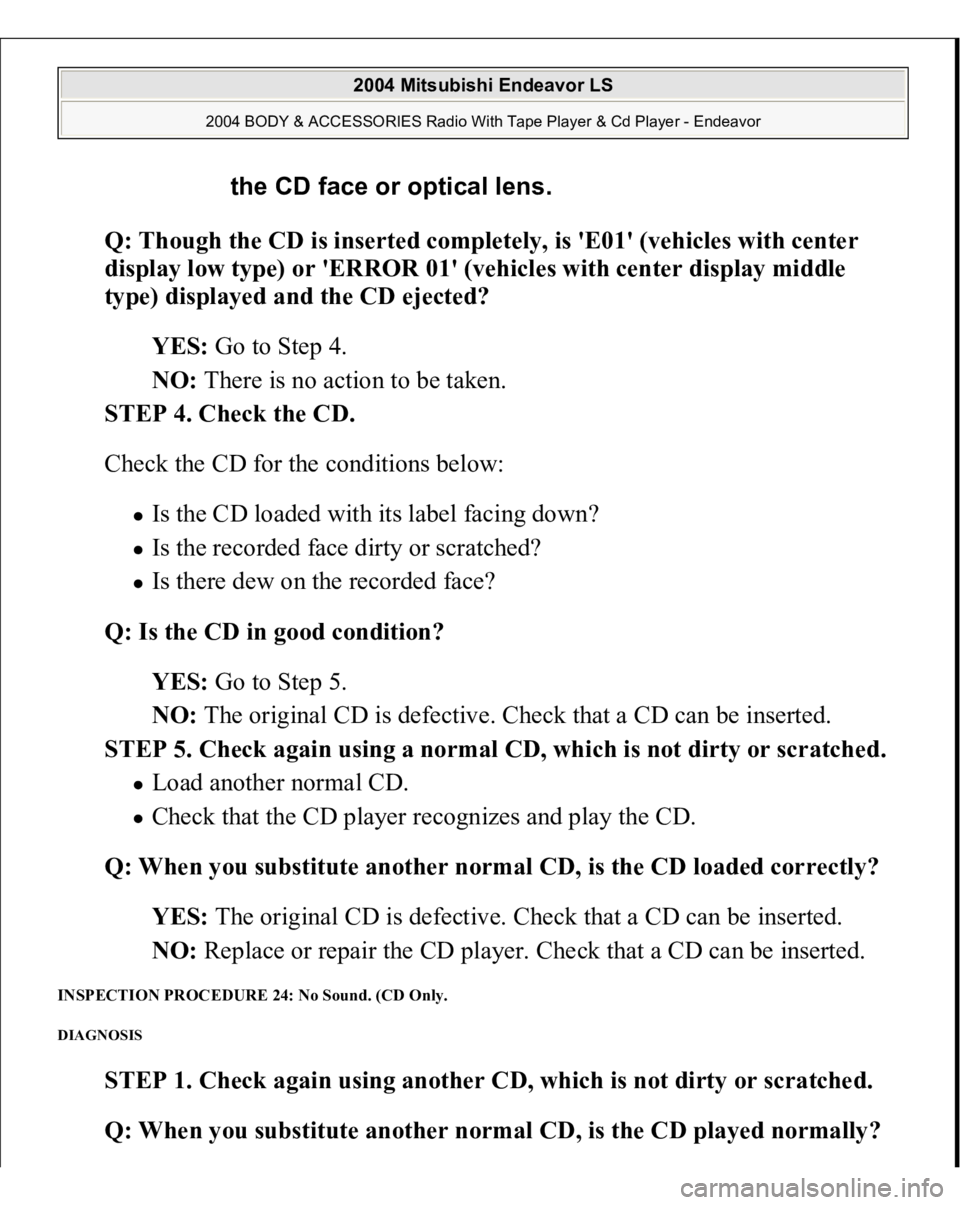

Q: Though the CD is inserted completely, is 'E01' (vehicles with center
display low type) or 'ERROR 01' (vehicles with center display middle
type) displayed and the CD ejected?
YES: Go to Step 4.
NO: There is no action to be taken.
STEP 4. Check the CD.
Check the CD for the conditions below:
Is the CD loaded with its label facing down? Is the recorded face dirty or scratched? Is there dew on the recorded face?
Q: Is the CD in good condition?
YES: Go to Step 5.
NO: The original CD is defective. Check that a CD can be inserted.
STEP 5. Check again using a normal CD, which is not dirty or scratched. Load another normal CD. Check that the CD player recognizes and play the CD.
Q: When you substitute another normal CD, is the CD loaded correctly?
YES: The original CD is defective. Check that a CD can be inserted.
NO: Replace or repair the CD player. Check that a CD can be inserted.
INSPECTION PROCEDURE 24: No Sound. (CD Only. DIAGNOSIS
STEP 1. Check again using another CD, which is not dirty or scratched.
Q: When
you substitute another normal CD, is the CD
played normall
y?
the CD face or optical lens.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Check the power of ignition switch "ACC"
.
Q: Does the radio and CD player power turn ON when the ignition switch is in
the "ACC" or "ON" position?
YES: Either replace the audio. Check that a CD can be ejected normally.
NO: Check the memory backup power supply circuit. Refer to INSPECTION
PROCEDURE 1
.
ON-VEHICLE SERVICE SPEAKER TEST < VEHICLES WITH SEVEN SPEAKERS > Operate the radio panel switches to test the speakers. The middle grade type multi-
center display shows which speaker is sounding. Enter the speaker test mode
according to the following steps:
1. Turn the ignition switch to "ACC" position and switch off the audio
2. Press the following buttons in that order within 60 seconds from step (1).
1. Memory select "1" button
2. "SEEK" switch (down side)
3. "SEEK" switch (up side)
4. Memor
y select "6" button

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Fig. 151: Displaying Memory Button

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Check that the speaker, which is displayed on the multi-center display (middle
grade type), sounds (If the memory select "6" button is pressed, the speaker
will be changed).
4. If a button other than the memory select "6" button and "EJECT" button (CD)
is pressed, or the ignition switch is turned to "LOCK" (OFF) position, you will
exit from the speaker test mode.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Fig. 152: Displaying Front Speaker (LH)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SPECIAL TOOL
