2004 MITSUBISHI ENDEAVOR display

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON" position.
7. Start the MUT-III system on the personal computer.
HOW TO READ AND ERASE DIAGNOSTIC TROUBLE CODES REQUIRED SPECIAL TOOLS:
MB991958: Scan Tool (MUT-III sub assembly)
MB991824: V.C.I. MB991827: USB Cable MB991910: Main Harness A
1. Connect scan tool MB991958 to the data link connec
tor.
NOTE: When special tool MB991824 is energized, special tool
MB991824 indicator light will be illuminated in a green
color.
NOTE: Disconnecting scan tool MB991958 is the reverse of the
connecting sequence, making sure that the ignition
switch is at the "LOCK" (OFF) position.
CAUTION: To prevent damage to scan tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting scan tool
MB991958.
NOTE: If the battery voltage is low, diagnostic trouble codes will
not be set. Check the battery if scan tool MB991958 does
not display.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

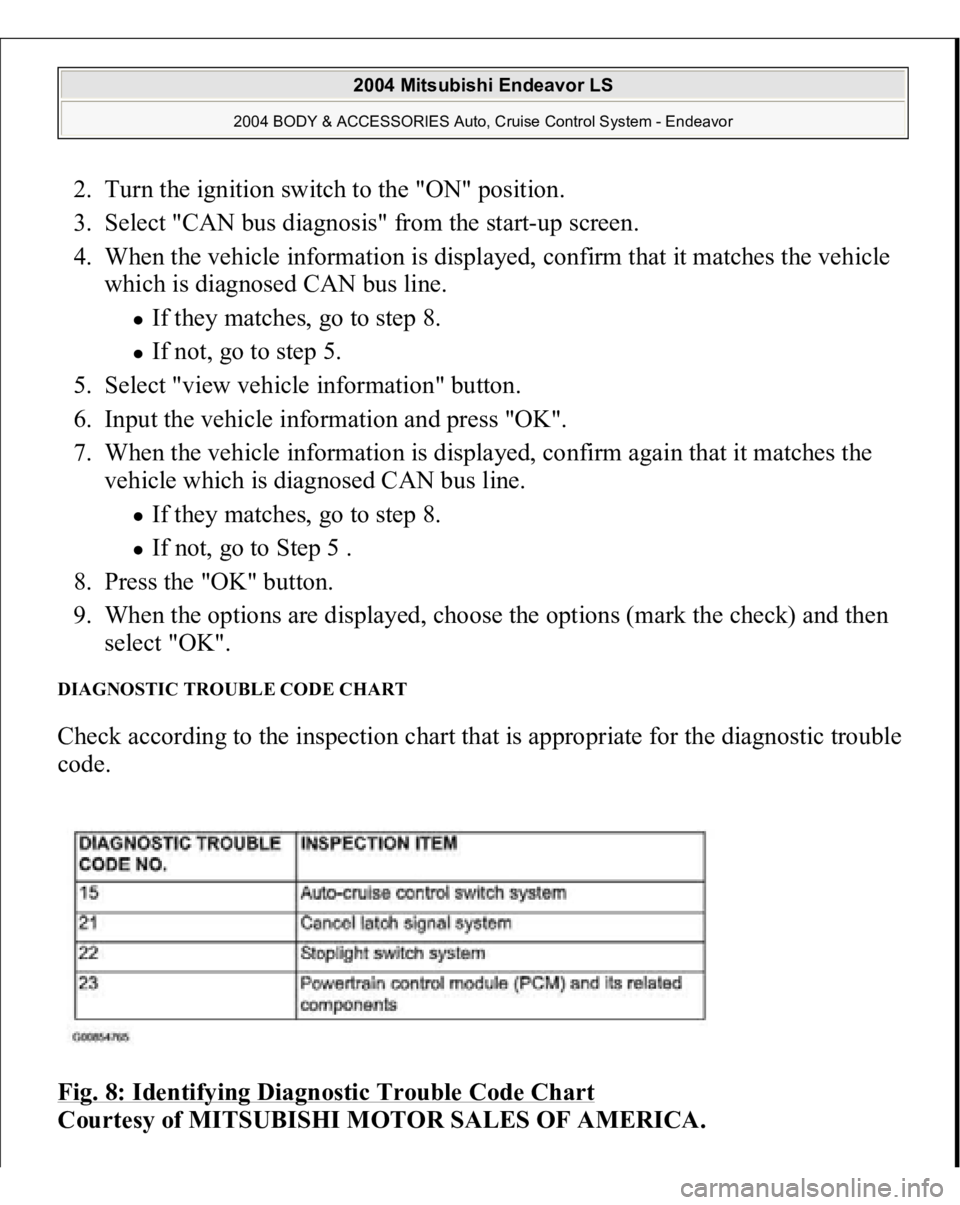

2. Turn the ignition switch to the "ON" position.
3. Select "CAN bus diagnosis" from the start-up screen.
4. When the vehicle information is displayed, confirm that it matches the vehicle
which is diagnosed CAN bus line.
If they matches, go to step 8. If not, go to step 5.
5. Select "view vehicle information" button.
6. Input the vehicle information and press "OK".
7. When the vehicle information is displayed, confirm again that it matches the
vehicle which is diagnosed CAN bus line. If they matches, go to step 8. If not, go to Step 5 .
8. Press the "OK" button.
9. When the options are displayed, choose the options (mark the check) and then
select "OK".
DIAGNOSTIC TROUBLE CODE CHART Check according to the inspection chart that is appropriate for the diagnostic trouble
code.
Fig. 8: Identifying Diagnostic Trouble Code Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

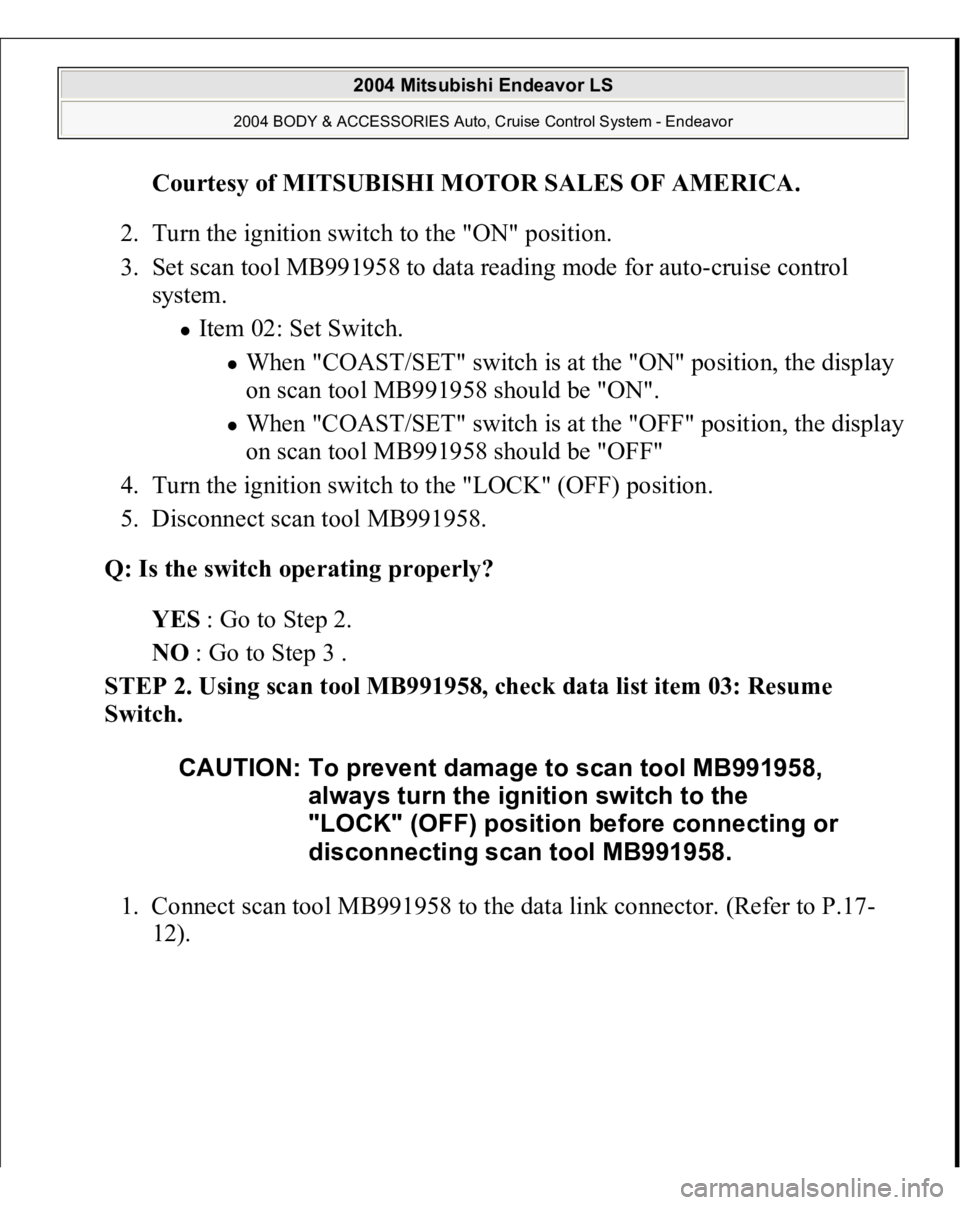

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to the "ON" position.
3. Set scan tool MB991958 to data reading mode for auto-cruise control
system.
Item 02: Set Switch.
When "COAST/SET" switch is at the "ON" position, the display
on scan tool MB991958 should be "ON". When "COAST/SET" switch is at the "OFF" position, the display
on scan tool MB991958 should be "OFF"
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is the switch operating properly?
YES : Go to Step 2.
NO : Go to Step 3 .
STEP 2. Using scan tool MB991958, check data list item 03: Resume
Switch.
1. Connect scan tool MB991958 to the data link connector. (Refer to P.17-
12).
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

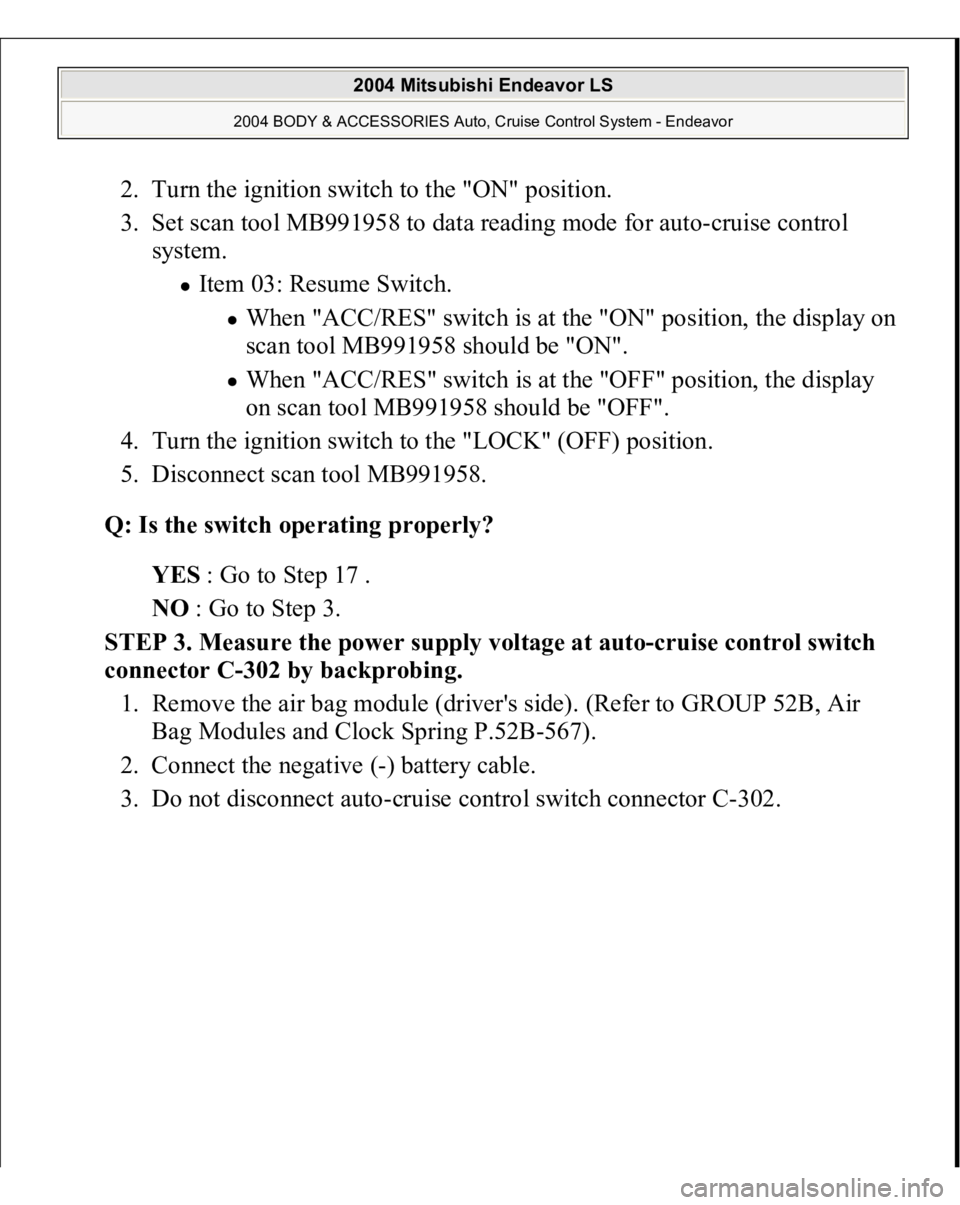

2. Turn the ignition switch to the "ON" position.
3. Set scan tool MB991958 to data reading mode for auto-cruise control
system.
Item 03: Resume Switch.
When "ACC/RES" switch is at the "ON" position, the display on
scan tool MB991958 should be "ON". When "ACC/RES" switch is at the "OFF" position, the display
on scan tool MB991958 should be "OFF".
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is the switch operating properly?
YES : Go to Step 17 .
NO : Go to Step 3.
STEP 3. Measure the power supply voltage at auto-cruise control switch
connector C-302 by backprobing.
1. Remove the air bag module (driver's side). (Refer to GROUP 52B, Air
Bag Modules and Clock Spring P.52B-567).
2. Connect the negative (-) battery cable.
3. Do not disconnect auto-cruise control switch connector C-302.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

2. Turn the ignition switch to the "ON" position.
3. Set scan tool MB991958 to data reading mode for auto-cruise control
system.
Item 05, Stoplight Switch.
When the brake pedal is depressed, the display on scan tool
MB991958 should be "ON". When the brake pedal is released, the display on scan tool
MB991958 should be "OFF".
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is the switch operating properly?
YES : Go to Step 2.
NO : Go to Step 3 .
STEP 2. Using scan tool MB991958, check data list item 06: Brake Switch.
1. Connect scan tool MB991958 to the data link connector. (Refer to AUTO
-
CRUISE CONTROL SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY
).
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

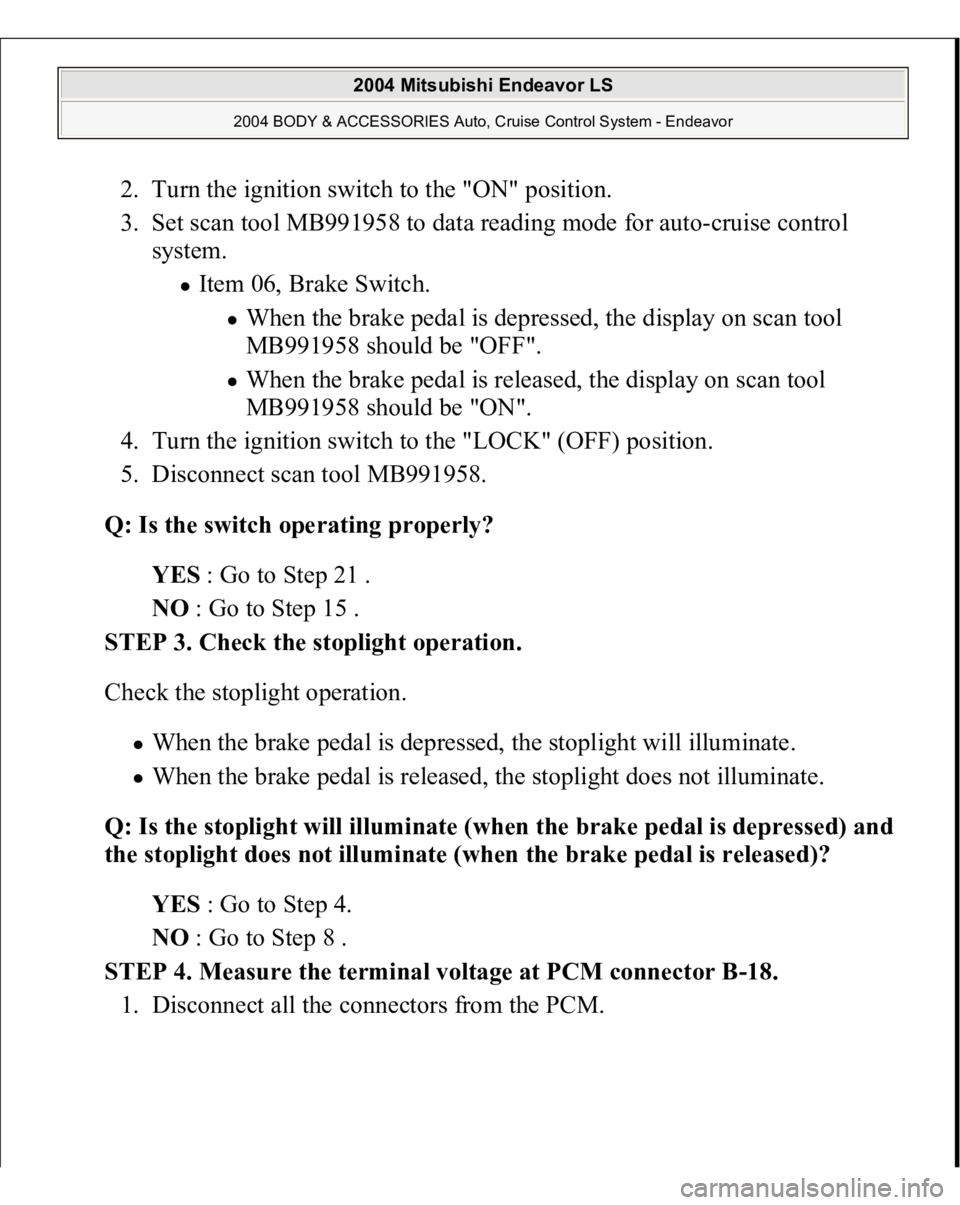

2. Turn the ignition switch to the "ON" position.
3. Set scan tool MB991958 to data reading mode for auto-cruise control
system.
Item 06, Brake Switch.
When the brake pedal is depressed, the display on scan tool
MB991958 should be "OFF". When the brake pedal is released, the display on scan tool
MB991958 should be "ON".
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is the switch operating properly?
YES : Go to Step 21 .
NO : Go to Step 15 .
STEP 3. Check the stoplight operation.
Check the stoplight operation.
When the brake pedal is depressed, the stoplight will illuminate. When the brake pedal is released, the stoplight does not illuminate.
Q: Is the stoplight will illuminate (when the brake pedal is depressed) and
the stoplight does not illuminate (when the brake pedal is released)?
YES : Go to Step 4.
NO : Go to Step 8 .
STEP 4. Measure the terminal voltage at PCM connector B-18.
1. Disconnect all the connectors from the PCM.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

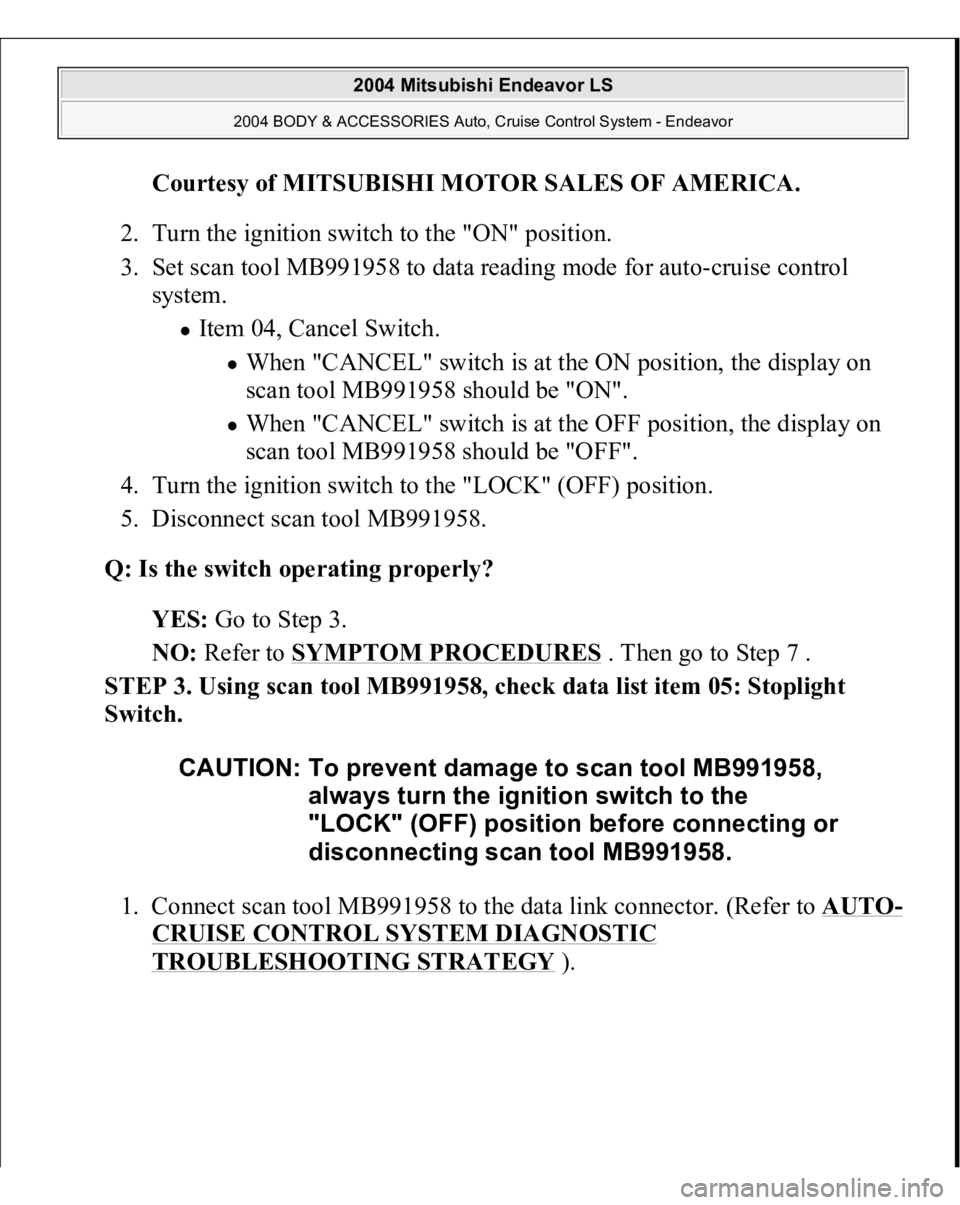

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to the "ON" position.
3. Set scan tool MB991958 to data reading mode for auto-cruise control
system.
Item 04, Cancel Switch.
When "CANCEL" switch is at the ON position, the display on
scan tool MB991958 should be "ON". When "CANCEL" switch is at the OFF position, the display on
scan tool MB991958 should be "OFF".
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is the switch operating properly?
YES: Go to Step 3.
NO: Refer to SYMPTOM PROCEDURES
. Then go to Step 7 .
STEP 3. Using scan tool MB991958, check data list item 05: Stoplight
Switch.
1. Connect scan tool MB991958 to the data link connector. (Refer to AUTO
-
CRUISE CONTROL SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY
).
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

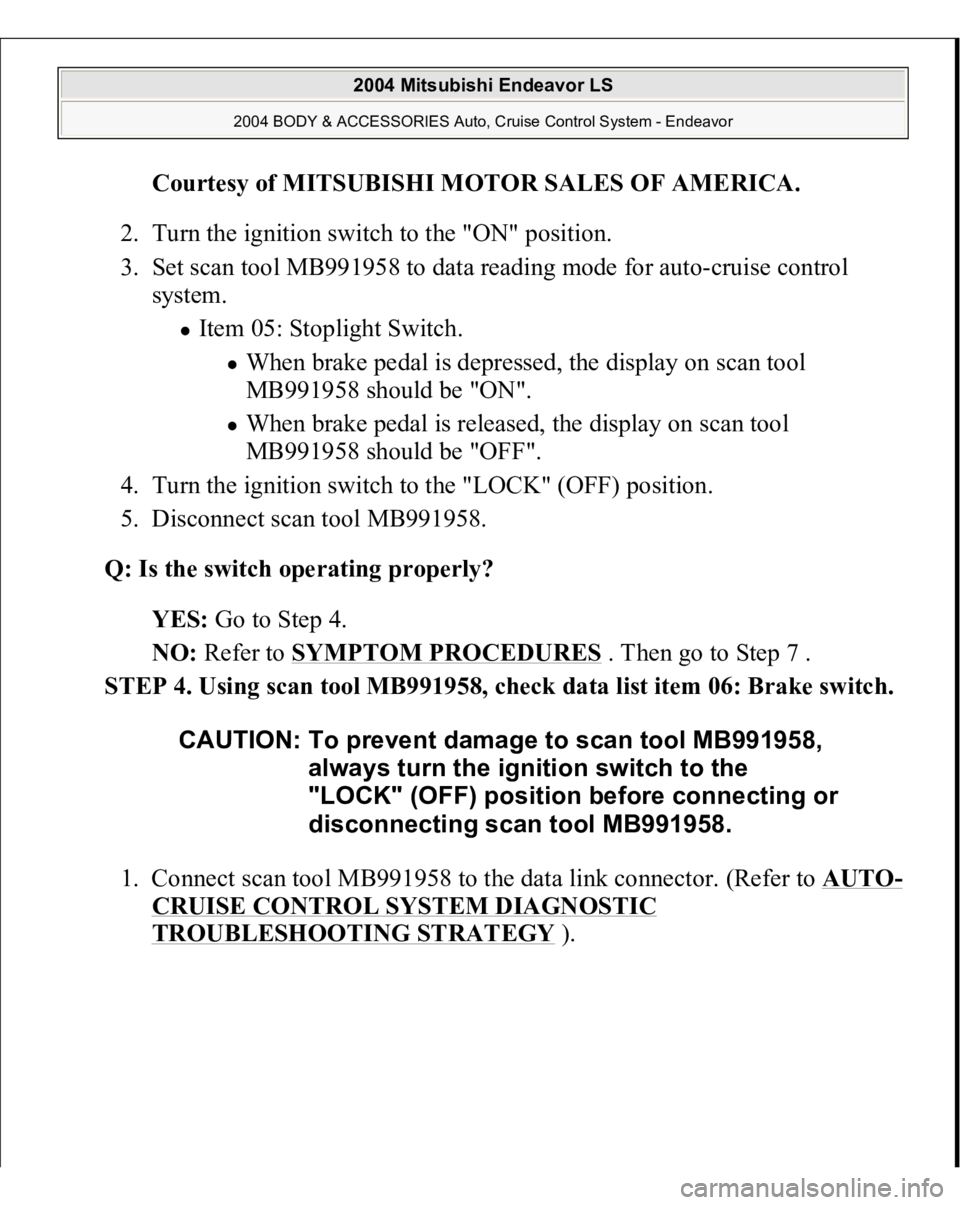

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to the "ON" position.
3. Set scan tool MB991958 to data reading mode for auto-cruise control
system.
Item 05: Stoplight Switch.
When brake pedal is depressed, the display on scan tool
MB991958 should be "ON". When brake pedal is released, the display on scan tool
MB991958 should be "OFF".
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is the switch operating properly?
YES: Go to Step 4.
NO: Refer to SYMPTOM PROCEDURES
. Then go to Step 7 .
STEP 4. Using scan tool MB991958, check data list item 06: Brake switch.
1. Connect scan tool MB991958 to the data link connector. (Refer to AUTO
-
CRUISE CONTROL SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY
).
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
