2004 MITSUBISHI ENDEAVOR display

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
HOW TO READ AND ERASE DIAGNOSTIC TROUBLE CODES REQUIRED SPECIAL TOOL:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A (Vehicles with CAN
communication system)
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "Interactive Diagnosis" from the start-up screen.
4. Select "System select."
5. Choose "Air Conditioner" from the "BODY" tab.
6. Select "MITSUBISHI."
7. Select "Diagnostic Trouble Code."
8. If a DTC is set, it is shown.
9. Choose "Erase DTCs" to erase the DTC. CAUTION: To prevent damage to scan tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting scan tool
MB991958.
NOTE: If the battery voltage is low, diagnostic trouble codes will
not be set. Check the battery if scan tool MB991958 does
not display.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

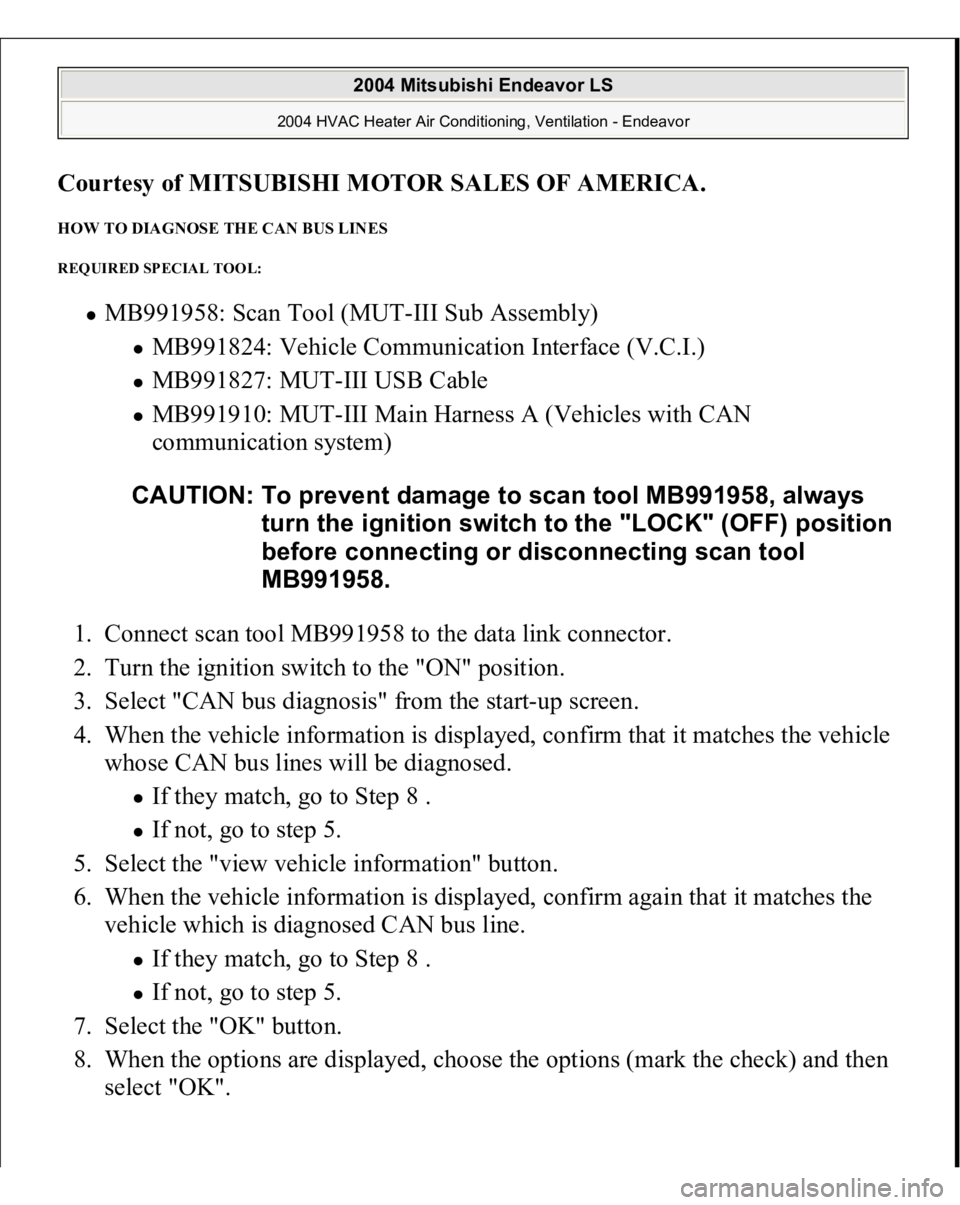

HOW TO DIAGNOSE THE CAN BUS LINES REQUIRED SPECIAL TOOL:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A (Vehicles with CAN
communication system)
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "CAN bus diagnosis" from the start-up screen.
4. When the vehicle information is displayed, confirm that it matches the vehicle
whose CAN bus lines will be diagnosed. If they match, go to Step 8 . If not, go to step 5.
5. Select the "view vehicle information" button.
6. When the vehicle information is displayed, confirm again that it matches the
vehicle which is diagnosed CAN bus line. If they match, go to Step 8 . If not, go to step 5.
7. Select the "OK" button.
8. When the options are displayed, choose the options (mark the check) and then
select "OK". CAUTION: To prevent damage to scan tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting scan tool
MB991958.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

DTC B1011, B1012: AMBIENT AIR TEMPERATURE SENSOR SYSTEM
CAUTION: If DTC B1011 or B1012 has been set, multi-display
related DTC U1130 is also set. After B1011 or B1012
has been diagnosed, don't forget to erase DTC
U1130.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Start the engine.
3. Check the data list.
Item 02: Ambient air temperature sensor.
Check that the ambient temperature matches the displayed value on
the scan tool.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor within the specified range?

YES:
Replace the A/C-ECU. Then go to Step 7 .
NO:
Go to Step 4.
STEP 4. Check A/C-ECU connectors C-16, C-17 and ambient air
temperature sensor connector A-22 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.NOTE: When this DTC is set and the system is fail-safe
status, the value of service data displays 20°C.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Ignition switch: ON
3. Check the data list.
Item 03: air thermo sensor.
Check that the passenger room temperature matches the displayed
value on the scan tool while the engine is cold.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor within the specified range?

YES:
Replace the A/C-ECU. Then go to Step 7 .
NO:
Go to Step 4.
STEP 4. Check A/C-ECU connectors C-16, C-17 and air thermo sensor
connector C-122 for loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q: Are A/C-ECU connectors C-16, C-17 and air thermo sensor connector
C-122 in good condition?

YES:
Go to Step 5.
NO:
Repair or replace the connector. Refer to
HARNESS
CONNECTOR INSPECTION
. Then
go to Ste
p 7 .
NOTE: When this DTC is set and the system is fail-safe
status, the value of service data displays -6°C.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

STEP 2. Recheck for diagnostic trouble code.

Recheck if the DTC is set.
1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.
Q: Is the check result satisfactory?

YES:
It can be assumed that this malfunction is intermittent. Refer to
HOW TO USE TROUBLESHOOTING/ INSPECTION SERVICE POINTS
.
NO:
Go to Step 3.
STEP 3. Using scan tool MB991958, check data list item 04: A/C pressure
sensor.

1. Connect scan tool MB991958 to the data link connector.
2. Assemble a manifold gauge onto the high pressure service valve.
3. Turn ON the engine and then turn ON the air conditioner switch.
4. Check the data list.
Item 04: A/C pressure sensor. Check that the refrigerant pressure matches the displayed value on the
scan tool.
5. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor within the specified range?

CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Start the engine.
3. Check the data list.
Item 10: air mix potentiometer.
Check that the set position of the heater control matches the displayed
position on the scan tool.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor within the specified range?

YES:
Replace the A/C-ECU. Then go to Step 7 .
NO:
Go to Step 4.
STEP 4. Check A/C-ECU connectors C-16, C-17 and air mixing damper
control motor and potentiometer connector C-109 for loose, corroded or
damaged terminals, or terminals pushed back in the connector.

Q: Are A/C-ECU connectors C-16, C-17 and air mixing damper control
motor and potentiometer connector C-109 in good condition?

YES:
Go to Step 5.
NO:
Repair or replace the connector. Refer to
HARNESS
CONNECTOR INSPECTION
. Then
go to Ste
p 7 .

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Fig. 77: Connecting Scan Tool MB991958 To Data Link Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2. Start the engine.
3. Check the data list.
Item 12: Air outlet c/o potentiometer.
Check that the set position of the heater control matches the displayed
position on the scan tool.
4. Turn the ignition switch to the "LOCK" (OFF) position
Q: Is the sensor within the specified range?

YES:
Replace the A/C-ECU. Then go to Step 7 .
NO:
Go to Step 4.
STEP 4. Check A/C-ECU connectors C-16, C-17 and mode selection
damper control motor and potentiometer connector C-123 for loose,
corroded or damaged terminals, or terminals pushed back in the
connector.

Q: Are A/C-ECU connectors C-16, C-17 and mode selection damper
control motor and potentiometer connector C-123 in good condition?

YES:
Go to Step 5.
NO:
Repair or replace the connector. Refer to
HARNESS
CONNECTOR INSPECTION
. Then
go to Ste
p 7 .

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
