2003 LEXUS LS430 light

HINT:
The CD indicator light blinks during the mode setting and remains lit after the setting is
completed.
w/o Multi-display:
When the mode setting is completed, "SHIP" appears on the display.
d. Turn the ignition switch to the OFF position and disconnect the battery negative terminal.
Fig. 4: Identifying Radio Receiver Assy (W/O Multi
-Display)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig. 6: Identifying CD Indicator Blinking Light
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2.REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See step 26 on
REPLACEMENT
)
3.REMOVE PANEL INSTRUMENT CLUSTER FINISH LOWER (See step 27 on
REPLACEMENT
)
4.REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
a. w/o Multi-display:
Remove the 2 bolts and disengage the 5 clips.

Fig. 41: Removing Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
5.INSTALL HORN BUTTON ASSY (See step 6 on REPLACEMENT
)
6.INSPECT HORN BUTTON ASSY (See ON
-VEHICLE INSPECTION )
7.SRS WARNING LIGHT (See DIAGNOSIS SYSTEM
)
REPLACEMENT
HINT:
See COMPONENTS - FRONT BUMPER , COMPONENTS - REAR BUMPER .
See LOCATION .
Installation is in the reverse order of removal.
1.REMOVE FRONT BUMPER COVER (See step 5 on REPLACEMENT
)
2.REMOVE REAR BUMPER COVER (See step 12 on REPLACEMENT
)

Fig. 52: Removing Navigation Antenna Assy Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
HINT:
See COMPONENTS .
Installation is in the reverse order of removal.
1.REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See step 26 on
REPLACEMENT
)
2.REMOVE CONSOLE PANEL SUB-ASSY UPPER (See step 38 on REPLACEMENT
)
3.REMOVE CIGARETTE LIGHTER ASSY
a. Rotate the socket cap counterclockwise to remove it.
b. Remove the cigarette lighter assy from the cigar-lighter hole bezel.

Fig. 53: Removing Cigarette Lighter Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4.INSTALL CIGARETTE LIGHTER ASSY
a. Properly position the socket and ring at the cutout of the cigar-lighter hole bezel and insert them.
b. Rotate the socket cap clockwise from the backside.
REPLACEMENT
HINT:
See COMPONENTS .
Installation is in the reverse order of removal.
1.REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See step 26 on
REPLACEMENT
)
2.REMOVE CONSOLE PANEL SUB-ASSY UPPER (See step 38 on REPLACEMENT
)
3.REMOVE INSTRUMENT PANEL CUP HOLDER ASSY (See REPLACEMENT
)

4.REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (See step 39 on REPLACEMENT )
5.REMOVE CONSOLE BOX CARPET (See step 40 on REPLACEMENT
)
6.REMOVE REAR CONSOLE ARMREST ASSY (See step 41 on REPLACEMENT
)
7.REMOVE CONSOLE BOX PLATE
a. Disconnect the connector.
b. Disengage the 6 claws and remove the console box plate.

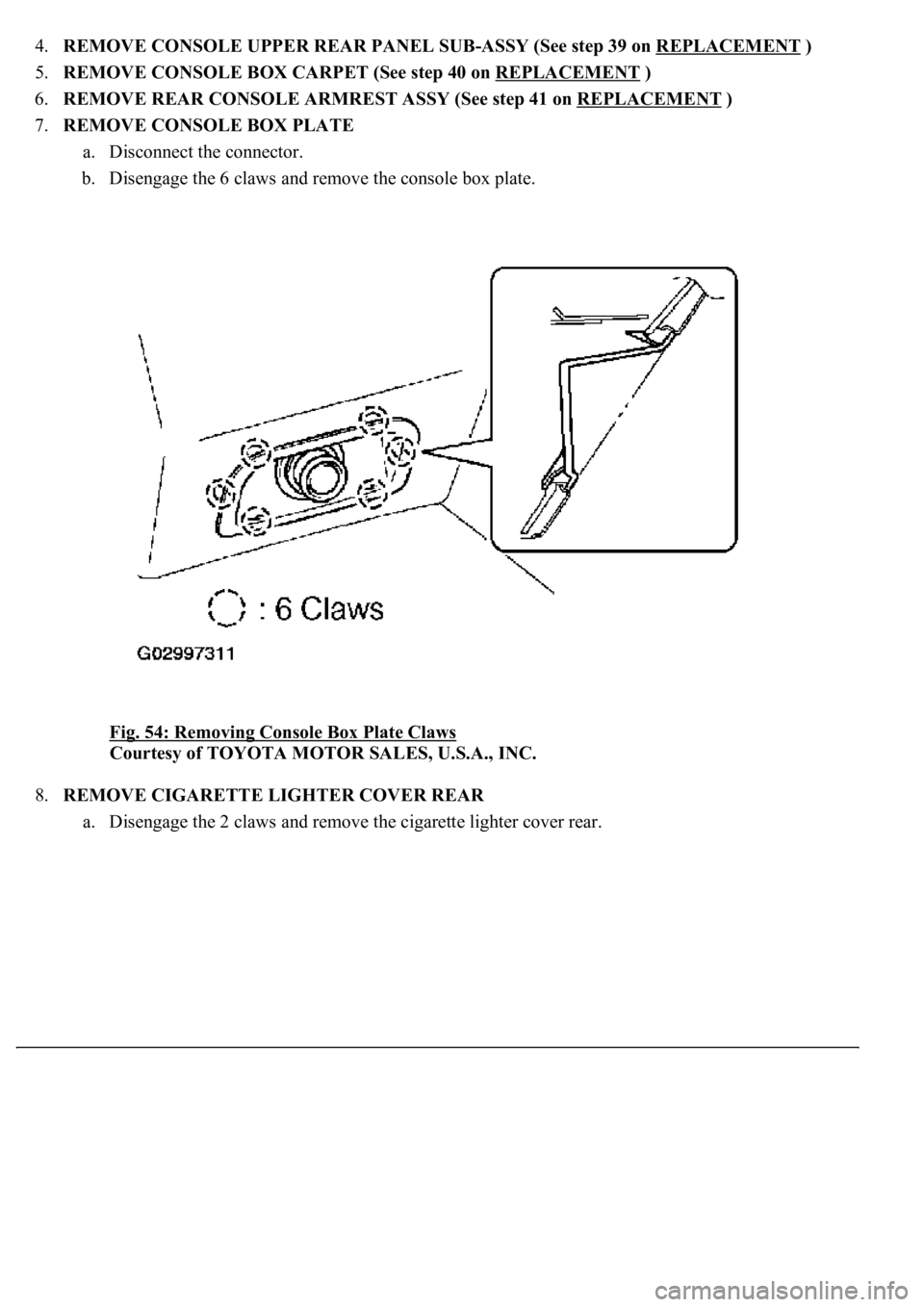

Fig. 54: Removing Console Box Plate Claws

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.REMOVE CIGARETTE LIGHTER COVER REAR
a. Disengage the 2 claws and remove the cigarette lighter cover rear.

Fig. 55: Removing Cigarette Lighter Cover Rear Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
9.REMOVE CIGARETTE LIGHTER ASSY REAR
a. Turn the socket counterclockwise as shown in the illustration.
b. Disengage the claw between the socket and the cigarette lighter bezel stay, and push out the socket.
c. Align the socket with the notch on the cigarette lighter bezel stay, and remove the cigarette lighter
ass
y.

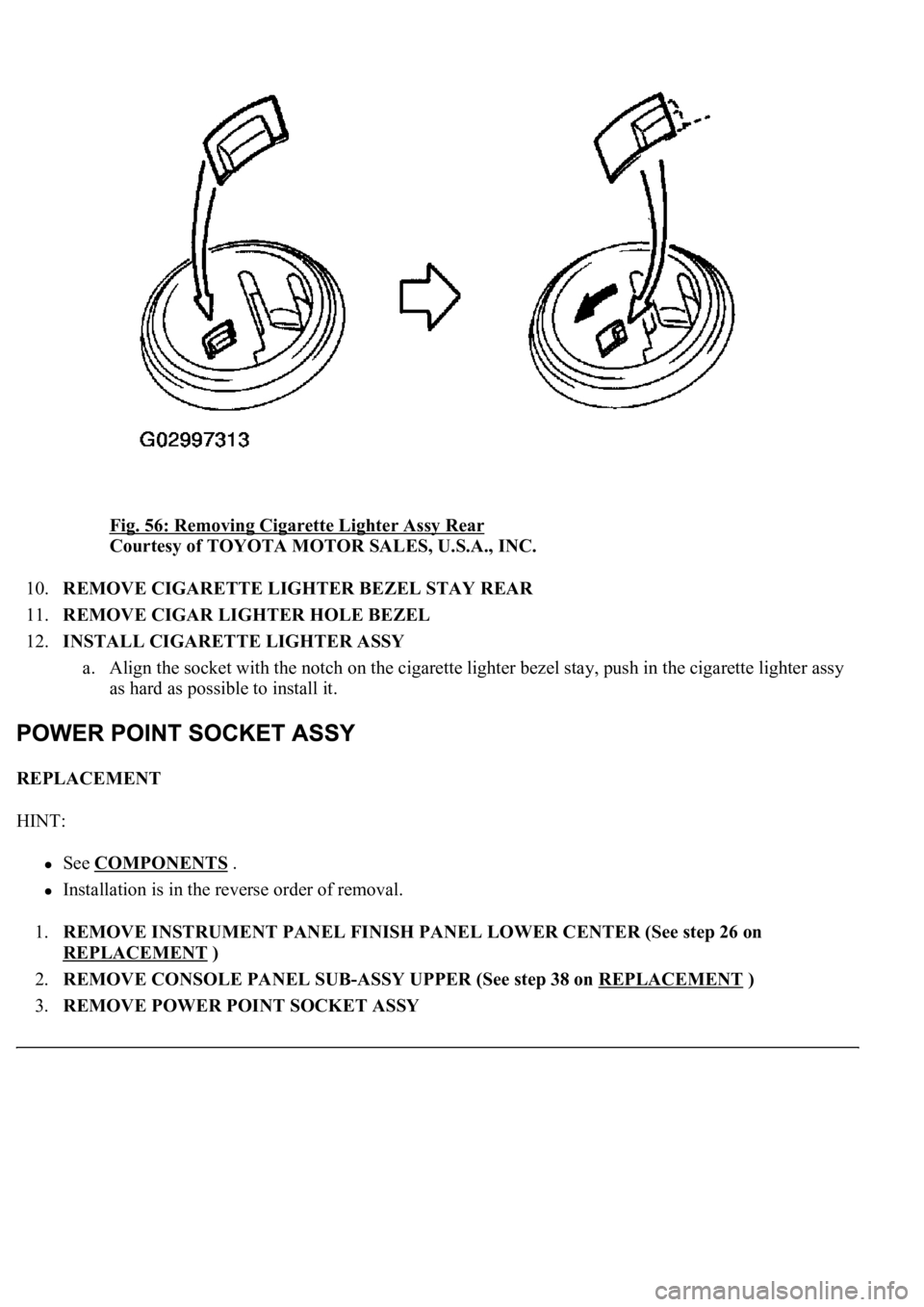

Fig. 56: Removing Cigarette Lighter Assy Rear
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
10.REMOVE CIGARETTE LIGHTER BEZEL STAY REAR
11.REMOVE CIGAR LIGHTER HOLE BEZEL
12.INSTALL CIGARETTE LIGHTER ASSY
a. Align the socket with the notch on the cigarette lighter bezel stay, push in the cigarette lighter assy
as hard as possible to install it.
REPLACEMENT
HINT:
See COMPONENTS .
Installation is in the reverse order of removal.
1.REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See step 26 on
REPLACEMENT
)
2.REMOVE CONSOLE PANEL SUB-ASSY UPPER (See step 38 on REPLACEMENT
)
3.REMOVE POWER POINT SOCKET ASSY
