1999 NISSAN PRIMERA headlamp

ACCESSORY POWER SUPPLY—IGNITION SWITCH IN“ACC”OR“ON”
YEL226C
BATTERY
Refer to
EL-POWER-01,
EL-POWER-02,
EL-POWER-03,
EL-POWER-04
EL-POWER-05
IGNITION
SWITCHPOWER
FUSE 15A
ACCESSORY
RELAY: With gasoline engine
: With diesel engine
: With gasoline engine and
with XENON headlamp
: Except
FUSE
BLOCK
(J/B)
To
EL-AUDIO
EL-MIRRORTo
EL-HORNTo
EL-HORN
REFER TO THE FOLLOWING
FUSE BLOCK -
Junction Box (J/B) OFF
ACCST
ON
POWER SUPPLY ROUTING
Wiring Diagram—POWER—(Cont’d)
EL-18

GROUND CONNECT TO CONN. CELL CODE
E11/E37 ACCESSORY RELAY E95 EL-POWER, EL-HORN
BRAKE FLUID LEVEL SWITCH E14 EL-WARN
CLEARANCE LAMP LH E85 EL-TAIL/L
CLEARANCE LAMP RH E87 EL-TAIL/L
COMBINATION METER (FRONT FOG LAMP INDICATOR) (Mod-
els before VIN - P11U0548750)E124 EL-F/FOG
COMBINATION METER (FRONT FOG LAMP INDICATOR) (Mod-
els after VIN - P11U0548750)E131 EL-F/FOG
COMBINATION METER (REAR FOG LAMP INDICATOR) (Models
before VIN - P11U0548750)E124 EL-R/FOG
COMBINATION METER (REAR FOG LAMP INDICATOR) (Models
after VIN - P11U0548750)E131 EL-R/FOG
COMBINATION METER (HIGH BEAM INDICATOR) (Models after
VIN - P11U0548750)E131 EL-H/LAMP, EL-DTRL
COMBINATION METER (ILLUMINATION) (Models after VIN -
P11U0548750)E131 EL-ILL
COMBINATION METER (TURN) (Models before VIN -
P11U0548750)E124 EL-TURN
COMBINATION METER (TURN) (Models after VIN -
P11U0548750)E131 EL-TURN
COMBINATION SWITCH (FRONT WIPER SWITCH) E114 EL-WIPER, EL-WIP/R
COMBINATION SWITCH (TRIP COMPUTER SWITCH) E114 EL-METER
COMBINATION SWITCH (TURN SIGNAL SWITCH) E111 EL-TURN
COOLING FAN MOTOR-1 (Gasoline engine) E19 HA-A/C, EC-COOL/F
COOLING FAN MOTOR-2 (CD20 engine) E18 HA-A/C, EC-COOL/F
COOLING FAN MOTOR-2 (QG18, SR20 engine) E28 HA-A/C, EC-COOL/F
COOLING FAN MOTOR-2 (With A/C) (GA16 engine) E94 HA-A/C, EC-COOL/F
COOLING FAN RELAY-2 (CD engine) E54 HA-A/C, EL-COOL/F
DAYTIME LIGHT CONTROL UNIT E117 EL-DTRL
FRONT FOG LAMP LH (Type-1) E6 EL-F/FOG
FRONT FOG LAMP LH (Type-2) E146 EL-F/FOG
FRONT FOG LAMP RH (Type-1) E34 EL-F/FOG
FRONT FOG LAMP RH (Type-2) E147 EL-F/FOG
FRONT TURN SIGNAL LAMP LH E8 EL-TURN, EL-THEFT
FRONT TURN SIGNAL LAMP RH E36 EL-TURN, EL-THEFT
FRONT WIPER MOTOR E62 EL-WIPER
FRONT WIPER RELAY E70 EL-WIPER
HEAD LAMP RELAY LH E74 EL-H/LAMP, EL-DTRL
HEAD LAMP RELAY RH E75 EL-HLC, EL-H/LAMP, EL-DTRL
HEAD LAMP WASHER MOTOR E38 EL-HLC
HEAD LAMP WASHER SWITCH E128 EL-HLC, EL-ILL
HEADLAMP AIMING MOTOR LH E4 EL-H/AIM
HEADLAMP AIMING MOTOR RH E33 EL-H/AIM
HEADLAMP LH E5 EL-H/LAMP, EL-DTRL
HEADLAMP RH E32 EL-H/LAMP, EL-DTRL
HOOD SWITCH E12 EL-THEFT
NATS IMMU E121 EL-NATS
POWER STEERING OIL PRESSURE SWITCH (Gasoline) E60 EC-PST/SW
RDNT BRAKE SWITCH (LHD) (CD20 engine) E122 EC-BRK/SW
REAR WIPER RELAY E52 EL-WIP/R
SEDIMENTER SENSOR E13 EL-WARN
SIDE TURN SIGNAL LAMP LH (Type-1) E9 EL-TURN, EL-THEFT
SIDE TURN SIGNAL LAMP LH (Type-2) E148 EL-TURN, EL-THEFT
SIDE TURN SIGNAL LAMP RH (Type-1) E59 EL-TURN, EL-THEFT
SIDE TURN SIGNAL LAMP RH (Type-2) E149 EL-TURN, EL-THEFT
TRIPLE-PRESSURE SWITCH (CD engine) E20 HA-A/C, EC-COOL/F
WASHER LEVEL SWITCH E39 EL-WARN
E68 ALTERNATOR (GA engine) E71 EL-CHARGE
E88 ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) E78 BR-ABS
F9 ALTERNATOR (QG16, QG18, SR20, CD engine) F10 EL-CHARGE
GROUND DISTRIBUTION
EL-24

GROUND CONNECT TO CONN. CELL CODE
B18/B27 AUTO LEVEL CONTROL UNIT B123 EL-H/AIM
BACK-UP LAMP (Sedan) (LHD) T13 EL-BACK/L
BACK-UP LAMP (Sedan) (RHD) T8 EL-BACK/L
CD AUTO CHANGER B47 EL-AUDIO
CENTRAL UNLOCK/TRUNK OR BACK DOOR RELEASE
SWITCHB121 EL-S/LOCK, EL-D/LOCK
DOOR LOCK ACTUATOR ASSEMBLY (DRIVER’S SIDE)
(UNLOCK SENSOR) (With super lock)D7 EL-S/LOCK, EL-MULTI, EL-THEFT
DOOR LOCK ACTUATOR ASSEMBLY (DRIVER’S SIDE)
(UNLOCK SENSOR) (With power door lock)D26 EL-D/LOCK, EL-MULTI, EL-THEFT
DOOR LOCK ACTUATOR ASSEMBLY (PASSENGER SIDE)
(UNLOCK SENSOR) (With super lock)D16 EL-S/LOCK, EL-MULTI, EL-THEFT
DOOR LOCK ACTUATOR ASSEMBLY (PASSENGER SIDE)
(UNLOCK SENSOR) (With power door lock)D27 EL-D/LOCK, EL-MULTI, EL-THEFT
DOOR LOCK ACTUATOR ASSEMBLY REAR LH (UNLOCK SEN-
SOR) (With super lock)D21 EL-THEFT, EL-MULTI
DOOR LOCK ACTUATOR ASSEMBLY REAR LH (UNLOCK SEN-
SOR) (With power door lock)D28 EL-MULTI, EL-THEFT
DOOR LOCK ACTUATOR ASSEMBLY REAR RH (UNLOCK SEN-
SOR) (With super lock)D25 EL-THEFT, EL-MULTI
DOOR LOCK ACTUATOR ASSEMBLY REAR RH (UNLOCK SEN-
SOR) (With power door lock)D29 EL-MULTI, EL-THEFT
DOOR MIRROR HEATER (DRIVER’S SIDE) (Type-1) D4 EL-DEF
DOOR MIRROR HEATER (DRIVER’S SIDE) (Type-2) D31 EL-DEF
DOOR MIRROR HEATER (PASSENGER SIDE) (Type-1) D13 EL-DEF
DOOR MIRROR HEATER (PASSENGER SIDE) (Type-2) D30 EL-DEF
EXTERNAL TRUNK RELEASE SWITCH (Sedan) T20 EL-S/LOCK, EL-D/LOCK
FUEL PUMP (GA16, QG18, SR20 engine) B30 EC-F/PUMP
FUEL LEVEL SENSOR UNIT B31 EL-METER, EL-WARN
HEADLAMP AIMING SWITCH (Type-1) B106 EL-H/AIM, EL-ILL
HEADLAMP AIMING SWITCH (Type-2) E129 EL-H/AIM, EL-ILL
HEATED SEAT LH B21 EL-HSEAT
HEATED SEAT RH B61 EL-HSEAT
HEATED SEAT SWITCH LH B104 EL-HSEAT
HEATED SEAT SWITCH RH B105 EL-HSEAT
KEY CYLINDER SWITCH (DRIVER’S SIDE) D9 EL-S/LOCK, EL-THEFT, EL-D/LOCK
KEY CYLINDER SWITCH (PASSENGER SIDE) D17 EL-S/LOCK, EL-D/LOCK
POWER SEAT B22 EL-SEAT
POWER SOCKET (Wagon) B86 EL-HORN
POWER WINDOW MAIN SWITCH D5 EL-WINDOW
REAR FOG LAMP (LHD) (Sedan with type-1) T8 EL-R/FOG
REAR FOG LAMP (RHD) (Sedan with type-1) T13 EL-R/FOG
REAR WIPER MOTOR (Sedan) B52 EL-WIP/R
SIDE AIR BAG MODULE LH B142 RS-SRS
SIDE AIR BAG MODULE RH B143 RS-SRS
TRUNK ROOM LAMP SWITCH (Sedan) T10EL-INT/L, EL-WARN, EL-THEFT, EL-
MULTI
ULTRA SONIC CANCEL SWITCH B102 EL-THEFT
GROUND DISTRIBUTION
EL-26

Wiring Diagram—H/LAMP—
YEL257B
910
2
58 R/WR
R/B R/Y
B
113639127251110148W
7
P/L6
R/G
R/WR
3 R/Y1 R/B
E5P/L
B R/GE32
E11E37
GYE5 ,GY E32
3
2
1
:
::
:
R/BA
EL-H/LAMP-01
E111
E111
B BGS
DI
15A
31
32GS
DI15A
32
33GS
DI
BB
3 2 1
BATTERY
Refer to EL-POWER.: With gasoline engine
: With diesel engine
OFF
1ST2ND
LOW
HIGHPASSOFF
1ST2ND
LOW
HIGHPASS
LOW
HIGHPASS
LOW
HIGHPASSCOMBINATION
SWITCH
(LIGHTING
SWITCH)
LOW HIGHHEADLAMP
LH
LOW HIGHHEADLAMP
RHNext page PASS
HIGH LOW PASS
HIGH LOW
HEADLAMP (without Daytime Light System)—Conventional Type—
EL-67

YEL003D
HEADLAMP (without Daytime Light System)—Conventional Type—
Wiring Diagram—H/LAMP—(Cont’d)
EL-68

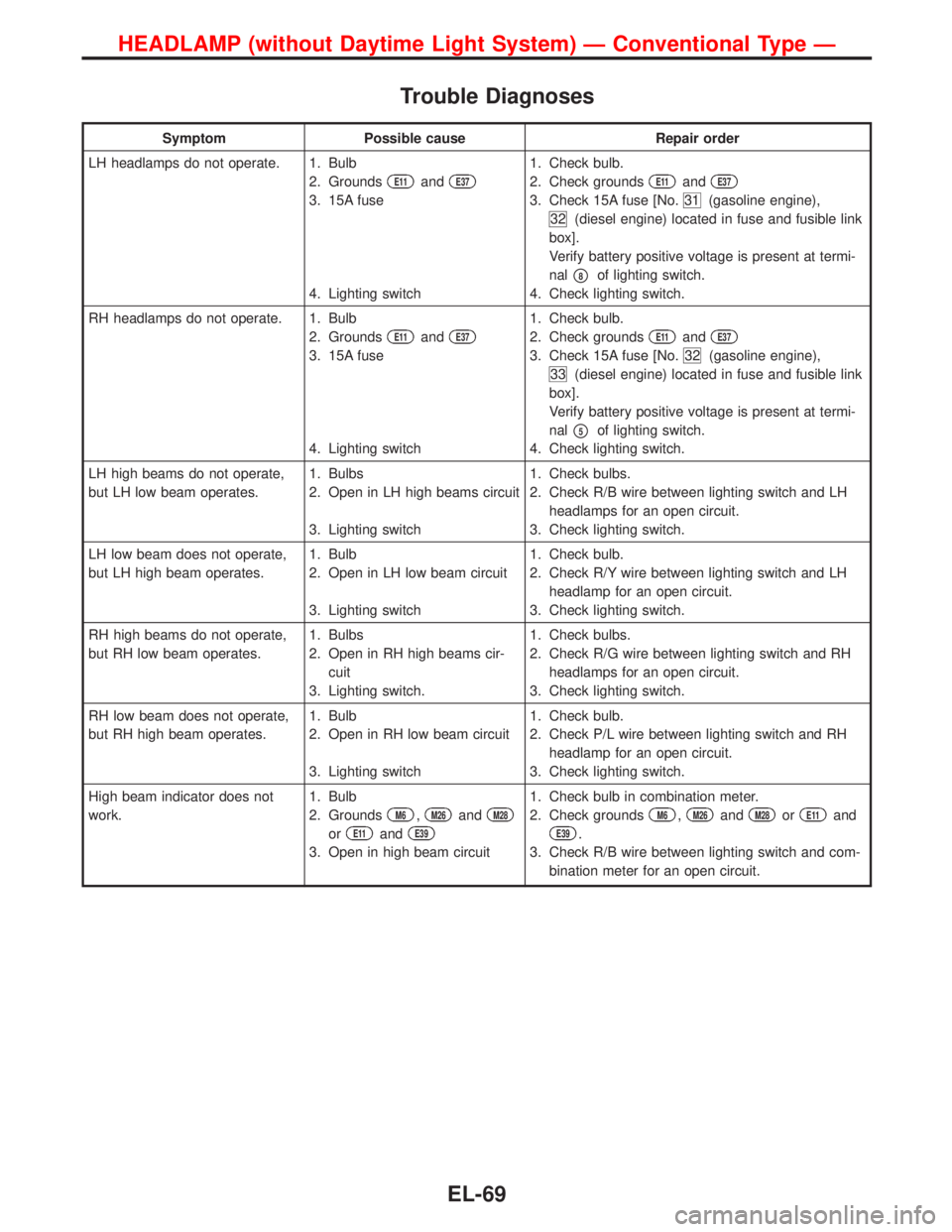

Trouble Diagnoses
Symptom Possible cause Repair order
LH headlamps do not operate. 1. Bulb
2. Grounds
E11andE37
3. 15A fuse
4. Lighting switch1. Check bulb.
2. Check grounds
E11andE37
3. Check 15A fuse [No.31 (gasoline engine),
32 (diesel engine) located in fuse and fusible link
box].
Verify battery positive voltage is present at termi-
nal

8of lighting switch.
4. Check lighting switch.
RH headlamps do not operate. 1. Bulb
2. Grounds
E11andE37
3. 15A fuse
4. Lighting switch1. Check bulb.
2. Check grounds
E11andE37
3. Check 15A fuse [No.32 (gasoline engine),
33 (diesel engine) located in fuse and fusible link
box].
Verify battery positive voltage is present at termi-
nal

5of lighting switch.
4. Check lighting switch.
LH high beams do not operate,
but LH low beam operates.1. Bulbs
2. Open in LH high beams circuit
3. Lighting switch1. Check bulbs.
2. Check R/B wire between lighting switch and LH
headlamps for an open circuit.
3. Check lighting switch.
LH low beam does not operate,
but LH high beam operates.1. Bulb
2. Open in LH low beam circuit
3. Lighting switch1. Check bulb.
2. Check R/Y wire between lighting switch and LH
headlamp for an open circuit.
3. Check lighting switch.
RH high beams do not operate,
but RH low beam operates.1. Bulbs
2. Open in RH high beams cir-
cuit
3. Lighting switch.1. Check bulbs.
2. Check R/G wire between lighting switch and RH
headlamps for an open circuit.
3. Check lighting switch.
RH low beam does not operate,
but RH high beam operates.1. Bulb
2. Open in RH low beam circuit
3. Lighting switch1. Check bulb.
2. Check P/L wire between lighting switch and RH
headlamp for an open circuit.
3. Check lighting switch.
High beam indicator does not
work.1. Bulb
2. Grounds
M6,M26andM28
orE11andE39
3. Open in high beam circuit1. Check bulb in combination meter.
2. Check grounds
M6,M26andM28orE11and
E39.
3. Check R/B wire between lighting switch and com-
bination meter for an open circuit.
HEADLAMP (without Daytime Light System)—Conventional Type—
EL-69

Bulb Replacement
The headlamp is a semi-sealed beam type which uses a replace-
able halogen bulb. The bulb can be replaced from the engine
compartment side without removing the headlamp body.

Grasp only the plastic base when handling the bulb.
Never touch the glass envelope.
1. Disconnect the battery cable.
2. Turn the bulb retaining ring counterclockwise until it is free
from the headlamp reflector, and then remove it.
3. Disconnect the harness connector from the back side of the
bulb.
4. Remove the headlamp bulb carefully. Do not shake or rotate
the bulb when removing it.
5. Install in the reverse order of removal.
CAUTION:
Do not leave headlamp reflector without bulb for a long
period of time. Dust, moisture, smoke, etc. entering head-
lamp body may affect the performance of the headlamp.
Remove headlamp bulb from the headlamp reflector just
before a replacement bulb is installed.
Aiming Adjustment
When performing headlamp aiming adjustment, use an aiming
machine, aiming wall screen or headlamp tester. Aimers should
be in good repair, calibrated and operated in accordance with
respective operation manuals.
If any aimer is not available, aiming adjustment can be done as
follows:
For details, refer to the regulations in your own country.
a. Keep all tires inflated to correct pressures.
b. Place vehicle and tester on one and same flat surface.
c. See that there is no-load in vehicle (coolant, engine oil
filled up to correct level and full fuel tank) other than the
driver (or equivalent weight placed in driver’s position).
CAUTION:
Be sure aiming switch is set to“0”when performing aiming
adjustment on vehicles equipped with headlamp aiming
control.
SEL995K Rubber
capOpenBulb cover
Lock
Push
to
remove
SEL466V
HEADLAMP (without Daytime Light System)—Conventional Type—
EL-70

LOW BEAM
1. Turn headlamp low beam on.
2. Use adjusting screws to perform aiming adjustment.

First tighten the adjusting screw all the way and then
make adjustment by loosening the screw.

Adjust headlamps so that main axis of light is parallel to
center line of body and is aligned with point P shown in
illustration.

Figure to the above shows headlamp aiming pattern for
driving on left side of road; for driving on right side of
road, aiming pattern is reversed.
Up and down
adjusting screw Left and right
adjusting screw
NEL548
NEL563 Screen
Vertical center line
ahead of head lamps
Basic illuminating
area for adjustment
Horizontal center
line of head lamps
Cut off lineCenter of low
beam bulb
Unit: mm (in)
25,000 (984.25)Cut off lineScreen
27.5 (1.083)
Aiming allowable
area
33.5 (1.319)
300 (11.81)
HEADLAMP (without Daytime Light System)—Conventional Type—
Aiming Adjustment (Cont’d)
EL-71
