Idle Air Volume LearningNCEC0541DESCRIPTIONNCEC0541S01ªIdle Air Volume Learningº is an operation to learn the idle air vol-
ume that keeps each engine within the specific range. It must be
performed under any of the following conditions:
IEach time IACV-AAC valve, throttle body or ECM is replaced.
IIdle speed or ignition timing is out of specification.
PRE-CONDITIONINGNCEC0541S04Before performing ªIdle Air Volume Learningº, make sure that all of
the following conditions are satisfied.
Learning will be cancelled if any of the following conditions are
missed for even a moment.
IBattery voltage: More than 12.9V (At idle)
IEngine coolant temperature: 70 - 94ÉC (158 - 201ÉF)
IPNP switch: ON
IElectric load switch: OFF
(Air conditioner, headlamp, rear window defogger)
On vehicles equipped with daytime running light systems, set
lighting switch to the 1st position to light only small lamps.
ICooling fan motor: Not operating
ISteering wheel: Neutral (Straight-ahead position)
IVehicle speed: Stopped
ITransmission : Warmed up
For CVT models with CONSULT-II, drive vehicle until ªFLUID
TEMP SEº in ªDATA MONITORº mode of ªCVTº system indi-
cates less than 0.9V.
For CVT models without CONSULT-II and M/T models, drive
vehicle for 10 minutes.
OPERATION PROCEDURENCEC0541S02With CONSULT-IINCEC0541S02011. Start engine and warm it up to normal operating temperature.
2. Check that all items listed under the topic ªPre-Conditioningº
(previously mentioned) are in good order.
3. Turn ignition switch ªOFFº and wait at least 9 seconds.
4. Start the engine and allow it to idle for at least 28 seconds.
5. Select ªIDLE AIR VOL LEARNº in ªWORK SUPPORTº mode.
6. Touch ªSTARTº and wait 20 seconds.
7. Make sure that ªCMPLTº is displayed on CONSULT-II screen.
If ªINCMPº is displayed, ªIdle Air Volume Learningº will not be
carried out successfully. In this case, find the cause of the
problem by referring to the NOTE below.
8. Rev up the engine two or three times. Make sure that idle
speed and ignition timing are within specifications.
ITEM SPECIFICATION
Idle speed750   50rpm (in ªPº or ªNº position for CVT)
Ignition timing15   2É BTDC
SEF712X
SEF713X
SEF714X
BASIC SERVICE PROCEDURESR20DE
Idle Air Volume Learning
EC-46

Basic InspectionNCEC0038Precaution:
Perform Basic Inspection without electrical or mechanical loads applied;
IHeadlamp switch is OFF,
IOn vehicles equipped with daytime running light systems, set lighting switch to the 1st position to light only
small lamps.
IAir conditioner switch is OFF,
IRear window defogger switch is OFF,
ISteering wheel is in the straight-ahead position, etc.
1 INSPECTION START
1. Check service records for any recent repairs that may indicate a related problem, or the current need for scheduled maintenance.
2. Open engine hood and check the following:
IHarness connectors for improper connections
IVacuum hoses for splits, kinks, or improper connections
IWiring for improper connections, pinches, or cuts
IAir cleaner clogging
IHoses and ducts for leaks
SEF983U
©GO TO 2.
2 CHECK THROTTLE DRUM OPERATION
Confirm that throttle drum is in contact with stopper.
OK or NG
OK (With CONSULT-II)©GO TO 5.
OK (Without CONSULT-II)©GO TO 8.
NG©GO TO 3.
3 CHECK ACCELERATOR WIRE INSTALLATION
Check accelerator wire for slack.
OK or NG
OK©GO TO 4.
NG©Adjust accelerator wire. Refer to FE-section, ªAdjusting Accelerator Wireº.
4 CHECK THROTTLE VALVE OPERATION
1. Remove intake air ducts.
2. Check throttle valve operation when moving throttle drum by hand.
OK or NG
OK©Retighten the throttle drum fixing nuts.
NG©Clean the throttle body and throttle valve.
TROUBLE DIAGNOSIS Ð BASIC INSPECTIONSR20DE
Basic Inspection
EC-84

MONITOR ITEM CONDITION SPECIFICATION
LOAD SIGNALIEngine: runningRear window defogger or headlamp
ªONºON
Except the above OFF
B/FUEL SCHDLIEngine: After warming up
IAir conditioner switch: OFF
IShift lever: ªNº
INo-loadIdle 2.4 - 3.2 msec
2,000 rpm 1.4 - 2.8 msec
IGN TIMINGIEngine: After warming up
IAir conditioner switch: OFF
IShift lever: ªNº
INo-loadIdle 15É BTDC
2,000 rpm Approx. 40É BTDC
IACV-AAC/VIEngine: After warming up
IAir conditioner switch: OFF
IShift lever: ªNº
INo-loadIdle 5 - 20 steps
2,000 rpm Ð
PURG VOL C/VIEngine: RunningVehicle stopped 0%
Vehicle running Ð
A/F ALPHA -B1IEngine: After warming upMaintaining engine speed at 2,000
rpm53 - 155%
AIR COND RLYIAir conditioner switch: OFF,ON OFF,ON
FUEL PUMP RLYIIgnition switch is turned to ON (Operates for 2 seconds)
IEngine running and cranking
IWhen engine is stopped (stops in 1.5 seconds)ON
IExcept as shown above OFF
COOLING FANIAfter warming up engine, idle the
engine.
IAir conditioner switch: OFFEngine coolant temperature is 94ÉC
(201ÉF) or lessOFF
Engine coolant temperature is
between 95ÉC (203ÉF) and 104ÉC
(219ÉF).LOW
Engine coolant temperature is 105ÉC
(221ÉF) or moreHIGH
HO2S1 HTR (B1)IEngine speed: Below 3,200 rpm ON
IMore than 20 seconds after exceeding 3,200 rpm OFF
HO2S2 HTR (B1)IEngine speed: Below 3,600 rpm [After driving for 2 minutes at a speed
of 70 km/h (43 MPH) or more]ON
IEngine speed: Above 3,600 rpm
IIgnition switch ON (Engine stopped)OFF
CAL/LD VALUEIEngine: After warming up
IAir conditioner switch: OFF
IShift lever: ªNº
INo-loadIdle Not used
2,500 rpm Not used
ABSOL TH×P/SIEngine: Idle Throttle valve fully closed 0.0É
IIgnition switch: ON
(Engine stopped)Throttle valve fully opened Approx. 80É
MASS AIRFLOWIEngine: After warming up
IAir conditioner switch: OFF
IShift lever: N
INo-loadIdle 2.5 - 5.0 g×m/s
2,500 rpm 7.1 - 12.5 g×m/s
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTIONSR20DE
CONSULT-II Reference Value in Data Monitor Mode (Cont'd)
EC-99

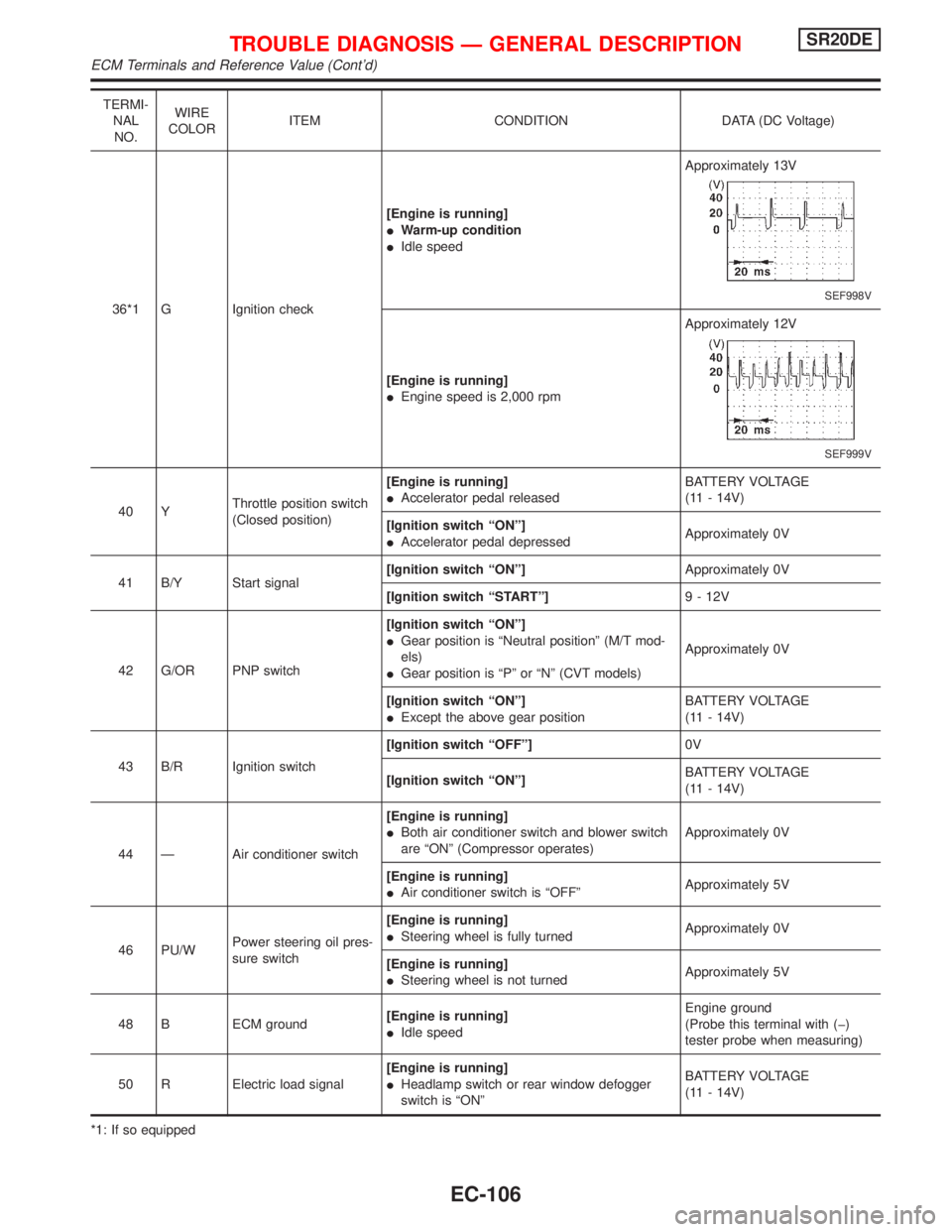

TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
36*1 G Ignition check[Engine is running]
IWarm-up condition
IIdle speedApproximately 13V
SEF998V
[Engine is running]
IEngine speed is 2,000 rpmApproximately 12V
SEF999V
40 YThrottle position switch
(Closed position)[Engine is running]
IAccelerator pedal releasedBATTERY VOLTAGE
(11 - 14V)
[Ignition switch ªONº]
IAccelerator pedal depressedApproximately 0V
41 B/Y Start signal[Ignition switch ªONº]Approximately 0V
[Ignition switch ªSTARTº]9 - 12V
42 G/OR PNP switch[Ignition switch ªONº]
IGear position is ªNeutral positionº (M/T mod-
els)
IGear position is ªPº or ªNº (CVT models)Approximately 0V
[Ignition switch ªONº]
IExcept the above gear positionBATTERY VOLTAGE
(11 - 14V)
43 B/R Ignition switch[Ignition switch ªOFFº]0V
[Ignition switch ªONº]BATTERY VOLTAGE
(11 - 14V)
44 Ð Air conditioner switch[Engine is running]
IBoth air conditioner switch and blower switch
are ªONº (Compressor operates)Approximately 0V
[Engine is running]
IAir conditioner switch is ªOFFºApproximately 5V
46 PU/WPower steering oil pres-
sure switch[Engine is running]
ISteering wheel is fully turnedApproximately 0V
[Engine is running]
ISteering wheel is not turnedApproximately 5V
48 B ECM ground[Engine is running]
IIdle speedEngine ground
(Probe this terminal with (þ)
tester probe when measuring)
50 R Electric load signal[Engine is running]
IHeadlamp switch or rear window defogger
switch is ªONºBATTERY VOLTAGE
(11 - 14V)
*1: If so equipped
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTIONSR20DE
ECM Terminals and Reference Value (Cont'd)
EC-106

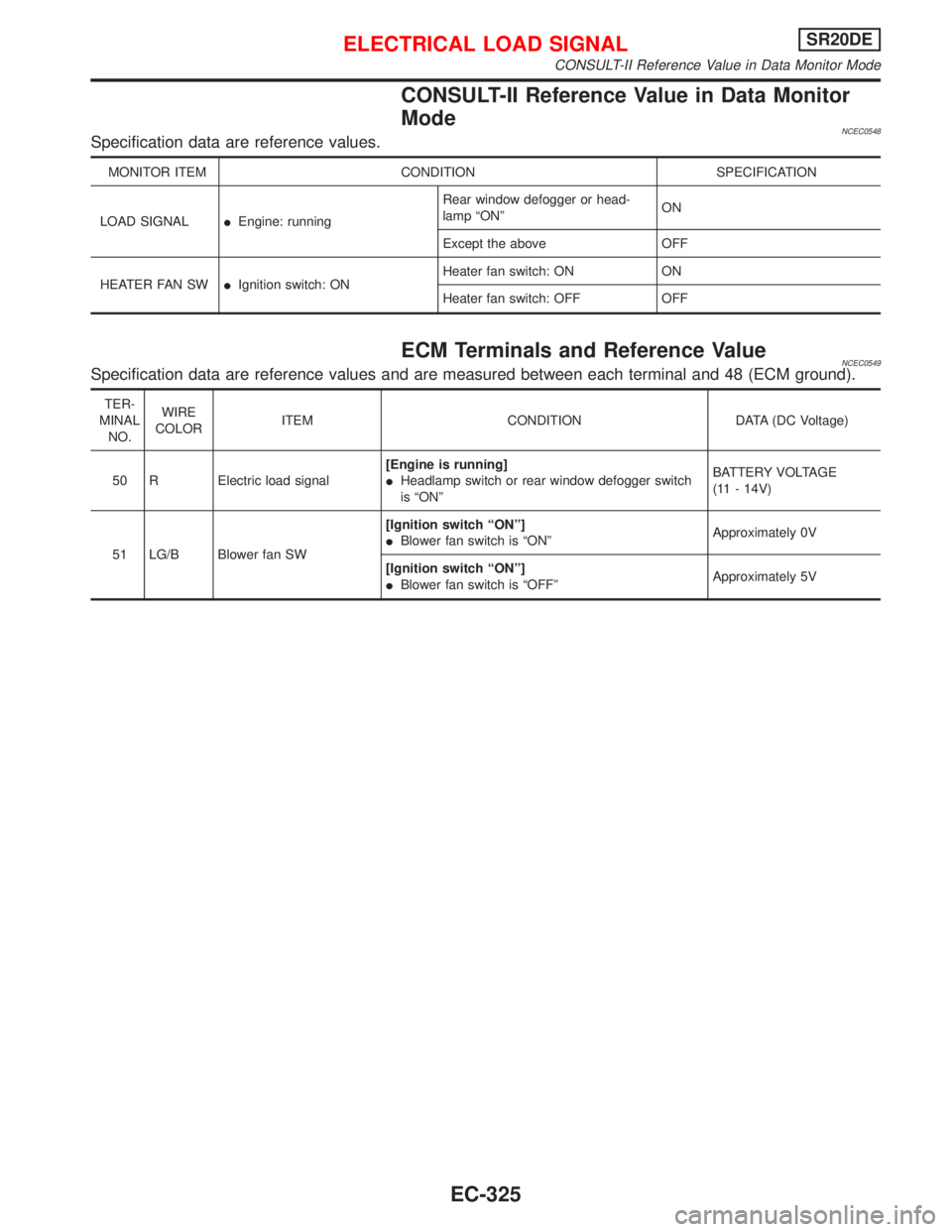

CONSULT-II Reference Value in Data Monitor
Mode
NCEC0548Specification data are reference values.
MONITOR ITEM CONDITION SPECIFICATION
LOAD SIGNALIEngine: runningRear window defogger or head-
lamp ªONºON
Except the above OFF
HEATER FAN SWIIgnition switch: ONHeater fan switch: ON ON
Heater fan switch: OFF OFF
ECM Terminals and Reference ValueNCEC0549Specification data are reference values and are measured between each terminal and 48 (ECM ground).
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
50 R Electric load signal[Engine is running]
IHeadlamp switch or rear window defogger switch
is ªONºBATTERY VOLTAGE
(11 - 14V)
51 LG/B Blower fan SW[Ignition switch ªONº]
IBlower fan switch is ªONºApproximately 0V
[Ignition switch ªONº]
IBlower fan switch is ªOFFºApproximately 5V
ELECTRICAL LOAD SIGNALSR20DE
CONSULT-II Reference Value in Data Monitor Mode
EC-325

DIODE TYPE - 1
YEC853
ECM: Detectable line for DTC
: Non-detectable line for DTC
: With XENON headlamp or daytime light system
: Except
HD
: Hyper CVT models
: M/T models
OFFFUSE
BLOCK
(J/B)
REFER TO THE FOLLOWING
FUSE BLOCK -
Junction Box (J/B)
: This connector is not shown in ªHARNESS LAYOUTº of EL section.2ND
1ST
LOW
HIGHPASSCOMBINATION
SWITCH
(LIGHTING
SWITCH)With XENON headlamp...R/W
Except XENON headlamp...G
With daytime light system...1
Without daytime light system...2
With daytime light system...2
Without daytime light system...1 To
EL-DEF
TIME
CONTROL
UNIT
DIODETo EL-H/LAMP Refer to
EL-POWER.
Headlamp
relay LH
To
EL-LAMP With daytime light system and
with XENON headlamp...R/l
With daytime light system and
without XENON headlamp...P/B
Without daytime light system...OR/L
ELECTRICAL LOAD SIGNALSR20DE
Wiring Diagram (Cont'd)
EC-327

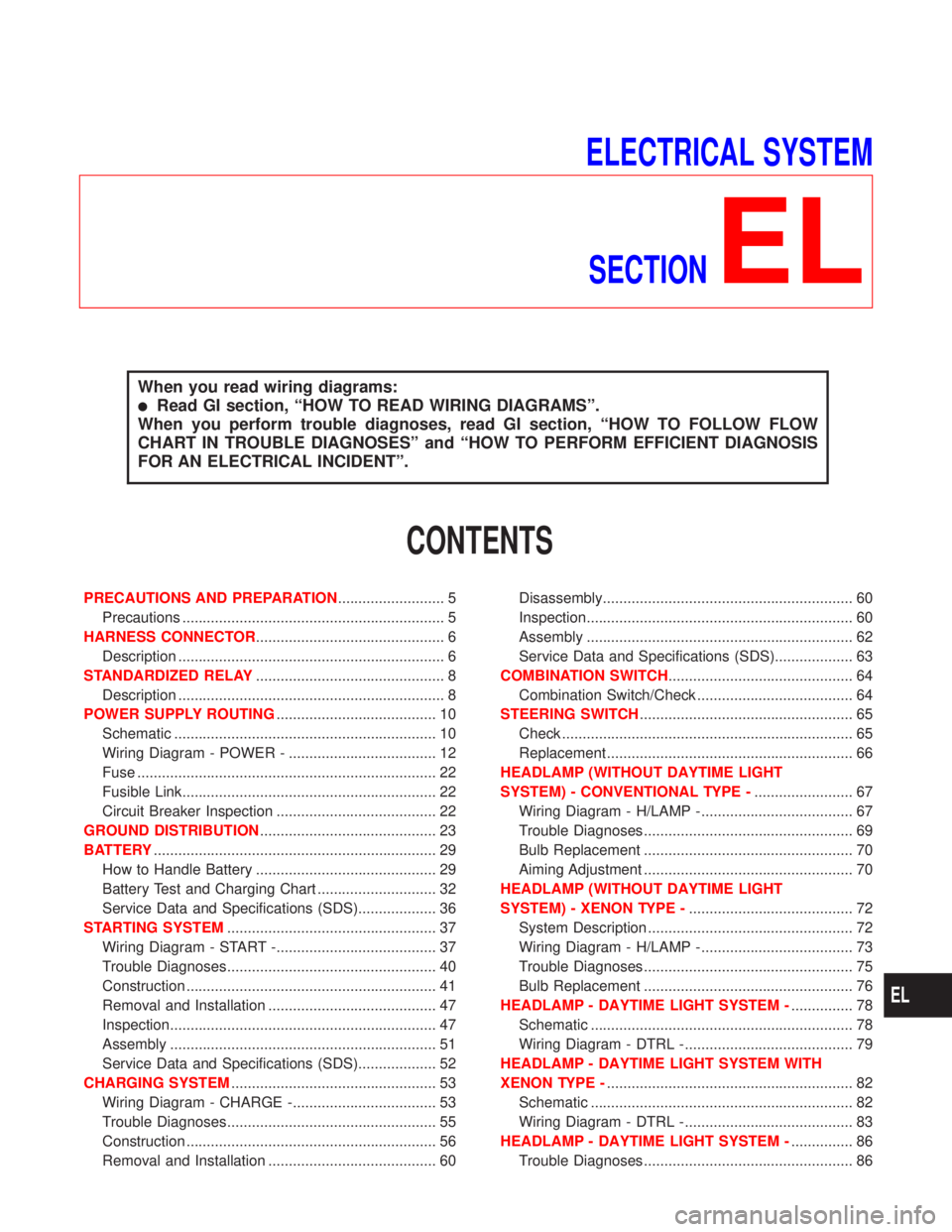

ELECTRICAL SYSTEM
SECTION
EL
When you read wiring diagrams:

Read GI section, “HOW TO READ WIRING DIAGRAMS”.
When you perform trouble diagnoses, read GI section, “HOW TO FOLLOW FLOW
CHART IN TROUBLE DIAGNOSES” and “HOW TO PERFORM EFFICIENT DIAGNOSIS
FOR AN ELECTRICAL INCIDENT”.
CONTENTS
PRECAUTIONS AND PREPARATION.......................... 5
Precautions ................................................................ 5
HARNESS CONNECTOR.............................................. 6
Description ................................................................. 6
STANDARDIZED RELAY.............................................. 8
Description ................................................................. 8
POWER SUPPLY ROUTING....................................... 10
Schematic ................................................................ 10
Wiring Diagram - POWER - .................................... 12
Fuse ......................................................................... 22
Fusible Link.............................................................. 22
Circuit Breaker Inspection ....................................... 22
GROUND DISTRIBUTION........................................... 23
BATTERY..................................................................... 29
How to Handle Battery ............................................ 29
Battery Test and Charging Chart ............................. 32
Service Data and Specifications (SDS)................... 36
STARTING SYSTEM................................................... 37
Wiring Diagram - START -....................................... 37
Trouble Diagnoses................................................... 40
Construction ............................................................. 41
Removal and Installation ......................................... 47
Inspection................................................................. 47
Assembly ................................................................. 51
Service Data and Specifications (SDS)................... 52
CHARGING SYSTEM.................................................. 53
Wiring Diagram - CHARGE -................................... 53
Trouble Diagnoses................................................... 55
Construction ............................................................. 56
Removal and Installation ......................................... 60Disassembly............................................................. 60
Inspection................................................................. 60
Assembly ................................................................. 62
Service Data and Specifications (SDS)................... 63
COMBINATION SWITCH............................................. 64
Combination Switch/Check ...................................... 64
STEERING SWITCH.................................................... 65
Check ....................................................................... 65
Replacement ............................................................ 66
HEADLAMP (WITHOUT DAYTIME LIGHT
SYSTEM) - CONVENTIONAL TYPE -........................ 67
Wiring Diagram - H/LAMP -..................................... 67
Trouble Diagnoses................................................... 69
Bulb Replacement ................................................... 70
Aiming Adjustment ................................................... 70
HEADLAMP (WITHOUT DAYTIME LIGHT
SYSTEM) - XENON TYPE -........................................ 72
System Description .................................................. 72
Wiring Diagram - H/LAMP -..................................... 73
Trouble Diagnoses................................................... 75
Bulb Replacement ................................................... 76
HEADLAMP - DAYTIME LIGHT SYSTEM -............... 78
Schematic ................................................................ 78
Wiring Diagram - DTRL - ......................................... 79
HEADLAMP - DAYTIME LIGHT SYSTEM WITH
XENON TYPE -............................................................ 82
Schematic ................................................................ 82
Wiring Diagram - DTRL - ......................................... 83
HEADLAMP - DAYTIME LIGHT SYSTEM -............... 86
Trouble Diagnoses................................................... 86
EL

HEADLAMP - HEADLAMP AIMING CONTROL
(MANUAL) -................................................................. 87
Wiring Diagram - H/AIM - ........................................ 87
HEADLAMP - HEADLAMP AIMING CONTROL
(AUTO) -....................................................................... 91
System Description .................................................. 91
Initialisation .............................................................. 91
Component Parts and Harness ............................... 92
Wiring Diagram - H/AIM - ........................................ 93
Trouble Diagnosis .................................................... 95
Removal and Installation ......................................... 99
PARKING, LICENSE AND TAIL LAMPS.................. 100
Wiring Diagram - TAIL/L - ...................................... 100
STOP LAMP.............................................................. 104
Wiring Diagram - STOP - ...................................... 104
BACK-UP LAMP........................................................ 107
Wiring Diagram - BACK/L - ................................... 107
FRONT FOG LAMP.................................................... 110
Wiring Diagram - F/FOG - ...................................... 110
Aiming Adjustment .................................................. 111
Bulb Specifications ................................................. 111
REAR FOG LAMP...................................................... 112
Wiring Diagram - R/FOG -...................................... 112
TURN SIGNAL AND HAZARD WARNING LAMPS.. 117
Schematic ............................................................... 117
Wiring Diagram - TURN - ....................................... 118
Trouble Diagnoses................................................. 123
ILLUMINATION.......................................................... 124
Schematic .............................................................. 124
Wiring Diagram - ILL - ........................................... 125
INTERIOR, SPOT, VANITY MIRROR AND
LUGGAGE ROOM LAMPS....................................... 130
System Description ................................................ 130
Schematic .............................................................. 131
Wiring Diagram - INT/L - ....................................... 132
BULB SPECIFICATIONS.......................................... 137
Headlamp............................................................... 137
Exterior Lamp ........................................................ 137
Interior Lamp.......................................................... 137
METER AND GAUGES............................................. 138
System Description ................................................ 138
Combination Meter ................................................ 139
Wiring Diagram - METER -/MODELS BEFORE
VIN - P11U0548750............................................... 141
Schematic .............................................................. 144
Wiring Diagram - METER -/M/T MODELS
AFTER VIN - P11U0548750.................................. 146
Wiring Diagram - METER -/CVT MODELS
AFTER VIN - P11U0548750.................................. 149
Combination Meter Self-Diagnosis ........................ 152
Trouble Diagnoses (Models before VIN -
P11U0548750) ....................................................... 155
Trouble Diagnoses (Models after VIN -
P11U0548750) ....................................................... 159
Fuel Level Sensor Unit Check............................... 164
QG & SR Engine Models ...................................... 164CD20T Engine Models .......................................... 164
Thermal Transmitter Check ................................... 164
WARNING LAMPS.................................................... 165
Warning Lamps/Schematic .................................... 165
Wiring Diagram - WARN - ..................................... 167
Electrical Components Inspection ......................... 179
WARNING CHIME..................................................... 180
System Description ................................................ 180
Wiring Diagram - CHIME - .................................... 181
Trouble Diagnoses................................................. 183
Electrical Components Inspection ......................... 185
FRONT WIPER AND WASHER................................ 186
System Description ................................................ 186
Wiring Diagram - WIPER - .................................... 188
Removal and Installation ....................................... 190
Front Washer Nozzle Adjustment .......................... 192
Front Washer Tube Layout .................................... 192
REAR WIPER AND WASHER.................................. 193
System Description ................................................ 193
Wiring Diagram - WIP/R -...................................... 195
Removal and Installation ....................................... 197
Washer Nozzle Adjustment ................................... 197
Washer Tube Layout ............................................. 199
Check Valve ........................................................... 199
HEADLAMP WASHER.............................................. 200
Wiring Diagram - HLC - ......................................... 200
Washer Tube Layout ............................................. 202
Check Valve ........................................................... 202
HORN, CIGARETTE LIGHTER AND CLOCK.......... 203
Wiring Diagram - HORN - ..................................... 203
REAR WINDOW DEFOGGER AND DOOR
MIRROR DEFOGGER............................................... 207
System Description ................................................ 207
Schematic .............................................................. 208
Wiring Diagram - DEF - ......................................... 209
Trouble Diagnoses................................................. 212
Electrical Components Inspection ......................... 213
Filament Check ...................................................... 213
Filament Repair ..................................................... 214
AUDIO........................................................................ 216
Anti-theft System ................................................... 216
Speed Dependent Volume Control ........................ 217
Personal Audio Settings ........................................ 217
Schematic .............................................................. 218
Wiring Diagram - AUDIO - ..................................... 219
Trouble Diagnoses................................................. 226
Inspection............................................................... 228
AUDIO ANTENNA..................................................... 229
Location of Antenna ............................................... 229
ELECTRIC SUNROOF.............................................. 230
Wiring Diagram - SROOF - ................................... 230
POWER DOOR MIRROR.......................................... 231
Wiring Diagram - MIRROR - ................................. 231
POWER SEAT........................................................... 233
Power Seat/Wiring Diagram - SEAT - ................... 233
HEATED SEAT.......................................................... 234
EL-2
