Evaporative emission (EVAP)
system ...............................EC-QG-25, EC-SR-27
Exhaust gas recirculation (EGR)
valve...........................................EC-QG-244, 305
Exhaust system ................................................FE-9
Exhaust system inspection ............................MA-48
Exterior ............................................................BT-31
F
FCUT - Wiring diagram ..........................EC-CD-101
F/FOG - Wiring diagram................................EL-110
Final drive (FF M/T) ...........................MT-32, 51, 71
Floor trim .........................................................BT-18
Fluid temperature sensor (A/T) .......................AT-94
Fluids..............................................................MA-16
Flywheel (clutch) .............................................CL-14
Flywheel runout..............................EM-60, 117, 177
Fog lamp, front ..............................................EL-110
Fog lamp, rear ...............................................EL-112
F/PUMP - Wiring
diagram..........................EC-QG-338, EC-SR-317
Freeze frame data ................EC-QG-38, EC-SR-50
Fresh vent door control linkage
adjustment ..................................................HA-83
FRO2 - Wiring diagram ........EC-QG-135, 154, 162,
EC-SR-147, 165, 172
FRO2/H - Wiring
diagram..........................EC-QG-168, EC-SR-177
Front axle ..........................................................FA-9
Front bumper ....................................................BT-5
Front disc brake .............................................BR-23
Front door .......................................................BT-13
Front fog lamp .......................................EL-110, 111
Front fog lamp removal and installation ...........BT-5
Front heated oxygen sensor
(HO2S) ......................................EC-QG-132, 139,
EC-SR-144, 150, 156, 162, 170
Front heated oxygen sensor (HO2S)
heater ............................EC-QG-166, EC-SR-175
Front passenger air bag .................................RS-17
Front seat ........................................................BT-40
Front seat belt ..................................................RS-3
Front suspension ............................................FA-26
Front washer .................................................EL-186
Front wiper ....................................................EL-186
FTS - Wiring diagram ............................EC-CD-105
FUEL - Wiring
diagram .........EC-QG-210, 217, EC-SR-213, 220
Fuel cut control (at no load & high
engine speed)....................EC-QG-25, EC-SR-27
Fuel cut solenoid valve ..........................EC-CD-100
Fuel filter ...............................EC-QG-29, EC-SR-31
Fuel filter replacement .......................MA-23, 33, 43
Fuel gauge ............................................EL-141, 146
Fuel injection system....................EC-QG-208, 215,
EC-SR-212, 218,
EC-CD-15, 18
Fuel injector ......................EC-QG-318, EC-SR-302
Fuel line inspection............................MA-22, 33, 43Fuel precautions ................................................GI-7
Fuel pressure check .............EC-QG-29, EC-SR-31
Fuel pressure regulator .........EC-QG-30, EC-SR-32
Fuel pressure release ...........EC-QG-29, EC-SR-31
Fuel pump .........................EC-QG-336, EC-SR-316
Fuel pump and gauge ......................................FE-7
Fuel pump relay ................EC-QG-336, EC-SR-316
Fuel system ......................................................FE-6
Fuel tank vacuum relief
valve ..................................EC-QG-26, EC-SR-28
Fuel temperature sensor .................EC-CD-17, 104
Fuse ..................................................EL-22, Foldout
Fuse block ....................................................Foldout
Fusible link ........................................EL-22, Foldout
G
Garage jack and safety stand .........................GI-47
Gauges..........................................................EL-138
Gear components (M/T) ...........................MT-16, 49
Generic scan tool (GST) .......EC-QG-66, EC-SR-78
GLOW - Wiring diagram ........................EC-CD-120
Glow plug .........................................EC-CD-15, 118
Glow relay ................................................EC-CD-15
GOVNR - Wiring diagram ........................EC-CD-79
Grille - See Exterior ........................................BT-38
Ground distribution..........................................EL-23
H
H/AIM - Wiring diagram ....................EL-87, 93, 200
Harness connector ............................................EL-6
Harness layout ..............................................EL-368
Hazard warning lamp ....................................EL-117
Headlamp..................................................EL-67, 69
Headlamp aiming control ................................EL-87
Headlamp washer .........................................EL-200
Headlining - See Roof trim .............................BT-25
Heated oxygen sensor (HO2S)
(front) ........................................EC-QG-132, 139,
EC-SR-144, 150, 156, 162, 170
Heated oxygen sensor (HO2S) heater
(front) .............................EC-QG-166, EC-SR-175
Heated oxygen sensor (HO2S) heater
(rear) ..............................EC-QG-203, EC-SR-207
Heated oxygen sensor (rear) ...............EC-QG-171,
EC-SR-180, 187,
194, 201
Heated oxygen sensor inspection ...........MA-27, 38
Heated seat .......................................BT-42, EL-234
HEATER - Wiring diagram .............................HA-40
HFC134a (R134a) system service
procedure ..................................................HA-100
HFC134a (R134a) system service tools ..........HA-8
H/LAMP - Wiring diagram ...............................EL-67
Hood..................................................................BT-5
Horn ..............................................................EL-203
HORN - Wiring diagram ................................EL-203
ALPHABETICAL INDEX
IDX-4

Shown below are Pre-delivery Inspection Items required for the new vehicle. It is recommended that
necessary items other than those listed here be added, paying due regard to the conditions in each
country.
Perform applicable items on each model. Consult text of this section for specifications.
UNDER HOOD engine off
Radiator coolant level and coolant hose con-
nections for leaks
Battery fluid level, specific gravity and condi-
tions of battery terminals
Drive belts tension
Fuel filter for water or dust, fuel lines and con-
nections for leaks
Engine oil level and oil leaks
Clutch and brake reservoir fluid level and fluid
lines for leaks
Windshield and rear window washer and head-
lamp cleaner reservoir fluid level
Power steering reservoir fluid level and hose
connections for leaks
ON INSIDE AND OUTSIDE
Remove front spring/strut spacer (If applicable)
Operation of all instruments, gauges, lights and
accessories
Operation of horn(s), wiper and washer
Steering lock for operation
Check air conditioner for gas leaks
Front and rear seats, and seat belts for opera-
tion
All moldings, trims and fittings for fit and align-
ment
All windows for operation and alignment
Hood, trunk lid, door panels for fit and align-
ment
Latches, keys and locks for operation
Weatherstrips for adhesion and fit
Headlamp aiming
Tighten wheel nuts (Inc. inner nuts if appli-
cable)
Tire pressure (Inc. spare tire)
Check front wheels for toe-in
Install clock/voltmeter/room lamp fuse (If appli-
cable)
Install deodorizing filter to air purifier (If appli-
cable)
Remove wiper blade protectors (If applicable)
UNDER BODY
Manual transmission/transaxle, transfer and
differential gear oil level
Brake and fuel lines and oil/fluid reservoirs for
leaks
Tighten bolts and nuts of steering linkage and
gear box, suspension, propeller shafts and
drive shafts
Tighten rear body bolts and nuts (Models with
wooden bed only)
ROAD TEST
Clutch operation
Parking brake operation
Service brake operation
Automatic transmission/transaxle shift timing
and kickdown
Steering control and returnability
Engine performance
Squeaks and rattles
ENGINE OPERATING AND HOT
Adjust idle mixture and speed (and ignition tim-
ing*1)
Automatic transmission/transaxle fluid level
Engine idling and stop knob operation (Diesel
only)
FINAL INSPECTION
Install necessary parts (outside mirror, wheel
covers, seat belts, mat, carpet or mud flaps)
Inspect for interior and exterior metal and paint
damage
Check for spare tire, jack, tools (wheel chock),
and literature
Wash, clean interior and exterior
*1: Not required on models with a direct ignition system
: Not applicable to this model.
PRE-DELIVERY INSPECTION ITEMS
MA-4

Chassis and Body Maintenance
Abbreviations: R = Replace I = Inspect: Correct or replace if necessary L = Lubricate T = Tighten [ ] = At the specified mile-
age only
MAINTENANCE OPERATION MAINTENANCE INTERVAL
Perform on a kilometer basis, but
on an annual basis when driving
less than
15,000 km (9,000 miles) in a yearkm×1,000 15 30 45 60 75 90 105 120
(miles×1,000) (9) (18) (27) (36) (45) (54) (63) (72)
Months 12 24 36 48 60 72 84 96
Underhood and under vehicleReference pages
Headlamp aimingIIIIIIIIEL-87
Wheel alignment (if necessary, balance & rotate
wheels)IIIIIIIIFA-6/RA-6
MA-53
Brake pads, rotors & other components*IIIIIIIIMA-51
Foot brake, parking brake & clutch (for free play,
stroke & operation)IIIIIIIIBR-13/BR-48/CL-5
Brake booster vacuum hoses, connections, check
valveIIIIMA-51
Brake & clutch, systems and fluid (for level and leaks)IIIIIIIIMA-51/MA-48
Brake fluid*RRRRBR-7
Power steering fluid and lines (for
level and leaks)IIIIIIIIMA-53
Air bag system See NOTE (1) RS-11
Ventilation air filter*RRRRHA-117
Manual transmission oil (check for
leakage. Use genuine NISSAN XZ
gear oil or exact equivalent)IIIIIIIIMA-49
CVT fluid (for level and leaks or
replace. Use genuine NISSAN CVT
fluid (NS-1) or exact equivalent)*I I I [R] I I I [R] MA-50
Steering gear & linkage, axle & suspension, exhaust
system*IIIIMA-53/FA-5/
RA-5/MA-48
Body corrosion See NOTE (2) MA-55
NOTE: (1) Inspect after 10 years, then every 2 years.
(2) Inspect once per year.
* Maintenance items with“*”should be performed more frequently according to“Maintenance under severe driv-
ing conditions”.

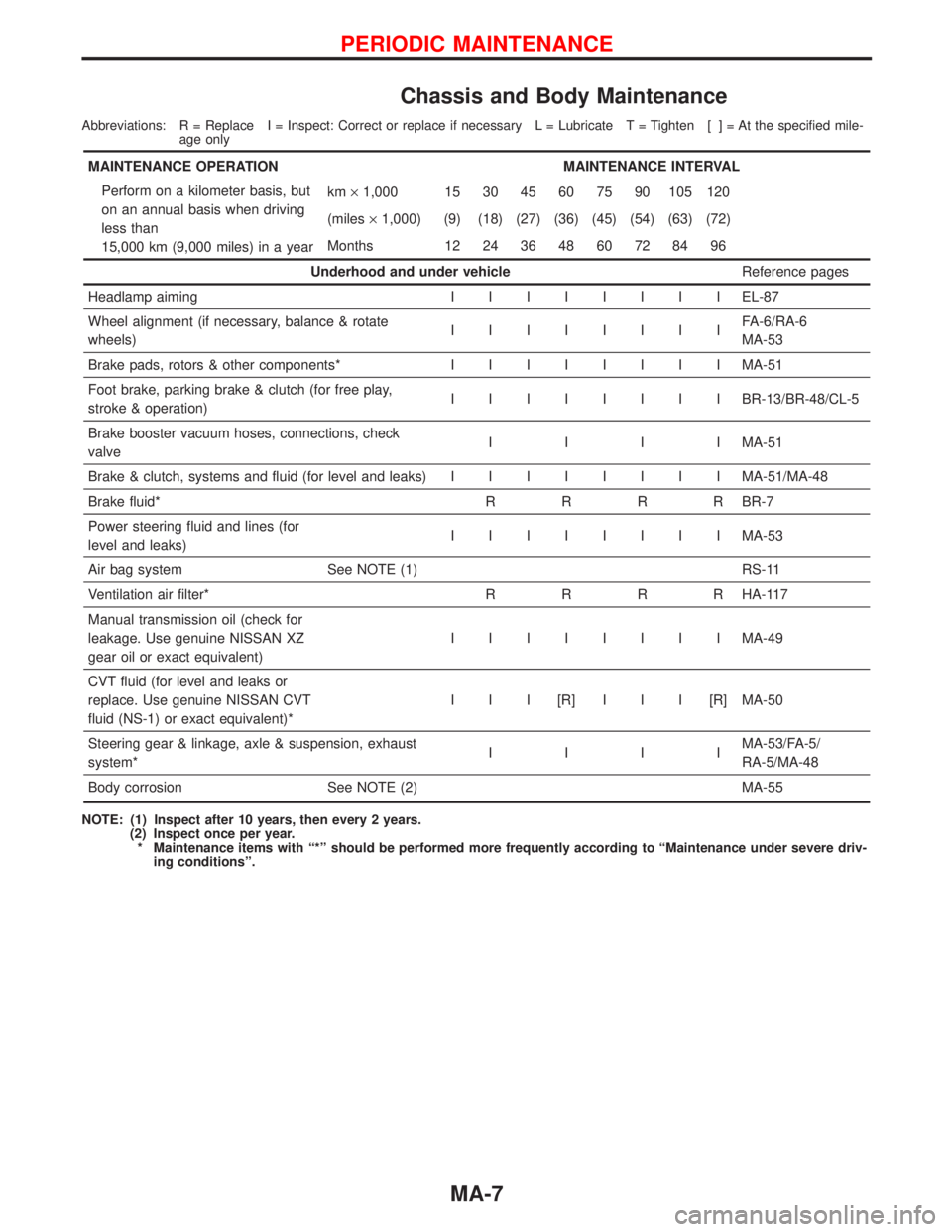

PERIODIC MAINTENANCE
MA-7

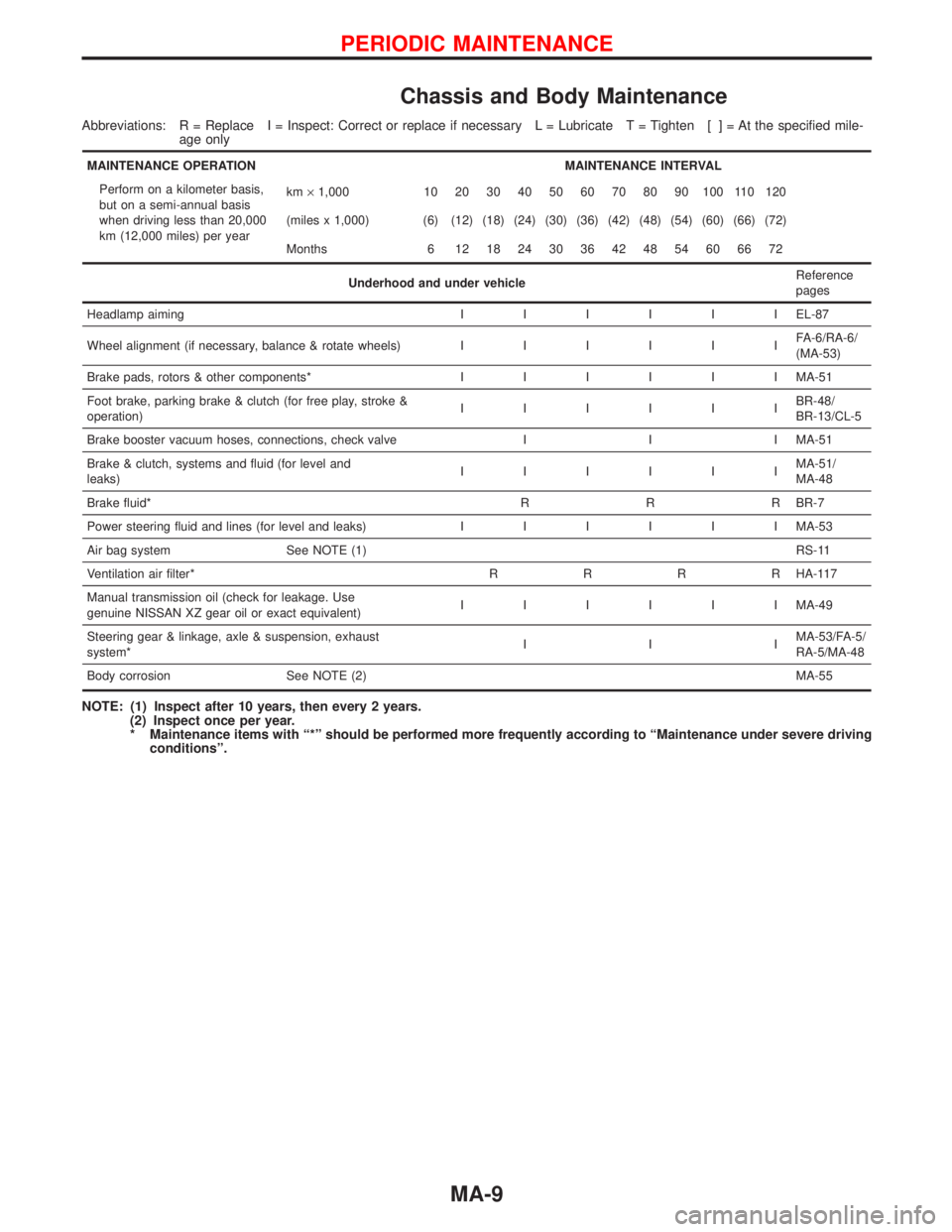

Chassis and Body Maintenance
Abbreviations: R = Replace I = Inspect: Correct or replace if necessary L = Lubricate T = Tighten [ ] = At the specified mile-
age only
MAINTENANCE OPERATION MAINTENANCE INTERVAL
Perform on a kilometer basis,
but on a semi-annual basis
when driving less than 20,000
km (12,000 miles) per yearkm×1,000 10 20 30 40 50 60 70 80 90 100 110 120
(miles x 1,000) (6) (12) (18) (24) (30) (36) (42) (48) (54) (60) (66) (72)
Months 6 12 18 24 30 36 42 48 54 60 66 72
Underhood and under vehicleReference
pages
Headlamp aimingIIIIIIEL-87
Wheel alignment (if necessary, balance & rotate wheels)IIIIIIFA-6/RA-6/
(MA-53)
Brake pads, rotors & other components*IIIIIIMA-51
Foot brake, parking brake & clutch (for free play, stroke &
operation)IIIIIIBR-48/
BR-13/CL-5
Brake booster vacuum hoses, connections, check valve I I I MA-51
Brake & clutch, systems and fluid (for level and
leaks)IIIIIIMA-51/
MA-48
Brake fluid* R R R BR-7
Power steering fluid and lines (for level and leaks)IIIIIIMA-53
Air bag system See NOTE (1)RS-11
Ventilation air filter*RRRRHA-117
Manual transmission oil (check for leakage. Use
genuine NISSAN XZ gear oil or exact equivalent)IIIIIIMA-49
Steering gear & linkage, axle & suspension, exhaust
system*IIIMA-53/FA-5/
RA-5/MA-48
Body corrosion See NOTE (2)MA-55
NOTE: (1) Inspect after 10 years, then every 2 years.
(2) Inspect once per year.
* Maintenance items with“*”should be performed more frequently according to“Maintenance under severe driving
conditions”.
PERIODIC MAINTENANCE
MA-9

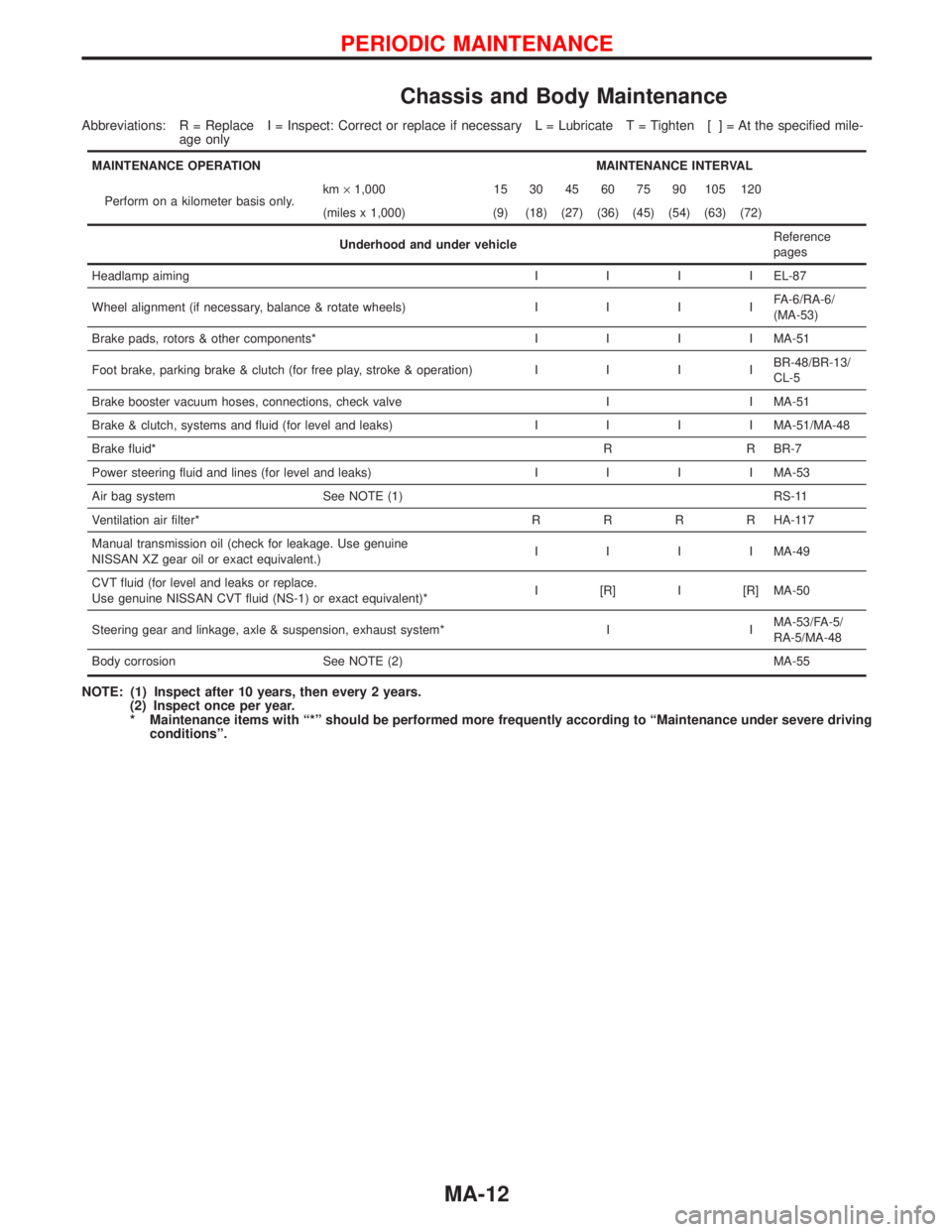

Chassis and Body Maintenance
Abbreviations: R = Replace I = Inspect: Correct or replace if necessary L = Lubricate T = Tighten [ ] = At the specified mile-
age only
MAINTENANCE OPERATION MAINTENANCE INTERVAL
Perform on a kilometer basis only.km×1,000 15 30 45 60 75 90 105 120
(miles x 1,000) (9) (18) (27) (36) (45) (54) (63) (72)
Underhood and under vehicleReference
pages
Headlamp aimingIIIIEL-87
Wheel alignment (if necessary, balance & rotate wheels)IIIIFA-6/RA-6/
(MA-53)
Brake pads, rotors & other components*IIIIMA-51
Foot brake, parking brake & clutch (for free play, stroke & operation)IIIIBR-48/BR-13/
CL-5
Brake booster vacuum hoses, connections, check valve I I MA-51
Brake & clutch, systems and fluid (for level and leaks)IIIIMA-51/MA-48
Brake fluid*R R BR-7
Power steering fluid and lines (for level and leaks)IIIIMA-53
Air bag system See NOTE (1) RS-11
Ventilation air filter*RRRRHA-117
Manual transmission oil (check for leakage. Use genuine
NISSAN XZ gear oil or exact equivalent.)IIIIMA-49
CVT fluid (for level and leaks or replace.
Use genuine NISSAN CVT fluid (NS-1) or exact equivalent)*I [R] I [R] MA-50
Steering gear and linkage, axle & suspension, exhaust system* I IMA-53/FA-5/
RA-5/MA-48
Body corrosion See NOTE (2) MA-55
NOTE: (1) Inspect after 10 years, then every 2 years.
(2) Inspect once per year.
* Maintenance items with“*”should be performed more frequently according to“Maintenance under severe driving
conditions”.
PERIODIC MAINTENANCE
MA-12

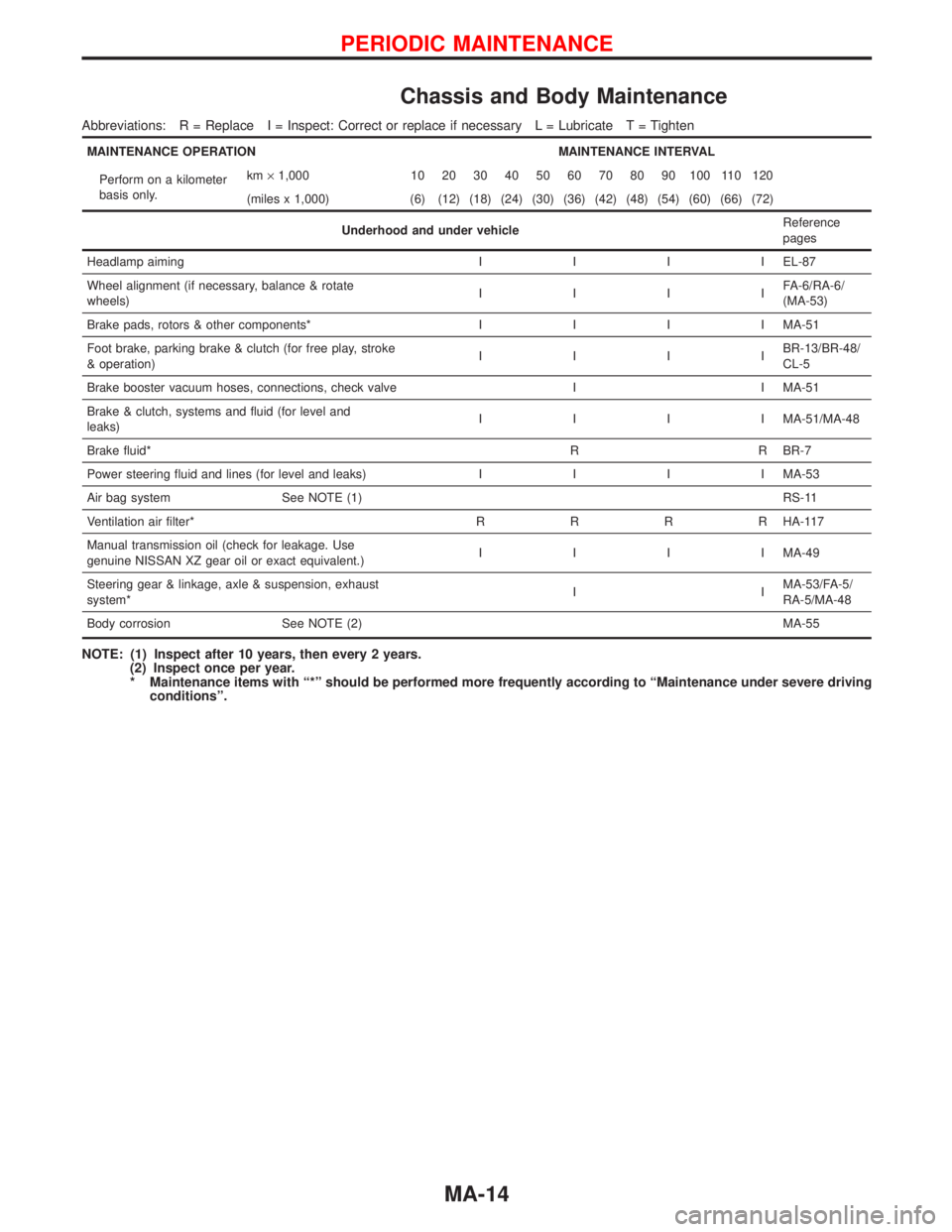

Chassis and Body Maintenance
Abbreviations: R = Replace I = Inspect: Correct or replace if necessary L = Lubricate T = Tighten
MAINTENANCE OPERATION MAINTENANCE INTERVAL
Perform on a kilometer
basis only.km×1,000 10 20 30 40 50 60 70 80 90 100 110 120
(miles x 1,000) (6) (12) (18) (24) (30) (36) (42) (48) (54) (60) (66) (72)
Underhood and under vehicleReference
pages
Headlamp aimingIIIIEL-87
Wheel alignment (if necessary, balance & rotate
wheels)IIIIFA-6/RA-6/
(MA-53)
Brake pads, rotors & other components*IIIIMA-51
Foot brake, parking brake & clutch (for free play, stroke
& operation)IIIIBR-13/BR-48/
CL-5
Brake booster vacuum hoses, connections, check valve I I MA-51
Brake & clutch, systems and fluid (for level and
leaks)IIIIMA-51/MA-48
Brake fluid*R R BR-7
Power steering fluid and lines (for level and leaks)IIIIMA-53
Air bag system See NOTE (1)RS-11
Ventilation air filter*RRRRHA-117
Manual transmission oil (check for leakage. Use
genuine NISSAN XZ gear oil or exact equivalent.)IIIIMA-49
Steering gear & linkage, axle & suspension, exhaust
system*IIMA-53/FA-5/
RA-5/MA-48
Body corrosion See NOTE (2)MA-55
NOTE: (1) Inspect after 10 years, then every 2 years.
(2) Inspect once per year.
* Maintenance items with“*”should be performed more frequently according to“Maintenance under severe driving
conditions”.
PERIODIC MAINTENANCE
MA-14

Removal and Installation
CAUTION:
lBefore removing the rear suspension assembly, discon-
nect the ABS wheel sensor and headlamp leveling sen-
sor from the assembly. Failure to do so may result in
damage to the sensor wires and the sensor becoming
inoperative.
lRemove suspension assembly.
1. Disconnect parking brake cable from caliper and remove
brake caliper and rotor.
Suspend caliper assembly with wire so as not to stretch
brake hose.
Be careful not to depress brake pedal, or piston will pop out.
Make sure brake hose is not twisted.
2. Using a transmission jack, raise torsion beam a little, and
remove nuts and bolts from the trailing arm, shock absorber
assembly (lower side) and lateral link.
3. Lower transmission jack, and remove suspension.
4. Remove shock absorber assembly.
lInstall suspension assembly.
CAUTION:
Refill with new brake fluid ªDOT 4º.
Never reuse drained brake fluid.
lAfter installation of the suspension assembly the head-
lamp leveling sensor has to be recalibrated. Refer to EL
section (models equipped with xenon headlamps only).
1. Attach torsion beam, at trailing arm and lateral link, to
vehicle. Do not tighten bolts at this time.
2. Using a transmission jack, place lateral link and control rod
horizontally against torsion beam. Tighten lateral link on
vehicle.
3. Attach shock absorber assembly to vehicle. Then tighten the
lower side of shock absorber assembly.
4. Lower torsion beam to fully extended position. Remove
transmission jack and tighten torsion beam, at trailing arm, to
specified torque.Refer to RA-9.
5. Install ABS-wheel sensor.
SRA695A
NRA016
SRA697A
SRA698A
REAR SUSPENSION
RA-10
