1999 NISSAN PRIMERA light

GROUND CONNECT TO CONN. CELL CODE
M6/M26/M28 A/C AUTO AMP. M115 HA-A/C
A/C CONTROL PANEL M44, M47 HA-A/C
A/C HIGH RELAY M119 HA-A/C
A/C LOW RELAY (Type-1) M120 HA-A/C
A/C LOW RELAY (Type-2) M123 HA-A/C
A/C MH RELAY (Type-1) M118 HA-A/C
A/C MED-HIGH RELAY (Type-2) M122 HA-A/C
A/C MED-LOW RELAY M121 HA-A/C
AUDIO M42 EL-ILL, EL-AUDIO
CIGARETTE LIGHTER SOCKET M39 EL-HORN
COMBINATION METER (ILLUMINATION)
(Without illumination control switch) (Models before VIN -
P11U0548750)E124 EL-ILL
COMBINATION METER (ABS WARNING LAMP) (Models before
VIN - P11U0548750)M38 BR-ABS
COMBINATION METER (AIR BAG WARNING LAMP) (Models
before VIN - P11U0548750)M38 RS-SRS
COMBINATION METER (AIR BAG WARNING LAMP) (Models
after VIN - P11U0548750)M89 RS-SRS
COMBINATION METER (HIGH BEAM INDICATOR) (Models
before VIN - P11U0548750)E124 EL-H/LAMP, EL-DTRL
COMBINATION METER (Hyper CVT M6 models) (Models before
VIN - P11U0548750)M38 AT-NONDTC
COMBINATION METER (Hyper CVT M6 models) (Models after
VIN - P11U0548750)M89 AT-NONDTC
COMBINATION METER (SPEEDOMETER) (Models before VIN -
P11U0548750)M38 EC-VSS
COMBINATION METER (SPEEDOMETER) (Models after VIN -
P11U0548750)M89 EC-VSS
COMBINATION METER (Models before VIN - P11U0548750) M38 EL-METER, EL-WARN, EL-HORN
COMBINATION METER (Models after VIN - P11U0548750) M89 EL-METER, EL-WARN, EL-HORN
COMBINATION METER (Models after VIN - P11U0548750) E131 AT-NONDTC, EL-ILL
CONTROL DEVICE (Hyper CVT M6 models) M79 AT-NONDTC, EL-ILL
CONTROL DEVICE (Hyper CVT models) M49 AT-NONDTC, EL-ILL
DATA LINK CONNECTOR M59 EC-MIL/DL
DATA LINK CONNECTOR (TERMINAL NO. 13) M59 RS-SRS
AIRBAG DIAGNOSIS SENSOR UNIT M87 RS-SRS
DONGLE CONTROL UNIT (RHD) M85 EL-NATS, EL-AUDIO
DOOR MIRROR REMOTE CONTROL SWITCH M5 EL-MIRROR
FAN SWITCH M46 HA-HEATER
FAN SWITCH (Gasoline engine) (without A/C) M46 EC-LOAD
FUSE BLOCK (J/B) (IGNITION RELAY, BLOWER RELAY) M1 EL-POWER
FUSE BLOCK (J/B) (FRONT FOG LAMP RELAY) M1 EL-F/FOG, EL-POWER
FUSE BLOCK (J/B) (POWER WINDOW RELAY) M1EL-WINDOW, EL-SROOF,
EL-POWER
GLOVE BOX LAMP (ILLUMINATION) M24 EL-ILL
HAZARD SWITCH M58 EL-TURN, EL-ILL
HEATER (ILLUMINATION) M45 EL-ILL
INDICATOR CONTROL UNIT (Hyper CVT M6 models) M72 AT-NONDTC
RDNT BRAKE SWITCH (RHD) (CD20 engine) M64 EC-BRK/SW
A/C CONTROL PANEL (REAR WINDOW DEFOGGER SWITCH) M44 EL-ILL, EL-DEF
A/C CONTROL PANEL (RECIRCULATION SWITCH) M47 HA-HEATER, EL-ILL
SUNROOF SWITCH R4 EL-SLOOF
SPOT LAMP R5 EL-ILL
TIME CONTROL UNIT B96EL-BUZZER, EL-S/LOCK,
EL-D/LOCK, EL-THEFT, EL-DEF,
EL-MULTI, EL-INT/L, EL-TURN
VANITY MIRROR LAMP (LHD) R9 EL-INT/L
VANITY MIRROR LAMP (RHD) R2 EL-INT/L
VEHICLE SPEED SENSOR F25 EL-METER, EC-VSS
E10 ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) E78 BR-ABS
GROUND DISTRIBUTION
EL-23

GROUND CONNECT TO CONN. CELL CODE
E11/E37 ACCESSORY RELAY E95 EL-POWER, EL-HORN
BRAKE FLUID LEVEL SWITCH E14 EL-WARN
CLEARANCE LAMP LH E85 EL-TAIL/L
CLEARANCE LAMP RH E87 EL-TAIL/L
COMBINATION METER (FRONT FOG LAMP INDICATOR) (Mod-
els before VIN - P11U0548750)E124 EL-F/FOG
COMBINATION METER (FRONT FOG LAMP INDICATOR) (Mod-
els after VIN - P11U0548750)E131 EL-F/FOG
COMBINATION METER (REAR FOG LAMP INDICATOR) (Models
before VIN - P11U0548750)E124 EL-R/FOG
COMBINATION METER (REAR FOG LAMP INDICATOR) (Models
after VIN - P11U0548750)E131 EL-R/FOG
COMBINATION METER (HIGH BEAM INDICATOR) (Models after
VIN - P11U0548750)E131 EL-H/LAMP, EL-DTRL
COMBINATION METER (ILLUMINATION) (Models after VIN -
P11U0548750)E131 EL-ILL
COMBINATION METER (TURN) (Models before VIN -
P11U0548750)E124 EL-TURN
COMBINATION METER (TURN) (Models after VIN -
P11U0548750)E131 EL-TURN
COMBINATION SWITCH (FRONT WIPER SWITCH) E114 EL-WIPER, EL-WIP/R
COMBINATION SWITCH (TRIP COMPUTER SWITCH) E114 EL-METER
COMBINATION SWITCH (TURN SIGNAL SWITCH) E111 EL-TURN
COOLING FAN MOTOR-1 (Gasoline engine) E19 HA-A/C, EC-COOL/F
COOLING FAN MOTOR-2 (CD20 engine) E18 HA-A/C, EC-COOL/F
COOLING FAN MOTOR-2 (QG18, SR20 engine) E28 HA-A/C, EC-COOL/F
COOLING FAN MOTOR-2 (With A/C) (GA16 engine) E94 HA-A/C, EC-COOL/F
COOLING FAN RELAY-2 (CD engine) E54 HA-A/C, EL-COOL/F
DAYTIME LIGHT CONTROL UNIT E117 EL-DTRL
FRONT FOG LAMP LH (Type-1) E6 EL-F/FOG
FRONT FOG LAMP LH (Type-2) E146 EL-F/FOG
FRONT FOG LAMP RH (Type-1) E34 EL-F/FOG
FRONT FOG LAMP RH (Type-2) E147 EL-F/FOG
FRONT TURN SIGNAL LAMP LH E8 EL-TURN, EL-THEFT
FRONT TURN SIGNAL LAMP RH E36 EL-TURN, EL-THEFT
FRONT WIPER MOTOR E62 EL-WIPER
FRONT WIPER RELAY E70 EL-WIPER
HEAD LAMP RELAY LH E74 EL-H/LAMP, EL-DTRL
HEAD LAMP RELAY RH E75 EL-HLC, EL-H/LAMP, EL-DTRL
HEAD LAMP WASHER MOTOR E38 EL-HLC
HEAD LAMP WASHER SWITCH E128 EL-HLC, EL-ILL
HEADLAMP AIMING MOTOR LH E4 EL-H/AIM
HEADLAMP AIMING MOTOR RH E33 EL-H/AIM
HEADLAMP LH E5 EL-H/LAMP, EL-DTRL
HEADLAMP RH E32 EL-H/LAMP, EL-DTRL
HOOD SWITCH E12 EL-THEFT
NATS IMMU E121 EL-NATS
POWER STEERING OIL PRESSURE SWITCH (Gasoline) E60 EC-PST/SW
RDNT BRAKE SWITCH (LHD) (CD20 engine) E122 EC-BRK/SW
REAR WIPER RELAY E52 EL-WIP/R
SEDIMENTER SENSOR E13 EL-WARN
SIDE TURN SIGNAL LAMP LH (Type-1) E9 EL-TURN, EL-THEFT
SIDE TURN SIGNAL LAMP LH (Type-2) E148 EL-TURN, EL-THEFT
SIDE TURN SIGNAL LAMP RH (Type-1) E59 EL-TURN, EL-THEFT
SIDE TURN SIGNAL LAMP RH (Type-2) E149 EL-TURN, EL-THEFT
TRIPLE-PRESSURE SWITCH (CD engine) E20 HA-A/C, EC-COOL/F
WASHER LEVEL SWITCH E39 EL-WARN
E68 ALTERNATOR (GA engine) E71 EL-CHARGE
E88 ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) E78 BR-ABS
F9 ALTERNATOR (QG16, QG18, SR20, CD engine) F10 EL-CHARGE
GROUND DISTRIBUTION
EL-24

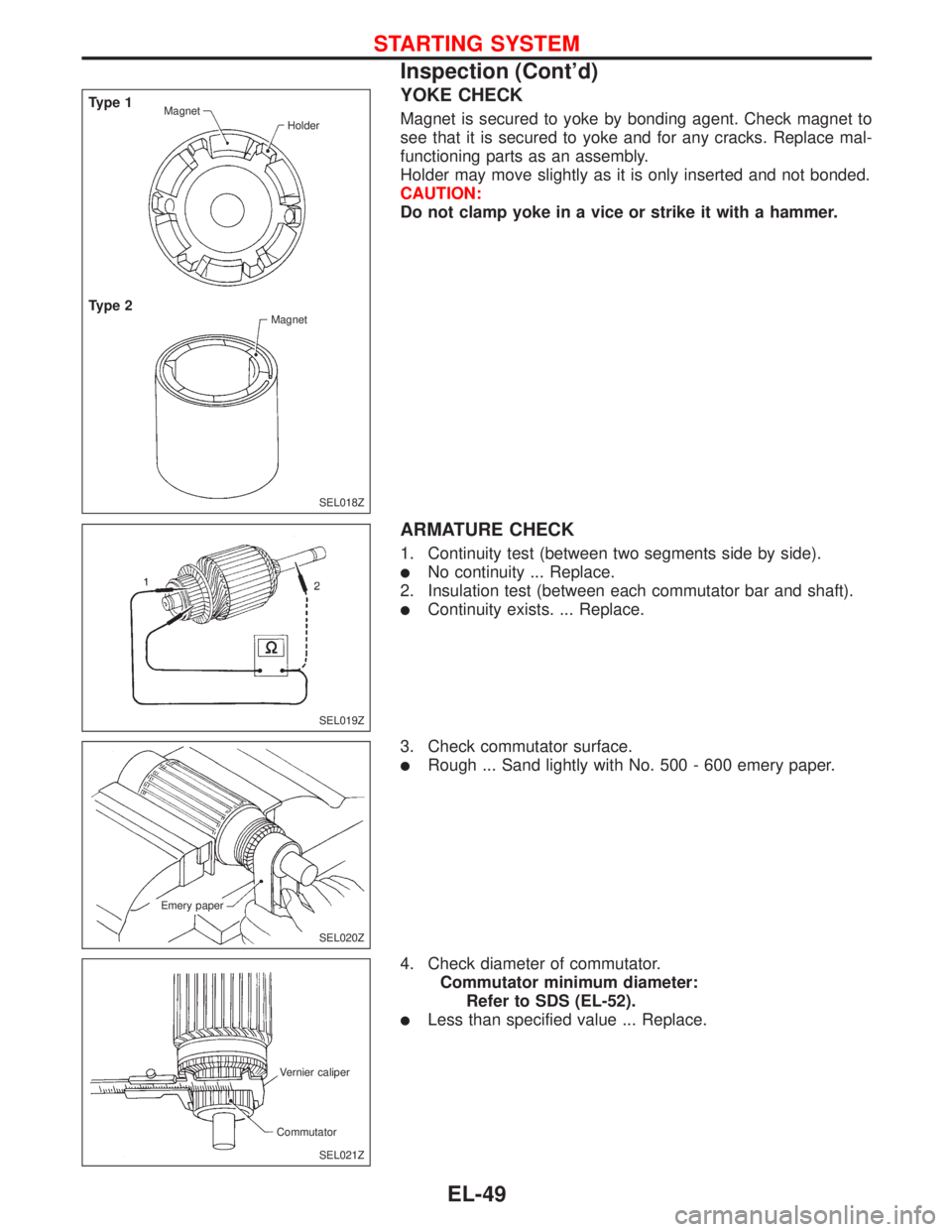

YOKE CHECK
Magnet is secured to yoke by bonding agent. Check magnet to
see that it is secured to yoke and for any cracks. Replace mal-
functioning parts as an assembly.
Holder may move slightly as it is only inserted and not bonded.
CAUTION:
Do not clamp yoke in a vice or strike it with a hammer.
ARMATURE CHECK
1. Continuity test (between two segments side by side).

No continuity ... Replace.
2. Insulation test (between each commutator bar and shaft).

Continuity exists. ... Replace.
3. Check commutator surface.

Rough ... Sand lightly with No. 500 - 600 emery paper.
4. Check diameter of commutator.
Commutator minimum diameter:
Refer to SDS (EL-52).

Less than specified value ... Replace.
SEL018Z
Type 1
Type 2Magnet
Holder
Magnet
SEL019Z
SEL020Z Emery paper
SEL021Z Vernier caliper
Commutator
STARTING SYSTEM
Inspection (Cont’d)
EL-49

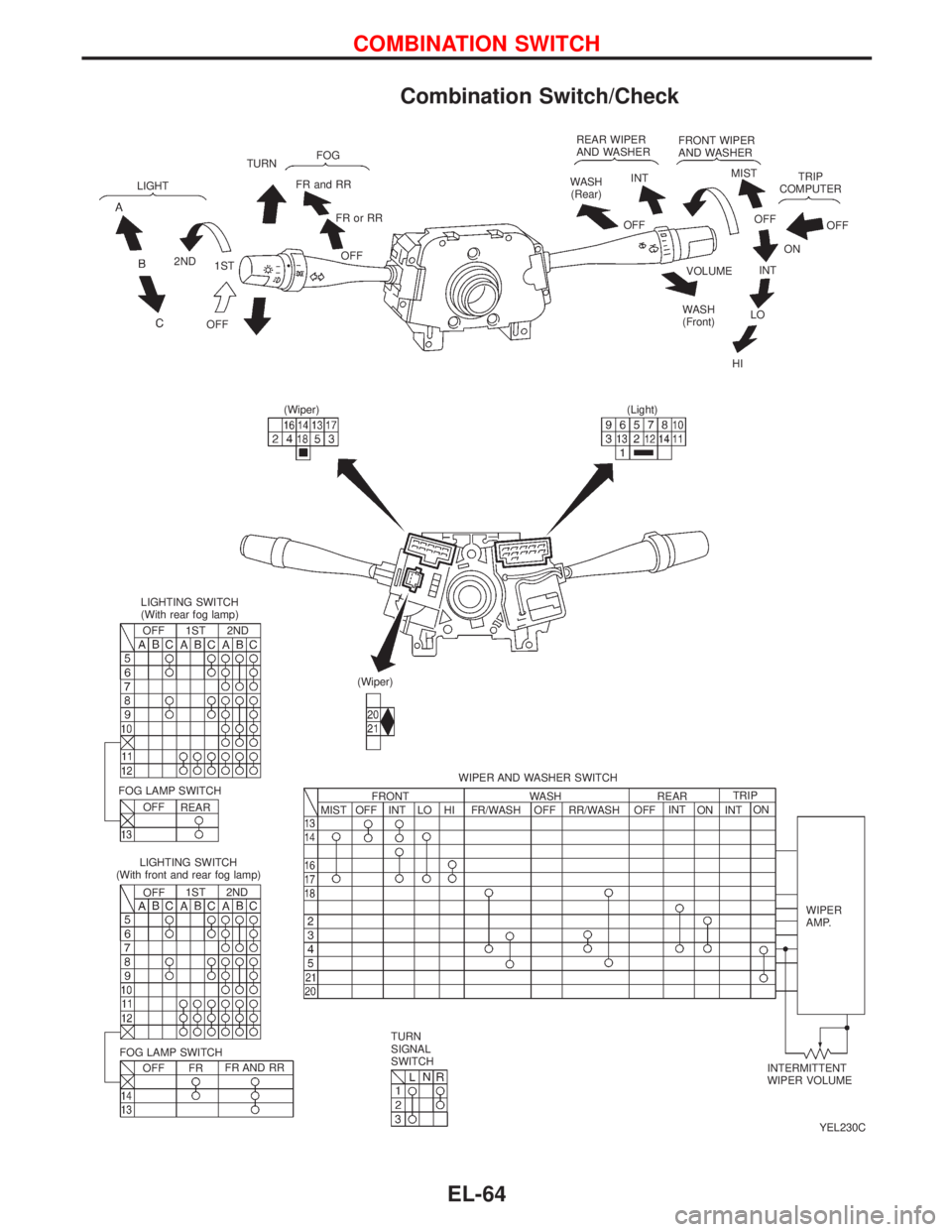

Combination Switch/Check
YEL230C LIGHTFOG
FR and RR
FR or RR
2ND
1ST
OFFOFFREAR WIPER
AND WASHERFRONT WIPER
AND WASHER
TRIP
COMPUTER WASH
(Rear)
OFFINTMIST
OFF
OFF
ON
VOLUMEINT
WASH
(Front)LO
HI
(Wiper)(Light)
(Wiper)
FOG LAMP SWITCHLIGHTING SWITCH
(With rear fog lamp)
WIPER AND WASHER SWITCH OFF
1ST2ND
FRONT
WASH
REAR
REARTRIP
MISTOFF
INT LO HI
FR/WASH
OFFRR/WASH
OFFINT
ONINTON OFF
FOG LAMP SWITCHLIGHTING SWITCH
(With front and rear fog lamp)
OFF1ST
2ND
TURN
SIGNAL
SWITCHWIPER
AMP.
INTERMITTENT
WIPER VOLUME TURN
OFF FRFR AND RR
COMBINATION SWITCH
EL-64

Replacement
For removal and installation of spiral cable, refer to RS sec-
tion [“Installation—Air Bag Module and Spiral Cable”,
“SUPPLEMENTAL RESTRAINT SYSTEM (SRS)”].

Each switch can be replaced without removing combination
switch base.

To remove combination switch base, remove base attaching
screw.

Before installing the steering wheel, align the steering wheel
guide pins with the screws which secure the combination
switch as shown in the left figure.
YEL903 Wiper and washer switch
Lighting switch Switch base
YEL904
SEL151V Combination
switchScrew
Steering wheel
guide pin
STEERING SWITCH
EL-66

Wiring Diagram—H/LAMP—
YEL257B
910
2
58 R/WR
R/B R/Y
B
113639127251110148W
7
P/L6
R/G
R/WR
3 R/Y1 R/B
E5P/L
B R/GE32
E11E37
GYE5 ,GY E32
3
2
1
:
::
:
R/BA
EL-H/LAMP-01
E111
E111
B BGS
DI
15A
31
32GS
DI15A
32
33GS
DI
BB
3 2 1
BATTERY
Refer to EL-POWER.: With gasoline engine
: With diesel engine
OFF
1ST2ND
LOW
HIGHPASSOFF
1ST2ND
LOW
HIGHPASS
LOW
HIGHPASS
LOW
HIGHPASSCOMBINATION
SWITCH
(LIGHTING
SWITCH)
LOW HIGHHEADLAMP
LH
LOW HIGHHEADLAMP
RHNext page PASS
HIGH LOW PASS
HIGH LOW
HEADLAMP (without Daytime Light System)—Conventional Type—
EL-67

YEL003D
HEADLAMP (without Daytime Light System)—Conventional Type—
Wiring Diagram—H/LAMP—(Cont’d)
EL-68

Trouble Diagnoses
Symptom Possible cause Repair order
LH headlamps do not operate. 1. Bulb
2. Grounds
E11andE37
3. 15A fuse
4. Lighting switch1. Check bulb.
2. Check grounds
E11andE37
3. Check 15A fuse [No.31 (gasoline engine),
32 (diesel engine) located in fuse and fusible link
box].
Verify battery positive voltage is present at termi-
nal

8of lighting switch.
4. Check lighting switch.
RH headlamps do not operate. 1. Bulb
2. Grounds
E11andE37
3. 15A fuse
4. Lighting switch1. Check bulb.
2. Check grounds
E11andE37
3. Check 15A fuse [No.32 (gasoline engine),
33 (diesel engine) located in fuse and fusible link
box].
Verify battery positive voltage is present at termi-
nal

5of lighting switch.
4. Check lighting switch.
LH high beams do not operate,
but LH low beam operates.1. Bulbs
2. Open in LH high beams circuit
3. Lighting switch1. Check bulbs.
2. Check R/B wire between lighting switch and LH
headlamps for an open circuit.
3. Check lighting switch.
LH low beam does not operate,
but LH high beam operates.1. Bulb
2. Open in LH low beam circuit
3. Lighting switch1. Check bulb.
2. Check R/Y wire between lighting switch and LH
headlamp for an open circuit.
3. Check lighting switch.
RH high beams do not operate,
but RH low beam operates.1. Bulbs
2. Open in RH high beams cir-
cuit
3. Lighting switch.1. Check bulbs.
2. Check R/G wire between lighting switch and RH
headlamps for an open circuit.
3. Check lighting switch.
RH low beam does not operate,
but RH high beam operates.1. Bulb
2. Open in RH low beam circuit
3. Lighting switch1. Check bulb.
2. Check P/L wire between lighting switch and RH
headlamp for an open circuit.
3. Check lighting switch.
High beam indicator does not
work.1. Bulb
2. Grounds
M6,M26andM28
orE11andE39
3. Open in high beam circuit1. Check bulb in combination meter.
2. Check grounds
M6,M26andM28orE11and
E39.
3. Check R/B wire between lighting switch and com-
bination meter for an open circuit.
HEADLAMP (without Daytime Light System)—Conventional Type—
EL-69
