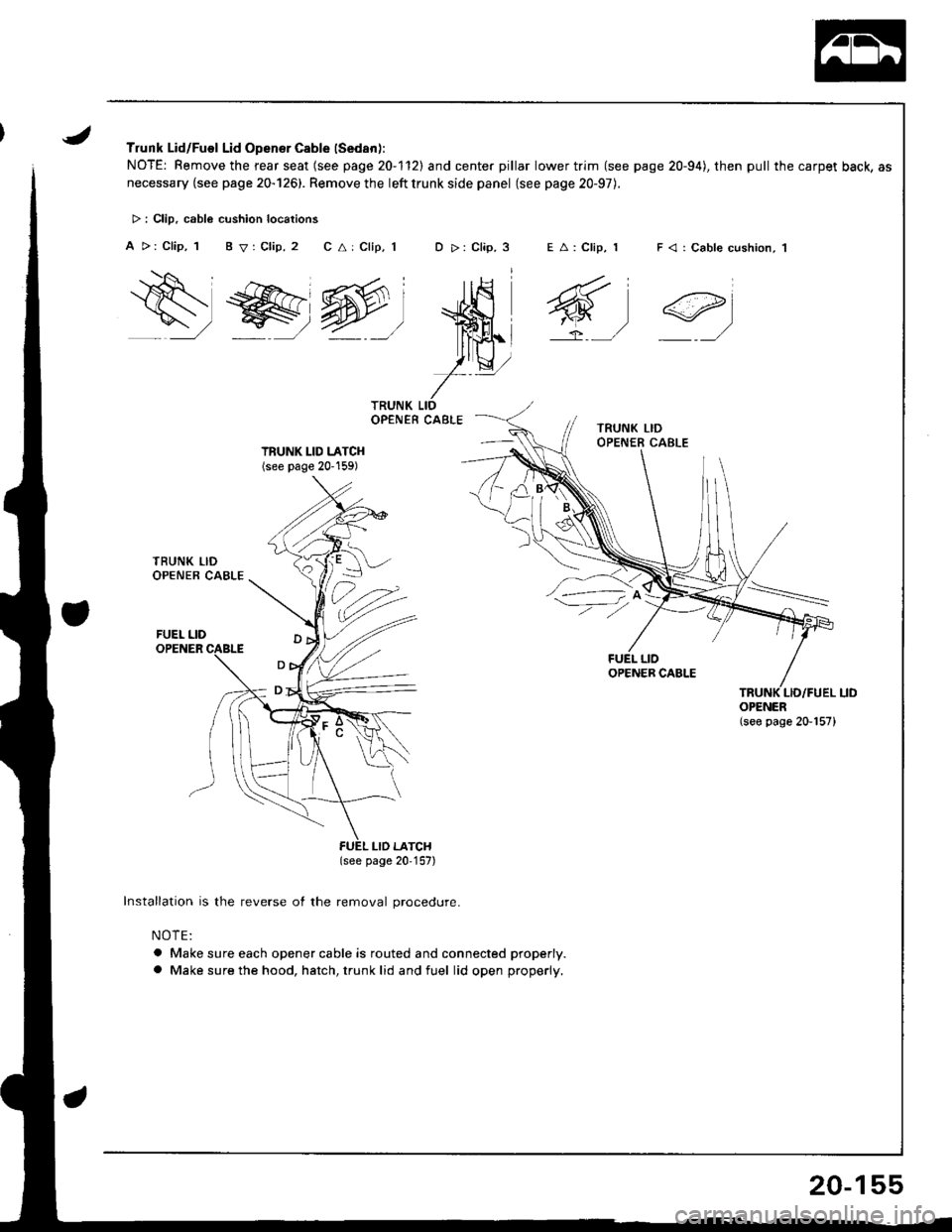

Trunk Lid/Fuel Lid Opener Cable (Sedan):
NOTE: Remove the rear seat (see page 20-1'l2l and center pillar lower trim (see page 20-94), then pull the carpet back, as
necessary {see page 20-126). Remove the left trunk side panel (see page 20-97).
C a: Clip, 1E A: Clip, 1D >: Clip, 3
w-l
)tQ,,
r-
> : Clip. cabl6 cushion locations
A >: Clip, 1 B V: Clip, 2
Qs , r>>.
lww-
F < | Cable cushion, 1
6t
ei
TRUNK LID LATCH(see page 20'159)
(see page 20,157)
Installation is the reverse of the removal procedure.
NOTE:
a Make sure each opener cable is routed and connected properly.
a Make sure the hood, hatch, trunk lid and fuel lid open properly.
OPENER(see page 20-157)
20-155

Opener and Latch
Replacement

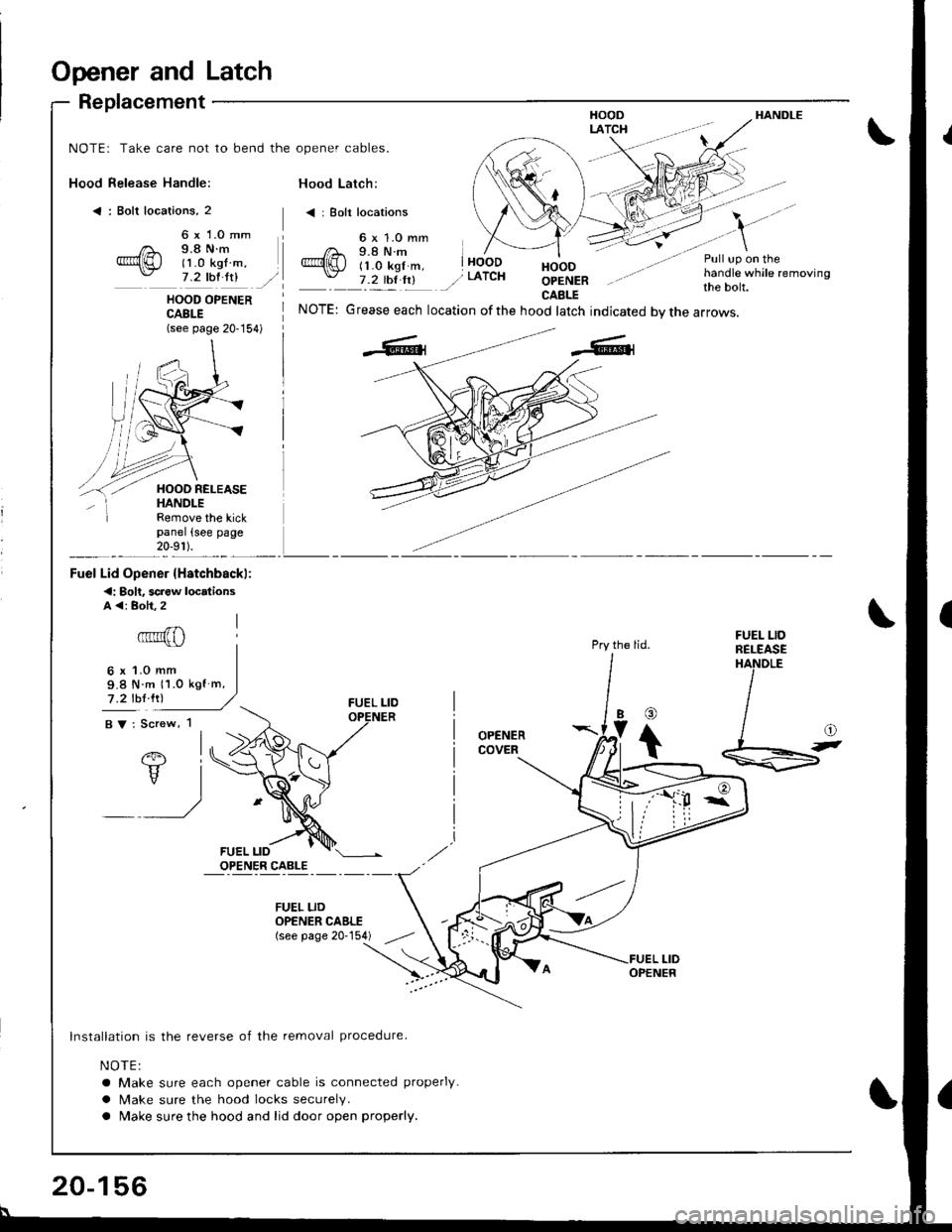

Hood Release Handle:
< : Bolt locations, 2
HANDLE
NOTE: Take care not to bend the opener cables.
Hood Latch:
< | Bolt locations
6 x 1.0 mm9.8 N.m(1 .0 kgf m,7 .2 thl ltlHOODOPENERCAELE
Pull up on thehandle while removingthe bolt.HOOD OPENERCABLE(see page 20-154)
NOTE: Grease each location ofthe hood latch indicated bvthe arrows.
Pry the lid.
OPENERCOVER
Remove the kickpanel (see page20-9r ).
Fuel Lid Opener {Hstchbackl:
<: Bolt. screw locdionsA <: Boh.2
6x1.0mm9.8 N m 11.0 kgf m,
7 .2 lbl lrl
BV: Screw, 1
FUEL LIDRELEASEHANDLE
@
Ib
t
lnstallation is the reverse of the removal procedure.
NOTE:
a Make sure each opener cable is connected properly.
a Make sure the hood locks securely.
a Make sure the hood and lid door open properly.
FUEL LIDOPENER CAELE(see page 20-154)
20-156

NOTE: Take care not to bend the opener cables.

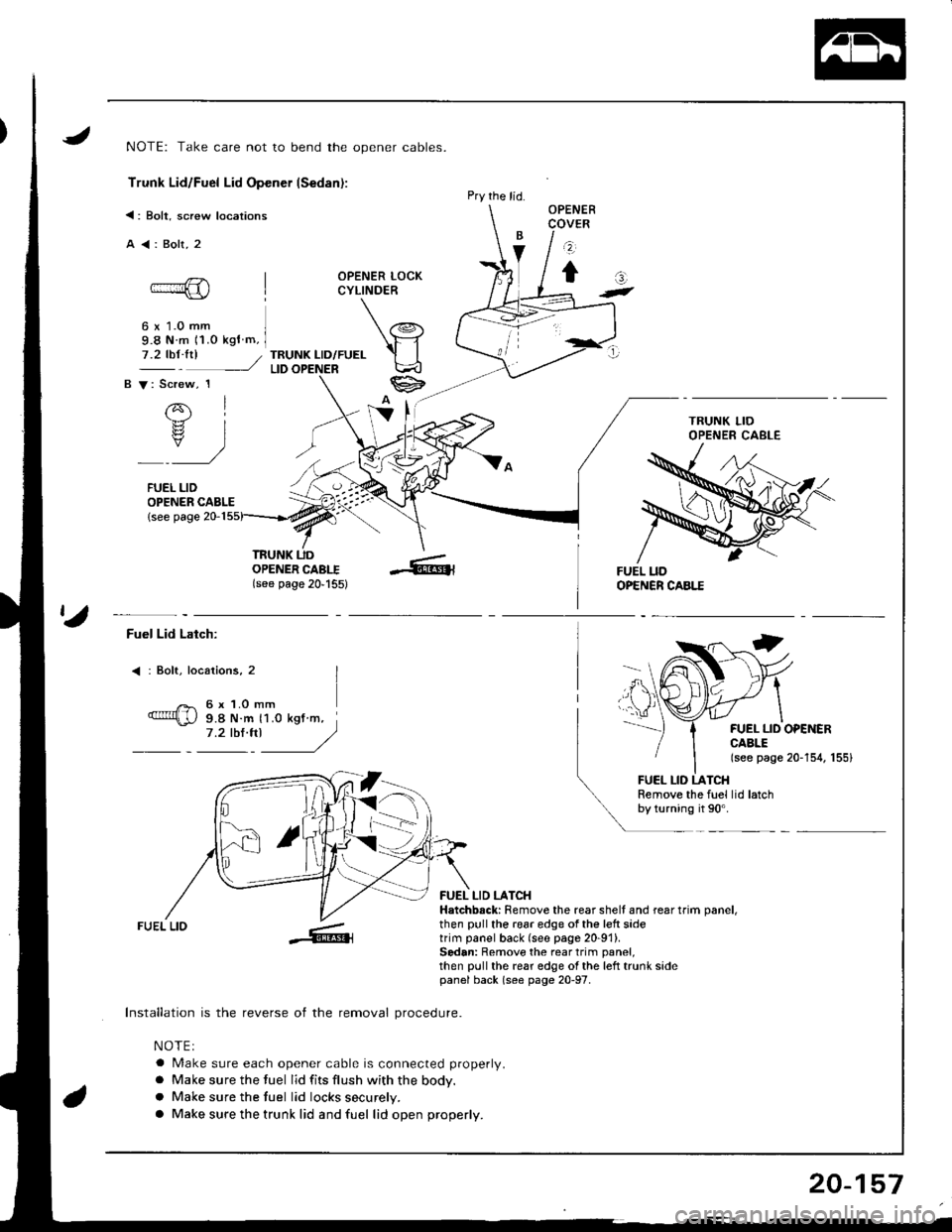

Trunk Lid/Fuel Lid Opener lSedan):
<: Bolt, screw locations
A<:Bolt,2
OPENER LOCKCYLINDER
6 x 1.0 mm9.8 N m 11.o kgf m,
TRUNK LID/FUELLID
OPENER CABLE{see page 20-1
OPENERCOVER
z
tat-
7.2 tbt.trl /
B V: Screw, 1
rql.b.rz
rs? IY)
FUEL LID
TRUNK UDOPENER CABI.I(see page 20'155)
Pry the lid.
ta
Fuel Lid Latch:
: Bolt, locaiions, 2
6 x 1.O mm9.8 N.m 11.0 kgt m,7.2 tbl.trl J/)
FUEL LID OPEiIERCABLE(see page 20-154, 155)
FUEL LID LATCHRemove the fuel lid latchby turning it 90'.
FUEL LIO
Installation is the reverse of the removal procedure.
NOTEI
a Make sure each opener cable is connected properly.
a Make sure the fuel lid fits flush with the body.
a Make sure the tuel lid locks securely.
a Make sure the trunk lid and fuel lid open properly.
FUEL LID LATCHHatchbsck: Remove the rear shell and rear trim oanel,then pull the 196r edge of the left sidetrim panel back (see page 20-91).Sedan: Remove the rear trim panel,then pull the rear edge ol the left trunk sidepanel back (s€e page 20-97.
20-157

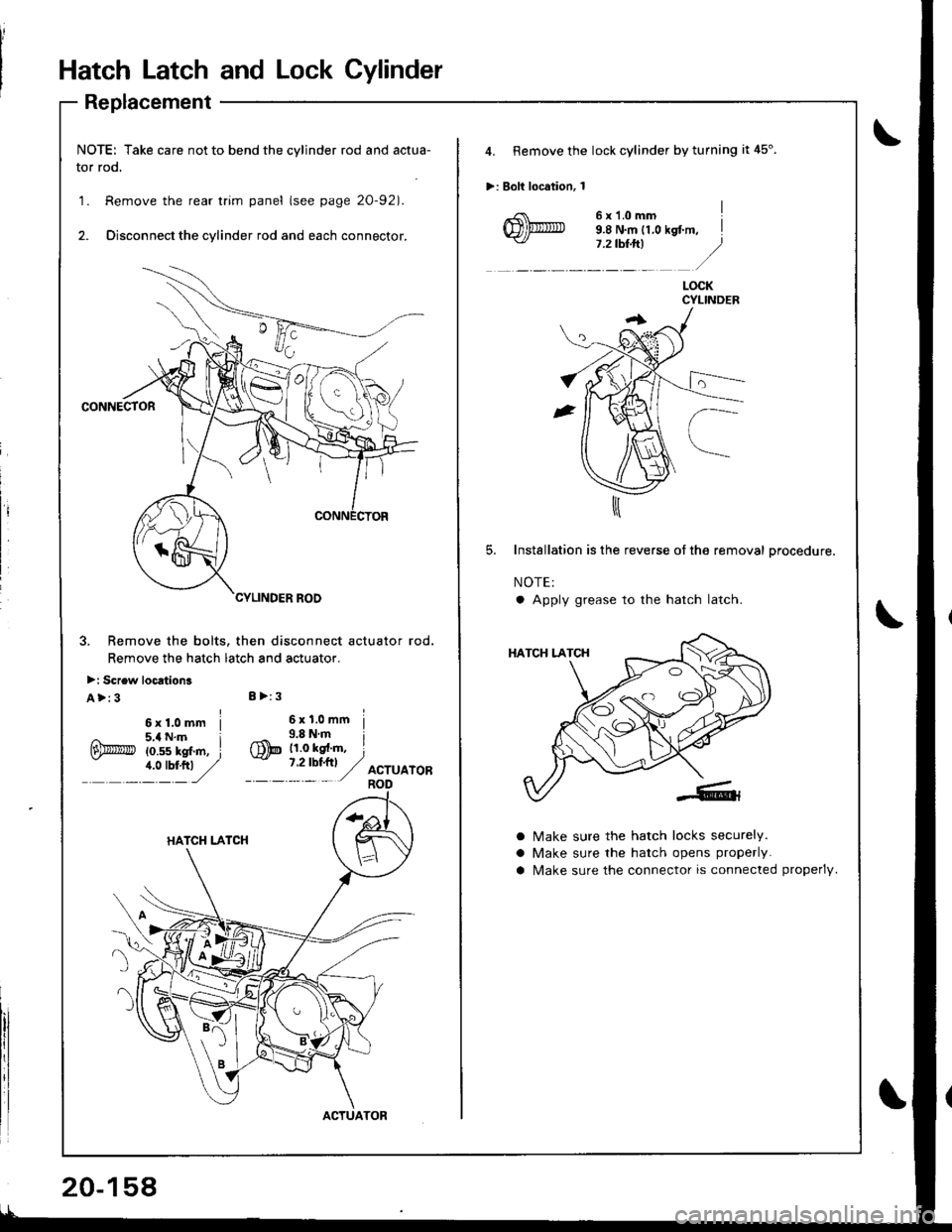

Hatch Latch and Lock Cylinder
Replacement
NOTE: Take care not to bend the cylinder rod and actua-
tor rod.
1. Remove the rear trim panel (see page 20-921.
2. Disconnect the cylinder rod and each connector.
CONNECTOR
3. Remove the bolts. then disconnect actuator rod.
Remove the hatch latch and actuator.
>: Screw loc6tion3
A>:3I >:3
ACTUATOR
20-158
4. Remove the lock cylinder by turning it 45".
>: Bolt location, 1
6x1.omm I9.8 N.m 11,0 kst m, il.ztb$ft| .)
lt: /
LOCKCYLINDEB
Installation is the reverse of the removal procedure.
NOTE:
a Apply grease to the hatch latch
a
a
a
Make sure the hatch locks securely.
Make sure the hatch opens properly.
N4ake sure the connector is connected properlV.

Trunk Lid Latch and Lock Cylinder
Replacement
JNOTE: Take care not to bend the cylinder rod and trunk
lid opener cable.
1. Disconnect the connector and trunk lid opener cable.
4. Remove the bolt, then pull the lock cylinder out. Re
move the lock cylinder {rom the cylinder rod, then
take them out.
: Bolt location, 1
CONNECIOR
LOCKCYLINDER
r>'
2. Disconnect the cylinder rod.
CYLINDERROD
CYLINOER ROD
5. lnstallation is the reverse of the removal procedure.
NOTE:
a Apply grease to the trunk lid latch.
Remove the bolts, then remove the trunk lid


: Boli locations, 3
TRUNK LIDLATCH
3.latch.
6x1.0mm ILOCK CYLINDER
9.8 N.m 11.0 kgf m, I
:t"r': -/
a
a
a
Make sure the trunk lid locks securely.
N/ake sure the trunk lid opens properly.
Make sure the connector is connected properly.
20-159

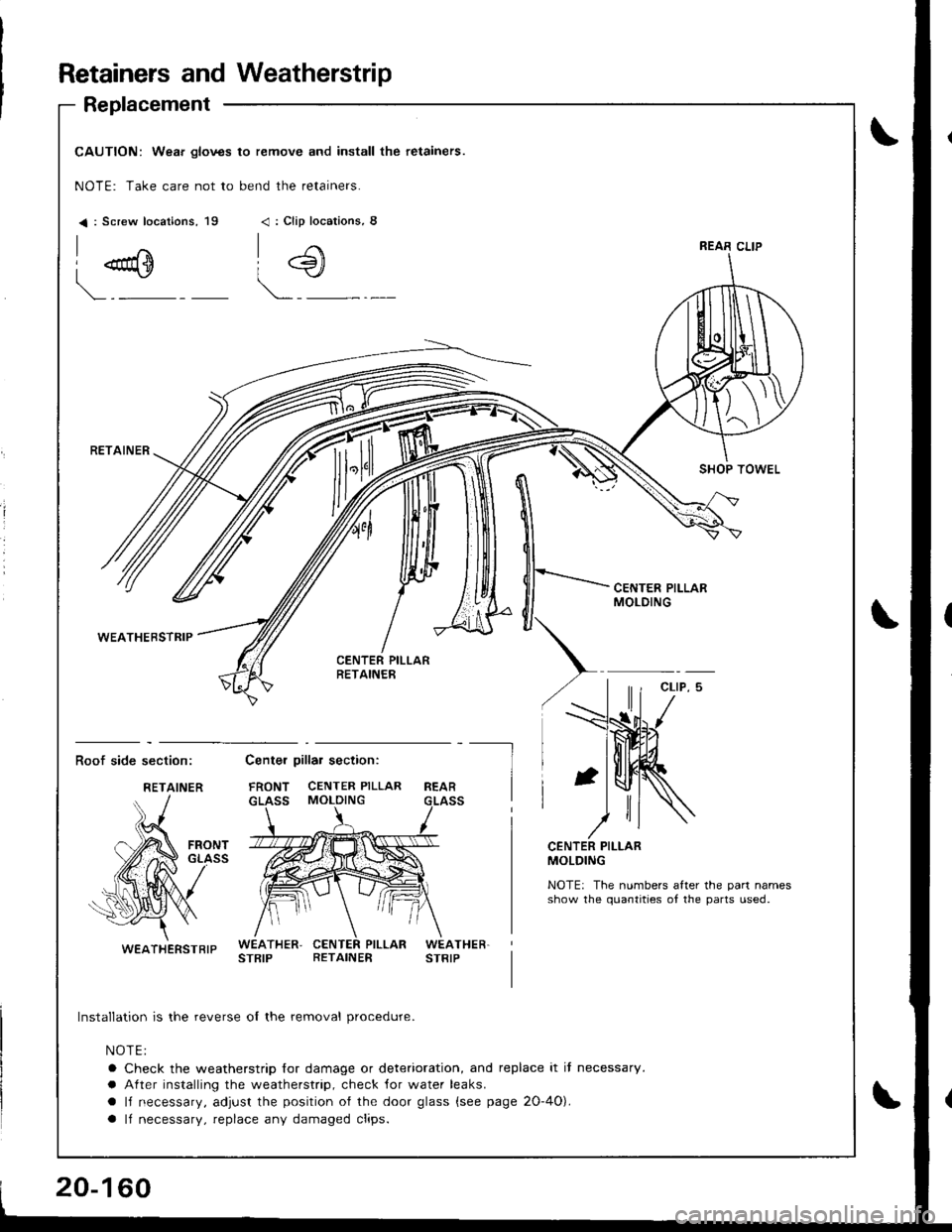

Retainers andWeatherstrip
Replacement
I
CAUTION: Wear glov3s to remove and install the retainers.
NOTE: Take care not to bend the retainers.
< : Screw locations, 19< : Clip locarions, 8
I "u+
\.-"
i4)
RETAINER
WEATHEBSTRIP
SHOP TOWEL
CEf{TER PILLARMOLDING
Roof side section:Center pillar section:
FRONT CENTER PILLAR
GLASS MOLDINGREAR
--l
I
FRONTGLASSCENTER PILLARMOLDING
NOTE: The numbers after the par1 namesshow the quantities ot the pans used.
WEATHER,STRIPPILLARWEATHER.STRIPRETAINER
Installation is the reverse of the removal procedure.
NOTE:
a Check the weatherstrip for damage or deterioration, and replace it it necessary.
a After installing the weatherstrip, check ,for water leaks.
a lJ necessary, adjust the position of the door glass (see page 2O-4O).
a ll necessary, replace any damaged clips.
REAR CLIP
RETAINER
WEATHERSTBIP

J

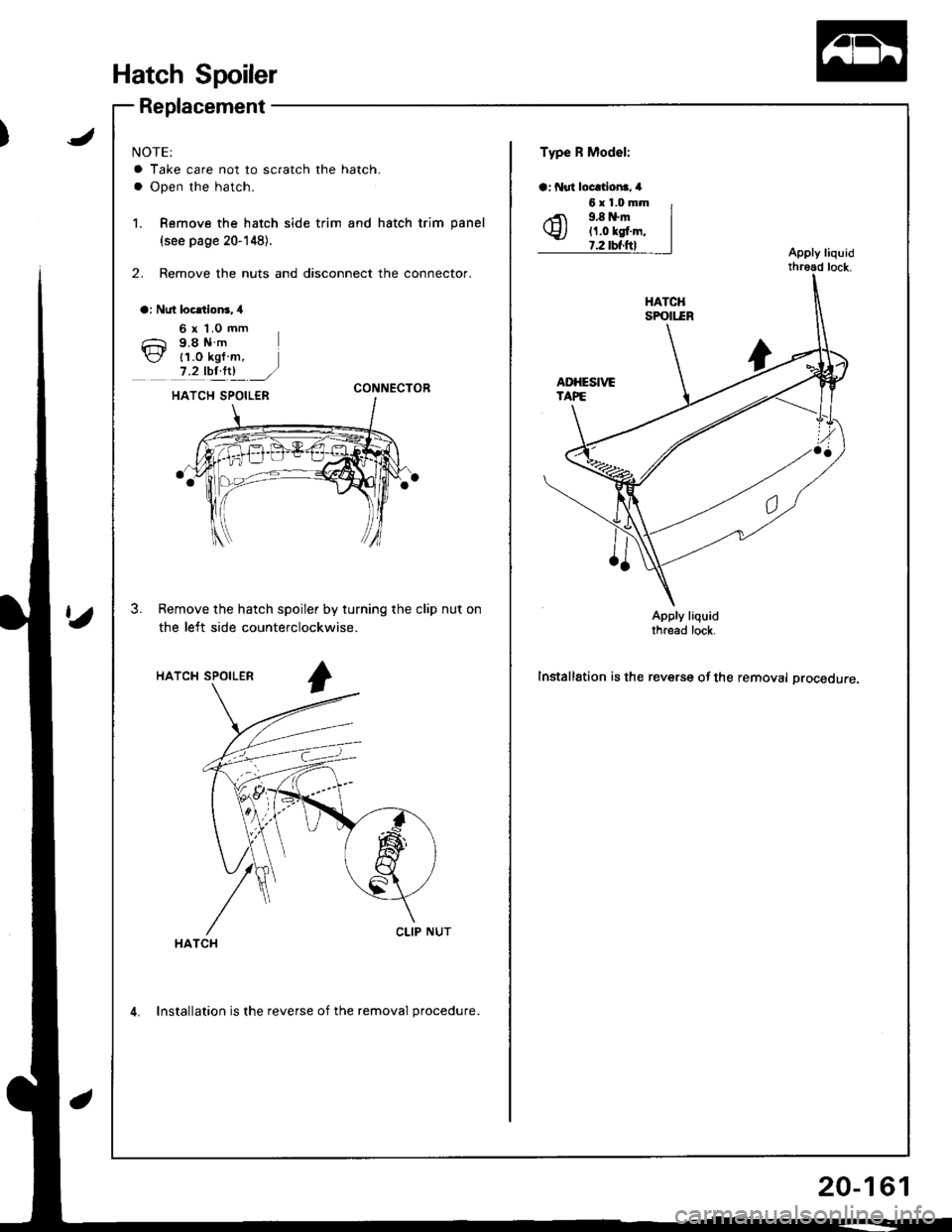

Hatch Spoiler
Replacement
NOTE:
a Take care not to scratch the hatch.
a Open the hatch.
1. Remove the hatch side trim and hatch trim panel
{see page 20-148}.
2. Remove the nuts and disconnect the connector.
a: Nut locltion3,4
Type R Model:
a: f{ut locltlona, 4
Apply liquidthread lock.
6 x 1.0 mm9.8Nm
{1.0 kgf m,7.2 tbt.ltl ./CONNECTOR
3. Remove the hatch spoiler by turning the clip nut on
the left side counterclockwise.Apply liquidthread lock.
Installation is the reverse of the removal procedure.HATCH SPOILER
HATCH
6x1.0mm9.8 N.m11.0 kgt.m,?.2 tbt.ftl
4. Installation is the reverse of the removal procedure.
20-161

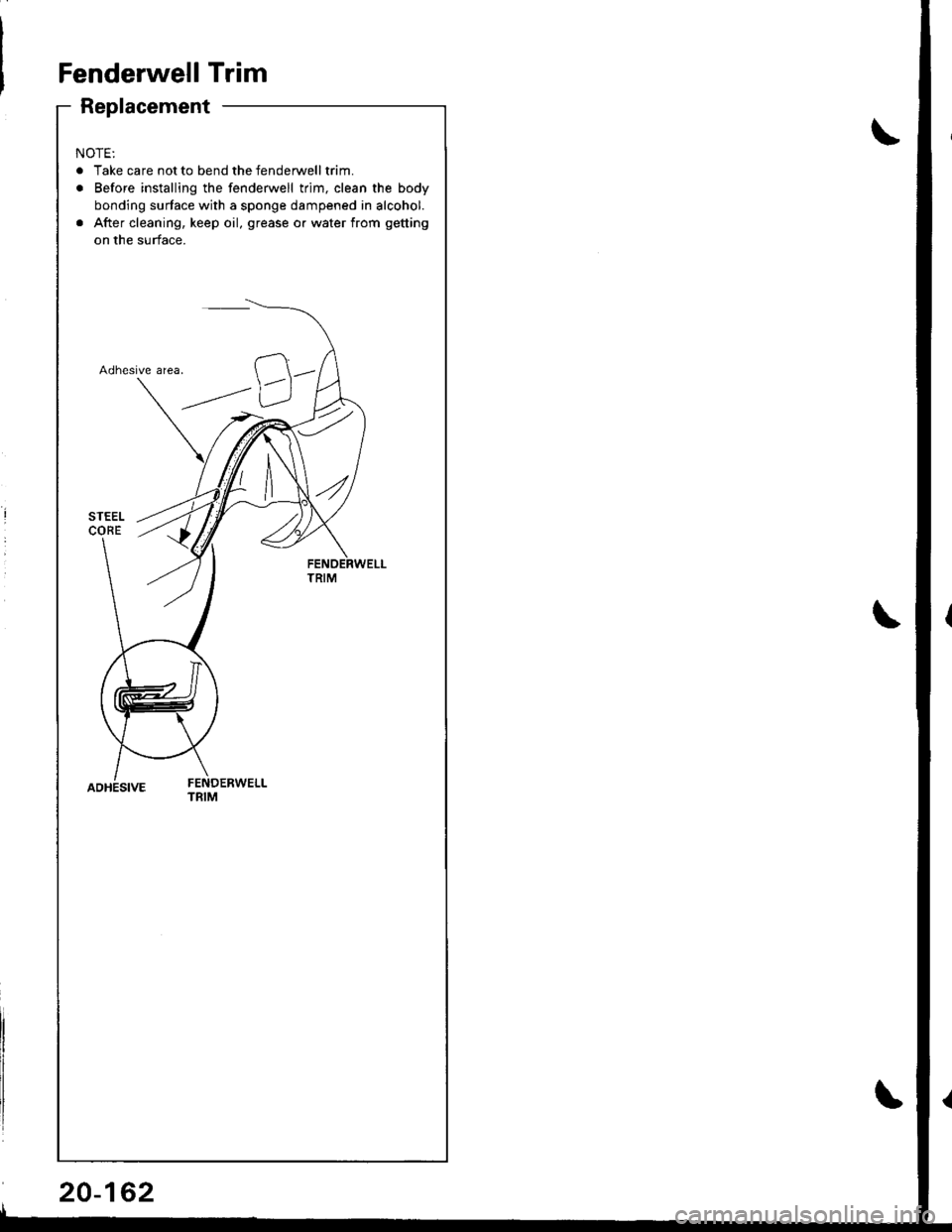

Fenderwell Trim
Replacement
NOTE:
. Take care not to bend the fenderwelltrim.
. Before installing the fenderwell trim, clean the body
bonding surface with a sponge dampened in alcohol.
. After cleaning, keep oil, grease o. water from getting
on the surface.
Adhesive area.
ADHESIVEFENDERWELLTRIM
