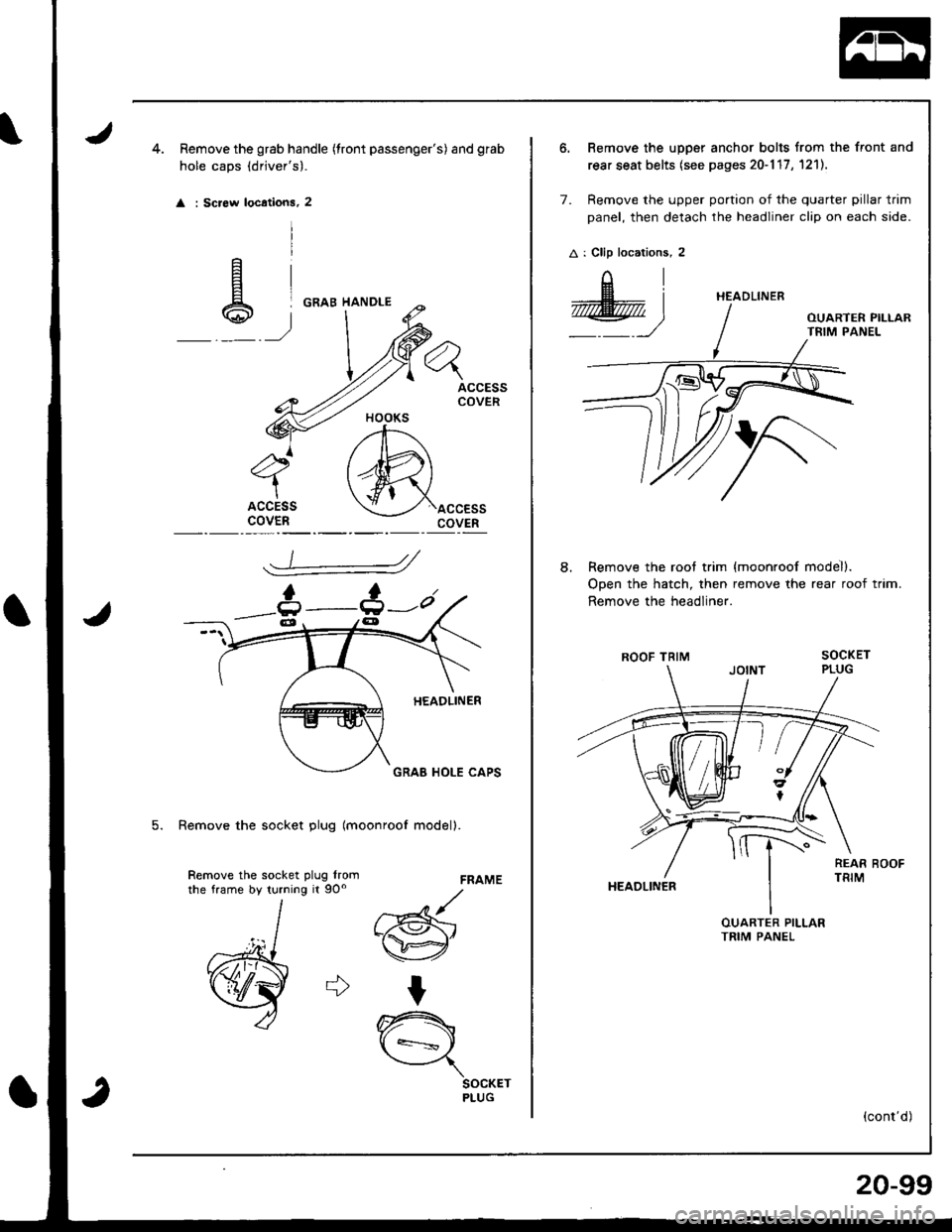

Remove the grab handle (tront passenger's) and gfab
hole caps (drjver's).


: Screw locations, 2
ACCESSCOVER
ACCESScovEnaccEssCOVER
FRAME
d
w"
t
A
\={
SOCKETPLUG
5. Remove the socket plug lmoonroof modell.
Remove the socket plug lromrhe frame by turning it 9Oo
6. Remove the upper anchor bolts from the front and
rear seat belts (see pages 20-117 , 1211.
7. Remove the upper portion of the quarter pillar trim
panel, then detach the headliner clip on each side.
A : Clip locations, 2
AI
@)
Remove the roof trim
Open the hatch, then
Remove the headliner.
ROOF TRIM
HEAOLINER
{moonroof model).
remove the rear roof trim.
(cont'd)
HEADLINER
8.
20-99

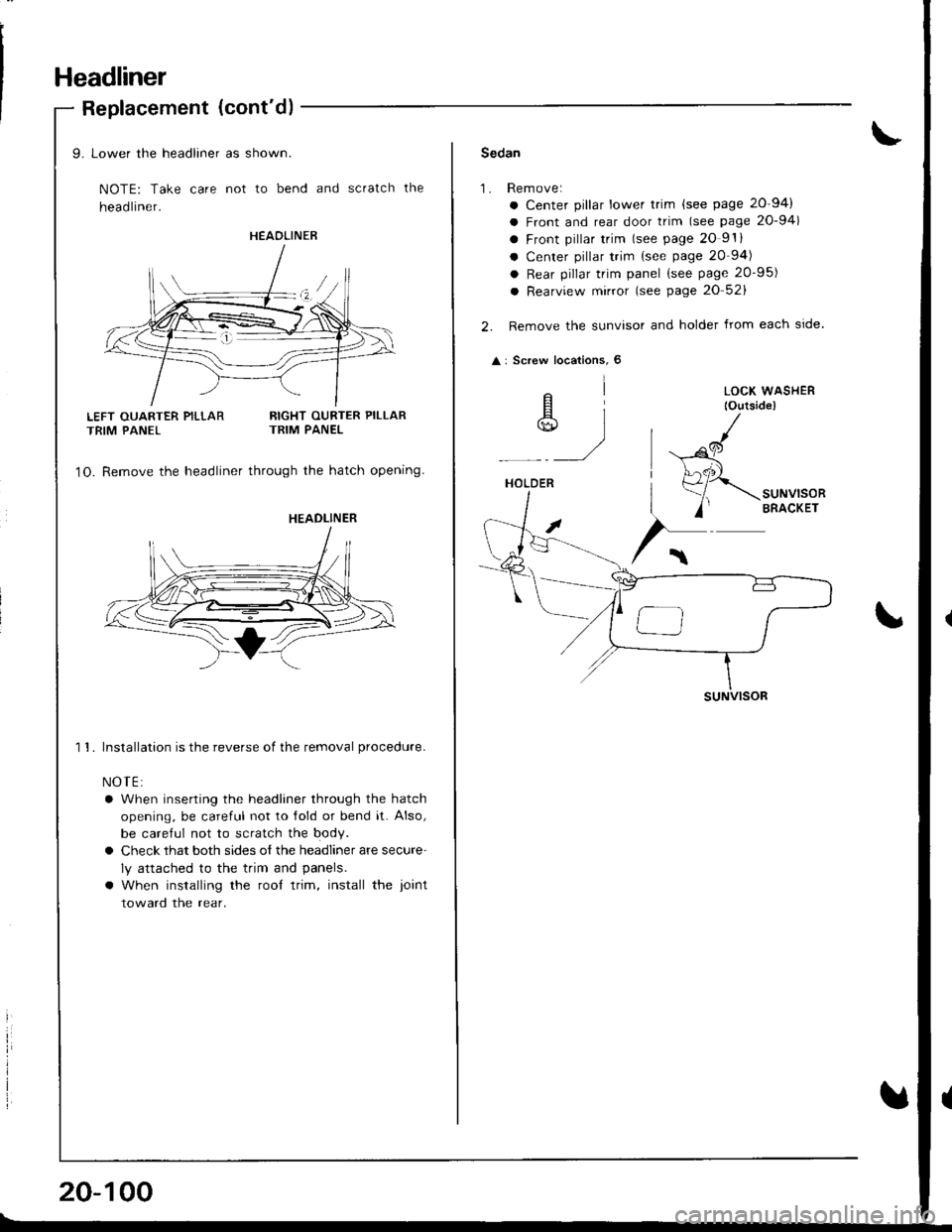

Headliner
Replacement (cont'd)
LEFT OUARTER PILLARTRIM PANEL
9. Lower the headliner as shown.
NOTE: Take care not to bend and scratch the
head liner.
RIGHT OURTER PILLARTRIM PANEL
1O. Remove the headliner through the hatch opening
1 1. Installation is the reverse of the removal procedure.
NOTE:
a When inserting the headliner through the hatch
opening, be careful not to lold or bend it. Also,
be careful not to scratch the body.
a Check that both sides o{ the headliner are secure'
ly attached to the trim and panels.
a When installing the rool trim, install the ioint
toward the rear.
HEAOLINER
HEADLINER
20-100
Sedan
1.Rem ove:
a Center pillar lower trim {see page 20-94)
a Front and rear door trim (see page 20-94)
a Front pillar trim lsee page 20 9'.
a Center pillar trim {see page 20 94)
a Rear pillar trim panel (see page 20-95)
a Rearview mirror (see page 20 52)
Remove the sunvisor and holder from each side.
: Screw locations, 6
elA]*)
HOLDER
suNVlsoR
LOCK WASHER
lOutside)
,al
(

3. Remove the front and rear ceiling lights, then djs
connect the connectofs.


: Screw, nut locations
AA
CONNECTOR
FRONTLIGHTCEILING
REAR CEILINGLIGHT
HOOK
A
N
LENS
CONNECTOR
Remove the grab handles (Iront and
senger's) and grab holF caps {dl|ver'sr.
GRAB HANDLE
GRAE HOLE CAPS
Screw locations.
ciEI
6t
J-.
20-101

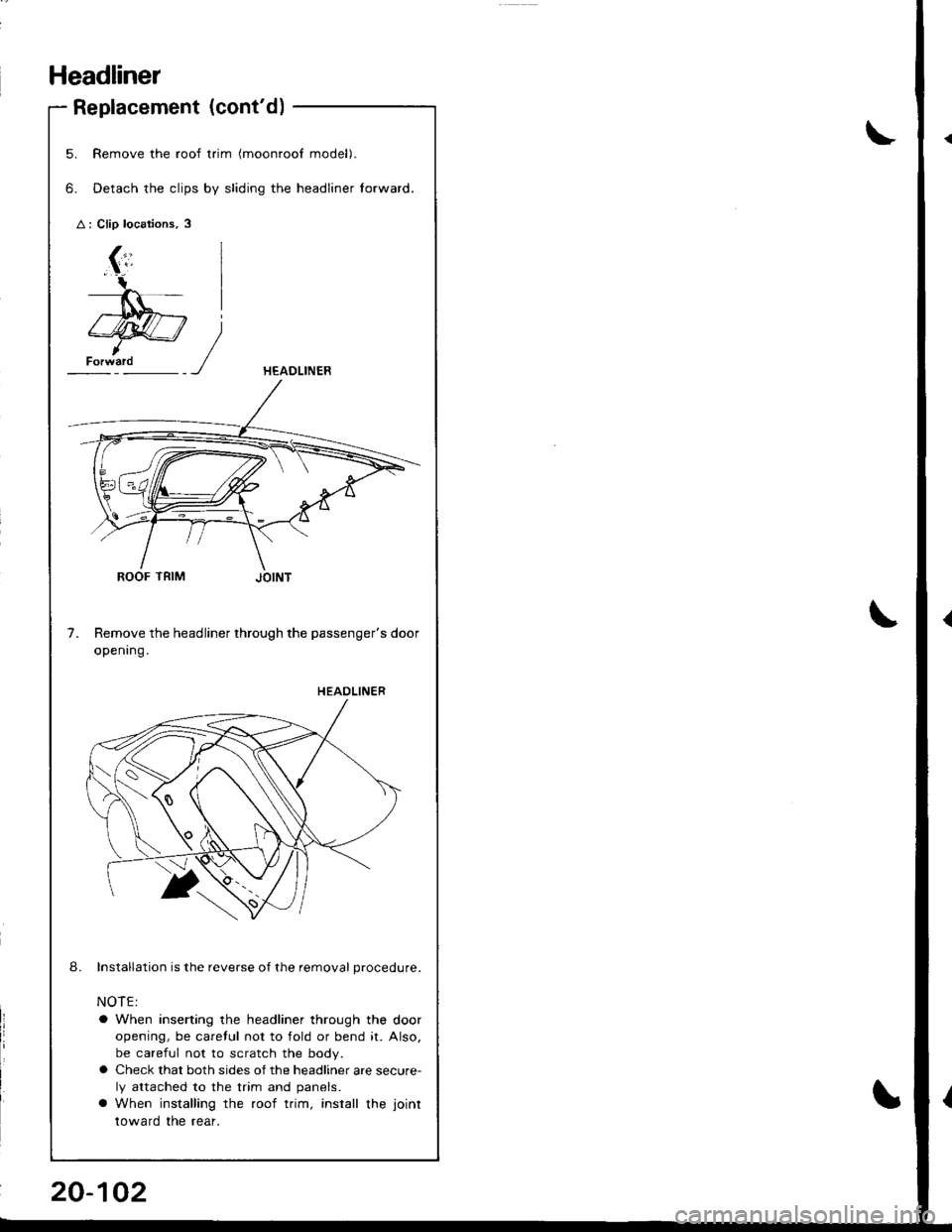

Headliner
Replacement (cont'd)
5.
6.
Remove the roof trim (moonroof model).
Detach the clips by sliding the headliner torward.
ROOF TRIM
Remove the headliner through the passenger's door
openrng.
Installation is the reverse of the removal procedure.
NOTE:
a When inserting the headliner through the door
opening, be caretul not to fold or bend it. Also,
be careful not to scratch the body.
o Check that both sides of the headliner are secure-
ly attached to the trim and panels.
a When installing the roof trim, install the joint
toward the rear.
)
7.
8.
HEAOLINER
HEAOLINER

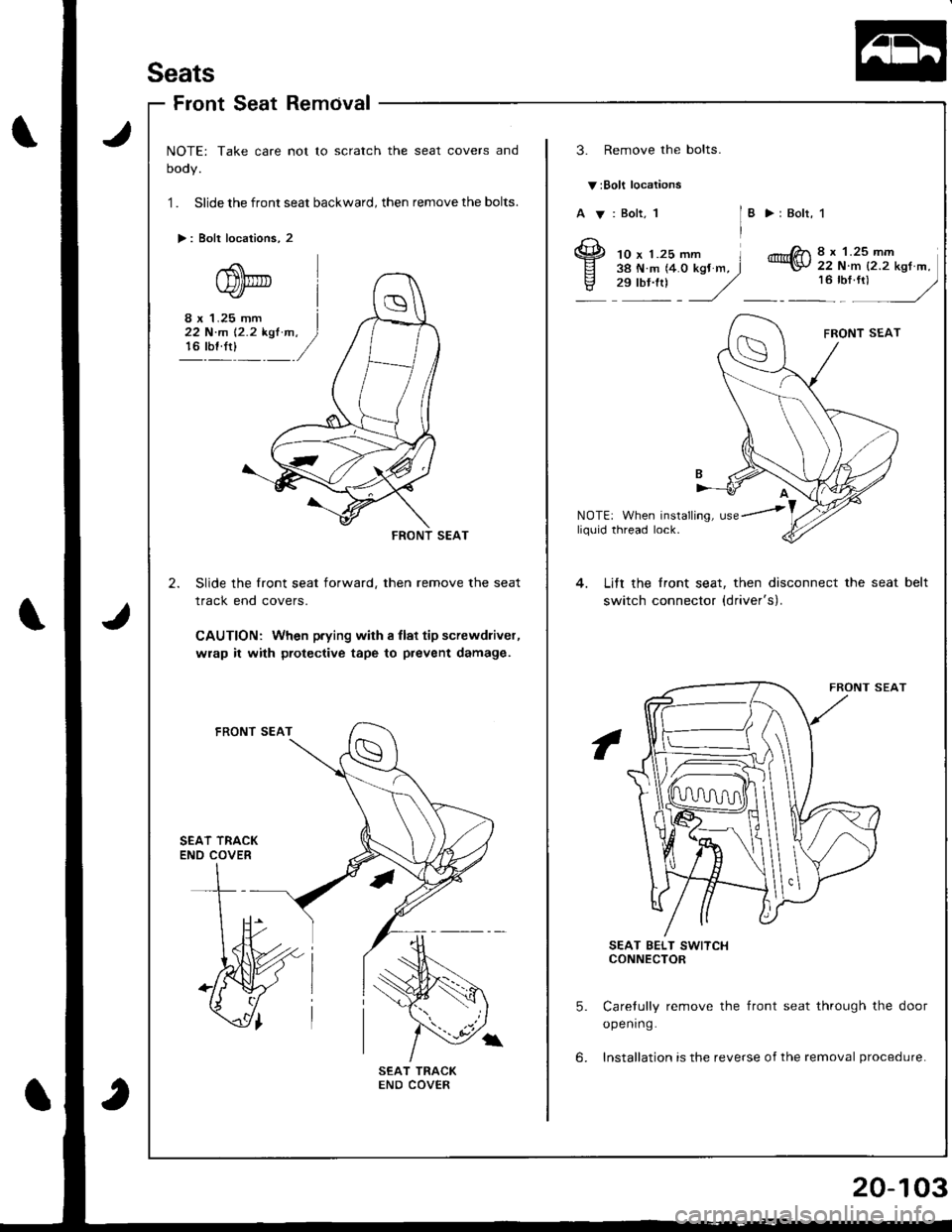

Seats
FrontSeatRemcival
NOTE: Take care not to scratch the seat covers and
oooy.
1 . Slide the front seat backward, then remove the bolts.
>: Bolt locations, 2
3. Remove the bolts.
v:Bolt locations
A V: Bolt, 1I >:Bolr, 1
10 x 1.25 mm l38 N.m (4.0 kgJ m, J,":: J
8 x 1.25 mm22 N.m {2.2 kgt m,
:u",: -/
8 x 1.25 mm I22 N'm 12.2 kst m. )16 rbf.rt)_ /
NOTE: When installing, usey'
--RONT SEAT
2. Slide the front seat forward, then remove the seat
track end covers.
CAUTION: When p.ying with I llat tip screwdliver,
wrap it with protective tape to prevent damage.
liq0id thread lock.
Lift the lront seat, then disconnect the seat
switch connector {driver's).
belt
SEAT TRACKENO COVER
SEAT BELT SWITCHCONNECTOR
5. Carelully remove the front seat through the door
opening.
6. Installation is the reverse of the removal procedure.

Seats
Front Seat Replacement
CENTER COVER
NOTEr Take care not to scratch the seat covers and
oooy.
l. Remove the front seat through the door opening (see
page 20-'103).
2. Remove the screws and recline knob, then remove
the recline cover.
SCREW
l-{O
BECLINE KNOB
3. Remove the screws, then remove the center cover.
SEAT BELTBUCKLE(see page 20-119)
scREws
4. Remove the hook and fastener, then fold the seat-back cover back.
RECLINE COVER SCREW
20-104
5. Fold the seat-back Qover and pad, then remove the
bo lts.
>: Boli locations, 2
SEAT.EACKCOVER
PAD
6. Remove the pivot nut.
PLAINWASHER
PIVOT NUT8 x 1.25 mm22 N.n (2.2 kgt m,'t 6 tbt.ttl
Remove the seat-back.
NOTE: Take care not to bend the hinge bracket.
10 x 1.25 mm47 N.m 14.8 kgf.m,3!'oli1 /
7.
+ sEAr-BAcK
-A\
@ )\
f\

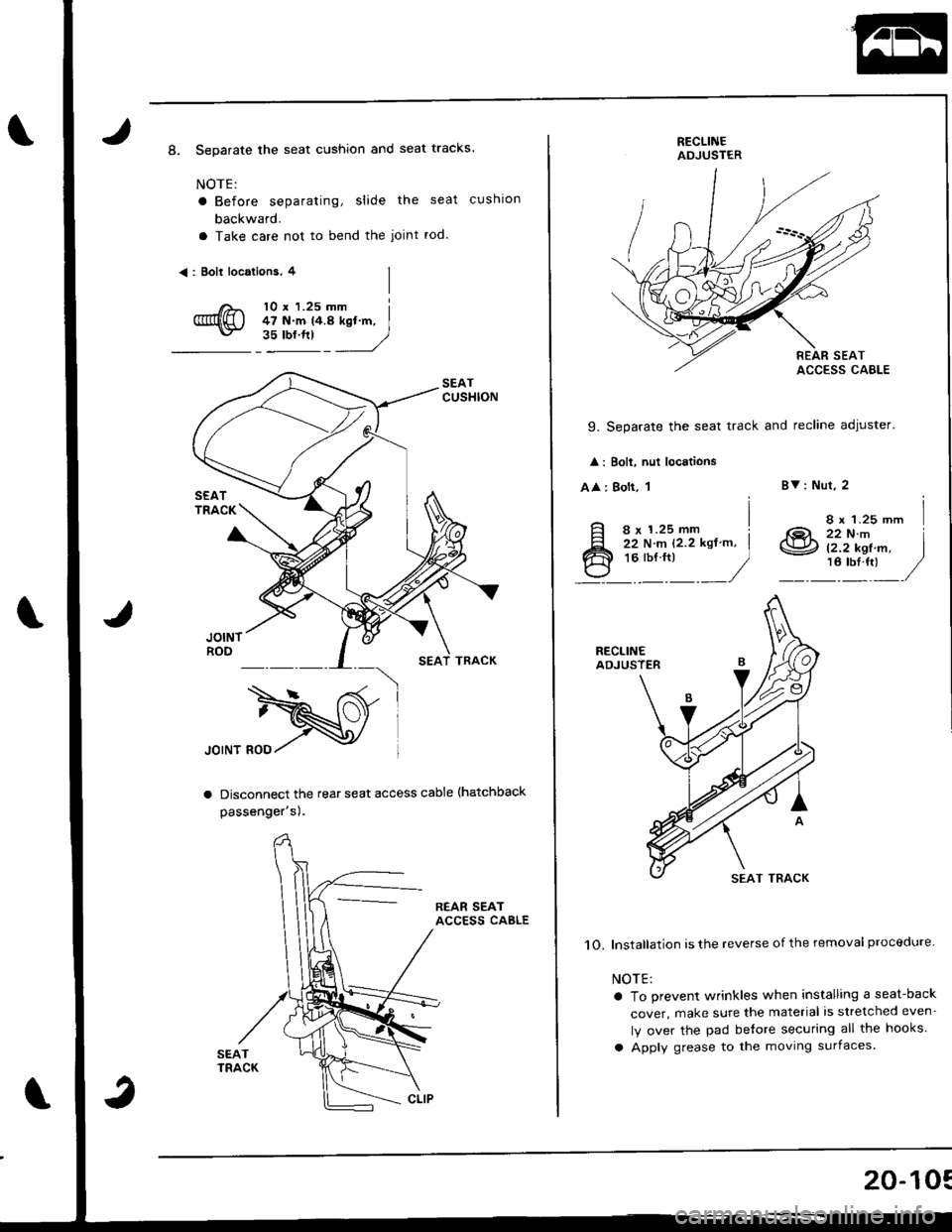

8. Separate the seat cushion and seat tracks.
NOTE:
a Before separating, slide the seat cushlon
backward.
a Take care not to bend the joint rod.
<: Bolt locations, 4
10 r 1.25 mm i47 N.m t4.a kd.m, I"::'^ _*_L
Disconnect the rear seat access cable (hatchback
passenger sl.
REAR SEATACCESS CAELE
RECLINEADJUSTER
9. Separate the seat track and recline adjuster'
: Boli, nut locations
AA : Bolt, 1
iI8 x 1.25 mm !ii rrr.- rz.z ror'., I**:_
_/
BV: Nut, 2
8 t 1.25 mm
.1QL zz ttt.-\S2 (2.2 kef m.16 tbl.ttl
I
RECLINEADJUSTER
1O. lnstallation is the reverse of the removal proceclure.
NOTE:
a To prevent wrinkles when installing a seat-back
cover, make sure the material is stretched even-
ly over the pad betore securing all the hooks.
a Apply grease to the moving surfaces.
20-10:

Seats
Front Seat Disassembly and Reassembly
CAUTION: When prying with a tlat tip screwdriver, wrap it with protective tape to pravont damage.
NOTE: Take care not to scratch the body or tear the seat covers.
Driver's seat (manual height adiustment):
HEADREST
SEAT CUSHION
PIVOT NUT8 x 1.25 mm22 N.m 12.2 kg{.m,16 |bnft)
BUSHING
HOOK
LUMBERSUPPORTKNOB
cuP
CENTER
RECLINEAI!USTER
8 x 1 .25 mm2.2 N.m {2.2 kgf.m,10 x 1.25 mm47Nm{4.Ekgl.m,35 tbt.ftl
CLIP
16 tbf.ftlRECUNECOVER
SEATTRACK
WASHER
8 x 1.25 mm22N-m l2.2kgl.m,16 tbtftl
SEAT TRACK
Reassembly in the reverse order of disassembly.
REARHEIGHTKNOA
8 x 1.25 mm20 N.m 12.0 kgt.m,14 tbtft)
CLIP
8 x 1.25 mm22 N.n 12.2 kgl.m,16 tbf.tt)
NOTE:
. Make sure the bushing and pivot washer are installed properly.
a To prevent wrinkles when installing the seat-back cover. make sure the material is stretched evenly over the pad.
a Grease all moving portion.
SEAT-BACK
RECLINELEVER
