3. Remove the rear console-
NOTE:
a Lift up the parking brake lever.
a Detach the hooks by lifting the front of the rear
console and sliding it rearward.
Remove the ashtray and front console panel.
> : Screw locations, 2
Disconnect the connector.
5. Remove the Screws.
NOTE: Remove the shift lever knob (M/T).
>; Screw locationi,4
!
6h:ro I",/
SHIFT LEVERKNOB
FRONT CONSOLE
6. Remove the front console as shown.
NOTE: Wrap the shift lever and Ay'T gear position indica-
tor panel with a shop towel to prevent damage.
20-131

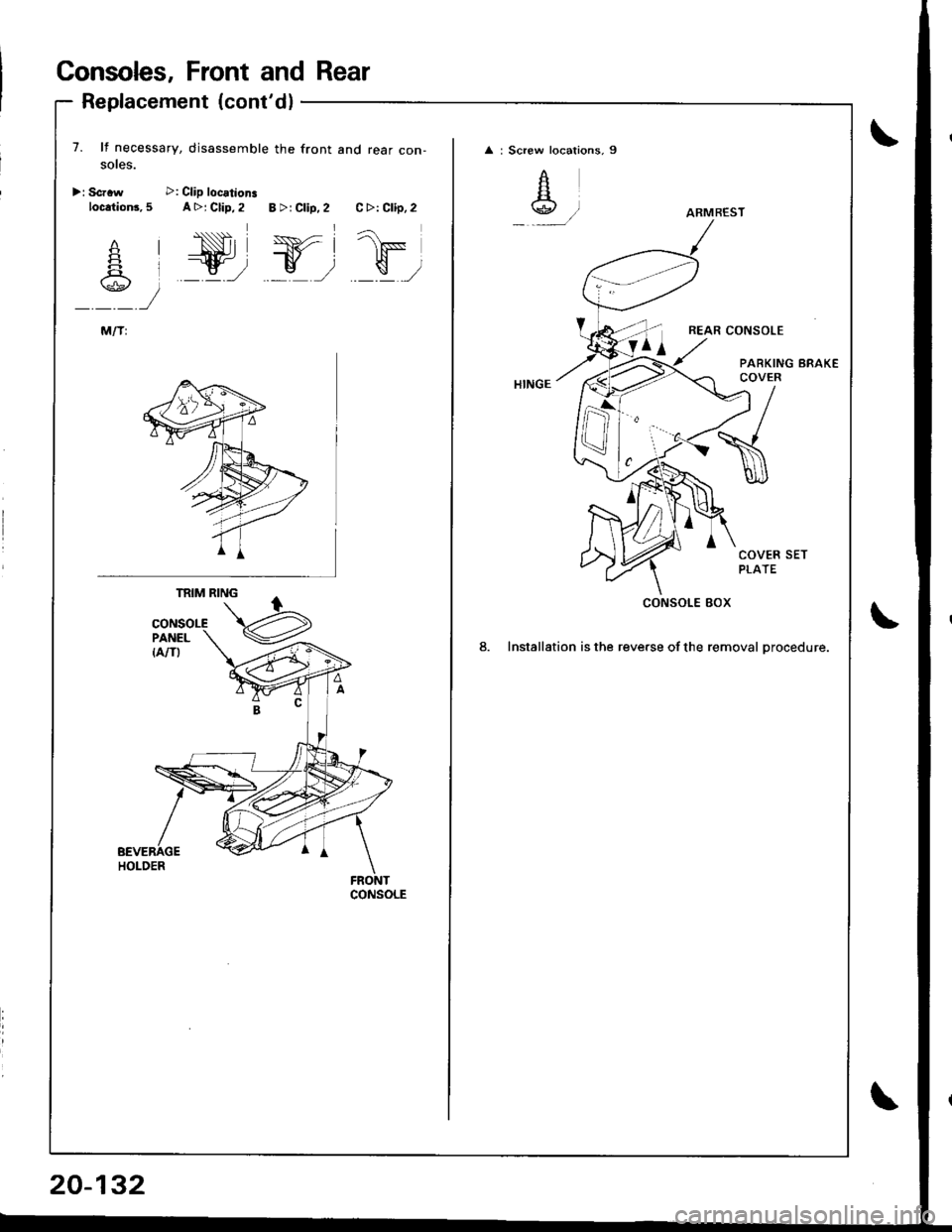

Consoles, Front and Rear
Replacement (cont'dl
7. lf necessary, disassemble the front and rear con-soles.
>r Scrrw >: Clip locationsloc.tion3, 5 A >j Clip, 2 B >r Clip. 2 C >: Clip, 2
1F
\,,a';\\g.E/
20-132


: Screw locations, 9
A
Aw.)
REAR CONSOLE
PARKING BRAKECOVER
COVER SETPLATE
8. Installation is the reverse of the removal orocedure.
ARMREST
CONSOLE 80X

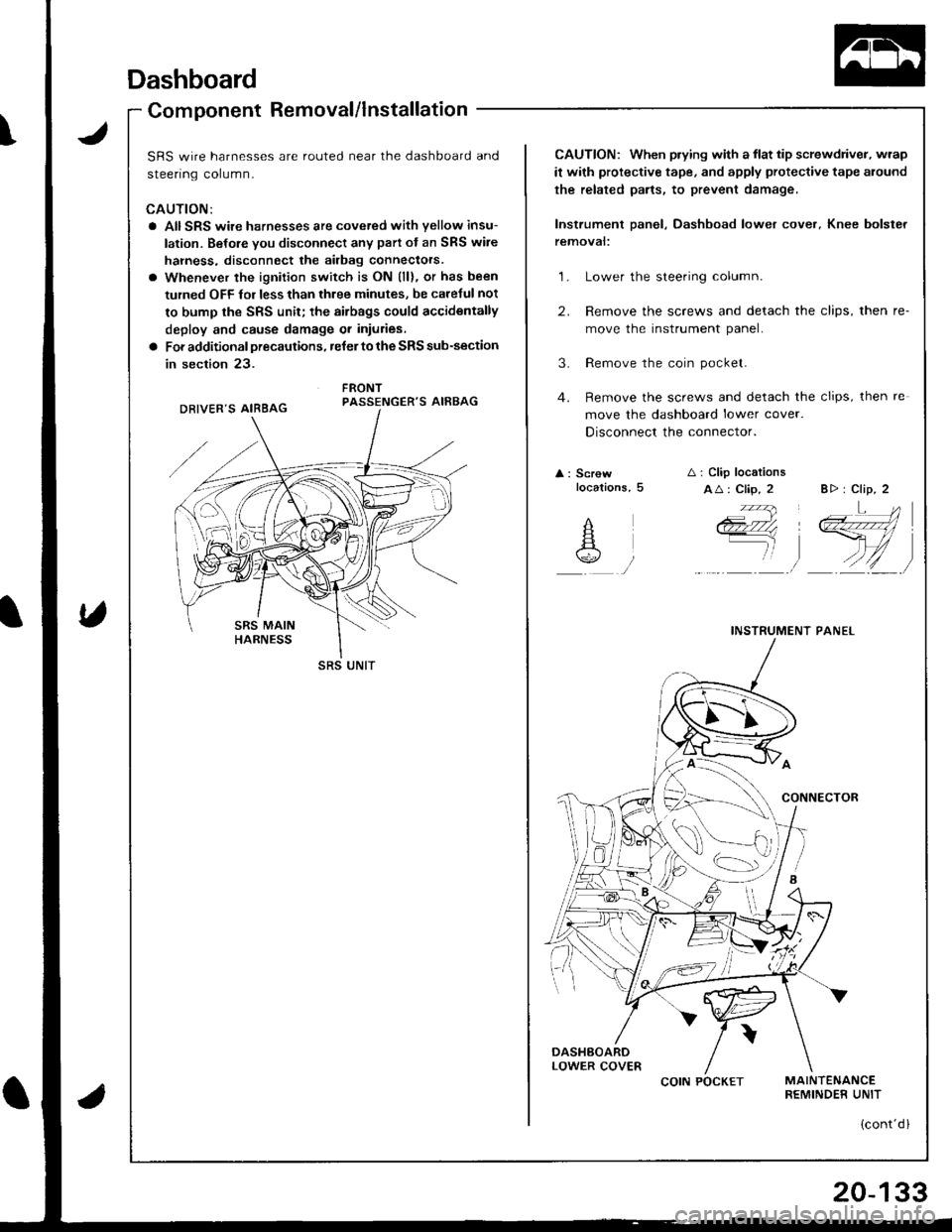

Dashboard
Component Removal/lnstallation
\J
U
uomponenl r{emoval/ Insrallarlon -
SRS wire harnesses are routed near the dashboard and
sreenng corumn.
CAUTION:
a AIISRS wire harnesses are cove.ed with yellow insu-
lation. Belore you disconnect any part of an SRS wire
hahess, disconnect the airbag connectors.
o Whenever the ignition switch is ON (ll), or has been
turned OFF fol less than three minutes, be caretul not
to bump the SRS unit; the airbags could accidentally
deploy and cause damage or inturies.
a For additional precautions, reJer to the SRS sub-section
in section 23.
FRONTPASSENGER'S AIRBAG
SRS UNIT
CAUTION: When prying with a flat tip screwdriver, wrap
it with protective tape, and apply proteclive tape around
the related parts, to prevent damage,
Instrument panel, Dashboad lower cover, Knee bolster
temovat:
1. Lower the steering column.
2. Remove the screws and detach the clips, then re-
move the instrument panel.
3. Remove the coin pocket.
4. Remove the screws and detach the clips, then re
move the dashboard lower cover.
Disconnect the connector.
A : Screwlocations,5A i Clip locations
AA: Clip, 2 B> : Clip, 2
INSTRUMENT PANEL
ii'- ' iq4'ii \Ll1
COIN POCKET
(cont'd l
20-133

Dashboard
Component Removal/lnstallation (cont'dl
5. Remove the knee bolster.


: Bolt
A'ir
locations,3
6 x 1.0 mm9.8 N.m
{1.0 kgt m,7.2 tbf.fit
0
6. lnstallation is the reverse o{ the removal procedure.
Ste.eo ladio/cassette, Heatet contlol Danel removal:
1. Remove the rear console, then remove the front
console (see page 20-130).
Loosen the bolts, then remove the stereo radio/
cassette by pulling it out.
Disconnect the connector and antenna lead.
NOTEr The original radio has a coded theft protec-
tion circuit. Be sure to get the customer's code num-
ber before- disconnecting the battery.- removing the No. 47 (7.5 A) tuse from the under-
hood fuse/relay box.- removing the radio,
After service, reconnect power to the radio and turn
it on. When the word "CODE" is displayed, enter
the customer's 5-digit code to restore radio
ope.ation.
KNEE BOLSTER
20-134
CONNECTOR
CASSETTE


: Bolt locations, 2
6x1.0mm9.8 N.m {1.0 kgt m,
3. Carefully pry the hazard warning switch and rear
window detogger switch out of the heater control
panel.
Disconnect the connectors.
HAZARD WARNINGswtTcHREAR WINDOWDEFOGGER SWITCH
CONNECTORS

4. Remove the screws.
Detach the harness clip and connector clip.
> : Screw locations, 2
CONNECTOR CLIP
5.Disconnect the air mix control cable from the heat-
er unit.
AIR MIX CONTROLCABLE
CONNECTORS
6.Pull the heater control panel out, then disconnect the
connectors.
NOTEr Take care not to bend the air mix control
ca ote.
HEATERCONTROLPANEL
7. Installation is the reverse of the removal procedure.
NOTE: Make sure the connector and air mix con-
trol cable are connected properly.
(cont'd)
20-135

Dashboard
Component Removal/lnstallation (cont'dl
Side air vent removal:
Driver's
1. Remove the dashboard lower cover (see page 20-
133).
2. Carefully pry the moonroof switch out of the side
air vent, then disconnect the conneclor.
Pry here.
3. Remove the screw, then remove the side air vent.
> : Screw locstion,
I
6F- i
------r/
< : Clip, hook locations
A<: Clip, 1
BV : Hook, 3
Installation is the reverse of the removal procedure.
NOTE: Make sure the connector is connected
properly.
20-136
Flont passenger's
Carefully pry the side air vent at the lower edge, then
pull it out.
A: Clip. hook locations
AA : Clip, 1BV: Hook, 2
SIDE AIRVENT
PROTECTIVETAPE
Side delogger trim removal:
Carefully pry the side defogger trim at the rear edge, then
remove it.
A : Clip, hook locations
AA: Clip,lB A: Hook, 1
_1_iF
/KHOOK cLtP /

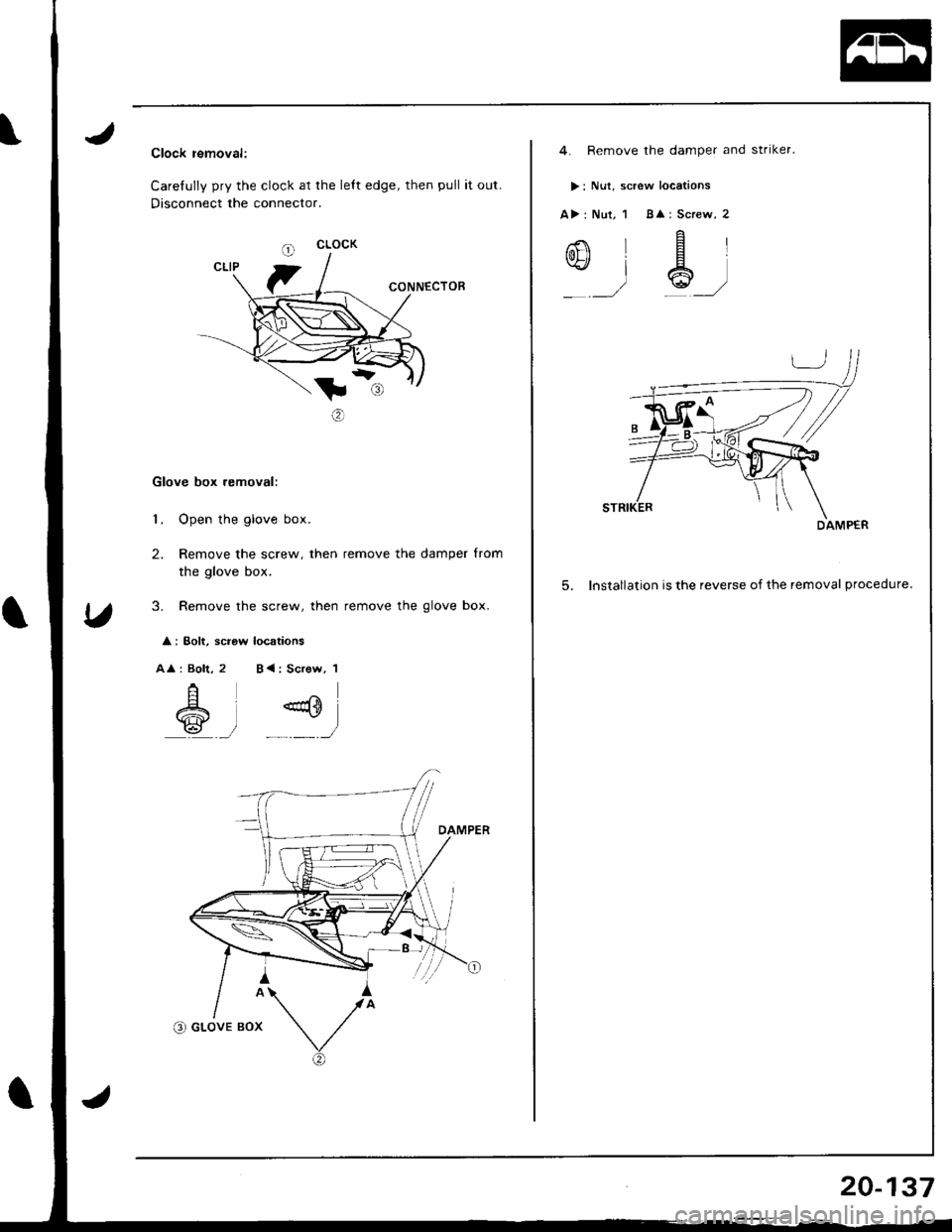

Clock removal:
Carefully pry the clock at the lett edge, then pull it out.
Disconnect the connecto..
CONNECTOE
t:
o
Glove box removal:
1. Open the glove box.
2. Remove the screw, then remove the damper from
the glove box.
3. Remove the screw, then remove the glove box.


: Bolt, scrow
Al : Bolt, 2
A
ql
locations
B<: Scr€w, 1
)
il
4. Remove the damper and striker.
>: Nut, screw locations
A>: Nul, 1 B : Screw, 2
9;
E
e_)
5. Installation is the reverse of the removal procedure.
20-137

Dashboard
Replacement Precautions
SRS wire harnesses are routed near the dashboard and
steenng column.
CAUTION:
a All SRS wire hsrnesses are covered wiih yellow insu-
lation. Before you disconnect any pan of an SRS wire
harness, disconnect the airbag conneclors.
a Whenever the ignition switch is ON (ll), or has been
tulned OFF for less than three minules, be careful not
to bump the SRS unit; the ai.bags could accidentally
deploy and cause damage or injuries.
a For additional precautions, refer lo the SRS sub-section
in section 23.
PASSENGER'S AIRBAG
Belore removing the dashboard:
1. Disconnect the battery negative cable, then discon-ne.r rhe n^.iriua.ahla
NOTEr The original radio has a coded thett protec,
tion circuit. Be sure to get the customer's code num
ber before- disconnecting the battery.- removing the No. 47 (7.5 A) fuse from the under-
hood tuse/relay box.- removing the radio.
After service, reconnect power to the radio and turn
it on. When the word "CODE" is displayed, enter
the customer's 5-digit code to restore radio
operation.
DRIVER'S AIRBAG
SRS UNIT
20-138
2.Install the short connectors (RED).
Driver's:
Remove the access panel, then disconnect the con-
nector between the cable reel and driver's airbag.
CABL€ REELCONNECTOR--_--._-_-----
Front passenger's:
Remove the glove box (see page 20-137), thendisconnect the connector between the front pas-
senger's airbag and SRS main harness.
FRONT PASSENGER'SAIRBAG CONNECTOR
SRS MAIN HARNESSCONNECTOR
ORIVER'S AIRBAG
