1998 ACURA INTEGRA Service Repair Manual

Latch Replacement
NOTE: Raise the glass tully.
1. Remove:
a Door panel lsee page 20-32)
a Plastic cover (see page 20-32)
a Outer handle {see page 20-34)
2. Remove the screws and dasconnect the connector,
then remove the inner handle and lalch.
NOTE: Take care not to bend the rods.
Detach the connector.
Installation is the reverse of the removal procedure
NOTE: Make sure the inner handle rod, lock rod and
connector are connected properly.
Scaew locations, 2
€tr' l-,/
Glass/Regulatol/Center Glass
Guide Replacement
BOLT8 x 1.25 mm22 N.n 12.2 kgl'm.16 lbt.ft)
a Door panel (see page 20 32)a Plastic cover (see page 20-32)
Connect the power window switch to the door har-
ness (see page 20-41).
Peel the weatherstrip away from the door (see page
Loosen the inside stabilizers.
NOTEr Scribe a line around the bolts to show the
original adjustment.
Carefully move the glass until you can see the glass
mounting nuts, then remove them.
STAEILIZER
a: Nut locations, 2
t,h6xl.omm)@[ a ru.m ro.8 ksr'm.
i
6 tbritl
\
INSIDE STABILIZERS
(cont'd )
20-35

Doors
Glass/Regulator/Center Glass Guide Replacement (cont'dl
5. Carefully remove the glass Jrom the window slot as
shown.
NOTE: Take care not to drop the glass inside the
door.
x
ST
20-36
6. Remove the center glass guide.
NOTE:
a Hold the adiusting bolts with a hex wrench when
removing the locknuts.
o Scribe a line around the locknuts to show the
original adjustment.
a: Nut locations
aa.2B O, 1
12 x 1 .25 mm
v1'j-
LOCKNUT
,t^
(S)t
Y-l
[ ,"*.
22 N.m (2.2 ksf.m,
Vuloru,__

>: Bolt locations
l>A.4 >8.2
d|63il;o,ilIu'- *,@
i6pl-".
- 6rbr.ftr _!
7. Disconnect the connector, and remove the regula'
tor through the cenler hole in the door.
NOTE: Scribe a line around the roller guide bolts to
show the original adlustment-
8. Remove the power window motor from the
regulator.
NOTE: Before removing the power window motor,
mark the location by scribing a line across the sec-
tor gear and regulator.
V: Bolt locations, 3
POWERwlNDowMOTOR
CONNECTOR
REGULATOR
9. Grease all the sliding surlaces of the regulator and
center glass guide where shown.
10. lnstall the power window motor on the regulator.
'l 1. Check that the regulator moves smoothly by con
necting a I2 V battery to the power window motor
(see section 23).
V: Adjusting bolt Ilocations,2 \l
\
\L
I ''II
A---- |
\H./ NOTE: Use liqurd@ thread lock.
fFtSlL!=-2
t
ICENTERGLASSGUIDE
MOTOR
(cont dI
20-37

Door
Glass/Regulator/CenterGlassGuide
Replacement (cont'd)
'12. Roll the glass up and down to see if it moves freely
without binding. Also make sure that there is no
clearance between the glass and weatherstrip when
the glass is closed. Adjust the position of the glass
as necessary (see page 20 40;.
Attach the door harness to the door correctly
page 2O-33).
Disconnect the power window switch from the
harness.
(see
14.door
When reinstalling the plastic cover, apply adhesive
along the edge where neccessary to maintain a con-
tinuous seal and prevent water leaks (see page
20 33).
16. lnstall the door panel {see page 2O-32).
Outer Molding Replacement
\NOTE: Lower the glass fully.
'1. Remove the door panel (see page 2O-32).
2. Peelthe weatherstrip away from the door (see page
2O-39i, then remove the screw.
3. Starting at the rear, pry the outer molding up and
detach the clips, then remove the outer molding.
NOTE: Take care not to twist or scratch the outer
molding.
>i Clip locations, 4 A > : Screw location, 1
>: Stabilizo. locstions, 2
.0s{0
\-
NOTEi lf necessary,replace any damagedclrps.
I ): Screw location. 1
_,f"\tjru{ 1i)
\__ -
OUTER
4. lnstallation is the reverse of the removal Drocedure.
20-38
l-
1

Weatherstrip Replacement
>: Scr€w locationsa : Clip locations, 3
iI
L.:5\
l-fl
!l
a>,1
B>,2
.rf@
NOTE:
a Before installing the weatherstrip, apply clear
sealant to locations @.
Sealant: Cemedine #8500. or equivalent
a It necessary, replace any damaged clips.
*/]"l
tA
;, I
l
IW
[^_]
locations.
/il
Itr"r tl
18
20-39

Doors
Glass Adjustment
\*: Adjusting bolt/locknut locations
NOTE: Take care not to damage location @ on the front sash.
\
INSIDESTABILIZEB
\
20-40
r---
GLASS
GLASS GUIDE
GLASS
\
,"a,o'a t \STABILIZER
\../ \

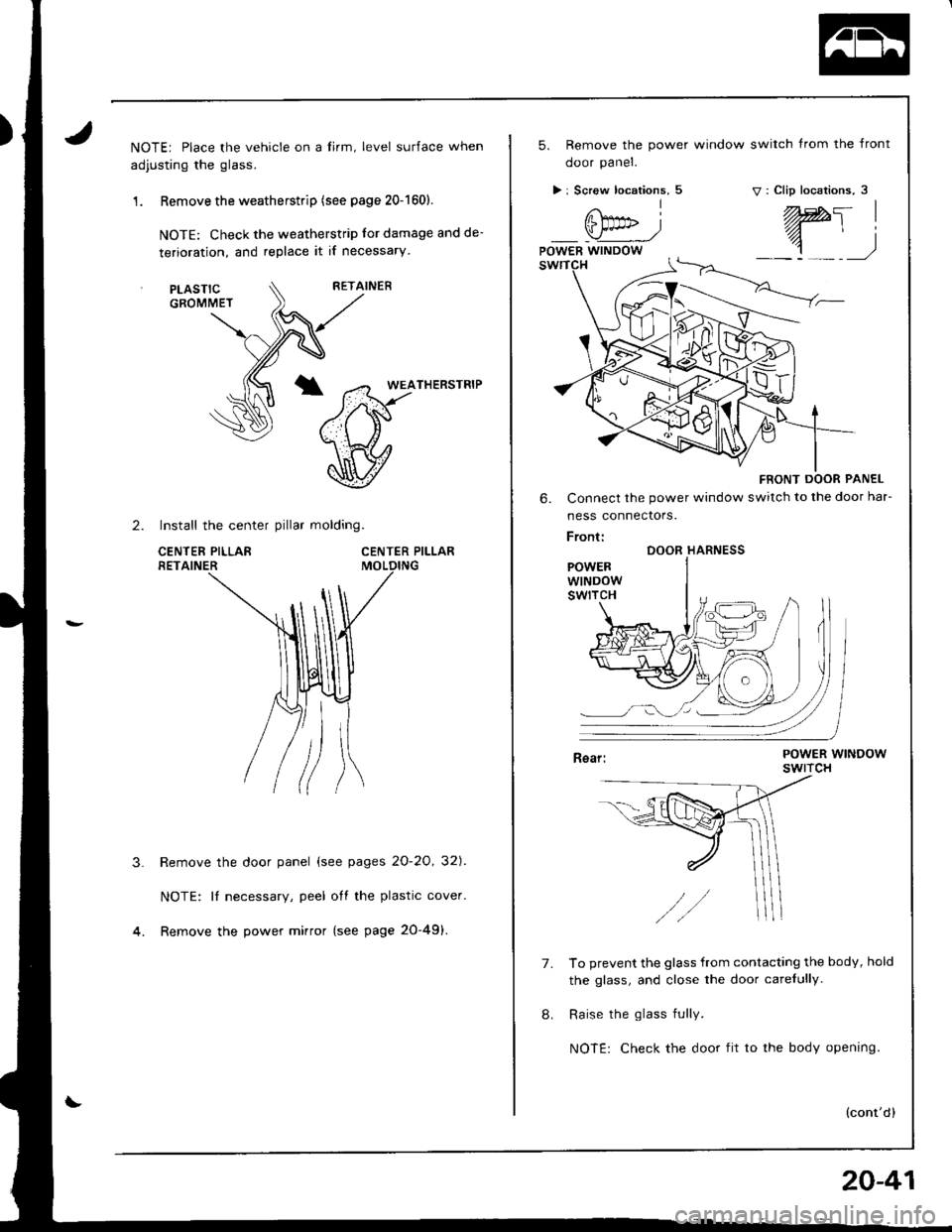

NOTE; Place the vehicle on a lirm, level surface when
adjusting the glass.
1 . Remove the weatherstrip (see page 20-1601.
NOTE: Check the weatherstrip lor damage and de-
terioration, and replace it if necessary
RETAINER
*T5FrHERsrR'P
\v
CENTER PILLAR
2. Install the center pillar molding.
CENTEF PILLARRETAINER
PLASTICGROMMET
3.Remove the door panel (see pages 2O-2O, 32]'.
NOTE: It necessary, peel off the plastic cover.
Remove the power mirror (see page 20-49).
5. Remove the power window switch from the front
ooor paner.
> i Screw locations, 5v: Clip locations, 3
FRONT DOOR PANEL
6. Connect the power window switch to the door har-
ness connectors.
Front:DOOR HARNESS
POWERWINDOWswtrcH
7.To prevent the glass from contacting the body, hold
the glass, and close the door carefully.
Raise the glass fully.
NOTE: Check the door fit to the body opening.
(cont'd)
20-41

Doors
Glass Adjustment (cont'dl
9. Measure and record clearances "H" and "B" at the locations shown.
10. Adjust the clearance as described in steps (11) thru r4).
Measuring Points
RETAINER
"ll" Clearance'Clearance
"B" Clearsnce"B" Clearance
Section O
GLASS
Section @, Ql
RETAINEBRETAINER
20-42
"B" Clearance
"H" Clearance
socrion @
GLASSGLASS
(Standard Clearance)
a Permissible tolerance: t 0.1 mm (O.04 in)
Front: (111 and ( 121\
Rear: (13) and (141
Unit: mm iin)
Measuring
Pointo(r\\9
Clearancet-l0.8(o.03)3.O
1o.12)
10.3
(o.41)
B9.3(0.37 )
9.9
0.389
5.6
to.22l
Measuring
Point,6€)
Clearancen'to
(0.39 )
2.5
10.1)
6.O
\o.241
B5_l
to.2J
11.5(o.45)12.1
{o.48)
