1998 ACURA INTEGRA Service Repair Manual

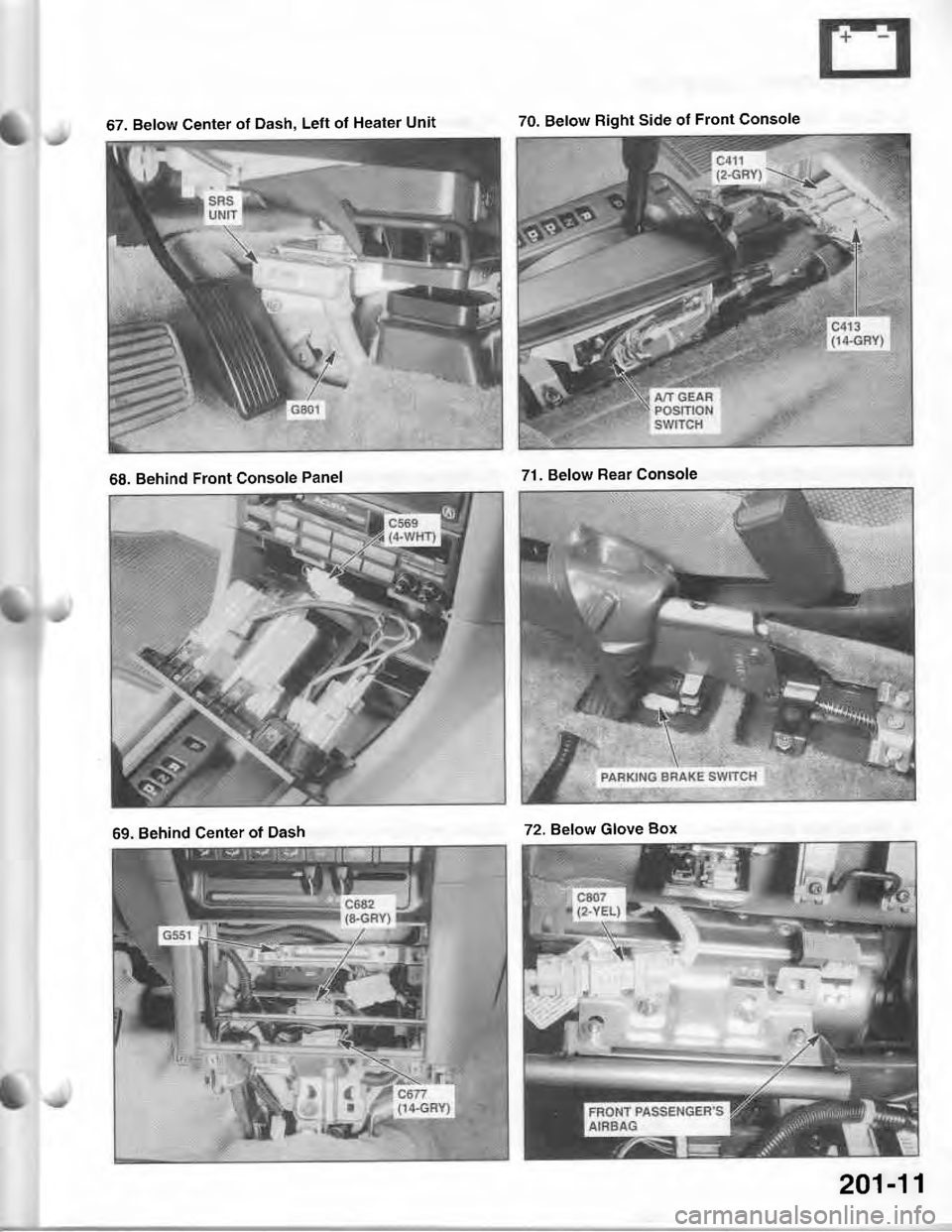

67. Below Center of Dash, Left of Heater Unit70. Below Right Side of Front Console
68. Behind Front Console Panel71. Below Bear Console
69. Behind Center ot Dash72. Below Glove Box
201-11

Component Location
.l
73. Behind Glove Box76. Above Right Kick Panel
74. Behind Right Side Glove Box77. Behind Right Kick Panel ('98-'99 Modets)
75. Below Right Side of Dash
201-12
78. Behind Right Kick Panet (ECM or pCM Removed)
\

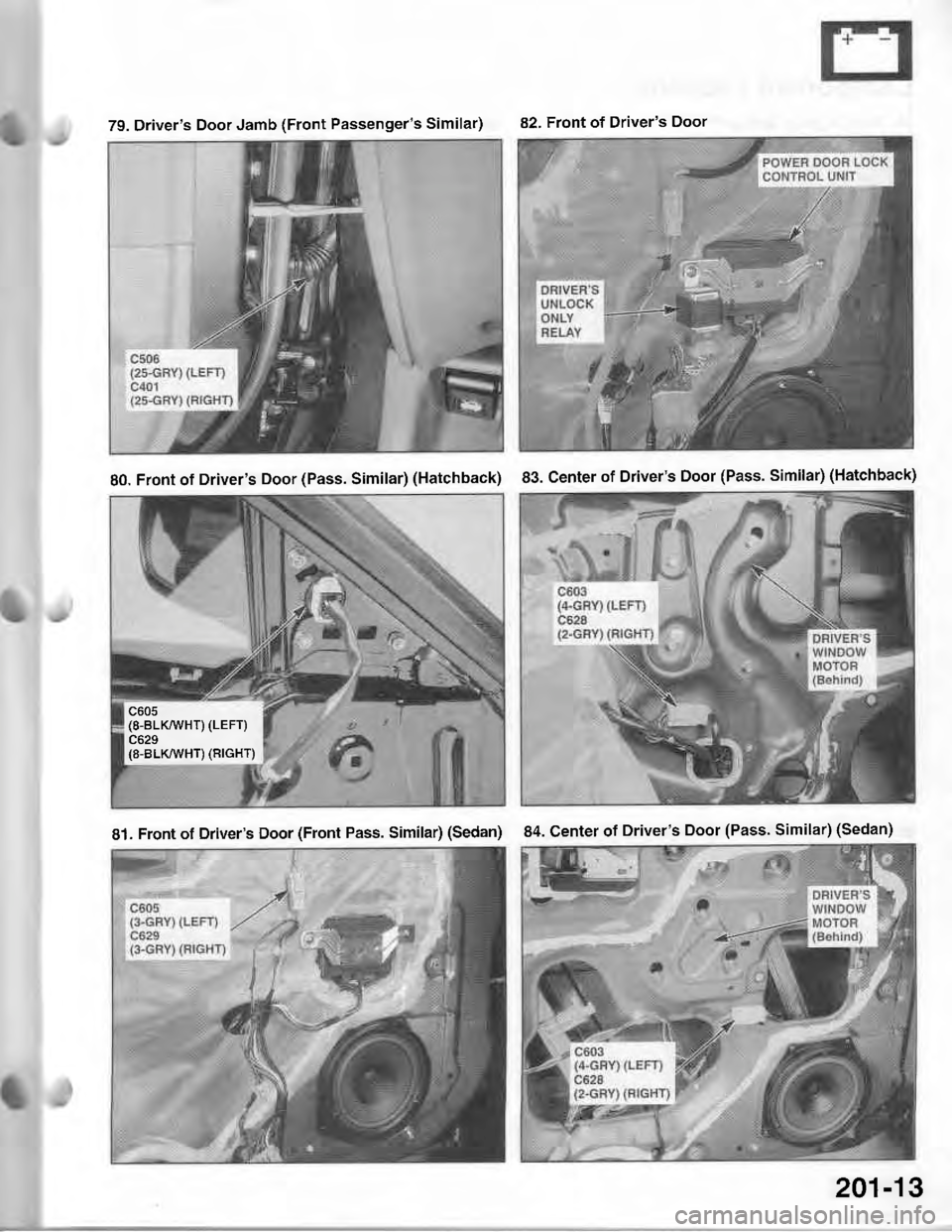

79. Driver's Door Jamb (Front Passenger's Similar)82. Front of Driver's Door
80. Front of Driver's Door (Pass. Similar) (Hatchback)
(8-BLK^VHT) (LEFT)c629(8-BLK/wHT) (RTGHT)
83. Center of Driver's Door (Pass. Simila0 (Hatchback)
81. Front of Driver's Door (Front Pass. Similar) (Sedan)84. Center of Driver's Door (Pass. Similar) (Sedan)
201-13

Component Location

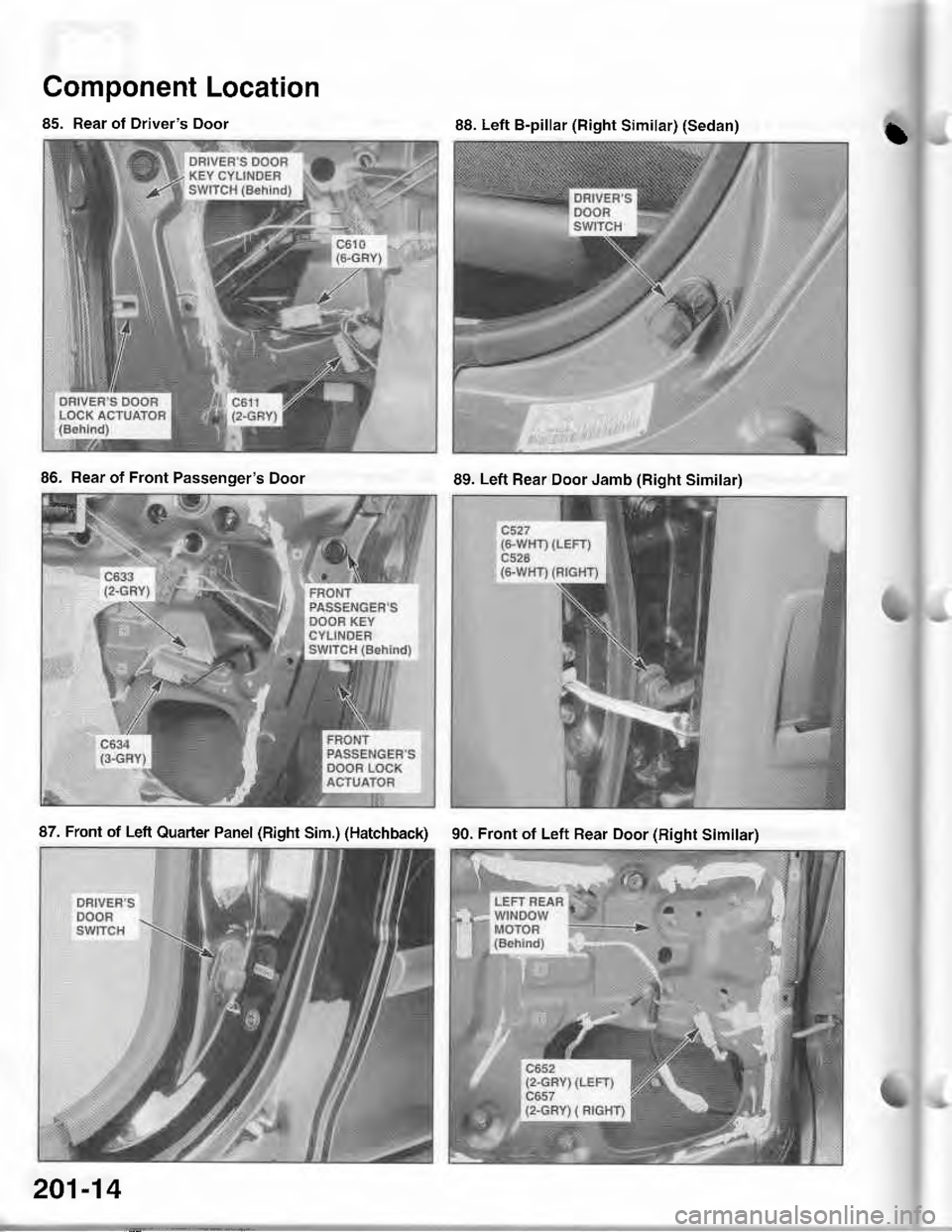

85. Rear of Driver's Door
86. Rear of Front Passenger's Door
I88. Left B-pillar (Right Similar) (Sedan)
89. Left Rear Door Jamb (Right Similar)
87. Front of Lett Quarter Panel (Right Sim.) (Hatchback)90. Front ot Left Rear Door (Right Similar)
201-14

)-

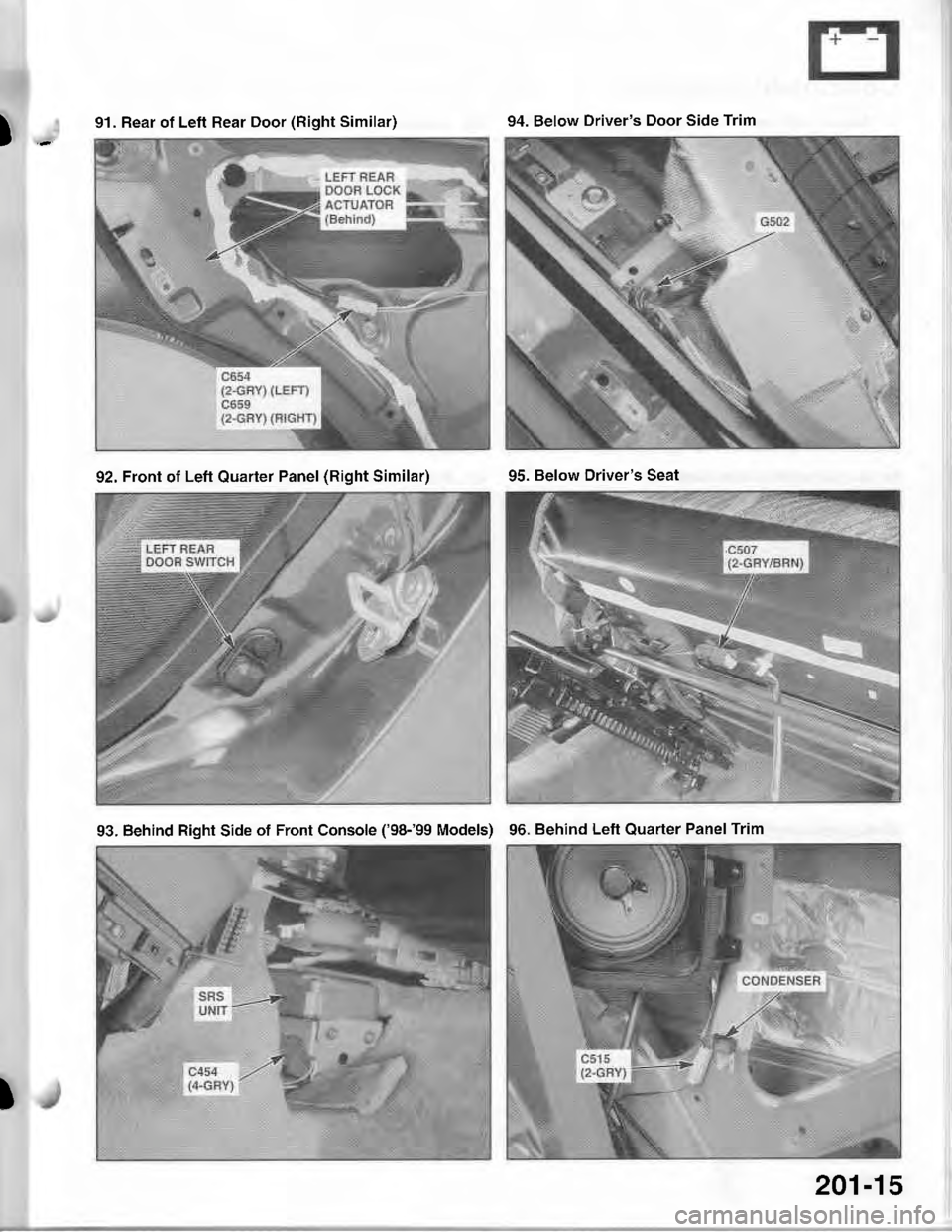

91 . Rear of Left Rear Door (Right Similar)94. Below Driver's Door Side Tnm
92. Front of Left Quarter Panel (Right Simila095. Below Driver's Seat
93. Behind Right Side of Front Console ('98-'99 Models)96. Behind Left Quarter Panel Trim
)
201-15

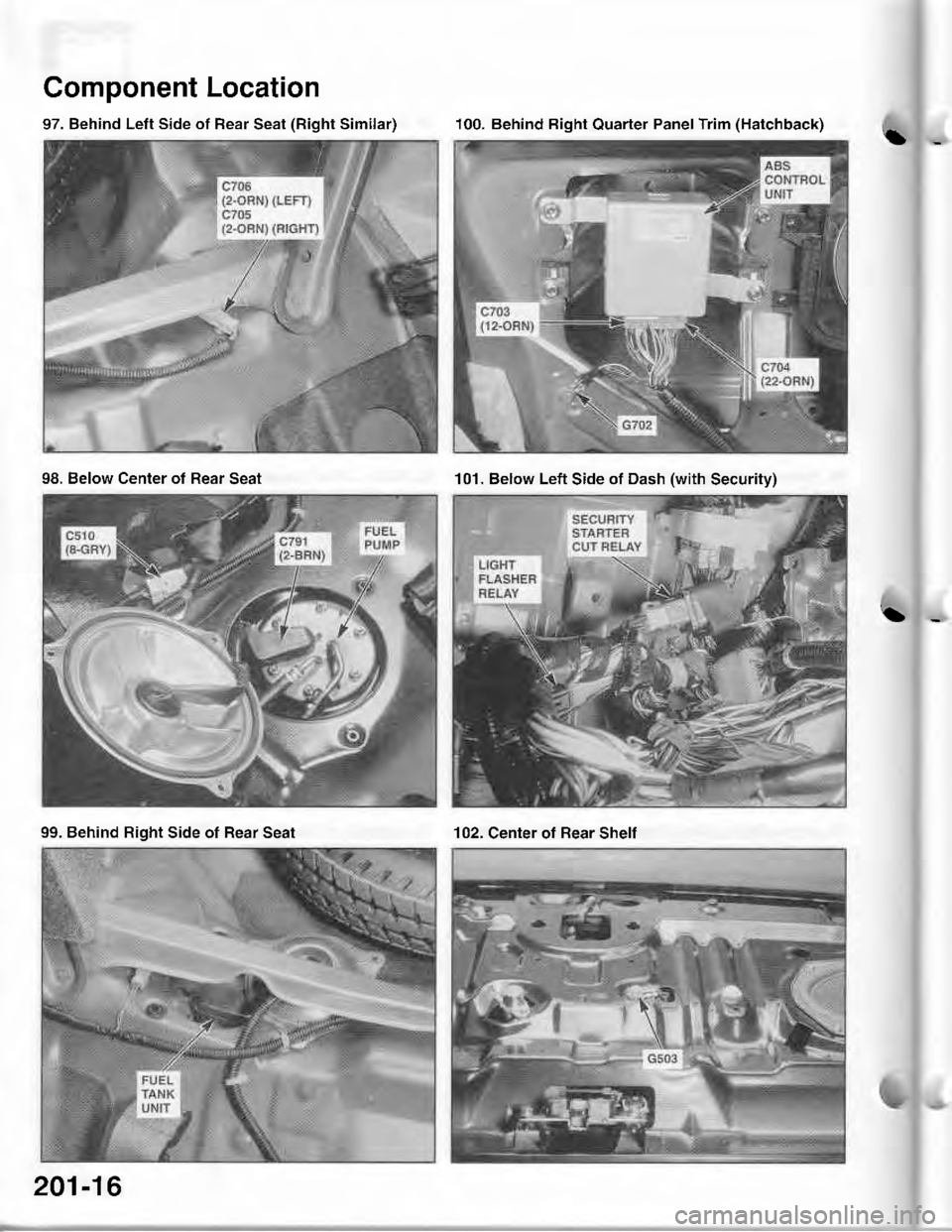

97. Behind Left Side of Rear Seat (Right Similar)
Component Location
t
100. Behind Bight Quarter Panel Trim (Hatchback)
98. Below Center ot Rear Seat101. Below Left Side of Dash (with Security)
99. Behind Right Side ot Rear Seat
201-16
102. Center of Rear Shelf

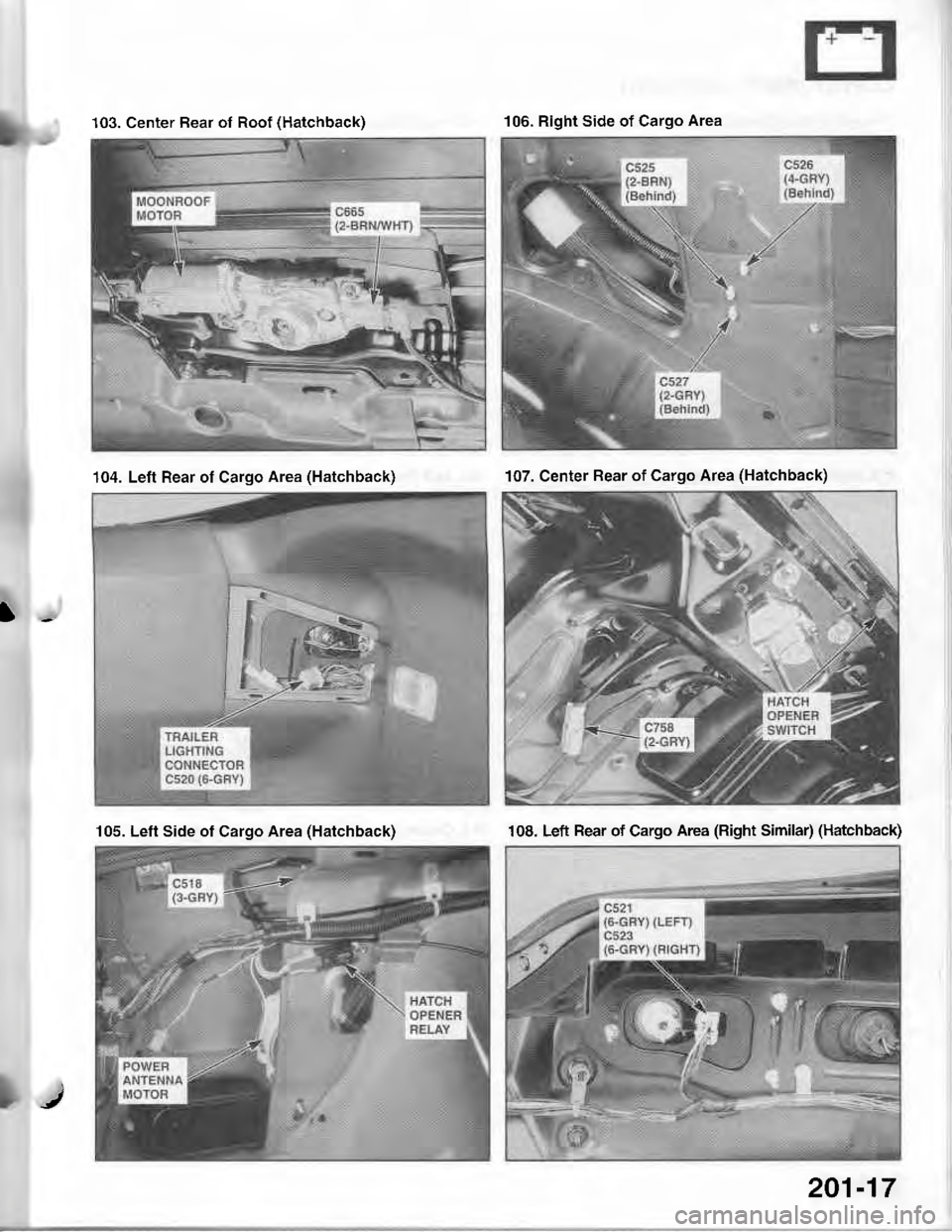

103. Center Rear of Roof (Hatchback)106. Right Side of Cargo Area
104. Left Rear of Cargo Area (Hatchback)107. Center Rear of Cargo Area (Hatchback)
l
l
J
105. Left Side of Cargo Area (Hatchback)108. Left Rear of Cargo Area (Right Similar) (Hatchback)
201-17

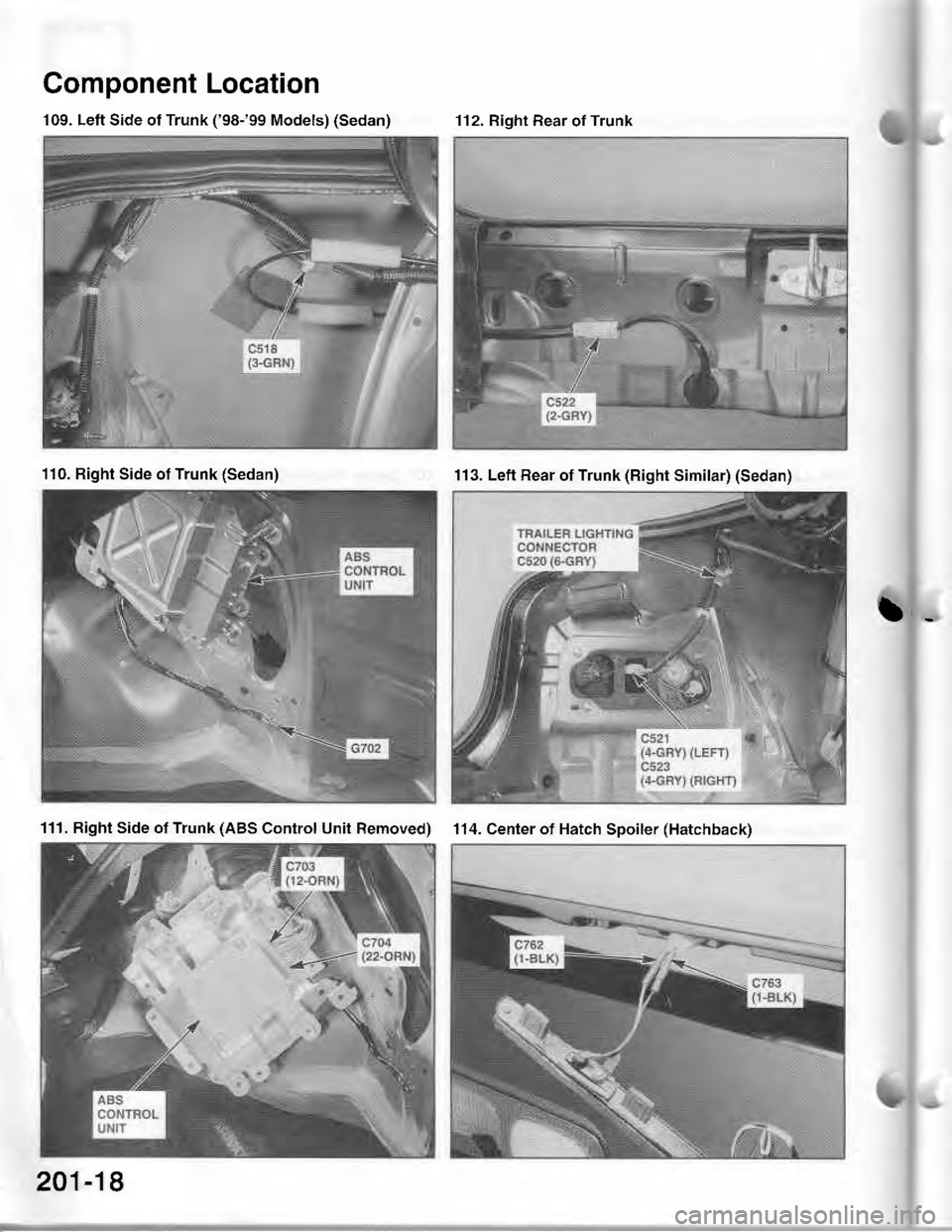

109. Left Slde of Trunk ('98-'99 Models) (Sedan)
Component Location
b
112. Right Rear of Trunk
110. Bight Side ot Trunk (Sedan)113. Left Rear of Trunk (Right Similar) (Sedan)
111. Right Side of Trunk (ABS Control Unit Removed)
201-1 8
114. Center of Hatch Spoiler (Hatchback)
