1998 ACURA INTEGRA Service Repair Manual

)7. With a sponge, apply a light coat of body primer to
the original adhesive remaining around the quaner
glass opening {lange. Let the body primer dry for at
least 10 minutes.
NOTE:
. Do not apply glass primer to the body, and be
careful not to mix up glass and body primer
sponges.
. Never touch the primed surfaces with your
na nos.
//;4: Aoely bodv Pimer hare
(0.2 inl5mm
ffi
16 mminl 10.63 inl
jrlr-
Il
)HI l(
OUARTERTRIM
16 rnm(0.63 in)
)
6mmlo.24
OUARTERTRIM
IP'--
8.
L
OUARTER5 mm lO.2 in) lRtM
Thoroughly mix the adhesive and hardener together
on a glass or metal plate with a putty knife.
NOTE:
. Clean the plate with a sponge and alcohol before
mrxrng.
. Follow the adhesive manufactur's instructions.
Before filling
as shown.
Cut nozzle end
a cartridge, cut the end of the nozzle
10 mm 10.39 in)
7 mm 10.27 in)
20-75
ffi;;[,] :AoHEs'vE
8 mm 10.3 inl
2 mm (0.08 in)
in)
SIDE SPACER
10. Pack adhesive into the cartridge without air pockets
to ensure continuous delivery. Put the cartridge in a
caulking gun, and run a bead of adhesive around
the edge of the quarter glass as shown.
NOTE:
. lf the old quarter glass is to be reinstalled, peel
the separator off the butyl tape after applying the
adhesive.
. Apply the adhesive within 30 minutes after apply-
ing the glass primer.
8 mm (0.3
Tt
w
EUTYL TAPES
12 mm (0.47 in)2 mm 10.08 in)
(cont'd)

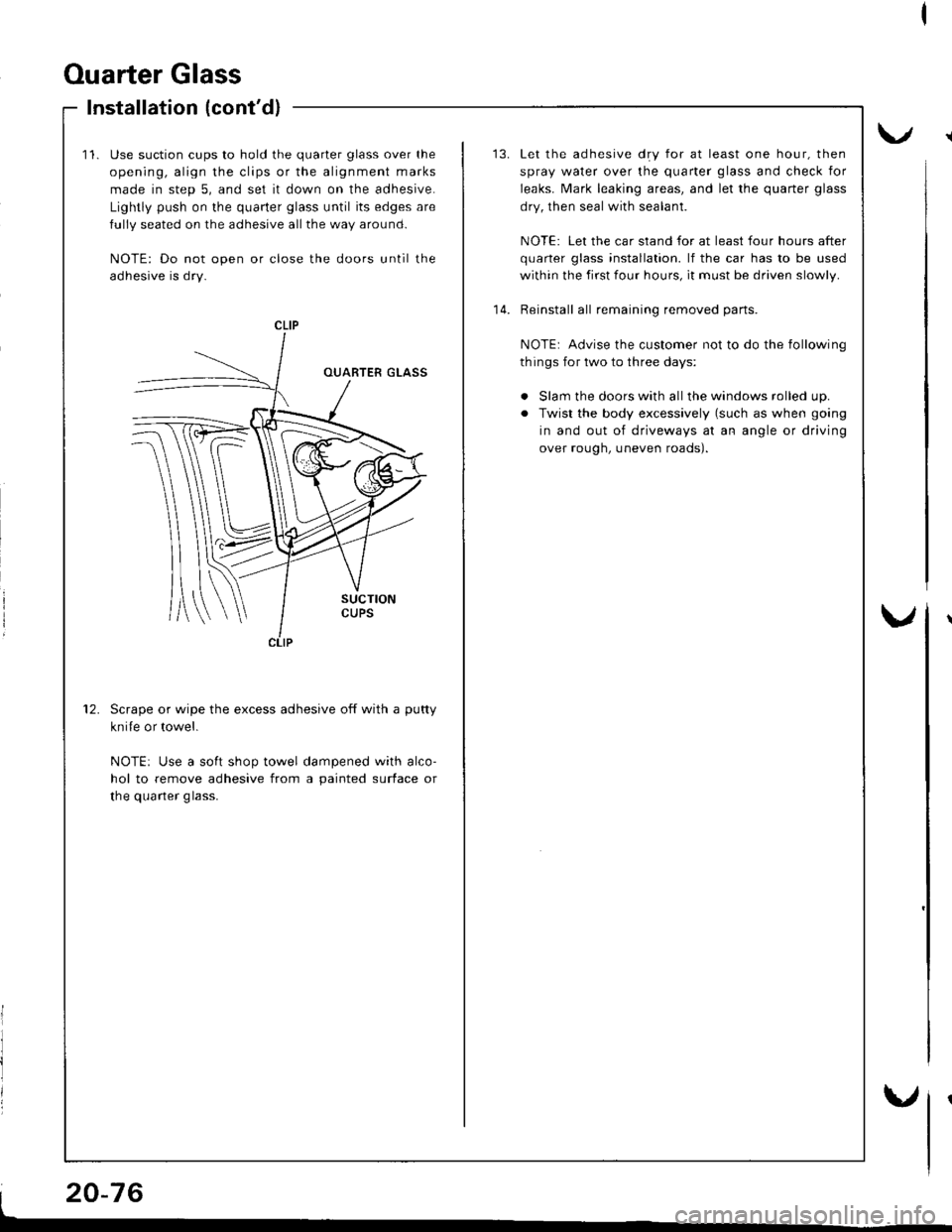

Ouarter Glass
Installation (cont'd)
11.Use suction cups to hold the quarter glass over the
opening, align the clips or the alignment marks
made in step 5, and set it down on the adhesive.
Lightly push on the quarter glass until its edges are
fully seated on the adhesive all the way around.
NOTE: Do not open or close the doors until the
adhesive is dry.
Let the adhesive dry for at least one hour, then
spray water over the quarter glass and check for
leaks. lvlark leaking areas, and let the quarter glass
dry, then seal with sealant.
NOTE: Let the car stand for at least four hours after
quarter glass installation. lf the car has to be used
within the first four hours, it must be driven slowly.
Reinstall all remaining removed pans.
NOTE: Advise the customer not to do the following
things for two to three days:
. Slam the doors with all the windows rolled up.
. Twist the body excessively (such as when going
in and out of driveways al an angle or driving
over rough, uneven roads).
14.
12.Scrape or wipe the excess adhesive off with a putty
knile or towel.
NOTE: Use a soft shop towel dampened with alco-
hol to remove adhesive from a painted surface or
the quarter glass.
\./ r
v
, 20-76
v

Moonroof
lndex
Hatchback
CAELE ASSEMBLYReplacement, page 20-81SUNSHAOEReplacement, page
MOTOBReplacement, page 20-80
GLASS BRACKETReplacement, page 20 81
SUNSHADE RAIL
FRONT DRAINCHANNELDRAIN CHANNEL
FRAME SEAL
FRONT DRAIN TUBE
V,
/
SLIDE STOPPERLINK
FRAMEReplacement, page 20 80
FRONT RAILHOLDER
REAR DRAIN TUSE
GUIDE RAILReplacement, page 20 81
(@
II RIGHT REARllj DRA|N vaLVE.fr/
,rr, ^*^/& IDRAIN VALVE I
[il
ir/l
@'\'FRoNT DRATNVALVE
20-77

Moonroof
Troubleshooting
SymptomP.obable Cause
Clogged drain tube.
Gap between glass weatherstrip and roof panel
De{ectrve or improperly Installed glass weatherstrip
Gap between drain seal and rool panel.
Excessive clearance between glass weatherstrip and roof panel-
Loose motor.
Worn gear or bearing.
Cable assemblv deformed.
1
2
3
4
1
2
3
1.
Water leaks
Wind noise
Motor noise
Glass does not move, but motor
turns
Clutch out ol adiustment.
Foreign matter stuck between guide rail and slider'
lnner cable loose.
Cable assembly not attached properly
,l
2
3
4
Glass does not move and motor
does not turn (glass can be moved
with moonroof wrench)
1. Blown fuse.
2. Faulty switch.
3. Battery run down.
4. Delective motor.
5. Faulty relay.
Glass Height Adiustment
The roof panel should be even with the glass weather-
srrip, to within 1.8 t O.5 mm {O.07 t 0.02 in} all the
way around. lf not, slide the sunshade back, and:
1. Tilt-up the glass.
2. Loosen the bolts and adjust the glass.
3. Repeat on opposite side if necessary.
1.8 i 0.5 mm 10.07 i 0.02 inl
V : Boll locations, 6
]-
ROOF PANELGLASS BRACKET
Side-to-side iit of glass weatherstrip can be adJust-
ed by loosening the frame mounting bolts and mov-
ing the frame right or left and {orward or backward
by hand (see page 2O-8Oi.
GLASS BRACKETGLASS WEATHERSTRIP
{
$
I
!
20-78

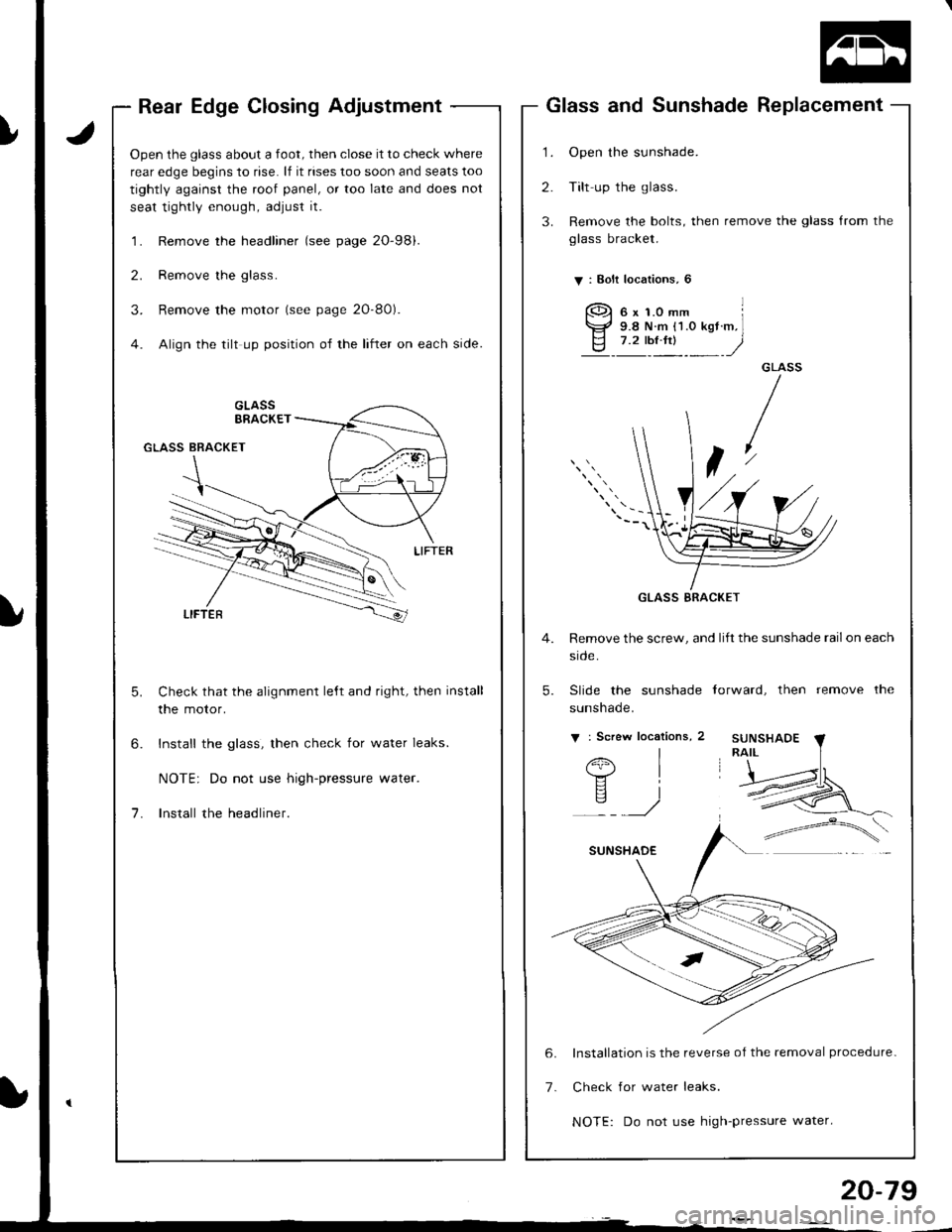

Rear Edge Closing Adjustment
Open the glass about a foot, then close it to check where
rear edge begins to rise. lf it rises too soon and seats too
tightly against the roof panel, or too late and does not
seat tightly enough, adjust it.
'l . Remove the headliner (see page 2O-98).
2. Remove the glass.
3. Remove the motor (see page 2O-80).
4. Align the tilt up position of the lifter on each side.
Check that the alignment le,ft and right, then install
the motor.
Install the glass, then check for water leaks.
NOTE: Do not use high-pressure water.
Install the headliner.
1.
2.
3.
Glass and Sunshade Replacement
Open the sunshade.
Tilt up the glass.
Remove the bolts, then remove the glass from the
glass bracket.
V : Bolt localions, 6
GLASS
t
4. Remove the screw, and lift the sunshade railon each
srcle.
5. Slide the sunshade torward, then remove the
sunshade.
v : Screw locations, 2
I
I
i
6x1.0mm l9.8 N.m {1.O kgt.m,l7.2 tbt.ftt )
Installation is the reverse of the removal procedure-
Check for water leaks.
NOTE: Do not use high-pressure water.
GLASS BRACKET
20-79

Moonroof

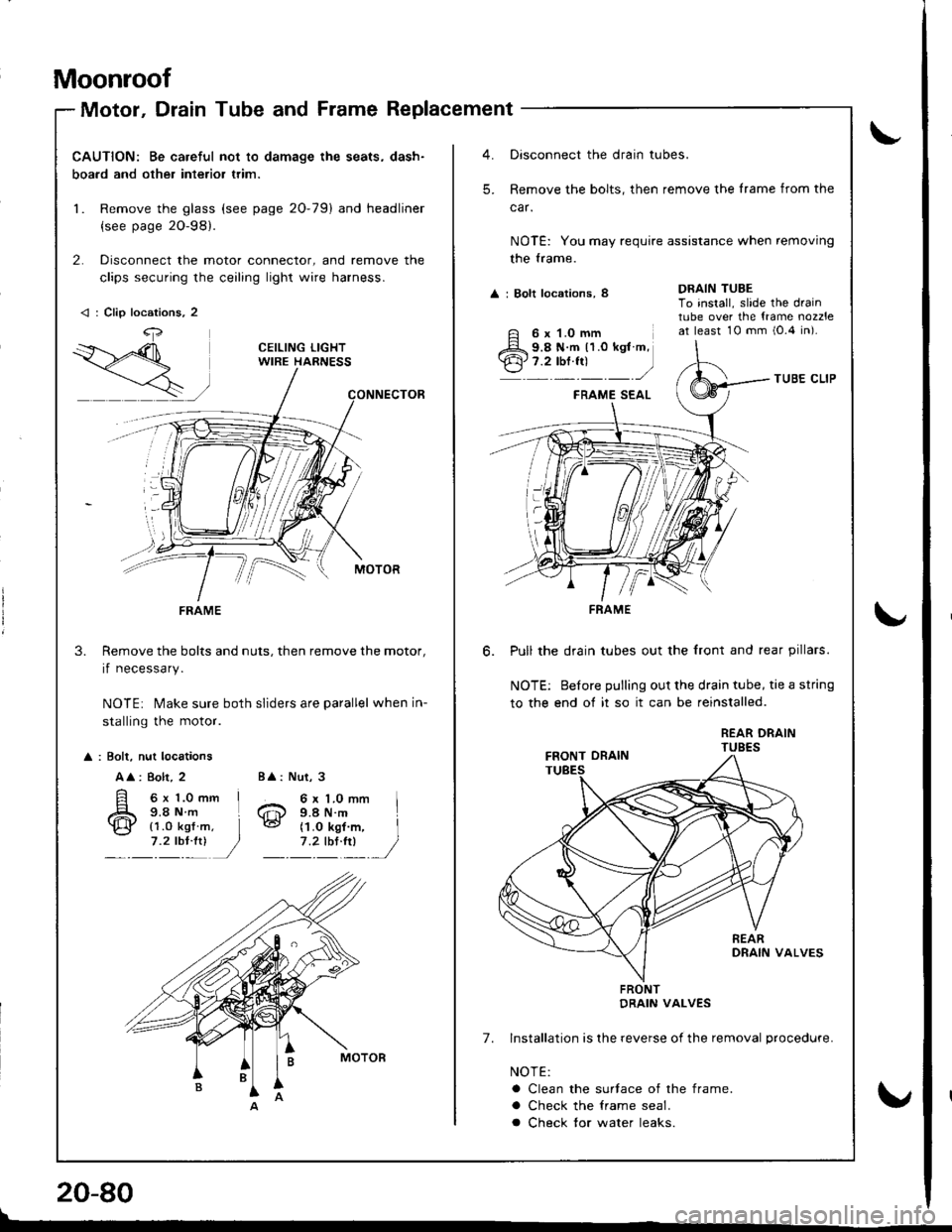

Motor, Drain Tube and Frame Replacement
CAUTION: Be careful not to damage the seats, dash-
boa.d and other interior trim.
1. Remove the glass (see page 20-79) and headliner
{see page 2O-98}.
2. Disconnect the motor connector, and remove the
clips securing the ceiling light wire harness.
Remove the bolts and nuts, then remove the motor,
if necessary.
NOTE: Make sure both sliders are parallel when in-
stalling the motor.
3.


: Bolt, nut locations
A

: 8olt, 2
6x 1.0mm I9.8Nm L
Nut, 3
6 x 1.0 mm I9.4 N.m
BA:
6@{1.0 kgf7 .2 tbl:!)(1.O kgf m, I
1'lIltl /
< : Clip locations, 2
4,
FRAME
Oisconnect the drain tubes.
Remove the bolts, then remove the lrame from the
car.
NOTE: You may require assistance when removing
the trame.
A : Bolt locations, 8
TUBE CLIP
FRAME SEAL
Pull the drain tubes out the front and rear pillars.
NOTE: Before pulling out the drain tube, tie a string
to the end of it so it can be reinstalled.
REAR DRAINTUBES
7. Installation is lhe reverse of the removal procedure.
NOTE:
a Clean the surtace of the frame.
a Check the lrame seal.
a Check tor water leaks.
DRAIN TUBETo install, slide the draintube over the {rame nozzleat least 10 mm i0.4 in).
-'
6 x 1.0 mm9.8 N.m 11.0 kgt m,7.2 tbf.fr)
FRAME
FRONTDRAIN VALVES
!
\"
20-80
\
v

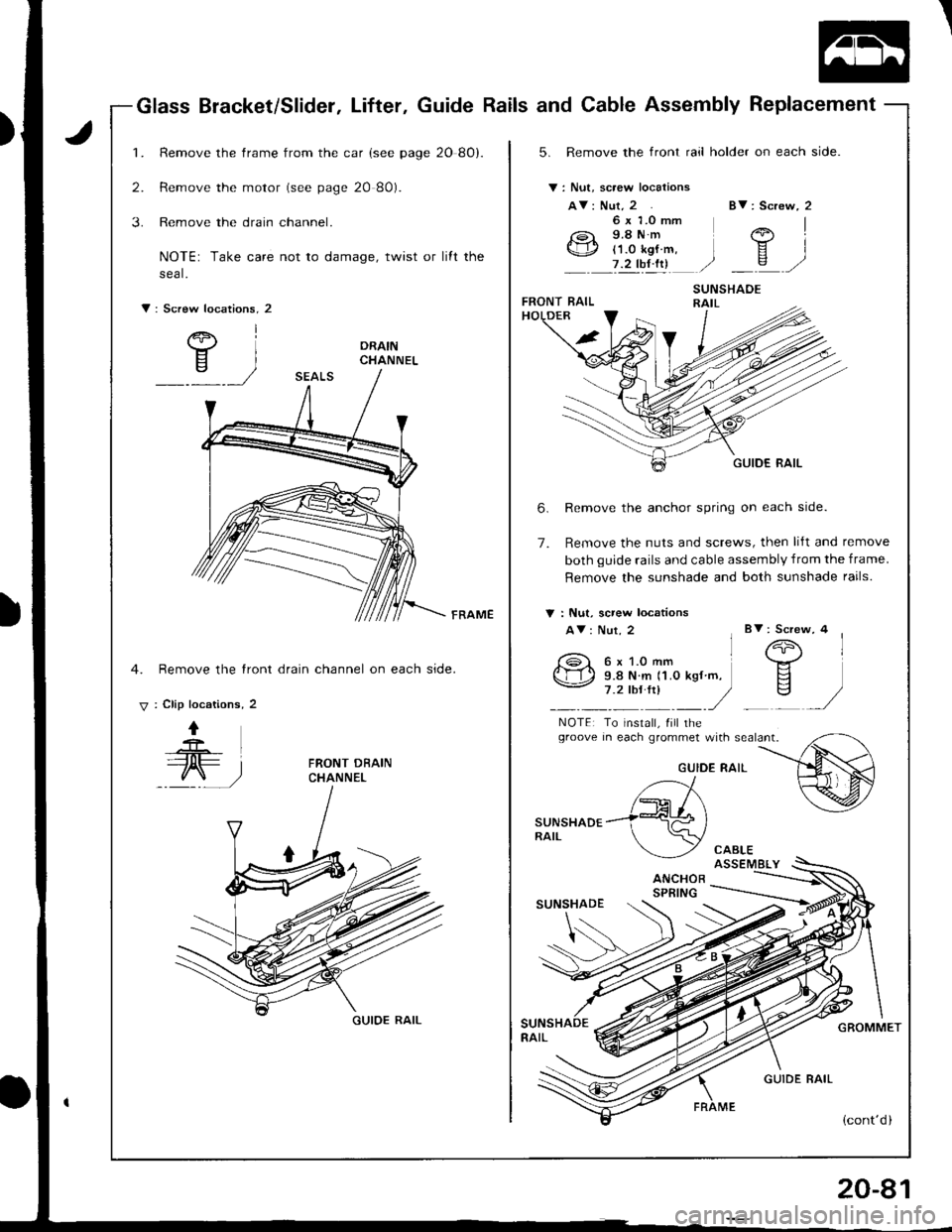

Glass Bracket/SlidetLifterGuide Rails and Cable Assembly Replacement
1.
2.
3.
Remove the frame from the car (see page 20 8O).
Remove the motor (see page 20 80).
Remove the drain channel.
NOTE: Take care not to damage, twist or lift the
sea L
5. Remove the front rail holder on each side.
V: Nut, scaew locations
AV: Nut, 2Bv: Screw, 2
1er I
YIc,/
6 x 1.0 mm9.8Nm('1.0 kgf m, I7 2 !!!!!l ./
V : Screw locations. 2
/e, I
Y)
6.
7.
Remove the anchor spring on each side.
Remove the nuts and screws, then lift and remove
both guide rails and cable assembly from the frame.
Remove the sunshade and both sunshade rails.
FRAMEV : Nut, screw locations
AV: Nut, 2Bv: Screw, 4
4. Remove the tront drain channel on each side.
V : Clip locations, 2
I
@
NOTE: To install, Iill rhegroove in each grommet with sealant.
FRONT DBAINCHANNELGUIDE RAIL
,._--'//r\/-rr / \
sur'rsHaor ---i:579 )RA|L \/\---_ _/,/ CABLE
ANCHORSPFING
GUIOE RAIL
GUIDE RAIL
GROMMET

Moonroof
Glass Bracket/Slider, Lifter, Guide Rails and Cable Assembly Replacement
20-82
\
i
I
(cont'dl
8. Slide the guide rail forward, then remove it.
NOTE: Take care not to bend the inner cable.
10.Slide the anchor rod forward, then remove it lrom
the guide rail.
STOPPER
To install, insert the anchorrod by turning the sropper 90o
9.Separate the glass bracket, lifter, slide stopper link
and slider.
ANCHOR ROD
11.Installation is the reverse of the removal procedure.
NOTE:
a Damaged parts should be replaced.
a Apply grease to the shding portion.
INNERCABLE
\o
GLASSERACKETLIFTER
SLIOER
NOTEr To install, apply multipurpose grease tothe lifter and slide stopper link.
CABLE ASSEMBLY
GUIDE RAIL
