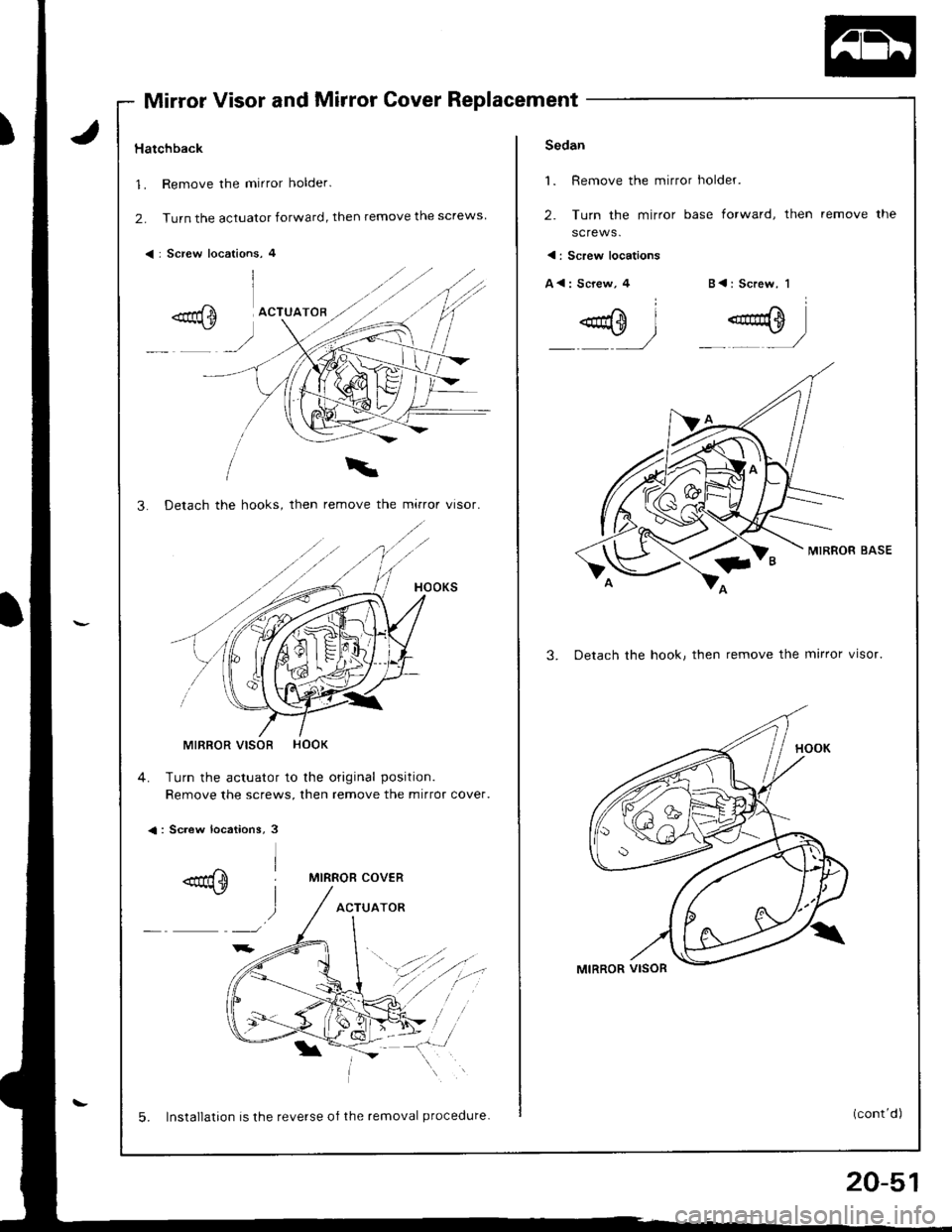

Mirror Visor and Mirror Cover Replacement
Hatchback
1. Remove the mirror holder.
2. Turn the actuator forward, then remove the screws
< : Screw locations, 4
3. Detach the hooks, then remove the mirror visor.
MIRROR VISOR HOOK
4. Turn the actuator to the original position.
Remove the screws, then remove the mirror cover.
<: Screw locations, 3
MIRROR COVER
ACTUATOR
5. Installation is the reverse of the removal procedure.
20-51
Sedan
1. Remove the mirror holder.
2. Turn the mirror base forward, then
screws.
remove the
< : Screw locations
A<: Screw,4B<: Screw, 1
MIRROR BASE
3. Detach the hook, then remove the mirror visor.

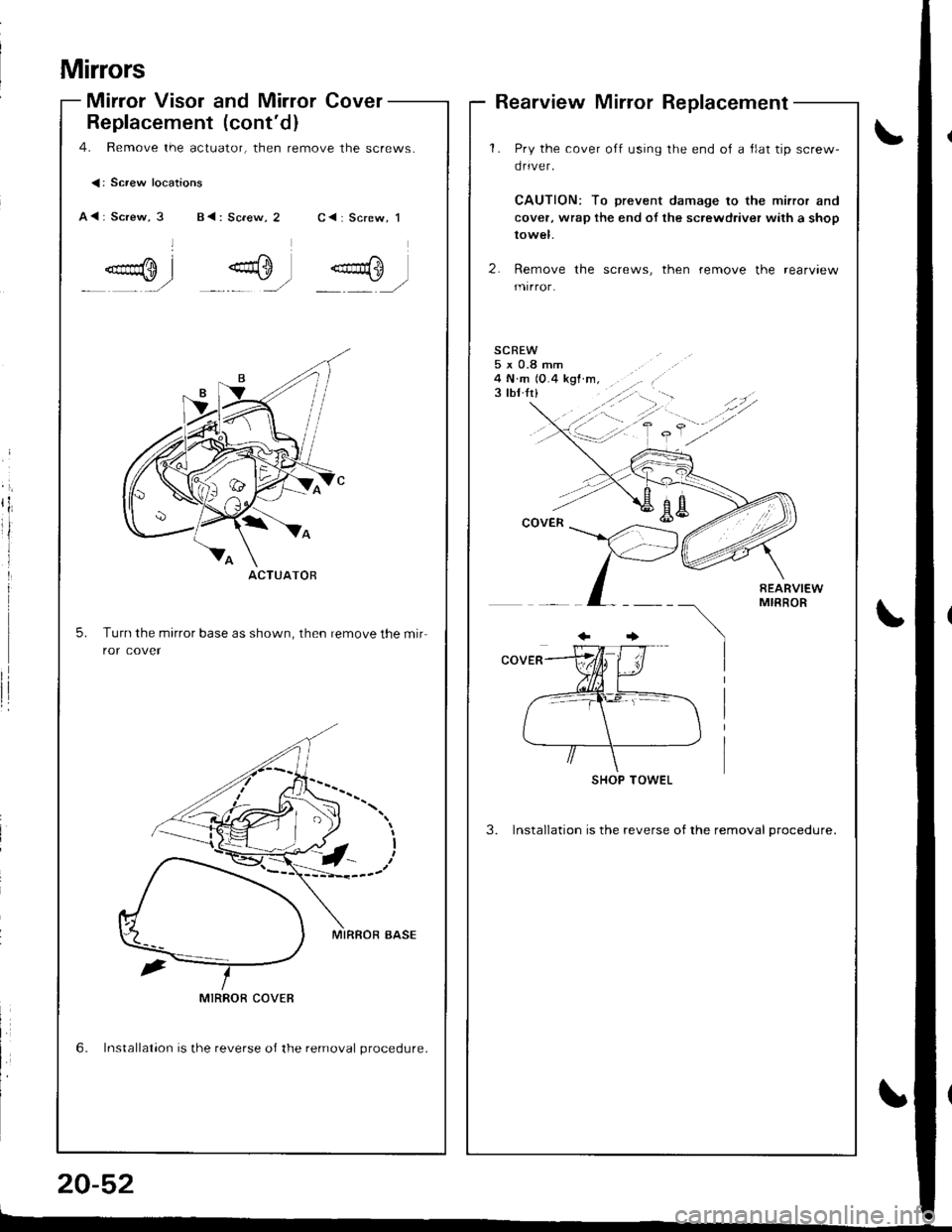

Replacement (cont'd)
4. Remove the actuator, then remove the screws.
<: Screw locations
A<: Screw, 3 B<: Screw, 2C { : Screw, 1
.aqm I- r'/
'.0=-l .g}_,,]
5.Turn the mirror base as shown, then remove Ine mtr
ror cover
MIRROR AASE
6. Installation is the reverse oI the removal procedure.
ACTUATOR
MIRROR COVEB
Mirrors
Mirror Visor and Mirror CoverRearview Mirror Replacement
:
rl
rl
I
20-52
L
1. Pry the cover off using the end of a flat tip screw-
drive r.
CAUTION: To prevent damage to the mirror and
cover, wrap the end ol the screwdriver with a shop
towel.
2. Remove the screws, then remove the rearview
mirror.
REARVIEWMIRROR
3. lnstallation is the reverse of the removal orocedure.
SHOP TOWEL

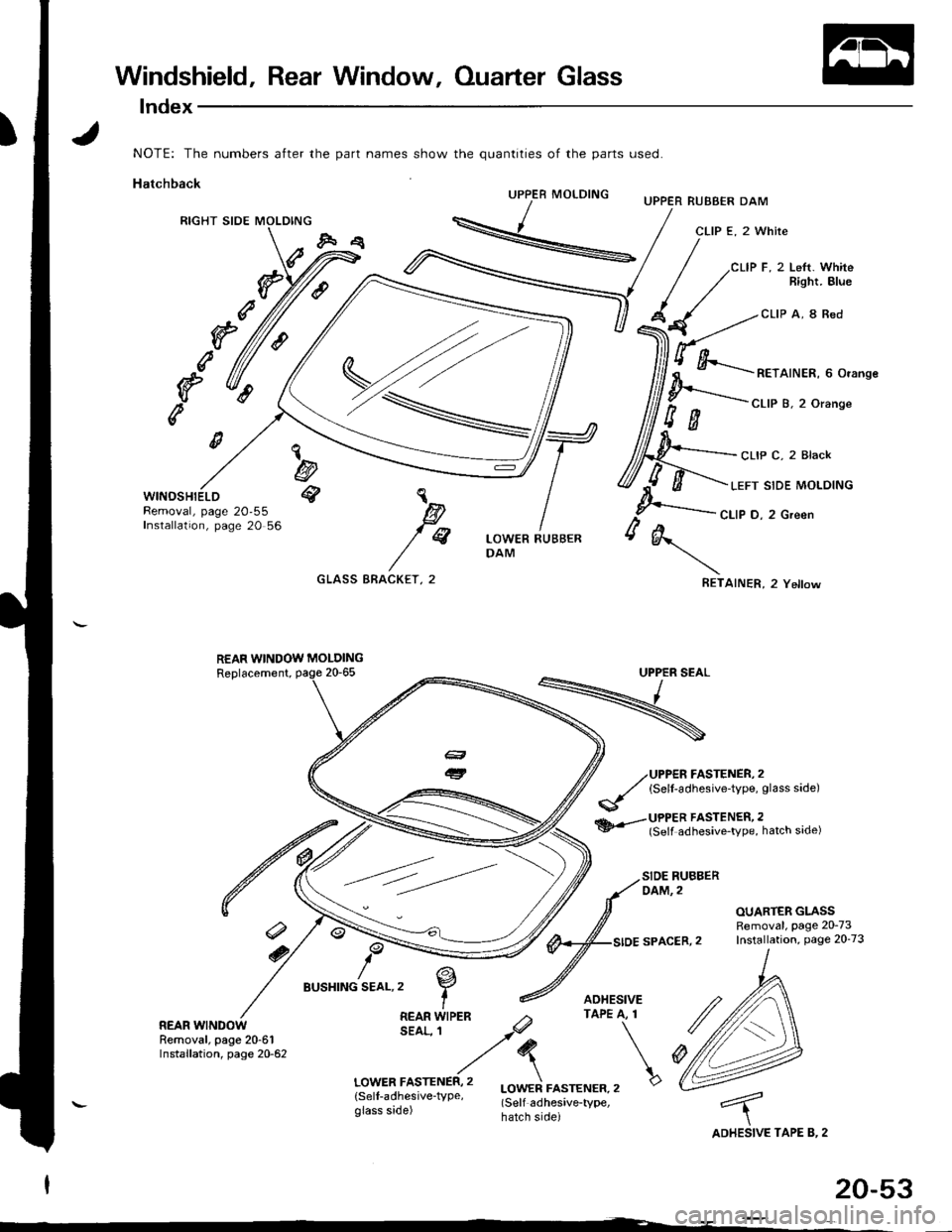

Windshield, Rear Window, Ouarter Glass
lndex
part names show the quantities of the parts Lrsed.
UPPER MOLDINGUPPER RUBBER DAM
CLIP E, 2 White
CLIP F, 2 Lett. WhiteBight. Blue
CLIP A, 8 Red
c
f(
RETAINER, 6 Orange
CLIP B, 2 Orange
CLIP C, 2 Black
LEFT SIDE MOLDING
CLIP D, 2 Green
AINER, 2 Yellow
WINOSHIELDRemoval, page 20,55Installation, page 20 56
REAR
GLASS BRACKET, 2
,^
,r"
A
RET
a
REAR WINDOW MOLDING
UPPER FASTENER, 2(Self-adhesive-type, glass side)
UPPER FASTENER,2(Self adhesive_type, hatch side)
SIDE RUBBERDAM, 2
OUARTER GLASSRemoval, Page 20-73
SPACER,2 Installation, Page 20-73
TAPE B, 2ADHESIVE
/
Ar-/
I
BUSHING SEAL.2
Removal, page 20-61Installation, page 20-62
NOTE: The numbers after the
Hatchback
RIGHT SIDE MOLDING
'l
@q
a
e,

Windshield, Rear Window
lndex
NOTE: The numbers alter the part names show the quantities of the parts used.
Sedan
UPPER MOLDING
RIGHT SIDE MOLDING
g
e
e
WINDSHIELDRemoval, page 20-55Installation, page 20-56
bq
BEAR WINDOWRemoval, page 20 68Installation,page 20-69
UPPER RUBBER DAM
CLIP E, 2 White
cLlP F, 2 Lefr. WhireRight. Elue
CLIP A, 8 Red
\
B)
fqLOWER RUBBERDAM
A
\
RET
g
REAR WINDOW MOLDING
GLASS BRACKET, 2AINER, 2 Yellow
UPPER FASTENER, 2(Self -adhesivo-type, glass side)
#,Krrr*
FA.TENER, 2(Clip-type, body side)
LOWER COVER
20-54
&....-r,o, sPAcER, 4
q*-------..- LowEB FA'TENER, 2

{Self-adhesive-typ€,slasssid€)
LOWER FASTENER, 2(Self-adhosive-type, body sidel

Windshield
Removal
CAUTION:
a Wear gloves to remove and inslall the windshield,
a Use seat covers to avoid damaging any surtaces.
1. To remove the windshield, Jirst remove the:
a Front pillar trim (see page 2O-91)
. Headliner (see pages 20-98, 1O0)
a Windshield wiper arms and air scoop (see section
231
2. Detach the clips from the retainers, then remove
both side moldings as shown.
NOTE: lf necessary, replace any damaged clips.
3. Remove the right and left glass brackets.
WINOSHIELD
Peel off the upper molding.
NOTE: When the upper molding removal is dillicult,
cut the upper rubber portion O off, then cut the side
rubber portion @.
UPPER MOLDING
ADHESIVE
WINDSHIELD
5. Remove the other retainers from the bodv.
CLIP C, D
(cont'd )

Windshield
Removal (cont'd)
Apply protective tape to along the edge ol the dash
board and body as shown.
Using an awl, make a hole through the rubber dam
and adhesive from inside the car' Push the piano wire
through the hole, and wrap each end around a piece
of wood.
PROTECTIVE TAPE
WINDSHIELD
ADHESIVE
WINDSHIELD
PIANO WIRE
ADHESIVE
With a helper on the outside, pull the piano wire back
and forth in a sawing motion, and carelully cut
through the rubber dam and adhesive around the en
tire windshield.
CAUTION: Hold the oiano wire as close to the wind-
shield as possible to plevenl damage to the body and
dashboard.
8. Caretully remove the windshield
lnstallation
Scrape the old adhesive smooth with a knife to a
thickness of about 2 mm (O.08 in) on the bonding
surface around the entire windshield opening flange.
a Do not scrape down to the painted surtace oJ the
body; damaged paint will interfere with proper
bondang.
a Remove the rubber dam from the body.
a Mask off surrounding surfaces before painting.
Clean the body bonding sur,face with a sponge damp-
ened in alcohol.
NOTE: After cleaning, keep oil, grease and water
from getting on the surface.
lf the old windshield is to be reinstalled, use a putty
knile to scrape off all traces oI old adhesive, then
clean the windshield surface with alcohol where new
adhesive is to be applied.
NOTEr N4ake sure the bonding surface is kept free
of water, oil and grease.
CAUTION: Avoid setting the windshield on its
edges; small chips may later develop into cracks.
a Clean the shadowed area.
a Clean area @ as shown.
lnside
+
;
l!
i
1i
il
tl
WINDSHIELD
DAM
WINDSHIELD
,-----'---____/^_-___-/-------\
20-56
\- ,,

Center and glue the upper molding to the upper edge
of the windshield.
ALIGNMENT MARK
Glue the upper and lower rubber dams to the inside
lace of the windshield, as shown, to contain the
adhesive during installation.
NOTE: Be careful not to touch the windshield where
adhesive will be applied.
5.
UPPER RUBEER UPPER MOLDING
10 mm {0.39 in)
WINDSHIELD
LOWER RUBEER OAM8.
20-57
Install the glass brackets and retainers as shown
NOTE: The numbers after the part names show the
quantities of the parts used.
BRACKET,2
7. Set the windshield on the glass brackets, then center
it in the opening. Make alignment marks across the
windshield and body with a grease pencil at the four
potnrs snown.
6.
ERACKETSNOTE: Adjust the glass brackets to center the windshield inthe opening, then tighten thescrews.
Remove the windshield.
{cont'd )
ALIGNMENT MARK

Windshield
Installation (cont'dl
With a sponge, apply a light coat of glass primer
around the edge of the windshield as shown, then
lightly wipe it o{f with gauze or cheesecloth.
NOTE:a Do not apply body primer to the windshield, and
do not get body and glass primer sponges mixed
up.
a Never touch the primed surtaces with your hands.
lf you do, the adhesive may not bond to the wind
shield properly, causing a leak after the windshield
is installed.
a Keep water, dust, and abrasive materials away
from the primed sur{ace.
V///t t applv slass primer her6.
UPPER RUBBER UPPERDAM MOLDING
WINDSIIIELD
UPPER MOLOING
n------kBB''i+,
KKKxxl DAM
20-58
1O. With a sponge, apply a light coat oI body primer to
the original adhesive remaining around the wind-
shield opening llange. Let the body primer dry tor
at least 10 minutes.
NOTE:
a Do not apply glass primer to the body, and be
carelul not to mix up glass and body primer
sponges.
o Never touch the primed surfaces with your hands.
a Mask olf the dashboard be{ore painting the
flange.
/////,, epptv body p.imer here.
16 mm{0.63 inl
5 mm {0.19 in)
6 mm {0.23 inl'16 mm{0.63 in}
5mm(O.'19 inl
16 mm10.63 in)
1'1. Thoroughly mixthe adhesive and hardener together
on a glass or metal plate with a putty knife.
NOTE:
a Clean the plate with a sponge and alcohol before
mlxlng.
a Follow the instructions that come with the
adhesive.
12. Before filling a cartridge, cut the end of the nozzle
as shown.
10 mm {O.39 in}
