1997 SUBARU LEGACY light

B5M0304
15. Roof Rack (Wagon only, if
equipped)
A: REMOVAL
1) Remove roof trim, rear quarter trim, pillar trim, etc.

2) Remove flange bolts.
3) Remove flange nuts.
4) Remove roof rail.
B: INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
To prevent deformation, be sure to install roof rail in
steps 4), 3), 2) and 1), in that order.
B5M0307A
16. Sunroof
A: REMOVAL
1. GLASS LID ASSEMBLY
1) Completely open sun shade. (Push it back far.)
2) Remove a clip and detach guide rail cover.
3) Remove six nuts from the left and right lid bracket.
4) Working inside, slightly raise glass lid assembly until it
is disengaged from lid bracket.
5) Hold both ends of glass lid assembly and remove it at
an angle.
B5M0308B
2. SUNROOF MOTOR AND RELAY
1) Remove center pillar trim upper.
2) Remove front pillar trim upper.
3) Remove assist grip on left side.
4) Remove sunvisor with hook.
5) Remove sunroof switch.
6) Remove rearview mirror.
7) While rolling up roof trim, disconnect harness clips and
connector.
8) While rolling up roof trim, remove spot lamp bracket and
sunroof motor.
56
5-1SERVICE PROCEDURE
15. Roof Rack (Wagon only, if equipped) - 16. Sunroof

B5M0304
15. Roof Rack (Wagon only, if
equipped)
A: REMOVAL
1) Remove roof trim, rear quarter trim, pillar trim, etc.

2) Remove flange bolts.
3) Remove flange nuts.
4) Remove roof rail.
B: INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
To prevent deformation, be sure to install roof rail in
steps 4), 3), 2) and 1), in that order.
B5M0307A
16. Sunroof
A: REMOVAL
1. GLASS LID ASSEMBLY
1) Completely open sun shade. (Push it back far.)
2) Remove a clip and detach guide rail cover.
3) Remove six nuts from the left and right lid bracket.
4) Working inside, slightly raise glass lid assembly until it
is disengaged from lid bracket.
5) Hold both ends of glass lid assembly and remove it at
an angle.
B5M0308B
2. SUNROOF MOTOR AND RELAY
1) Remove center pillar trim upper.
2) Remove front pillar trim upper.
3) Remove assist grip on left side.
4) Remove sunvisor with hook.
5) Remove sunroof switch.
6) Remove rearview mirror.
7) While rolling up roof trim, disconnect harness clips and
connector.
8) While rolling up roof trim, remove spot lamp bracket and
sunroof motor.
56
5-1SERVICE PROCEDURE
15. Roof Rack (Wagon only, if equipped) - 16. Sunroof

B5M0304
17. Roof Rail (Outback with step roof)
A: REMOVAL
1) Remove roof trim, rear quarter trim, pillar trim, etc.

2) Remove flange bolts.
3) Remove flange nuts.
4) Remove roof rail.
B: INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
To prevent deformation, be sure to install roof rail in
steps 4), 3), 2) and 1), in that order.
B5M0412A
18. Undercover
A: REMOVAL AND INSTALLATION
1) Remove undercover mounting bolts.
2) Installation is in the reverse order of removal.
NOTE:
Undercover is bolted along with mud guard.
B5M0413
19. Rear Spoiler (4 Door Sedan 2500 cc
GT model only)
A: REMOVAL AND INSTALLATION
1) Open trunk lid.
2) Disconnect high-mount stop light connector located
inside the trunk lid.
3) Remove rubber caps.
B5M0414
4) Remove rear spoiler mounting nuts.
CAUTION:
When removing nuts, be careful not to drop them
inside rear gate.
59
5-1SERVICE PROCEDURE
17. Roof Rail (Outback with step roof) - 19. Rear Spoiler (4 Door Sedan 2500 cc GT model only)

B5M0304

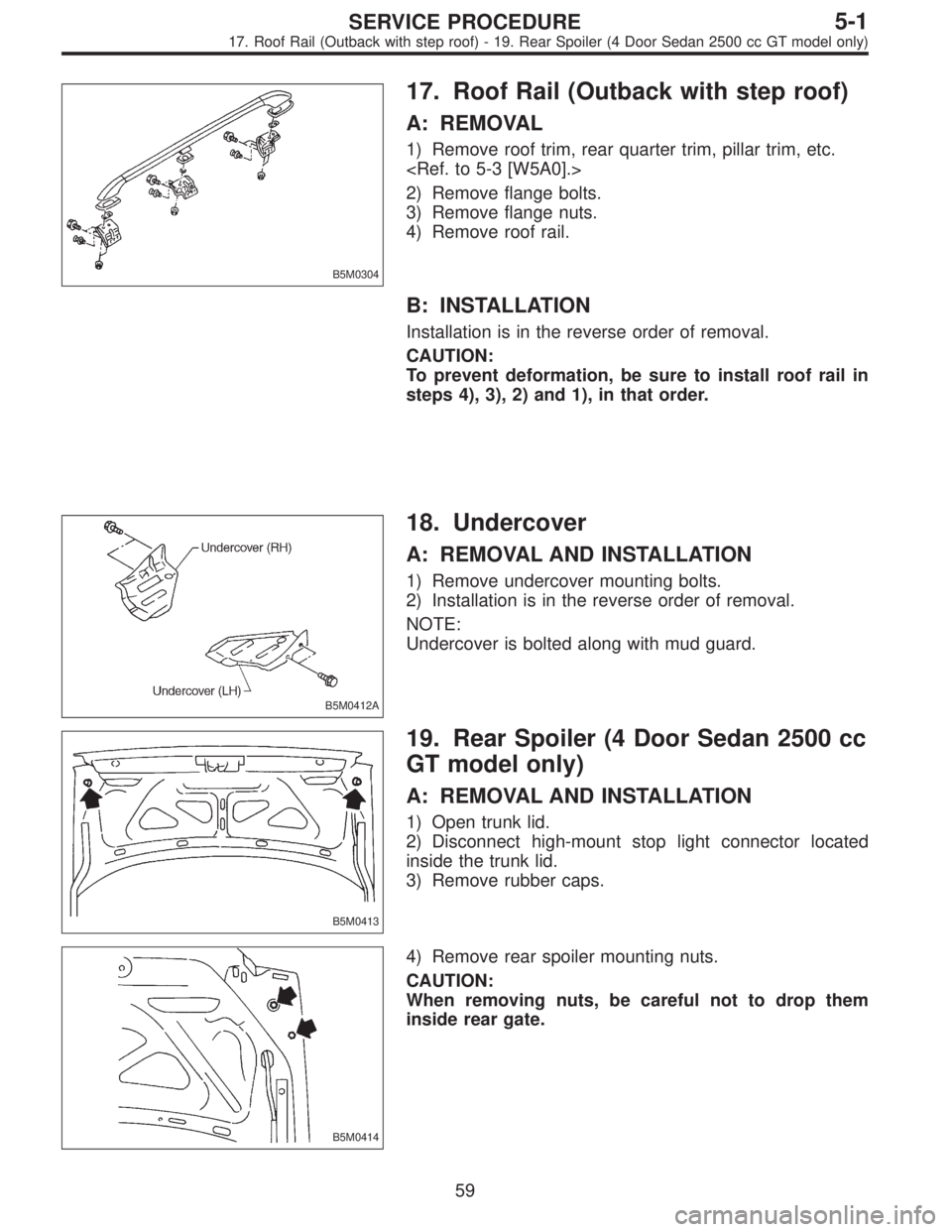

17. Roof Rail (Outback with step roof)
A: REMOVAL
1) Remove roof trim, rear quarter trim, pillar trim, etc.

2) Remove flange bolts.
3) Remove flange nuts.
4) Remove roof rail.
B: INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
To prevent deformation, be sure to install roof rail in
steps 4), 3), 2) and 1), in that order.
B5M0412A
18. Undercover
A: REMOVAL AND INSTALLATION
1) Remove undercover mounting bolts.
2) Installation is in the reverse order of removal.
NOTE:
Undercover is bolted along with mud guard.
B5M0413
19. Rear Spoiler (4 Door Sedan 2500 cc
GT model only)
A: REMOVAL AND INSTALLATION
1) Open trunk lid.
2) Disconnect high-mount stop light connector located
inside the trunk lid.
3) Remove rubber caps.
B5M0414
4) Remove rear spoiler mounting nuts.
CAUTION:
When removing nuts, be careful not to drop them
inside rear gate.
59
5-1SERVICE PROCEDURE
17. Roof Rail (Outback with step roof) - 19. Rear Spoiler (4 Door Sedan 2500 cc GT model only)

B5M0304
17. Roof Rail (Outback with step roof)
A: REMOVAL
1) Remove roof trim, rear quarter trim, pillar trim, etc.

2) Remove flange bolts.
3) Remove flange nuts.
4) Remove roof rail.
B: INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
To prevent deformation, be sure to install roof rail in
steps 4), 3), 2) and 1), in that order.
B5M0412A
18. Undercover
A: REMOVAL AND INSTALLATION
1) Remove undercover mounting bolts.
2) Installation is in the reverse order of removal.
NOTE:
Undercover is bolted along with mud guard.
B5M0413
19. Rear Spoiler (4 Door Sedan 2500 cc
GT model only)
A: REMOVAL AND INSTALLATION
1) Open trunk lid.
2) Disconnect high-mount stop light connector located
inside the trunk lid.
3) Remove rubber caps.
B5M0414
4) Remove rear spoiler mounting nuts.
CAUTION:
When removing nuts, be careful not to drop them
inside rear gate.
59
5-1SERVICE PROCEDURE
17. Roof Rail (Outback with step roof) - 19. Rear Spoiler (4 Door Sedan 2500 cc GT model only)

5) Installation is in the reverse order of removal.
Tightening torque:
7.4±2.0 N⋅m (0.75±0.2 kg-m, 5.4±1.4 ft-lb)
B5M0305

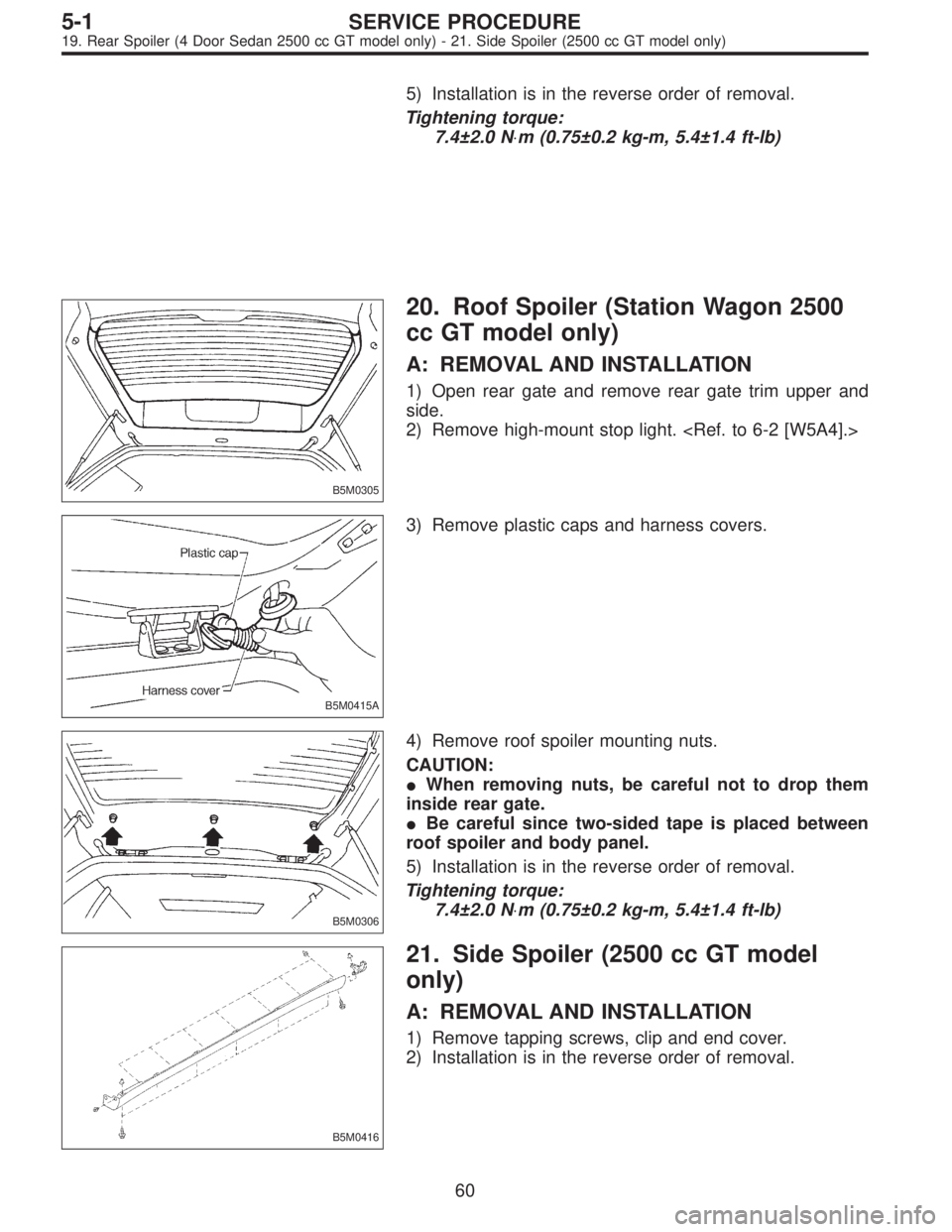

20. Roof Spoiler (Station Wagon 2500
cc GT model only)
A: REMOVAL AND INSTALLATION
1) Open rear gate and remove rear gate trim upper and
side.
2) Remove high-mount stop light.
B5M0415A
3) Remove plastic caps and harness covers.
B5M0306
4) Remove roof spoiler mounting nuts.
CAUTION:

When removing nuts, be careful not to drop them
inside rear gate.

Be careful since two-sided tape is placed between
roof spoiler and body panel.
5) Installation is in the reverse order of removal.
Tightening torque:
7.4±2.0 N⋅m (0.75±0.2 kg-m, 5.4±1.4 ft-lb)
B5M0416
21. Side Spoiler (2500 cc GT model
only)
A: REMOVAL AND INSTALLATION
1) Remove tapping screws, clip and end cover.
2) Installation is in the reverse order of removal.
60
5-1SERVICE PROCEDURE
19. Rear Spoiler (4 Door Sedan 2500 cc GT model only) - 21. Side Spoiler (2500 cc GT model only)

5) Installation is in the reverse order of removal.
Tightening torque:
7.4±2.0 N⋅m (0.75±0.2 kg-m, 5.4±1.4 ft-lb)
B5M0305
20. Roof Spoiler (Station Wagon 2500
cc GT model only)
A: REMOVAL AND INSTALLATION
1) Open rear gate and remove rear gate trim upper and
side.
2) Remove high-mount stop light.
B5M0415A
3) Remove plastic caps and harness covers.
B5M0306
4) Remove roof spoiler mounting nuts.
CAUTION:

When removing nuts, be careful not to drop them
inside rear gate.

Be careful since two-sided tape is placed between
roof spoiler and body panel.
5) Installation is in the reverse order of removal.
Tightening torque:
7.4±2.0 N⋅m (0.75±0.2 kg-m, 5.4±1.4 ft-lb)
B5M0416
21. Side Spoiler (2500 cc GT model
only)
A: REMOVAL AND INSTALLATION
1) Remove tapping screws, clip and end cover.
2) Installation is in the reverse order of removal.
60
5-1SERVICE PROCEDURE
19. Rear Spoiler (4 Door Sedan 2500 cc GT model only) - 21. Side Spoiler (2500 cc GT model only)

5) Installation is in the reverse order of removal.
Tightening torque:
7.4±2.0 N⋅m (0.75±0.2 kg-m, 5.4±1.4 ft-lb)
B5M0305
20. Roof Spoiler (Station Wagon 2500
cc GT model only)
A: REMOVAL AND INSTALLATION
1) Open rear gate and remove rear gate trim upper and
side.
2) Remove high-mount stop light.
B5M0415A
3) Remove plastic caps and harness covers.
B5M0306
4) Remove roof spoiler mounting nuts.
CAUTION:

When removing nuts, be careful not to drop them
inside rear gate.

Be careful since two-sided tape is placed between
roof spoiler and body panel.
5) Installation is in the reverse order of removal.
Tightening torque:
7.4±2.0 N⋅m (0.75±0.2 kg-m, 5.4±1.4 ft-lb)
B5M0416
21. Side Spoiler (2500 cc GT model
only)
A: REMOVAL AND INSTALLATION
1) Remove tapping screws, clip and end cover.
2) Installation is in the reverse order of removal.
60
5-1SERVICE PROCEDURE
19. Rear Spoiler (4 Door Sedan 2500 cc GT model only) - 21. Side Spoiler (2500 cc GT model only)
