1991 ACURA NSX key

Entry Light Timer System
Component Location Index
SRS components are located in this area. Review the SRS
component locations, precautions, and procedures in the
SRS section (24) before performing repairs or service.
Description: It the driver's door has been opened by the

outer handle, the foot well light and a light at the Ignition

switch go on and stay on for about eight seconds after
the driver's door has been dosed.

IGNITION KEY LIGHT
Replacement, page 23-229
FOOT WELL LIGHT

Replacement, page 23-229

DRIVER'S DOOR SWITCH
(Built into the door lock actuator assembly)

Test, page 23-204

UNDER-DASH FUSE BOX ENTRY LIGHT TIMER CIRCUIT

( Built into the integrated control unit)
Input Test, page 23-161 ('93-'96) ('91-'92)
ProCarManuals.com

Foot Well Light Replacement

1. Remove the dashboard lower cover.

2. Disconnect the 2-P connector from the foot well

light.

DASHBOARD LOWER COVER

2-P CONNECTOR

FOOT WELL LIGHT

3. Push the foot well light out of the dashboard lower

cover.

4. Remove the foot well light bulb.

HOUSING

BULB (3.4W)

LENS
Ignition Key Light Replacement

1. Remove the dashboard lower cover.

2. Remove the dashboard lower pad.

3. Remove the bulb/socket from the key light housing

by turning the socket 45°.

KEY SWITCH

SOCKET

BULB (1.4W)

KEY LIGHT

HOUSING

4. Remove the key light housing from the key cylinder

by removing the attaching screw.ProCarManuals.com

Horns

Component Location Index

SRS components are located in this area. Review the

SRS component locations, precautions, and procedures

in the SRS section (24) before performing repairs or ser-

vice.

HORN RELAY

Test, page 23-249

UNDER-HOOD RELAY

BOX A
CABLE REEL

Test, page 23-250
HORN SWITCH
Test, page 23-249
Overhaul, section 17
SECURITY HORNTest, page 23-248
LEFT HORN
Test, page 23-248
RIGHT HORN
Test, page 23-248
SECURITY CONTROL
UNIT
Inpu
t
Test, page 23-320
('94-'96) ('93) ('91-'92)
UNDER-HOOD

FUSE/RELAY BOX

Description

Security Alarm System:

The security alarm system is an anti-theft alarm system. If someone tries to open the trunk, hood or either door without

the ignition key, or if the roof is not fully latched the security control unit senses a signal from the sensors and activates
relays to flash the headlights and sound the horn for about two minutes.ProCarManuals.com

Power Doo r Lock s
Driver' s Doo r Actuato r Tes t
1. Remov e th e doo r pane l (se e sectio n 20 ).
2 . Disconnec t th e 8- P connecto r fro m th e actuator .
ACTUATO R
View fro m wid e sid e
3. Tes t actuato r operation :
LOCK: Wit h batter y powe r connecte d t o th e
No . 7 terminal , connec t groun d t o th e
No . 8 termina l momentarily .
UNLOCK : Wit h batter y powe r connecte d t o th e
No . 8 terminal , connec t groun d t o th e
No . 7 termina l momentarily .
CAUTION : T o preven t damag e t o th e motor , con -
nect powe r an d groun d onl y momentarily .
4. I f th e actuato r fail s t o operat e properly , replac e it . 5
. Chec k fo r continuit y betwee n th e terminal s in eac h
switc h positio n accordin g t o th e table .
Ke y Cylinde r Switch :
Doo r Loc k Kno b Switch :
DOOR LOC K KNO B
KEY CYLINDE RSWITCH
DOORKEY
ProCarManuals.com

Passenger's Doo r Actuato r Tes t -
1 . Remov e th e doo r pane l (se e sectio n 20 ).
2 . Disconnec t th e 8- P connecto r fro m th e actuator .
View fro m wid e sid e
ACTUATO R
3. Tes t actuato r operation :
LOCK : Wit h batter y powe r connecte d t o th e
No . 7 terminal , connec t groun d t o th e
No . 8 termina l momentarily .
UNLOCK : Wit h batter y powe r connecte d t o th e
No . 8 terminal , connec t groun d t o th e
No . 7 termina l momentarily .
CAUTION : T o preven t damag e to th e motor , con -
nec t powe r an d groun d onl y momentarily .
4 . I f th e actuato r fail s t o operat e properly , replac e it . 5
. Chec k fo r continuit y betwee n th e terminal s in eac h
switc h positio n accordin g t o th e table .
Ke y Cylinde r Switch :
Door Loc k Kno b Switch :
DOOR LOC K KNO B
KEY CYLINDE RSWITCH
DOORKEY
ProCarManuals.com

Power Windows
Component Location Index
POWER WINDOW

RELAY
Test
,
page 23-277
('94-'96) ('91-'93)
PASSENGER'S SWITCH

Test, page 23-274('94-'96)

Replacement, page
23-275
PASSENGER'S DOOR SWITCH

Test, page 23-204
PASSENGER'S MOTOR

Test, page 23-276('94-'96) ('91-'93)

Replacement, section 20
DRIVER'S DOOR SWITCH
Test, page 23-204
DRIVER'S MOTORTest, page 23-276('94-'96) ('91-'93)
Replacement,
section 20
MASTER SWITCH

Test, page 23-273 ('94-'96) ('91-'93)
Replacement, page 23-274
('94-'96) ('91-'93)

POWER WINDOW
CONTROL UNIT
Input test, page 23-272
('94-'96) ('91-'93)
KEY-OFF TIMER CIRCUIT
(In the integrated control unit)
Input test, page 23-168
('94-'96) ('91-'93)
UNDER-DASH FUSE BOX

UNDER-HOOD FUSE/RELAY

BOX

Description

Power Window Key-off Timer Operation:
The power windows can still be operated for about ten minutes after the ignition switch is turned from the "II" to the "I"
or "O" position as long as neither of the doors has been opened. This provides a convenience to parked occupants while
offering a degree of security against unwanted or accidental window operation.ProCarManuals.com

Security Alarm System
Component Location Index

SRS components are located in this area. Review the

SRS component locations, precautions, and procedures
i
n
the SRS section (24) before performing repairs or ser-

vice.

RIGHT REAR SIDE
MARKER LIGHT
Replacement, page 23-197 PASSENGER'S DOOR KEY
CYLINDER SWITCH
Test, page 23-267
Replacement, section 20
STEREO RADIO/

CASSETTE PLAYER

Terminals, page

23-240
IGNITION

SWITCH
Test, page 23-72
('93-'96) ('91-'92)
IGNITION

KEY SWITCH
Test, page 23-326 ('93-'96) ('91-'92)
UNDER-HOOD

RELAY BOX A
HORN RELAY
Test, page 23-249

BATTERY

Teat, page 23-68 ('93-'96) ('91-'92)
SECURITY HORN
Test, page 23-218 LEFT HEADLIGHT
Replacement page 23-193
LEFT FRONT
PARKING LIGHT
Replacement,
page 23-195
LEFT (LOW) HORN
Test, page 23-248
HOOD SWITCH
Test, page 23-325 ('93-'96) ('91-'92)
RIGHT (HIGH) HORN
Test, page 23-248
RIGHT FRONT

PARKING LIGHT

Replacement,

page 23-195
RIGHT HEADLIGHT
Replacement,
page 23-193
RIGHT FRONT
SIDE MARKER LIGHT
Replacement,
page 23-195 HEADLIGHT

RETRACTOR RELAYS

Test, page 23-190
('93-'96) ('91-'92)
HEADLIGHT RELAY
Test, page 23-189 TAILIGHT RELAY

Test, page 23-190
('93-'96)('91-'92)
UNDER-HOOD

FUSE/RELAY

BOX
DIMMER RELAY
Test, page 23-189
SECURITY

CONTROL UNIT
Input Test,

page 23-320 ('94-'96) ('93) ('91-'92)

PASSENGER'S DOOR

LOCK ACTUATOR

ASSEMBLY
Test, page 23-323
('94-'96) ('93) ('91-'92)ProCarManuals.com

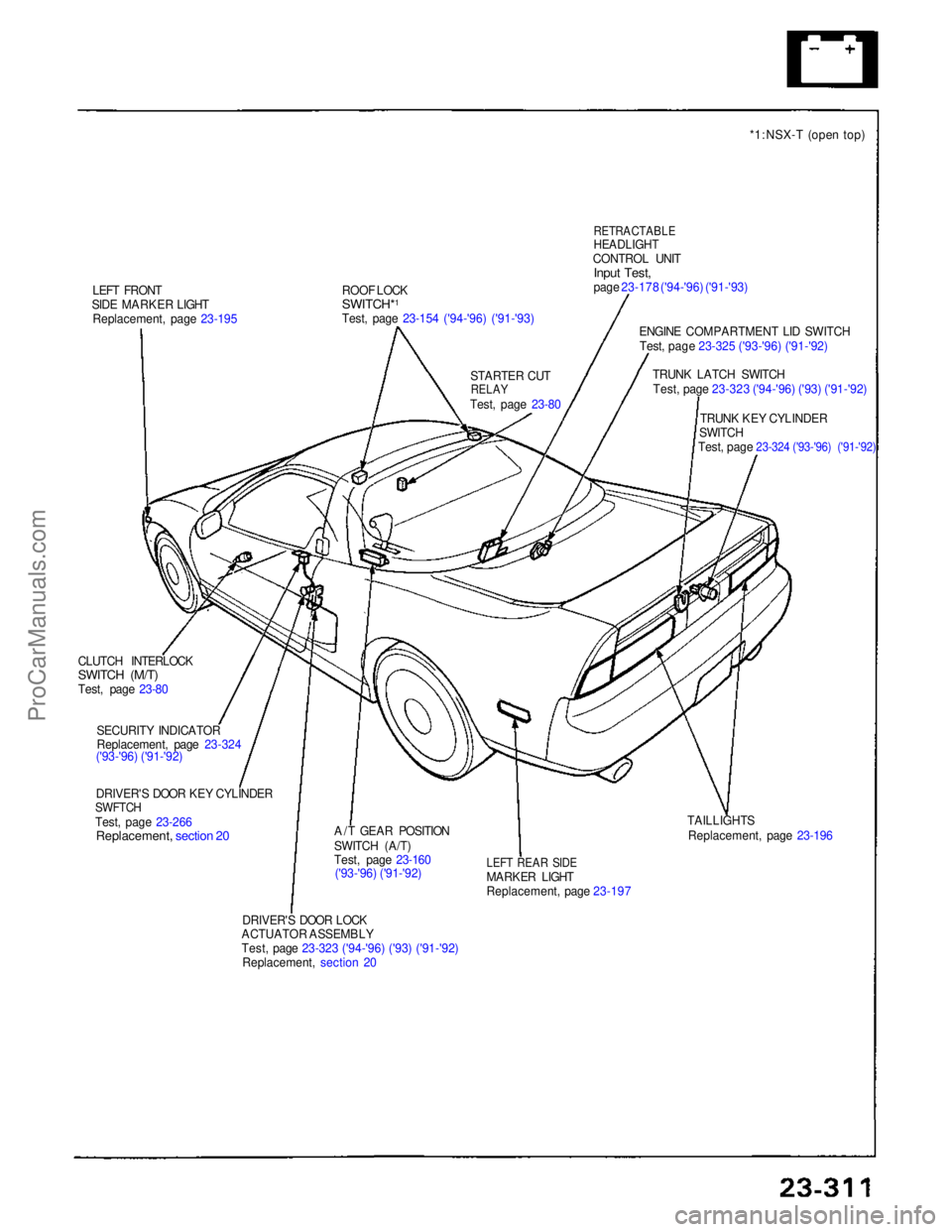

LEFT FRONT
SIDE MARKER LIGHT Replacement, page 23-195 ROOF LOCK

SWITCH*
1

Test, page 23-154 ('94-'96) ('91-'93)
STARTER CUT
RELAY

Test, page 23-80
RETRACTABLE

HEADLIGHT

CONTROL UNIT
Input Test,

page 23-178 ('94-'96) ('91-'93)
ENGINE COMPARTMENT LID SWITCHTest, page 23-325 ('93-'96) ('91-'92)
TRUNK LATCH SWITCHTest, page 23-323 ('94-'96) ('93) ('91-'92)
TRUNK KEY CYLINDER
SWITCH
Test, page 23-324 ('93-'96) ('91-'92)

TAILLIGHTS

Replacement, page 23-196

LEFT REAR SIDE

MARKER LIGHT
Replacement, page 23-197
DRIVER'S DOOR LOCK
ACTUATOR ASSEMBLY
Test, page 23-323 ('94-'96) ('93) ('91-'92)
Replacement, section 20 A/T GEAR POSITION
SWITCH
(A/T)
Test, page 23-160
('93-'96) ('91-'92)
DRIVER'S DOOR KEY CYLINDER

SWFTCH

Test, page 23-266
Replacement, section 20
SECURITY INDICATOR
Replacement, page 23-324
('93-'96) ('91-'92)
CLUTCH INTERLOCK

SWITCH (M/T)

Test, page 23-80 *1:NSX-T (open top)ProCarManuals.com
