2023 LINCOLN CORSAIR Owners Manual

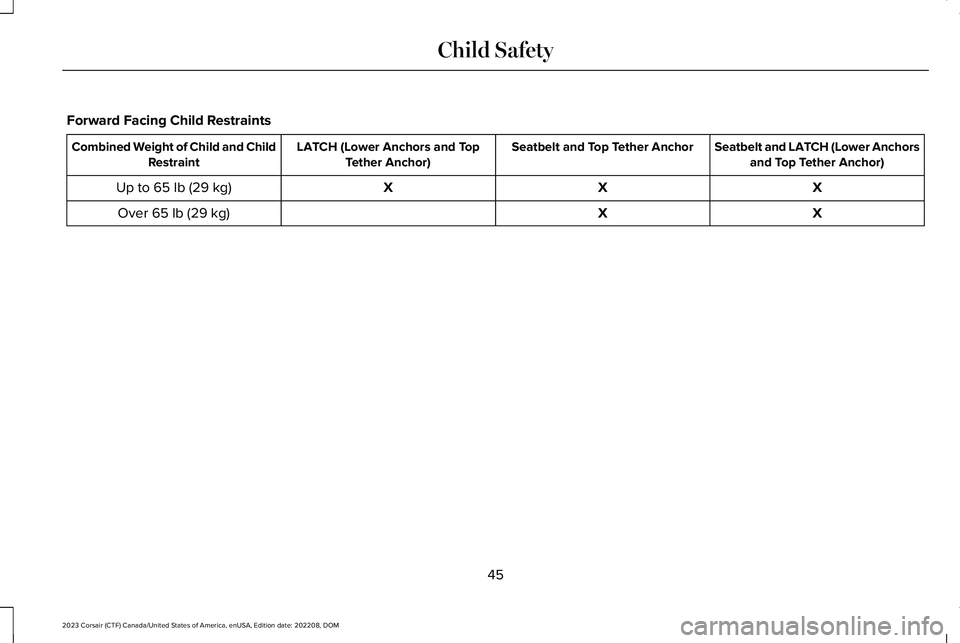

Forward Facing Child Restraints
Seatbelt and LATCH (Lower Anchorsand Top Tether Anchor)Seatbelt and Top Tether AnchorLATCH (Lower Anchors and TopTether Anchor)Combined Weight of Child and ChildRestraint
XXXUp to 65 lb (29 kg)
XXOver 65 lb (29 kg)
45
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMChild Safety

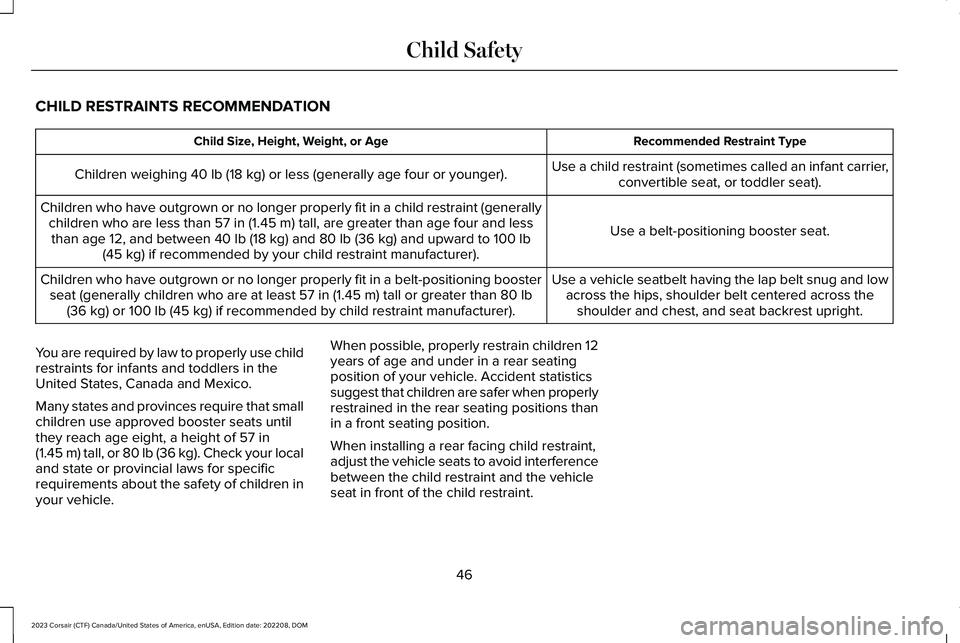

CHILD RESTRAINTS RECOMMENDATION
Recommended Restraint TypeChild Size, Height, Weight, or Age
Use a child restraint (sometimes called an infant carrier,convertible seat, or toddler seat).Children weighing 40 lb (18 kg) or less (generally age four or younger).
Use a belt-positioning booster seat.
Children who have outgrown or no longer properly fit in a child restraint (generallychildren who are less than 57 in (1.45 m) tall, are greater than age four and lessthan age 12, and between 40 lb (18 kg) and 80 lb (36 kg) and upward to 100 lb(45 kg) if recommended by your child restraint manufacturer).
Use a vehicle seatbelt having the lap belt snug and lowacross the hips, shoulder belt centered across theshoulder and chest, and seat backrest upright.
Children who have outgrown or no longer properly fit in a belt-positioning boosterseat (generally children who are at least 57 in (1.45 m) tall or greater than 80 lb(36 kg) or 100 lb (45 kg) if recommended by child restraint manufacturer).
You are required by law to properly use childrestraints for infants and toddlers in theUnited States, Canada and Mexico.
Many states and provinces require that smallchildren use approved booster seats untilthey reach age eight, a height of 57 in(1.45 m) tall, or 80 lb (36 kg). Check your localand state or provincial laws for specificrequirements about the safety of children inyour vehicle.
When possible, properly restrain children 12years of age and under in a rear seatingposition of your vehicle. Accident statisticssuggest that children are safer when properlyrestrained in the rear seating positions thanin a front seating position.
When installing a rear facing child restraint,adjust the vehicle seats to avoid interferencebetween the child restraint and the vehicleseat in front of the child restraint.
46
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMChild Safety

INSTALLING CHILD RESTRAINTS
USING SEATBELTS
WARNING: Depending on where yousecure a child restraint, and depending onthe child restraint design, you may blockaccess to certain seatbelt buckleassemblies and LATCH lower anchors,rendering those features potentiallyunusable. To avoid risk of injury, make sureoccupants only use seating positionswhere they are able to be properlyrestrained.
Note:Although the child restraint illustratedis a forward-facing child restraint, the stepsare the same for installing a rear-facing childrestraint.
Perform the following steps when installingthe child restraint with seatbelts:
1.Position the child restraint in a seat witha seatbelt.
2.After positioning the child restraint in theproper seating position, pull down on theshoulder belt and then grasp theshoulder belt and lap belt togetherbehind the belt tongue.
3.While holding the shoulder and lap beltportions together, route the tonguethrough the child restraint according tothe child restraint manufacturer'sinstructions. Make sure that you did nottwist the belt webbing.
47
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMChild SafetyE142529 E142530

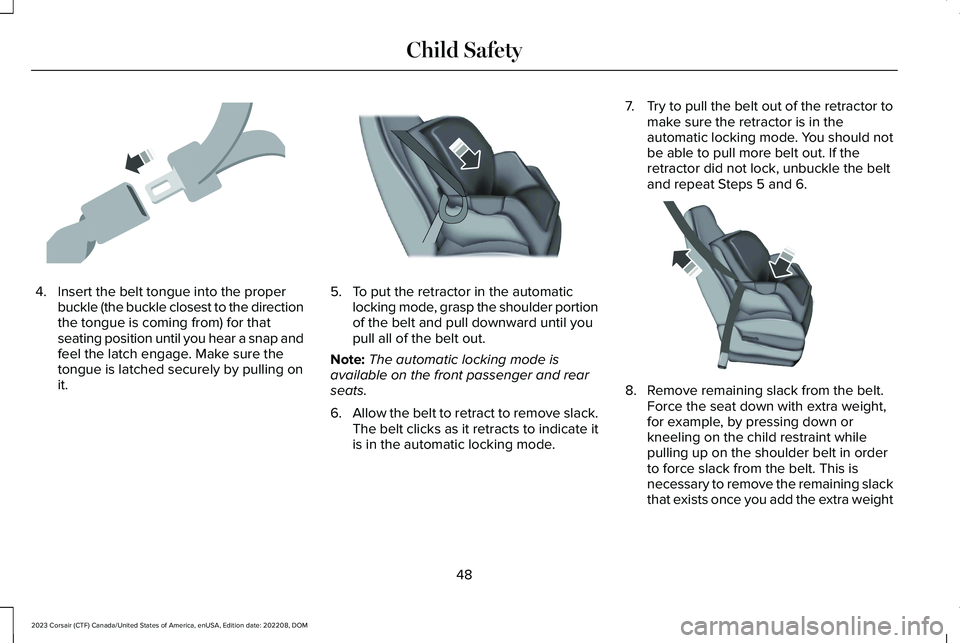

4.Insert the belt tongue into the properbuckle (the buckle closest to the directionthe tongue is coming from) for thatseating position until you hear a snap andfeel the latch engage. Make sure thetongue is latched securely by pulling onit.
5.To put the retractor in the automaticlocking mode, grasp the shoulder portionof the belt and pull downward until youpull all of the belt out.
Note:The automatic locking mode isavailable on the front passenger and rearseats.
6.Allow the belt to retract to remove slack.The belt clicks as it retracts to indicate itis in the automatic locking mode.
7.Try to pull the belt out of the retractor tomake sure the retractor is in theautomatic locking mode. You should notbe able to pull more belt out. If theretractor did not lock, unbuckle the beltand repeat Steps 5 and 6.
8.Remove remaining slack from the belt.Force the seat down with extra weight,for example, by pressing down orkneeling on the child restraint whilepulling up on the shoulder belt in orderto force slack from the belt. This isnecessary to remove the remaining slackthat exists once you add the extra weight
48
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMChild SafetyE142531 E142875 E142533

of the child to the child restraint. It alsohelps to achieve the proper snugness ofthe child restraint to your vehicle.Sometimes, a slight lean toward thebuckle will provide extra help to removeremaining slack from the belt.
9.If the child restraint has a tether strap,attach it.
10.Before placing the child in the seat,forcibly move the seat forward and backto make sure the seat is securely heldin place. To check this, grab the seat atthe belt path and attempt to move itside to side and forward and back.There should be no more than 1 in(2.5 cm) of movement.
We recommend checking with a NHTSACertified Child Passenger Safety Technicianto make certain the child restraint is properlyinstalled. In Canada, check with TransportCanada for referral to a Child Car Seat Clinic.
USING LOWER ANCHORS ANDTETHERS FOR CHILDREN
WARNING: Do not attach two childsafety restraints to the same anchor. In acrash, one anchor may not be strongenough to hold two child safety restraintattachments and may break, causingserious injury or death.
WARNING: Depending on where yousecure a child restraint, and depending onthe child restraint design, you may blockaccess to certain seatbelt buckleassemblies and LATCH lower anchors,rendering those features potentiallyunusable. To avoid risk of injury, make sureoccupants only use seating positionswhere they are able to be properlyrestrained.
The LATCH (Lower Anchors and Tethers forCHildren) system has three vehicle anchorpoints.
•Two lower anchors where the seatbackrest and seat cushion meet, calledthe seat bight.
•One top tether anchor behind thatseating position.
49
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMChild SafetyE142534

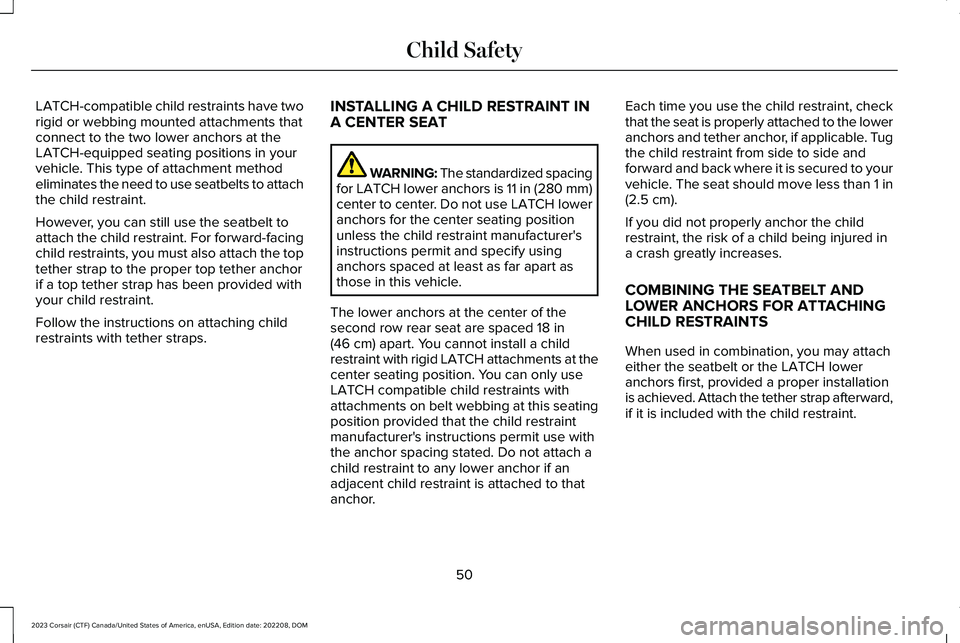

LATCH-compatible child restraints have tworigid or webbing mounted attachments thatconnect to the two lower anchors at theLATCH-equipped seating positions in yourvehicle. This type of attachment methodeliminates the need to use seatbelts to attachthe child restraint.
However, you can still use the seatbelt toattach the child restraint. For forward-facingchild restraints, you must also attach the toptether strap to the proper top tether anchorif a top tether strap has been provided withyour child restraint.
Follow the instructions on attaching childrestraints with tether straps.
INSTALLING A CHILD RESTRAINT INA CENTER SEAT
WARNING: The standardized spacingfor LATCH lower anchors is 11 in (280 mm)center to center. Do not use LATCH loweranchors for the center seating positionunless the child restraint manufacturer'sinstructions permit and specify usinganchors spaced at least as far apart asthose in this vehicle.
The lower anchors at the center of thesecond row rear seat are spaced 18 in(46 cm) apart. You cannot install a childrestraint with rigid LATCH attachments at thecenter seating position. You can only useLATCH compatible child restraints withattachments on belt webbing at this seatingposition provided that the child restraintmanufacturer's instructions permit use withthe anchor spacing stated. Do not attach achild restraint to any lower anchor if anadjacent child restraint is attached to thatanchor.
Each time you use the child restraint, checkthat the seat is properly attached to the loweranchors and tether anchor, if applicable. Tugthe child restraint from side to side andforward and back where it is secured to yourvehicle. The seat should move less than 1 in(2.5 cm).
If you did not properly anchor the childrestraint, the risk of a child being injured ina crash greatly increases.
COMBINING THE SEATBELT ANDLOWER ANCHORS FOR ATTACHINGCHILD RESTRAINTS
When used in combination, you may attacheither the seatbelt or the LATCH loweranchors first, provided a proper installationis achieved. Attach the tether strap afterward,if it is included with the child restraint.
50
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMChild Safety

USING TETHER STRAPS
Many forward-facing child restraints includea tether strap which extends from the backof the child restraints and hooks to ananchoring point called the top tether anchor.Tether straps are available as an accessoryfor many older child restraints.
Contact the manufacturer of your childrestraint for information about ordering atether strap, or to obtain a longer tether strapif the tether strap on your child restraint doesnot reach the appropriate top tether anchorin your vehicle.
Once you install the child restraint usingeither the seatbelt, the lower anchors of theLATCH system, or both, you can attach thetop tether strap.
Perform the following steps to install a childrestraint with tether anchors:
Note:If you install a child restraint with rigidLATCH attachments, do not tighten thetether strap enough to lift the child restraintoff your vehicle seat cushion when the childis seated in it. Keep the tether strap just snugwithout lifting the front of the child restraint.Keeping the child restraint just touching yourvehicle seat gives the best protection in acrash.
1.Route the child restraint tether strap overthe back of the seat. For the outermostseating positions, route the tether strapunder the head restraint and betweenthe head restraint posts. For the centerseating positions, route the tether strapover the top of the head restraint. Ifneeded, you can also remove the headrestraints.
2.Locate the correct anchor on the backpanel of the rear seat for the selectedseating position. The anchors are labeledwith the tether strap symbol.
51
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMChild SafetyE305488 E142539

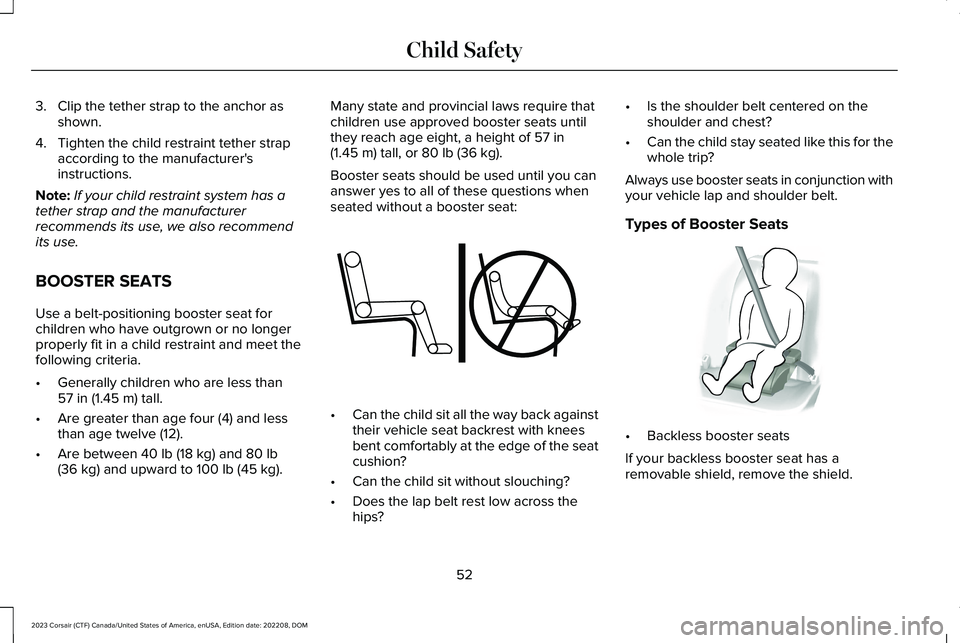

3.Clip the tether strap to the anchor asshown.
4.Tighten the child restraint tether strapaccording to the manufacturer'sinstructions.
Note:If your child restraint system has atether strap and the manufacturerrecommends its use, we also recommendits use.
BOOSTER SEATS
Use a belt-positioning booster seat forchildren who have outgrown or no longerproperly fit in a child restraint and meet thefollowing criteria.
•Generally children who are less than57 in (1.45 m) tall.
•Are greater than age four (4) and lessthan age twelve (12).
•Are between 40 lb (18 kg) and 80 lb(36 kg) and upward to 100 lb (45 kg).
Many state and provincial laws require thatchildren use approved booster seats untilthey reach age eight, a height of 57 in(1.45 m) tall, or 80 lb (36 kg).
Booster seats should be used until you cananswer yes to all of these questions whenseated without a booster seat:
•Can the child sit all the way back againsttheir vehicle seat backrest with kneesbent comfortably at the edge of the seatcushion?
•Can the child sit without slouching?
•Does the lap belt rest low across thehips?
•Is the shoulder belt centered on theshoulder and chest?
•Can the child stay seated like this for thewhole trip?
Always use booster seats in conjunction withyour vehicle lap and shoulder belt.
Types of Booster Seats
•Backless booster seats
If your backless booster seat has aremovable shield, remove the shield.
52
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMChild SafetyE142595 E68924
