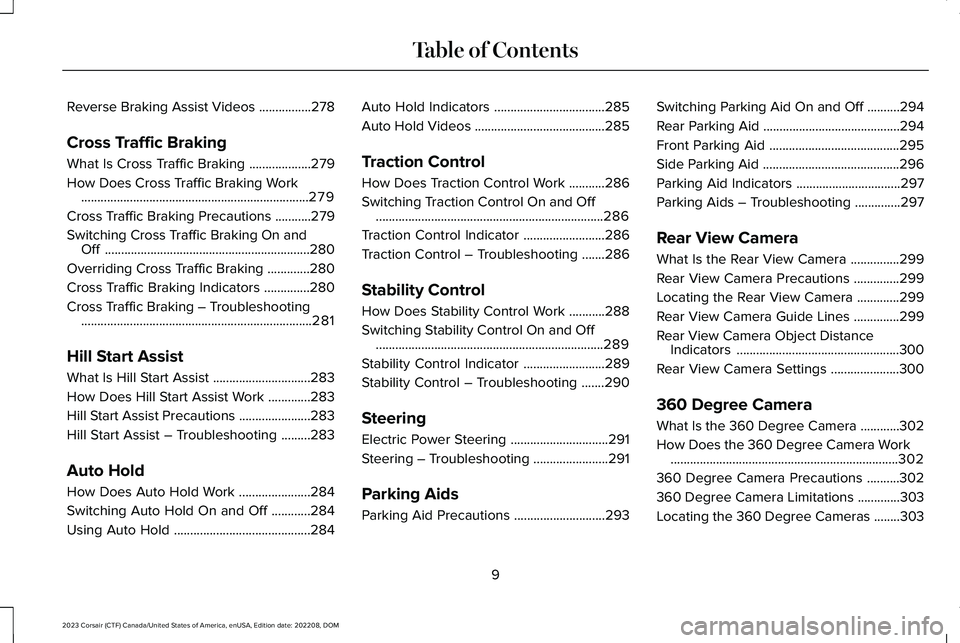

2023 LINCOLN CORSAIR traction control

Reverse Braking Assist Videos................278
Cross Traffic Braking
What Is Cross Traffic Braking...................279
How Does Cross Traffic Braking Work......................................................................279
Cross Traffic Braking Precautions...........279
Switching Cross Traffic Braking On andOff...............................................................280
Overriding Cross Traffic Braking.............280
Cross Traffic Braking Indicators..............280
Cross Traffic Braking – Troubleshooting.......................................................................281
Hill Start Assist
What Is Hill Start Assist..............................283
How Does Hill Start Assist Work.............283
Hill Start Assist Precautions......................283
Hill Start Assist – Troubleshooting.........283
Auto Hold
How Does Auto Hold Work......................284
Switching Auto Hold On and Off............284
Using Auto Hold..........................................284
Auto Hold Indicators..................................285
Auto Hold Videos........................................285
Traction Control
How Does Traction Control Work...........286
Switching Traction Control On and Off......................................................................286
Traction Control Indicator.........................286
Traction Control – Troubleshooting.......286
Stability Control
How Does Stability Control Work...........288
Switching Stability Control On and Off......................................................................289
Stability Control Indicator.........................289
Stability Control – Troubleshooting.......290
Steering
Electric Power Steering..............................291
Steering – Troubleshooting.......................291
Parking Aids
Parking Aid Precautions............................293
Switching Parking Aid On and Off..........294
Rear Parking Aid..........................................294
Front Parking Aid........................................295
Side Parking Aid..........................................296
Parking Aid Indicators................................297
Parking Aids – Troubleshooting..............297
Rear View Camera
What Is the Rear View Camera...............299
Rear View Camera Precautions..............299
Locating the Rear View Camera.............299
Rear View Camera Guide Lines..............299
Rear View Camera Object DistanceIndicators..................................................300
Rear View Camera Settings.....................300
360 Degree Camera
What Is the 360 Degree Camera............302
How Does the 360 Degree Camera Work......................................................................302
360 Degree Camera Precautions..........302
360 Degree Camera Limitations.............303
Locating the 360 Degree Cameras........303
9
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMTable of Contents

The system only applies the brakes for ashort period of time when an event occurs.Act as soon as you notice the brakes applyto remain in control of the vehicle. If you donot intervene the vehicle may start to moveagain.
Note:Certain add-on devices around thebumper or fascia may create false alerts. Forexample, large trailer hitches, bicycle orsurfboard racks, license plate brackets,bumper covers or any other device that mayblock the normal detection zone of thesystem. Remove the add-on device toprevent false alerts.
Note:The system does not react to small ormoving objects, particularly those close tothe ground.
Note:The system does not operate duringhard acceleration or steering.
Note:If your vehicle sustains damage to thebumper or fascia leaving it misaligned orbent, it could alter the sensing zone causinginaccurate measurement of obstacles orfalse alerts.
Note:Vehicle loading and suspensionchanges can impact the angle of the sensorsand may change the normal detection zoneof the system resulting in inaccuratemeasurement of obstacles or false alerts.
Note:When you connect a trailer, the systemmay detect the trailer and provide an alert,or the system turns off. If the system doesnot turn off, manually switch the system offafter you connect the trailer.
Note:You may experience reduced systemperformance on road surfaces that limitdeceleration. For example, roads with ice,loose gravel, mud or sand.
SWITCHING REVERSE BRAKING
ASSIST ON AND OFF
1.Press Features on the touchscreen.
2.Press Driver Assistance.
3.Switch Reverse Brake Assist on or off.
Note:The system is unavailable when therear parking aid, cross traffic alert or tractioncontrol is off.
Note:If your vehicle is not equipped withcross traffic alert the reverse braking assistrelies on input from the rear parking aid andrear camera sensors.
Note:The default setting is on in someregions.
OVERRIDING REVERSE BRAKING
ASSIST
There could be instances when unexpectedor unwanted braking occurs. Firmly pressingthe accelerator pedal or switching the featureoff overrides the system.
REVERSE BRAKING ASSIST
INDICATORS
If the system determines that a collision withan obstacle may occur, full braking mayapply.
A message and warning indicatorappear when the system appliesthe brakes.
276
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMReverse Braking Assist (If Equipped)E293490

REVERSE BRAKING ASSIST –FREQUENTLY ASKED QUESTIONS
Why is reverse braking assist unavailable?
•Make sure the reverse braking assist ison. See Switching Reverse BrakingAssist On and Off (page 276).
•Make sure that all doors, liftgate ortailgate and hood are closed. Drive thevehicle on a straight road for a shortperiod. If the message remains, have thesystem checked.
•If your vehicle has the cross traffic alertsystem, make sure it is on. See SwitchingCross Traffic Alert On and Off (page 358).
•Make sure the rear parking aid system ison. See Rear Parking Aid (page 294).
•Make sure the traction control is on. SeeSwitching Traction Control On and Off(page 286).
Note:The traction control automatically turnsoff if four-wheel drive low and certain drivemodes such as mud/ruts and snow/sand isactivated.
•Your vehicle may have sustained a rearend impact. Have the sensors checkedfor proper coverage and operation.
•An anti-lock brake, traction control orstability control event may have occurred.Reverse braking assist resumesoperation when the event is complete.
•Make sure the rear view camera and 360degree camera are not dirty orobstructed. If dirty, clean the camera. Ifthe message still appears after cleaningthe camera, wait a short time for themessage to clear. If the message doesnot clear, have the system checked.
•Make sure the cross traffic alert, rearparking aid and side parking aid sensorsare not blocked or faulty. See Locatingthe Cross Traffic Alert Sensors (page358). See Locating the Rear Parking AidSensors (page 294). See Locating theSide Parking Aid Sensors (page 297).
•You recently had your vehicle serviced,or the battery disconnected. Drive yourvehicle a short distance to resumesystem operation.
•Reverse braking assist does not functionwhen you connect a trailer. Operationresumes when you disconnect the trailer.
Note:If the answers to why the system isunavailable do not assist in returning reversebraking assist to available, have the systemchecked as soon as possible.
REVERSE BRAKING ASSIST
VIDEOS
Lincoln Reverse Brake Assist Video Link
278
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMReverse Braking Assist (If Equipped)

CROSS TRAFFIC BRAKING –FREQUENTLY ASKED QUESTIONS
Why is cross traffic braking unavailable?
•Make sure the cross traffic alert systemis on. See Cross Traffic Alert (page 357).
•The vehicle has sustained a rear endimpact. Contact an authorized dealer tohave the sensors checked for propercoverage and operation.
•An ABS, traction control or stabilitycontrol event may have occurred. Crosstraffic braking resumes operation whenthe event is complete.
•Make sure there are no blocked orfaulted sensors. See Cross Traffic Alert(page 357).
•You recently had your vehicle serviced,or the battery disconnected. Drive yourvehicle a short distance to resumesystem operation.
Note:If the answers to why the system isunavailable do not assist in returning crosstraffic braking to available, have the systemchecked as soon as possible.
282
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCross Traffic Braking (If Equipped)

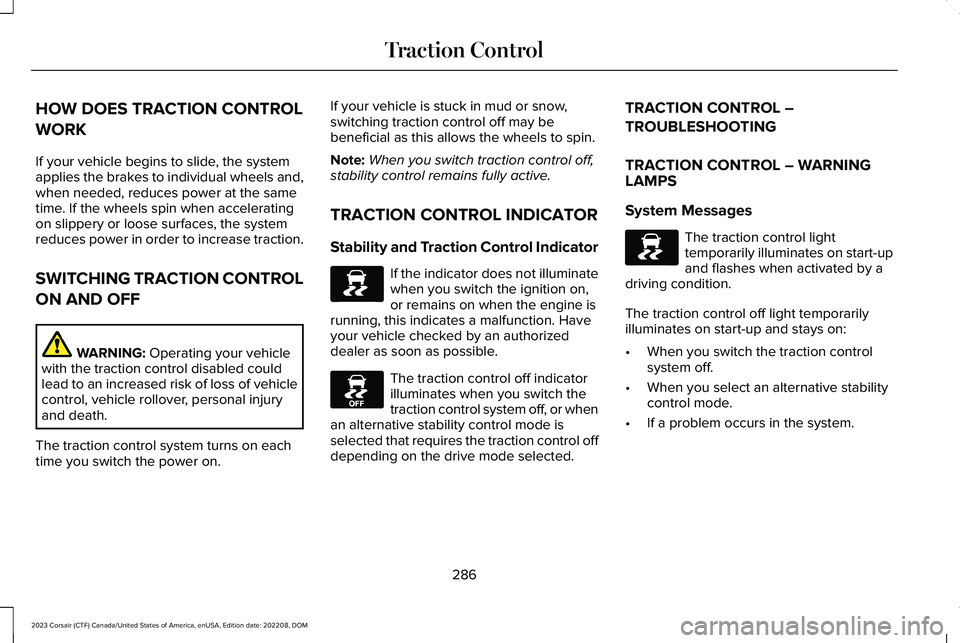

HOW DOES TRACTION CONTROL
WORK
If your vehicle begins to slide, the systemapplies the brakes to individual wheels and,when needed, reduces power at the sametime. If the wheels spin when acceleratingon slippery or loose surfaces, the systemreduces power in order to increase traction.
SWITCHING TRACTION CONTROL
ON AND OFF
WARNING: Operating your vehiclewith the traction control disabled couldlead to an increased risk of loss of vehiclecontrol, vehicle rollover, personal injuryand death.
The traction control system turns on eachtime you switch the power on.
If your vehicle is stuck in mud or snow,switching traction control off may bebeneficial as this allows the wheels to spin.
Note:When you switch traction control off,stability control remains fully active.
TRACTION CONTROL INDICATOR
Stability and Traction Control Indicator
If the indicator does not illuminatewhen you switch the ignition on,or remains on when the engine isrunning, this indicates a malfunction. Haveyour vehicle checked by an authorizeddealer as soon as possible.
The traction control off indicatorilluminates when you switch thetraction control system off, or whenan alternative stability control mode isselected that requires the traction control offdepending on the drive mode selected.
TRACTION CONTROL –
TROUBLESHOOTING
TRACTION CONTROL – WARNINGLAMPS
System Messages
The traction control lighttemporarily illuminates on start-upand flashes when activated by adriving condition.
The traction control off light temporarilyilluminates on start-up and stays on:
•When you switch the traction controlsystem off.
•When you select an alternative stabilitycontrol mode.
•If a problem occurs in the system.
286
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMTraction ControlE138639 E130458 E138639

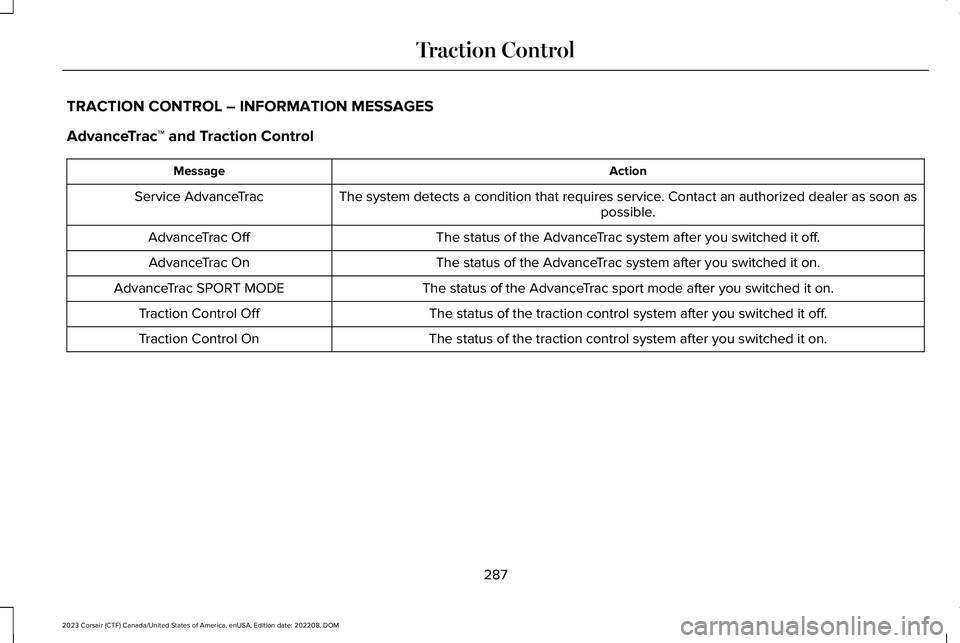

TRACTION CONTROL – INFORMATION MESSAGES
AdvanceTrac™ and Traction Control
ActionMessage
The system detects a condition that requires service. Contact an authorized dealer as soon aspossible.Service AdvanceTrac
The status of the AdvanceTrac system after you switched it off.AdvanceTrac Off
The status of the AdvanceTrac system after you switched it on.AdvanceTrac On
The status of the AdvanceTrac sport mode after you switched it on.AdvanceTrac SPORT MODE
The status of the traction control system after you switched it off.Traction Control Off
The status of the traction control system after you switched it on.Traction Control On
287
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMTraction Control

HOW DOES STABILITY CONTROL
WORK
WARNING: Vehicle modificationsinvolving braking system, aftermarket roofracks, suspension, steering system, tireconstruction and wheel and tire size maychange the handling characteristics of yourvehicle and may adversely affect theperformance of the electronic stabilitycontrol system. In addition, installing anystereo loudspeakers may interfere withand adversely affect the electronic stabilitycontrol system. Install any aftermarketstereo loudspeaker as far as possible fromthe front center console, the tunnel, andthe front seats in order to minimize the riskof interfering with the electronic stabilitycontrol sensors. Reducing theeffectiveness of the electronic stabilitycontrol system could lead to an increasedrisk of loss of vehicle control, vehiclerollover, personal injury and death.
WARNING: Remember that evenadvanced technology cannot defy the lawsof physics. It's always possible to losecontrol of a vehicle due to inappropriatedriver input for the conditions. Aggressivedriving on any road condition can causeyou to lose control of your vehicleincreasing the risk of personal injury orproperty damage. Activation of theelectronic stability control system is anindication that at least some of the tireshave exceeded their ability to grip theroad; this could reduce the operator'sability to control the vehicle potentiallyresulting in a loss of vehicle control, vehiclerollover, personal injury and death. If yourelectronic stability control system activates,SLOW DOWN.
If a driving condition activates either thestability control or the traction control systemyou may experience the following conditions:
•The stability and traction control lightflashes.
•Your vehicle slows down.
•Reduced engine power.
The stability control system has severalfeatures built into it to help you maintaincontrol of your vehicle:
Electronic Stability Control
Electronic stability control enhances yourvehicle’s ability to prevent skids or lateralslides by applying brakes to one or more ofthe wheels individually and, if necessary,reducing engine power.
Roll Stability Control
Roll stability control enhances your vehicle’sability to prevent rollovers by detecting yourvehicle’s roll motion and the rate at which itchanges by applying the brakes to one ormore wheels individually.
288
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMStability Control

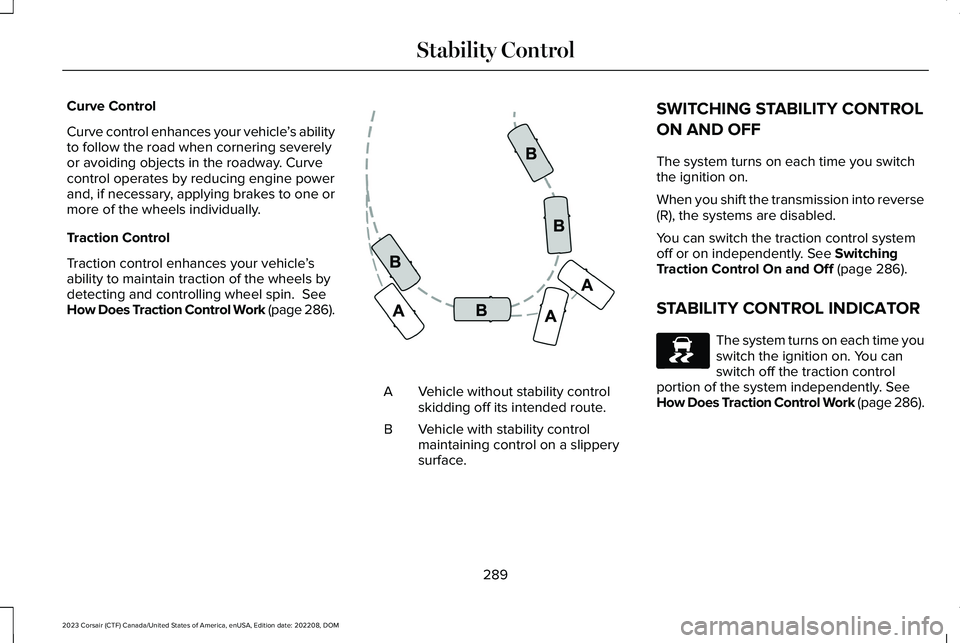

Curve Control
Curve control enhances your vehicle’s abilityto follow the road when cornering severelyor avoiding objects in the roadway. Curvecontrol operates by reducing engine powerand, if necessary, applying brakes to one ormore of the wheels individually.
Traction Control
Traction control enhances your vehicle’sability to maintain traction of the wheels bydetecting and controlling wheel spin. SeeHow Does Traction Control Work (page 286).
Vehicle without stability controlskidding off its intended route.A
Vehicle with stability controlmaintaining control on a slipperysurface.
B
SWITCHING STABILITY CONTROL
ON AND OFF
The system turns on each time you switchthe ignition on.
When you shift the transmission into reverse(R), the systems are disabled.
You can switch the traction control systemoff or on independently. See SwitchingTraction Control On and Off (page 286).
STABILITY CONTROL INDICATOR
The system turns on each time youswitch the ignition on. You canswitch off the traction controlportion of the system independently. SeeHow Does Traction Control Work (page 286).
289
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMStability ControlE72903 E138639
