2023 LINCOLN CORSAIR Owners Manual

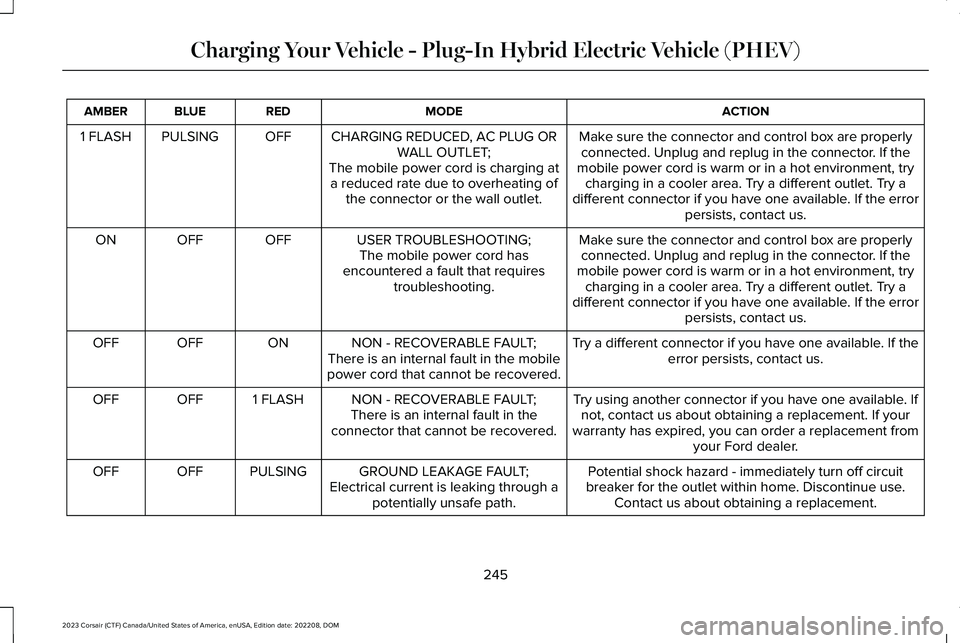

ACTIONMODEREDBLUEAMBER
Make sure the connector and control box are properlyconnected. Unplug and replug in the connector. If themobile power cord is warm or in a hot environment, trycharging in a cooler area. Try a different outlet. Try adifferent connector if you have one available. If the errorpersists, contact us.
CHARGING REDUCED, AC PLUG ORWALL OUTLET;The mobile power cord is charging ata reduced rate due to overheating ofthe connector or the wall outlet.
OFFPULSING1 FLASH
Make sure the connector and control box are properlyconnected. Unplug and replug in the connector. If themobile power cord is warm or in a hot environment, trycharging in a cooler area. Try a different outlet. Try adifferent connector if you have one available. If the errorpersists, contact us.
USER TROUBLESHOOTING;The mobile power cord hasencountered a fault that requirestroubleshooting.
OFFOFFON
Try a different connector if you have one available. If theerror persists, contact us.NON - RECOVERABLE FAULT;There is an internal fault in the mobilepower cord that cannot be recovered.
ONOFFOFF
Try using another connector if you have one available. Ifnot, contact us about obtaining a replacement. If yourwarranty has expired, you can order a replacement fromyour Ford dealer.
NON - RECOVERABLE FAULT;There is an internal fault in theconnector that cannot be recovered.
1 FLASHOFFOFF
Potential shock hazard - immediately turn off circuitbreaker for the outlet within home. Discontinue use.Contact us about obtaining a replacement.
GROUND LEAKAGE FAULT;Electrical current is leaking through apotentially unsafe path.
PULSINGOFFOFF
245
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCharging Your Vehicle - Plug-In Hybrid Electric Vehicle (PHEV)

Note:When plugging into an unfamiliar walloutlet, let the vehicle charge for severalminutes before leaving it unattended. Thered indicator illuminates if not charging. Theunit turns off if a breaker or infrastructureground fault circuit interrupter (GFCI) istripped. You can view vehicle chargingstatus remotely via the Lincoln Way app.
Mobile Power Cord Auto-Restart
Auto-restart helps make sure that yourvehicle is charged and ready for use whenneeded. A charge could be interrupted iferrors are detected. Charging resumes oncethe error is no longer detected. The redindicator illuminates during an errorcondition.
The exception to the immediate auto-restartis when the interruption is due to a chargerground fault circuit interrupter (GFCI) event.The charger attempts to restart 15 minutesafter a ground fault circuit interrupter (GFCI)event. After the fourth attempt to restart, thecharger shuts down and the red indicatorstays on.
If the fault persists, do not continue to try tocharge your vehicle. Contact your authorizeddealer.
MOVING AND STORAGEINSTRUCTIONS
Make sure you wrap the mobile power cordafter charging. Store the mobile power cordin the storage bag supplied with the mobilepower cord.
When charging is complete, replace themobile power cord in the luggagecompartment.
Note:Do not hold the mobile power cord bythe power cable. Hold the complete unit andcarefully place back in the storage bag.
Note:To remove the connector, firmly graspthe connector by the cable or plug and pullaway from the control box.
CARE INSTRUCTIONS
Do not use cleaners or solvents as this coulddamage your mobile power cord. Do notplace stress on the charger cables. If the unitoverheats, remove the mobile power cordfrom direct sunlight.
SAFETY FEATURES
The charger includes the following safetyfeatures to protect against the risk of electricshock:
•Service ground check: The chargerconstantly checks for the presence of aservice ground connection. If the serviceground ever fails, the charger redindicator turns on and shuts down powerto the vehicle.
•Thermal event sensor: Charger modulesenses out-of-ordinary thermal eventsand decreases the charging current orshuts the unit down if required.
246
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCharging Your Vehicle - Plug-In Hybrid Electric Vehicle (PHEV)

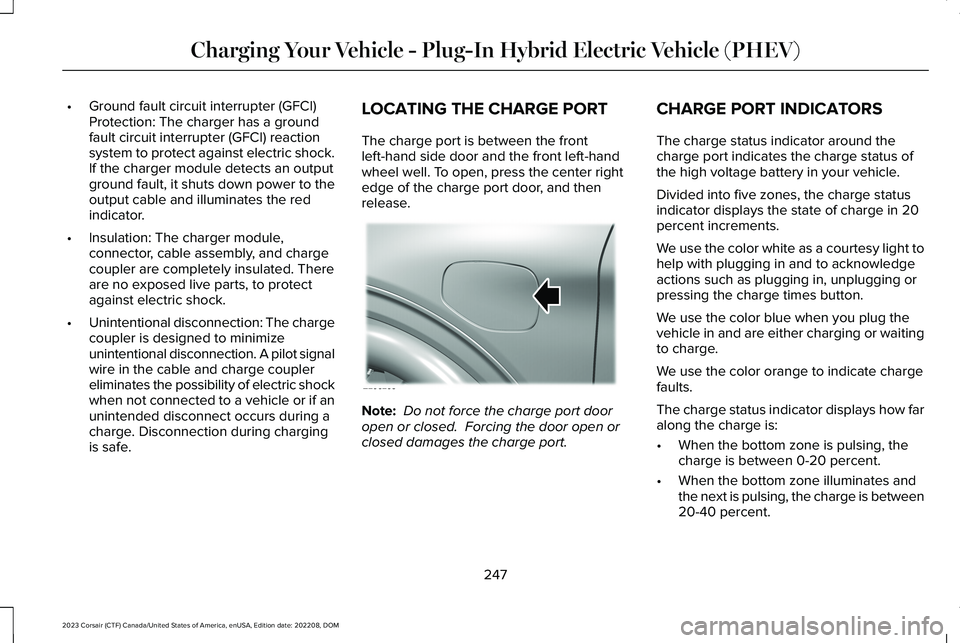

•Ground fault circuit interrupter (GFCI)Protection: The charger has a groundfault circuit interrupter (GFCI) reactionsystem to protect against electric shock.If the charger module detects an outputground fault, it shuts down power to theoutput cable and illuminates the redindicator.
•Insulation: The charger module,connector, cable assembly, and chargecoupler are completely insulated. Thereare no exposed live parts, to protectagainst electric shock.
•Unintentional disconnection: The chargecoupler is designed to minimizeunintentional disconnection. A pilot signalwire in the cable and charge couplereliminates the possibility of electric shockwhen not connected to a vehicle or if anunintended disconnect occurs during acharge. Disconnection during chargingis safe.
LOCATING THE CHARGE PORT
The charge port is between the frontleft-hand side door and the front left-handwheel well. To open, press the center rightedge of the charge port door, and thenrelease.
Note: Do not force the charge port dooropen or closed. Forcing the door open orclosed damages the charge port.
CHARGE PORT INDICATORS
The charge status indicator around thecharge port indicates the charge status ofthe high voltage battery in your vehicle.
Divided into five zones, the charge statusindicator displays the state of charge in 20percent increments.
We use the color white as a courtesy light tohelp with plugging in and to acknowledgeactions such as plugging in, unplugging orpressing the charge times button.
We use the color blue when you plug thevehicle in and are either charging or waitingto charge.
We use the color orange to indicate chargefaults.
The charge status indicator displays how faralong the charge is:
•When the bottom zone is pulsing, thecharge is between 0-20 percent.
•When the bottom zone illuminates andthe next is pulsing, the charge is between20-40 percent.
247
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCharging Your Vehicle - Plug-In Hybrid Electric Vehicle (PHEV)E295258

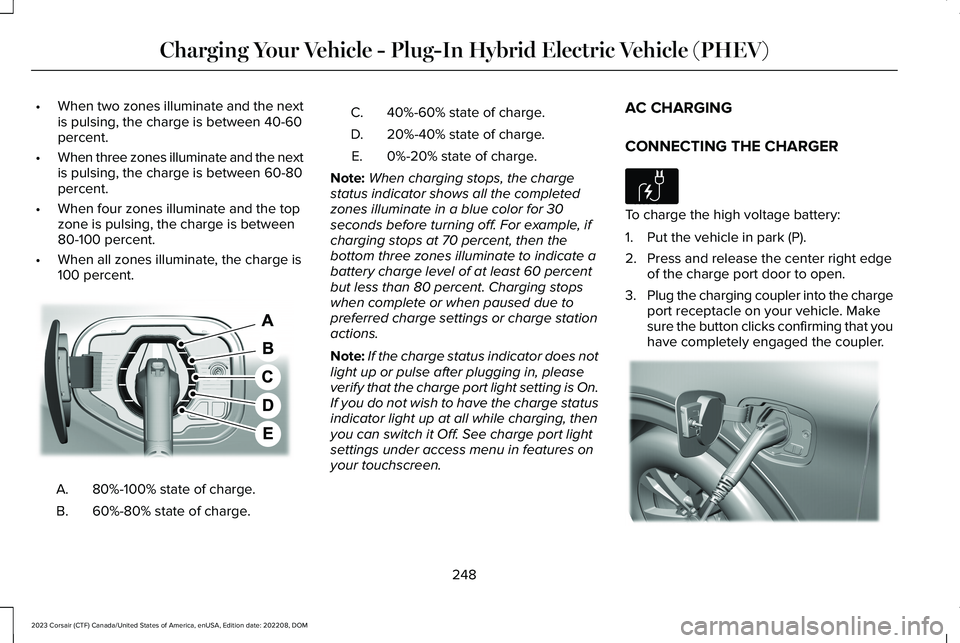

•When two zones illuminate and the nextis pulsing, the charge is between 40-60percent.
•When three zones illuminate and the nextis pulsing, the charge is between 60-80percent.
•When four zones illuminate and the topzone is pulsing, the charge is between80-100 percent.
•When all zones illuminate, the charge is100 percent.
80%-100% state of charge.A.
60%-80% state of charge.B.
40%-60% state of charge.C.
20%-40% state of charge.D.
0%-20% state of charge.E.
Note:When charging stops, the chargestatus indicator shows all the completedzones illuminate in a blue color for 30seconds before turning off. For example, ifcharging stops at 70 percent, then thebottom three zones illuminate to indicate abattery charge level of at least 60 percentbut less than 80 percent. Charging stopswhen complete or when paused due topreferred charge settings or charge stationactions.
Note:If the charge status indicator does notlight up or pulse after plugging in, pleaseverify that the charge port light setting is On.If you do not wish to have the charge statusindicator light up at all while charging, thenyou can switch it Off. See charge port lightsettings under access menu in features onyour touchscreen.
AC CHARGING
CONNECTING THE CHARGER
To charge the high voltage battery:
1.Put the vehicle in park (P).
2.Press and release the center right edgeof the charge port door to open.
3.Plug the charging coupler into the chargeport receptacle on your vehicle. Makesure the button clicks confirming that youhave completely engaged the coupler.
248
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCharging Your Vehicle - Plug-In Hybrid Electric Vehicle (PHEV)E301197 E306676 E295257

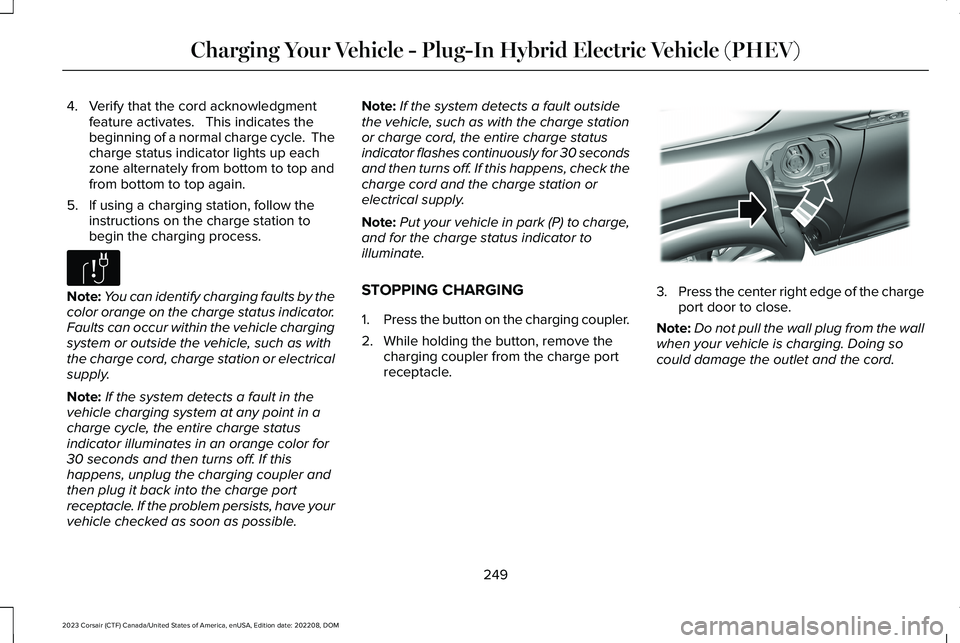

4.Verify that the cord acknowledgmentfeature activates. This indicates thebeginning of a normal charge cycle. Thecharge status indicator lights up eachzone alternately from bottom to top andfrom bottom to top again.
5.If using a charging station, follow theinstructions on the charge station tobegin the charging process.
Note:You can identify charging faults by thecolor orange on the charge status indicator.Faults can occur within the vehicle chargingsystem or outside the vehicle, such as withthe charge cord, charge station or electricalsupply.
Note:If the system detects a fault in thevehicle charging system at any point in acharge cycle, the entire charge statusindicator illuminates in an orange color for30 seconds and then turns off. If thishappens, unplug the charging coupler andthen plug it back into the charge portreceptacle. If the problem persists, have yourvehicle checked as soon as possible.
Note:If the system detects a fault outsidethe vehicle, such as with the charge stationor charge cord, the entire charge statusindicator flashes continuously for 30 secondsand then turns off. If this happens, check thecharge cord and the charge station orelectrical supply.
Note:Put your vehicle in park (P) to charge,and for the charge status indicator toilluminate.
STOPPING CHARGING
1.Press the button on the charging coupler.
2.While holding the button, remove thecharging coupler from the charge portreceptacle.
3.Press the center right edge of the chargeport door to close.
Note:Do not pull the wall plug from the wallwhen your vehicle is charging. Doing socould damage the outlet and the cord.
249
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCharging Your Vehicle - Plug-In Hybrid Electric Vehicle (PHEV)E306677 E295444

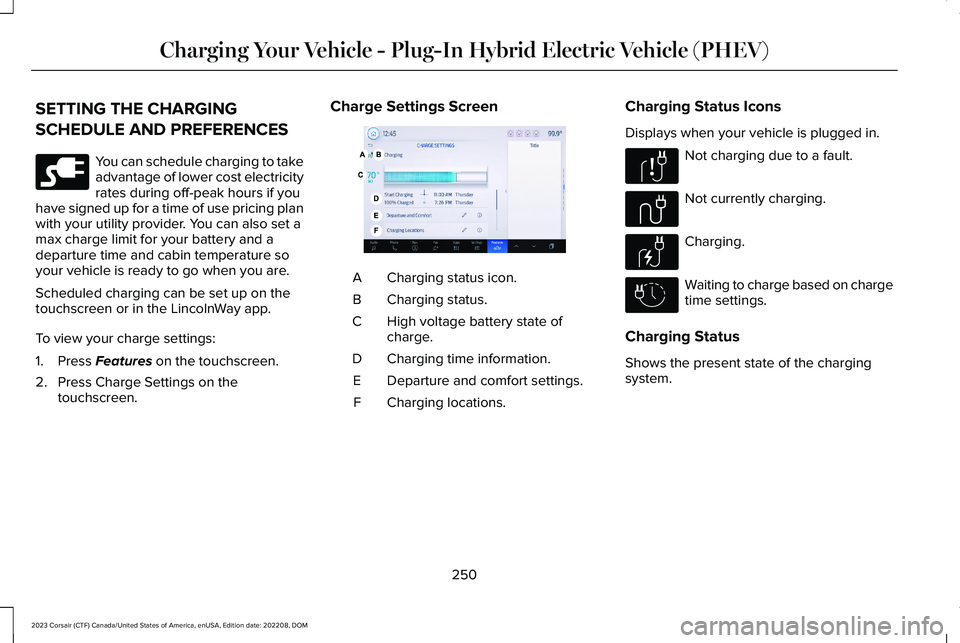

SETTING THE CHARGING
SCHEDULE AND PREFERENCES
You can schedule charging to takeadvantage of lower cost electricityrates during off-peak hours if youhave signed up for a time of use pricing planwith your utility provider. You can also set amax charge limit for your battery and adeparture time and cabin temperature soyour vehicle is ready to go when you are.
Scheduled charging can be set up on thetouchscreen or in the LincolnWay app.
To view your charge settings:
1.Press Features on the touchscreen.
2.Press Charge Settings on thetouchscreen.
Charge Settings Screen
Charging status icon.A
Charging status.B
High voltage battery state ofcharge.C
Charging time information.D
Departure and comfort settings.E
Charging locations.F
Charging Status Icons
Displays when your vehicle is plugged in.
Not charging due to a fault.
Not currently charging.
Charging.
Waiting to charge based on chargetime settings.
Charging Status
Shows the present state of the chargingsystem.
250
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCharging Your Vehicle - Plug-In Hybrid Electric Vehicle (PHEV)E228962 E389413 E306677 E335144 E306676 E306678

ActionCharge Status
The vehicle is unplugged and starts charging once plugged in.Will charge when plugged in
The vehicle is unplugged at a location with charging time preferencesenabled. Charging is scheduled to start at the time displayed basedon your settings. You must plug in prior to the start time shown forthe vehicle to begin charging at that time.
Will wait for preferred charging time
The vehicle is plugged in at a location with charging time preferencesenabled. Charging starts at the time displayed based on your chargetime settings.
Waiting for preferred charging time
The vehicle is plugged in and charging has been stopped throughthe LincolnWay app.Charging stopped
The vehicle is plugged in and charging.Charging
The vehicle finished charging to the max charge limit setting.Charged
The vehicle is plugged in and charging the 12V battery.Charging 12V battery
The vehicle is plugged in and the climate control system is operatingaccording to the departure and comfort settings.Conditioning the cabin
The vehicle is plugged in and conditioning the high voltage battery.Conditioning the battery
The vehicle is plugged in and there is a fault within the vehicle char-ging system. Unplug and plug back in. If the fault is still present,contact your authorized dealer.
Vehicle charging fault
251
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCharging Your Vehicle - Plug-In Hybrid Electric Vehicle (PHEV)

ActionCharge Status
The vehicle is plugged in and a fault has been detected with thecharge station or charging cord. Check the charging cord and thecharging station or electrical supply.
Charging station fault
A charging coupler has been plugged into the vehicle but there is noconnection with a charging power source.Charging station not detected
The vehicle is plugged in and charging has been paused at the chargestation.Charging station paused
High Voltage Battery State of Charge
Displays the remaining charge percentagewith 100% representing the total amount ofenergy you can get from an external charge.
Charging Time Information
When charging, the start and estimated endtime displays.
When your vehicle is at a saved charginglocation and not plugged in, the start andend times display based on known charginginfrastructure.
Note:Charging time information isestimated. Certain conditions could result inlonger charging times. See Charging YourVehicle (page 236).
Departure and Comfort
Press the edit button for departureand comfort settings.
Setting departure times allows you to controlcharging schedules and warm or cool yourcabin and the high voltage battery when yourvehicle is plugged in, so your vehicle is readyto drive when you are. By setting a departuretime, your vehicle can use your charging timepreferences to minimize your electricity costsbut still prioritize finishing charging beforeyour scheduled departure. The calendar viewallows you to program two departure timesper day for each day of the week.
252
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCharging Your Vehicle - Plug-In Hybrid Electric Vehicle (PHEV)E353986
