Note:If you use your vehicle regularly abovethe altitude of 7,500 ft (2,286 m) and underthe temperature of -4.0°F (-20°C), it isrecommended to use the alternative engineoil.
ENGINE OIL CAPACITY AND
SPECIFICATION - 2.5L, PLUG-IN
HYBRID ELECTRIC VEHICLE
(PHEV)
Use oil that meets the defined specificationand viscosity grade.
If you do not use oil that meets the definedspecification and viscosity grade, it couldresult in:
•Component damage that your vehiclewarranty does not cover.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced vehicle performance.
•Reduced fuel economy.
501
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and SpecificationsE240523

An oil that displays this symbol conforms tocurrent engine, emission system and fueleconomy performance standards of ILSAC.
We recommend Motorcraft motor oil for yourvehicle. If Motorcraft oil is not available, usemotor oils of the recommended viscositygrade that display the API Certification Markfor gasoline engines.
Do not use supplemental engine oil additivesbecause they are unnecessary and couldlead to engine damage that your vehiclewarranty does not cover.
Capacities
Including the Oil FilterVariant
5.7 qt (5.4 L)All.
Materials
SpecificationName
WSS-M2C962-A1Motorcraft® SAE 0W-20 Full Synthetic Motor Oil(U.S.)(Canada)XO-0W20-QFS(U.S.)
502
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and SpecificationsE142732

COOLING SYSTEM CAPACITY AND
SPECIFICATION - 2.0L ECOBOOST™
Use coolant that meets the definedspecification.
If you do not use coolant that meets thedefined specification, it could result in:
•Component damage that your vehiclewarranty does not cover.
•Reduced vehicle performance.
Capacities
QuantityVariant
9.0 qt (8.5 L)All.
Materials
SpecificationName
WSS-M97B57-A2Motorcraft® Yellow Prediluted Antifreeze/Coolant(U.S.)Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissementprédilué jaune Motorcraft®(Canada)VC-13DL-G(U.S.)CVC-13DL-G(Canada)
503
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and Specifications

COOLING SYSTEM CAPACITY AND
SPECIFICATION - 2.5L, PLUG-IN
HYBRID ELECTRIC VEHICLE
(PHEV)
Use coolant that meets the definedspecification.If you do not use coolant that meets thedefined specification, it could result in:
•Component damage that your vehiclewarranty does not cover.
•Reduced vehicle performance.
Capacities
QuantityVariant
6.6 qt (6.2 L)Low temperature cooling circuit.
10.1 qt (9.6 L)High temperature cooling circuit.
Materials
SpecificationName
WSS-M97B57-A2Motorcraft® Yellow Prediluted Antifreeze/Coolant(U.S.)Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissementprédilué jaune Motorcraft®(Canada)VC-13DL-G(U.S.)CVC-13DL-G(Canada)
504
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and Specifications

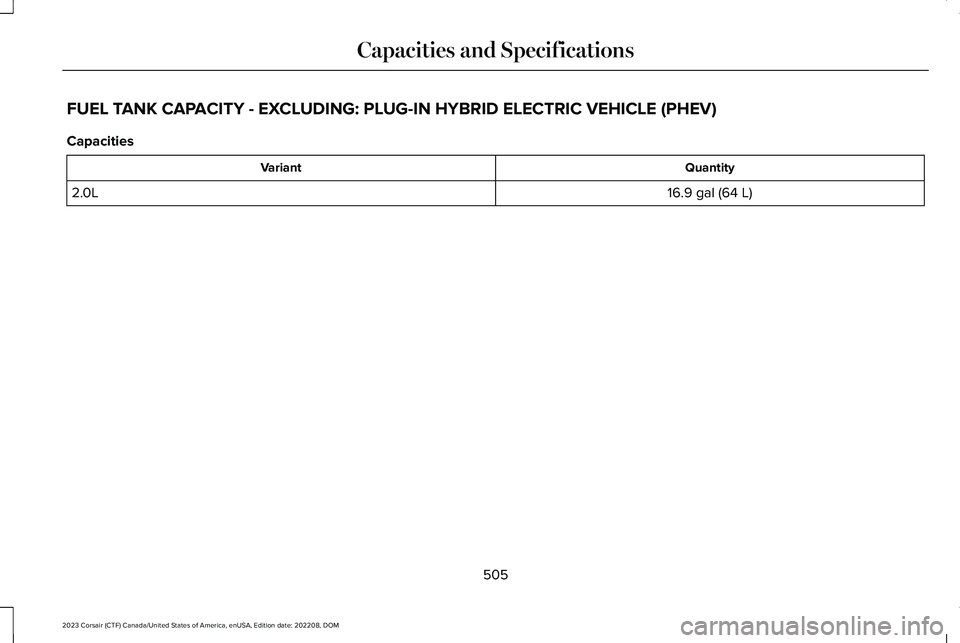

FUEL TANK CAPACITY - EXCLUDING: PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)
Capacities
QuantityVariant
16.9 gal (64 L)2.0L
505
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and Specifications

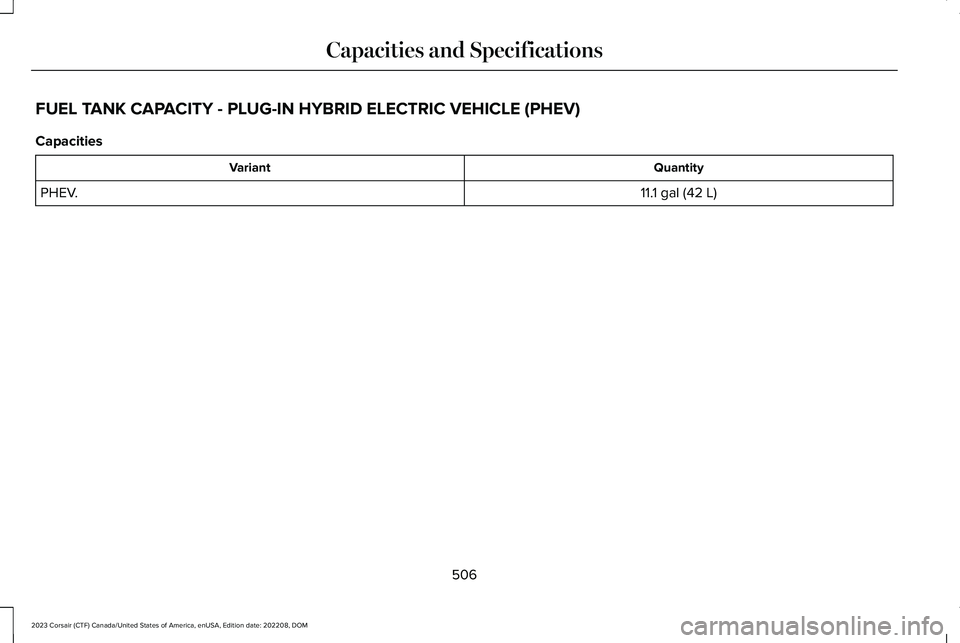

FUEL TANK CAPACITY - PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)
Capacities
QuantityVariant
11.1 gal (42 L)PHEV.
506
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND SPECIFICATION -
2.0L ECOBOOST™
WARNING: The air conditioningrefrigerant system contains refrigerant
under high pressure. Only qualifiedpersonnel should service the airconditioning refrigerant system. Openingthe air conditioning refrigerant system cancause personal injury.
Use refrigerant and oil that meets the definedspecifications.
If you do not use refrigerant and oil thatmeets the defined specifications, it couldresult in:
•Component damage that your vehiclewarranty does not cover.
•Reduced vehicle performance.
Capacities
Refrigerant OilRefrigerantVariant
3.4 fl oz (100 ml)19.4 oz (0.55 kg)All.
507
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and Specifications

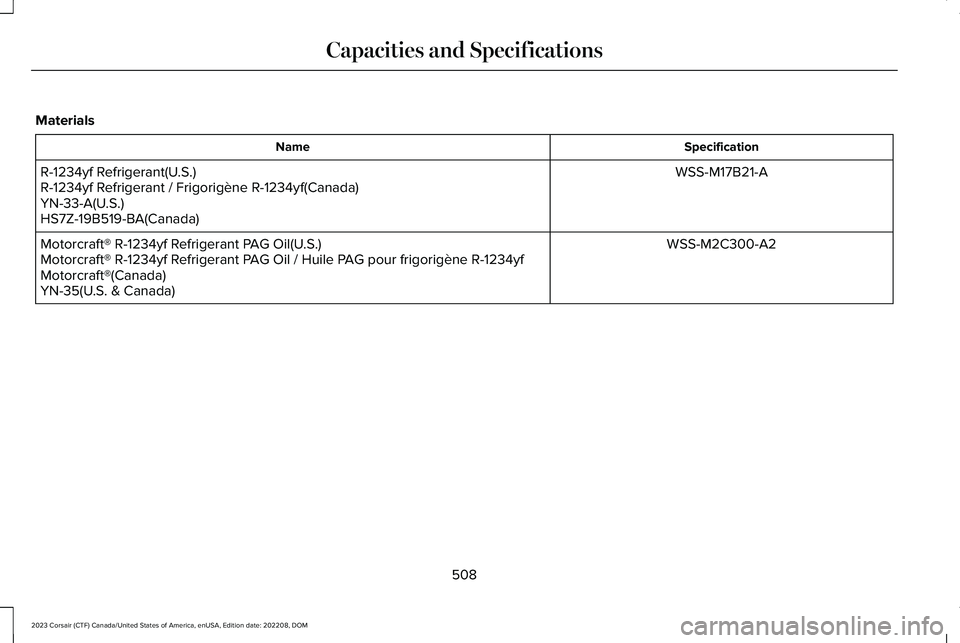

Materials
SpecificationName
WSS-M17B21-AR-1234yf Refrigerant(U.S.)R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)YN-33-A(U.S.)HS7Z-19B519-BA(Canada)
WSS-M2C300-A2Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)Motorcraft® R-1234yf Refrigerant PAG Oil / Huile PAG pour frigorigène R-1234yfMotorcraft®(Canada)YN-35(U.S. & Canada)
