2023 LINCOLN CORSAIR Owners Manual

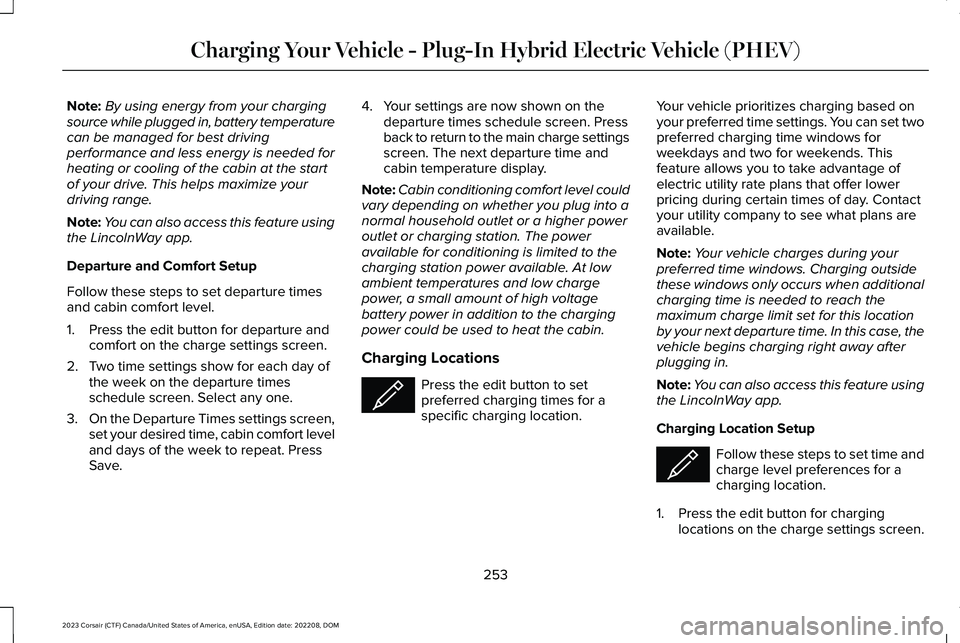

Note:By using energy from your chargingsource while plugged in, battery temperaturecan be managed for best drivingperformance and less energy is needed forheating or cooling of the cabin at the startof your drive. This helps maximize yourdriving range.
Note:You can also access this feature usingthe LincolnWay app.
Departure and Comfort Setup
Follow these steps to set departure timesand cabin comfort level.
1.Press the edit button for departure andcomfort on the charge settings screen.
2.Two time settings show for each day ofthe week on the departure timesschedule screen. Select any one.
3.On the Departure Times settings screen,set your desired time, cabin comfort leveland days of the week to repeat. PressSave.
4.Your settings are now shown on thedeparture times schedule screen. Pressback to return to the main charge settingsscreen. The next departure time andcabin temperature display.
Note:Cabin conditioning comfort level couldvary depending on whether you plug into anormal household outlet or a higher poweroutlet or charging station. The poweravailable for conditioning is limited to thecharging station power available. At lowambient temperatures and low chargepower, a small amount of high voltagebattery power in addition to the chargingpower could be used to heat the cabin.
Charging Locations
Press the edit button to setpreferred charging times for aspecific charging location.
Your vehicle prioritizes charging based onyour preferred time settings. You can set twopreferred charging time windows forweekdays and two for weekends. Thisfeature allows you to take advantage ofelectric utility rate plans that offer lowerpricing during certain times of day. Contactyour utility company to see what plans areavailable.
Note:Your vehicle charges during yourpreferred time windows. Charging outsidethese windows only occurs when additionalcharging time is needed to reach themaximum charge limit set for this locationby your next departure time. In this case, thevehicle begins charging right away afterplugging in.
Note:You can also access this feature usingthe LincolnWay app.
Charging Location Setup
Follow these steps to set time andcharge level preferences for acharging location.
1.Press the edit button for charginglocations on the charge settings screen.
253
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCharging Your Vehicle - Plug-In Hybrid Electric Vehicle (PHEV)E353986 E353986

2.On the charging locations screen selectadd new location. You can also editsettings for previously saved locationslisted on this screen.
3.Select an address from the list of recentcharge locations.
4.Confirm that this is the location you wantto save with the help of the map view.Edit the location name if desired and seta maximum charge limit. Press continueto schedule.
Note:Depending on the GPS location, theaddress on the navigation may not preciselymatch up with your charging location.Confirm on the map that the pin is in theexpected location.
Note:Charging stops when your vehiclereaches the maximum charge limit setting.
5.Set preferred charging times for weekdayand/or weekend by pressing anddragging along the 24 hour time wheel.You can set up two blocks of time chargewindows. Press Continue once you haveyour desired time settings for weekdayand weekend
Note:Selecting all or none of the 24 hoursresults in any time of day given equal priorityfor charging.
6.The summary screen displays yoursettings for this location. Press save orpress back to change your settings.Whenever your vehicle is at a savedcharging location, the charge settingsscreen displays the location name, andthe charging times are based on yourpreferred time settings for that locationplus the next departure time.
Note:Reaching your max charge limit byyour next departure time is always thepriority. When charging time preferences areset, charging outside your preferred chargingtime windows could be necessary to finishby your next departure time. In this case, thevehicle begins charging immediately afterplugging in. Charging pauses when the restof the charge can be done within thepreferred charging windows.
254
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCharging Your Vehicle - Plug-In Hybrid Electric Vehicle (PHEV)E359594

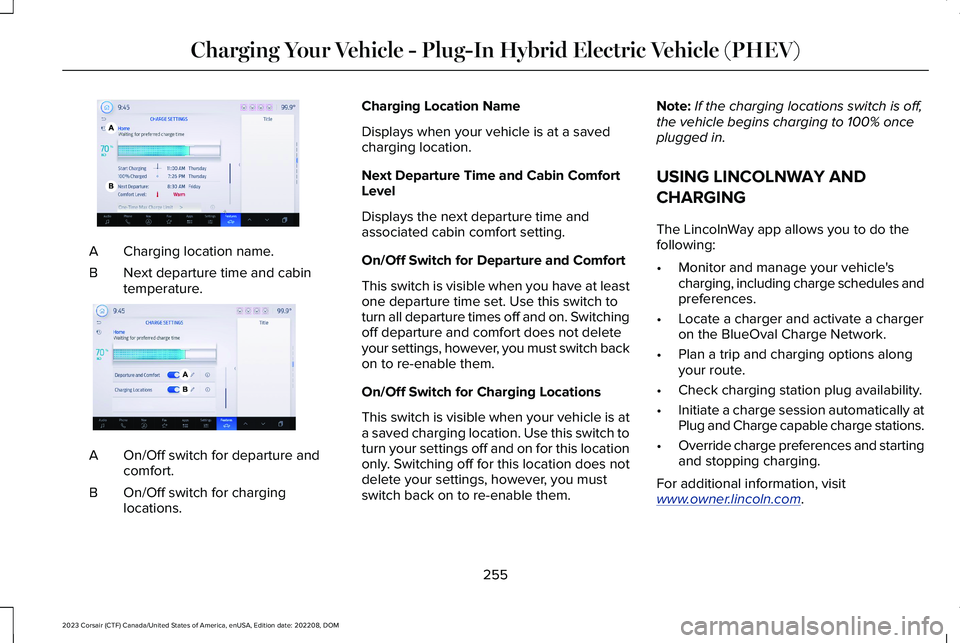

Charging location name.A
Next departure time and cabintemperature.B
On/Off switch for departure andcomfort.A
On/Off switch for charginglocations.B
Charging Location Name
Displays when your vehicle is at a savedcharging location.
Next Departure Time and Cabin ComfortLevel
Displays the next departure time andassociated cabin comfort setting.
On/Off Switch for Departure and Comfort
This switch is visible when you have at leastone departure time set. Use this switch toturn all departure times off and on. Switchingoff departure and comfort does not deleteyour settings, however, you must switch backon to re-enable them.
On/Off Switch for Charging Locations
This switch is visible when your vehicle is ata saved charging location. Use this switch toturn your settings off and on for this locationonly. Switching off for this location does notdelete your settings, however, you mustswitch back on to re-enable them.
Note:If the charging locations switch is off,the vehicle begins charging to 100% onceplugged in.
USING LINCOLNWAY AND
CHARGING
The LincolnWay app allows you to do thefollowing:
•Monitor and manage your vehicle'scharging, including charge schedules andpreferences.
•Locate a charger and activate a chargeron the BlueOval Charge Network.
•Plan a trip and charging options alongyour route.
•Check charging station plug availability.
•Initiate a charge session automatically atPlug and Charge capable charge stations.
•Override charge preferences and startingand stopping charging.
For additional information, visitwww.owner.lincoln.com.
255
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCharging Your Vehicle - Plug-In Hybrid Electric Vehicle (PHEV)E363399 E389449

CHARGING YOUR VEHICLE – TROUBLESHOOTING
CHARGING YOUR VEHICLE – INFORMATION MESSAGES
ActionMessage
Your vehicle needs confirmation that you unplugged it before allowing a start. Make sure yourvehicle is unplugged and you respond to the message before starting your vehicle.Vehicle Plugged In ? Yes No
Your vehicle detects it is still plugged in after you attempt to start it.Unplug Prior to Starting Vehicle
A charging fault has been detected. Check the charging cord and the charge station or electricalsupply.Charge Station Fault See Manual
The charging station cannot communicate with your vehicle. Contact the station provider.Charge Station Communication ErrorContact Station Provider
256
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCharging Your Vehicle - Plug-In Hybrid Electric Vehicle (PHEV)

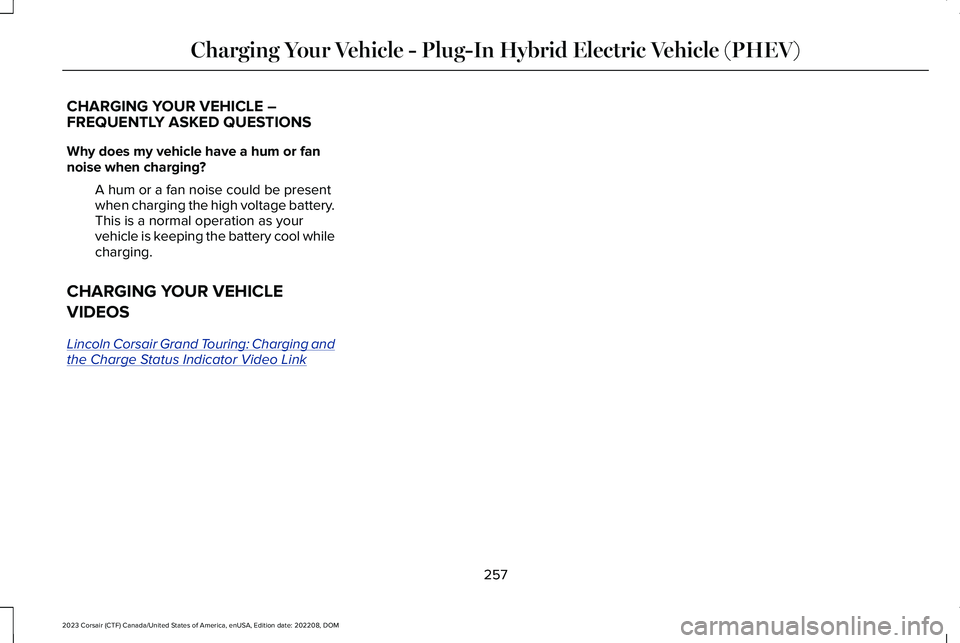

CHARGING YOUR VEHICLE –FREQUENTLY ASKED QUESTIONS
Why does my vehicle have a hum or fannoise when charging?
A hum or a fan noise could be presentwhen charging the high voltage battery.This is a normal operation as yourvehicle is keeping the battery cool whilecharging.
CHARGING YOUR VEHICLE
VIDEOS
Lincoln Corsair Grand Touring: Charging andthe Charge Status Indicator Video Link
257
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCharging Your Vehicle - Plug-In Hybrid Electric Vehicle (PHEV)

AUTOMATIC TRANSMISSION
PRECAUTIONS
WARNING: When your vehicle isstationary, keep the brake pedal fullypressed when shifting gears. Failure tofollow this instruction could result inpersonal injury, death or property damage.
WARNING: Do not apply the brakepedal and accelerator pedalsimultaneously. Applying both pedalssimultaneously for more than a fewseconds will limit power, which may resultin difficulty maintaining speed in traffic andcould lead to serious injury.
WARNING: Apply the parking brake,shift into park (P), switch the vehicle off andremove the key or remote control beforeyou leave your vehicle. Failure to followthis instruction could result in personalinjury or death.
AUTOMATIC TRANSMISSION
POSITIONS
PARK (P)
WARNING: Shift into park (P) onlywhen your vehicle is stationary.
In park (P) power is not transmitted to thedriven wheels.
Note:A tone sounds if you attempt to exityour vehicle without the vehicle in park (P).
Note:Your vehicle may not shift out of park(P) if the 12V battery has run out of charge.
Note:Your vehicle may not shift out of park(P) if a fuse is blown.
Note:Your vehicle may not shift out of park(P) unless the key or remote control is insideyour vehicle.
Note:The electronic parking brake couldapply when you power your vehicle on withthe selector in park (P).
Note:The electronic parking brake couldapply if you shift to park (P) without fullypressing the brake pedal.
Note:The electronic parking brake couldapply if you shift to park (P) on a slope.
Note:Do not manually release the parkingbrake when the selector is in park (P). SeeAutomatically Releasing the ElectricParking Brake (page 273).
Note:Your vehicle could shift into park (P) ifyou attempt to exit your vehicle without thetransmission in park (P). See How DoesAutomatic Return to Park (P) Work (page261).
Note:A tone could sound when you selectpark (P).
REVERSE (R)
WARNING: Shift into reverse (R) onlywhen your vehicle is stationary.
In reverse (R) power is transmitted to thedriven wheels.
258
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMAutomatic Transmission

NEUTRAL (N)
WARNING: In neutral (N) your vehicleis free to roll.
In neutral (N) power is not transmitted to thedriven wheels.
DRIVE (D)
In drive (D) power is transmitted to the drivenwheels.
SHIFTING YOUR VEHICLE INTO
GEAR
The transmission selector is on the centerstack.
1.Press and hold the brake pedal.
2.Press a button to select a position.
Note:The position illuminates on thetransmission selector.
AUTOMATIC TRANSMISSION
POSITION INDICATORS
The instrument cluster displays the currentposition.
Note:The position could illuminate on thetransmission selector.
MANUALLY SHIFTING GEARS
SHIFTING USING THE PADDLESHIFTERS
The instrument cluster displays the currentgear. The current gear flashes when yourvehicle cannot shift into the requested gear.Your vehicle will not shift if the requestedgear raises or lowers the engine speedbeyond the limit.
Your vehicle could shift when you fully pressthe accelerator or brake pedal.
Note:Prolonged driving with high enginespeed could cause vehicle damage notcovered by vehicle warranty.
259
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMAutomatic TransmissionE309222 E368319

Note:Drive modes could affect when thevehicle shifts into the requested gear.
Manually Shifting in Drive (D)
Use this feature to temporarily change gear.
Note:We recommend using this feature forengine braking or driving on hilly ormountainous roads.
•Pull any paddle to switch the feature on.
•Pull the right (+) paddle to upshift.
•Pull the left (-) paddle to downshift.
•Hold the (+) paddle for a few seconds toswitch the feature off.
Note:The feature switches off after a shortperiod of time if neither paddle is pulled.
TEMPORARY NEUTRAL MODE
WHAT IS TEMPORARY NEUTRALMODE
This mode keeps your vehicle in neutral (N),for a limited time, when you exit your vehicleor switch your vehicle off.
Note:Do not tow your vehicle in this mode.
HOW DOES TEMPORARY NEUTRALMODE WORK
Use this mode to keep your vehicle in neutral(N) when you exit your vehicle or switch yourvehicle off. For example, if you exit yourvehicle before an automatic car wash.
Note:You do not need to use this mode atan automatic car wash if you stay in yourvehicle with power on.
Note:Do not tow your vehicle in this mode.
Note:Automatic return to park (P) is delayedwhen your vehicle is in this mode. See WhatIs Automatic Return to Park (P) (page 261).
TEMPORARY NEUTRAL MODELIMITATIONS
Your vehicle could shift to park (P) after 30minutes, or when the vehicle battery chargelevel is low. Prolonged use of this mode cancause the 12 V battery to run out of charge.
Do not tow your vehicle in this mode. Failureto follow these instructions could result invehicle damage not covered by the vehiclewarranty.
ENTERING TEMPORARY NEUTRALMODE
1.Bring your vehicle to a complete stop.
2.Press and hold the brake pedal.
3.Power your vehicle on.
4.Shift into neutral (N).
Note:An instructional message appears.
5.Press the neutral (N) button
Note:A confirmation message appearswhen your vehicle enters the mode.
6.Release the brake pedal.
260
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMAutomatic TransmissionE144821
