2.Press the button on the left side of theinstrument panel next to the headlampswitch to open the fuel filler door. Thefuel filler door can take up to 15 secondsto open before you can insert a fuel fillernozzle.
3.Insert the fuel pump nozzle up to the firstnotch on the nozzle A. Keep it restingon the cover of the fuel tank filler pipeopening.
4.Hold the fuel pump nozzle in position Bwhen refueling. Holding the fuel pumpnozzle in position A can affect the flowof fuel and shut off the fuel pump nozzlebefore the fuel tank is full.
5.Operate the fuel pump nozzle within thearea shown.
6.When the nozzle shuts off, wait at least5 seconds, then slightly raise the fuelpump nozzle and slowly remove it.
7.Fully close the fuel filler door.
Note:Leaving the fuel door open could seta check engine lamp. See Fuel andRefueling – Troubleshooting (page 231).
Complete the refueling process within 20minutes. If 20 minutes elapses, press thebutton on the left side of the instrumentpanel again. Fuel pump nozzle automaticshut off could occur if you do not press thebutton on the left side of the instrumentpanel.
229
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMFuel and RefuelingE139202 E139203AB E337454 E119081

Do not attempt to start the engine if you havefilled the fuel tank with incorrect fuel.Incorrect fuel use could cause damage notcovered by the vehicle Warranty. Have yourvehicle immediately checked.
MANUALLY OPENING THE FUELFILLER DOOR
WARNING: The fuel system may beunder pressure. If you hear a hissing soundnear the fuel filler inlet, do not refuel untilthe sound stops. Otherwise, fuel may sprayout, which could cause serious personalinjury.
Note:The transmission must be in park (P)or neutral (N).
When using the manual override lever dothe following:
1.Switch the ignition on.
Note:The manual override lever is in thedriver side rear wheel well area.
2.Pull the manual override lever.
3.Switch the ignition off.
4.Complete the refueling process within20 minutes.
Note:Only follow this procedure if the fuelfiller door fails to open. If the problemremains, have your vehicle checked as soonas possible.
FUEL TANK CAPACITY
Advertised Capacity
The advertised capacity is the maximumamount of fuel that you can add to the fueltank when the fuel gauge indicates empty.
In addition, the fuel tank contains an emptyreserve. The empty reserve is an unspecifiedamount of fuel that remains in the fuel tankwhen the fuel gauge indicates empty.
Note:The amount of fuel in the emptyreserve varies and should not be relied uponto increase driving range.
230
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMFuel and RefuelingE297793

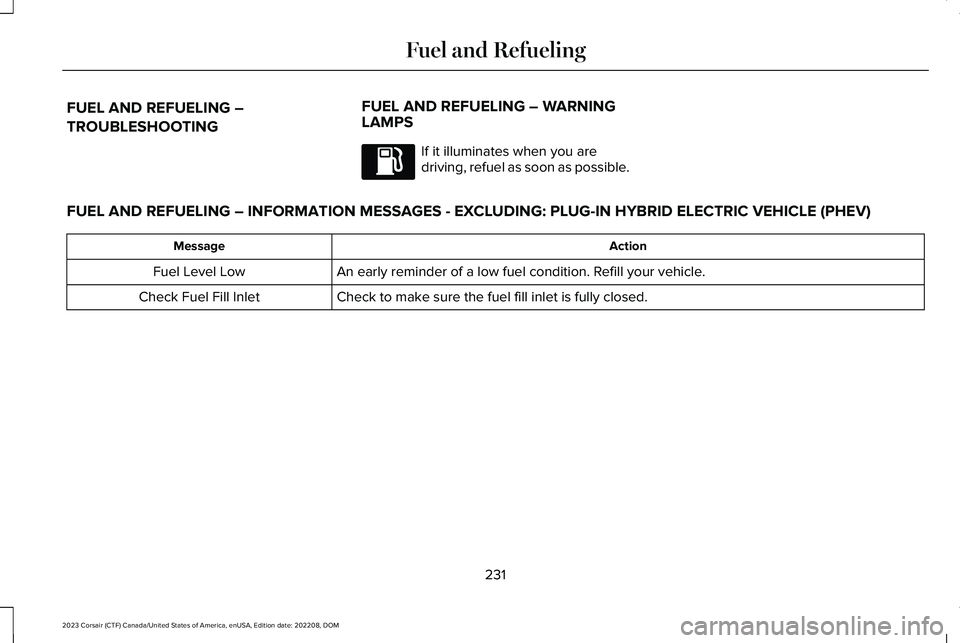

FUEL AND REFUELING –
TROUBLESHOOTING
FUEL AND REFUELING – WARNINGLAMPS
If it illuminates when you aredriving, refuel as soon as possible.
FUEL AND REFUELING – INFORMATION MESSAGES - EXCLUDING: PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)
ActionMessage
An early reminder of a low fuel condition. Refill your vehicle.Fuel Level Low
Check to make sure the fuel fill inlet is fully closed.Check Fuel Fill Inlet
231
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMFuel and Refueling

FUEL AND REFUELING – INFORMATION MESSAGES - PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)
ActionMessage
An early reminder of a low fuel condition.Fuel Level Low
The fuel fill inlet may not be properly closed.Check Fuel Fill Inlet
The information message appears while the fuel system is depressurizing with the fuel filler doorclosed. Wait for the fuel system to depressurize and for the fuel filler door to unlatch.Please wait for fuel door to open
The information message appears when the fuel system has depressurized and opened the fuelfiller door. Fully open the fuel filler door to refuel and fully close the fuel filler door when refuelingis complete.
Fuel Door Open
Your vehicle is equipped with a sealed fuel system that requires the fuel filler door to be fullyclosed after refueling. This warning message appears when the fuel filler door is ajar. Pleasefully close the fuel filler door to avoid a "Check Engine" Light.
Fuel door ajar Close fully to avoid Checkengine light
If you see this message and a "Check Engine" lamp illuminates, please fully close the fuel fillerdoor. The "Check Engine" Light should clear within five seconds. If the "Check Engine" lightpersists, please see your dealer.
The information message appears when the fuel system fails to depressurize, or the fuel fillerdoor fails to open. You could have to use the fuel filler door manual override lever when openingthe fuel door.
Refuel Error See Manual
232
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMFuel and Refueling

WHAT IS THE CATALYTIC
CONVERTER
The catalytic converter is part of yourvehicle's emissions system and filters harmfulpollutants from the exhaust gas.
CATALYTIC CONVERTER
PRECAUTIONS
WARNING: Do not park, idle or driveyour vehicle on dry grass or other dryground cover. The emission system heatsup the engine compartment and exhaustsystem, creating the risk of fire.
WARNING: The normal operatingtemperature of the exhaust system is veryhigh. Never work around or attempt torepair any part of the exhaust system untilit has cooled. Use special care whenworking around the catalytic converter.The catalytic converter heats up to a veryhigh temperature after only a short periodof engine operation and stays hot after theengine is switched off.
WARNING: Exhaust leaks may resultin entry of harmful and potentially lethalfumes into the passenger compartment. Ifyou smell exhaust fumes inside yourvehicle, have your vehicle inspectedimmediately. Do not drive if you smellexhaust fumes.
To avoid damaging the catalytic converter:
•Do not crank the engine for more than10 seconds at a time.
•Do not run the engine with a spark pluglead disconnected.
•Do not push-start or tow-start yourvehicle. Use booster cables. See JumpStarting the Vehicle (page 402).
•Use the correct fuel. See Fuel andRefueling (page 223).
•Do not switch the ignition off when yourvehicle is moving.
•Avoid running out of fuel.
•Have the items listed in scheduledmaintenance information performedaccording to the specified schedule.
Note:Do not make any unauthorizedchanges to your vehicle or engine. By law,vehicle owners and anyone whomanufactures, repairs, or services a fleet ofvehicles are not permitted to intentionallyremove an emission control device orprevent it from working.
233
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCatalytic Converter

CATALYTIC CONVERTER –
TROUBLESHOOTING
CATALYTIC CONVERTER – WARNINGLAMPS
Your vehicle has an on-board diagnosticssystem that monitors the emission controlsystem. If any of the following warning lampsilluminate, this may indicate that the on-boarddiagnostics system has detected an emissioncontrol system malfunction.
Continuing to drive your vehicle may causereduced power or the engine to stop. Failureto respond to a warning lamp may causedamage that your vehicle Warranty may notcover. Have your vehicle checked as soonas possible.
234
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCatalytic ConverterE103308 E67021 E67028

WHAT IS THE HIGH VOLTAGE
BATTERY
The high voltage battery is a highlysophisticated lithium ion battery system, usedto store electrified energy to power thevehicle.
HIGH VOLTAGE BATTERY
PRECAUTIONS
WARNING: This battery pack shouldonly be serviced by an authorized electricvehicle technician. Improper handling canresult in personal injury or death.
WARNING: Keep your hands andclothing clear of the cooling fan.
WARNING: Apply the parking brake,shift into park (P), switch the ignition offand remove the key before you open thehood or have any service or repair workcompleted. If you do not switch the ignitionoff, the engine could restart at any time.Failure to follow this instruction could resultin personal injury or death.
WARNING: Do not touch theelectronic ignition system parts after youhave switched the ignition on or when theengine is running. The system operates athigh voltage. Failure to adhere to thiswarning could result in serious personalinjury or death.
Your vehicle consists of various high-voltagecomponents and wiring. All of thehigh-voltage power flows through specificwiring assemblies labeled as such or coveredwith a solid orange convolute, or orangestriped tape, or both. Do not come in contactwith these components.
RECYCLING AND DISPOSING OF
THE HIGH VOLTAGE BATTERY
Please recycle in accordance with localregulations.
235
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMHigh Voltage Battery - Plug-In Hybrid Electric Vehicle (PHEV)

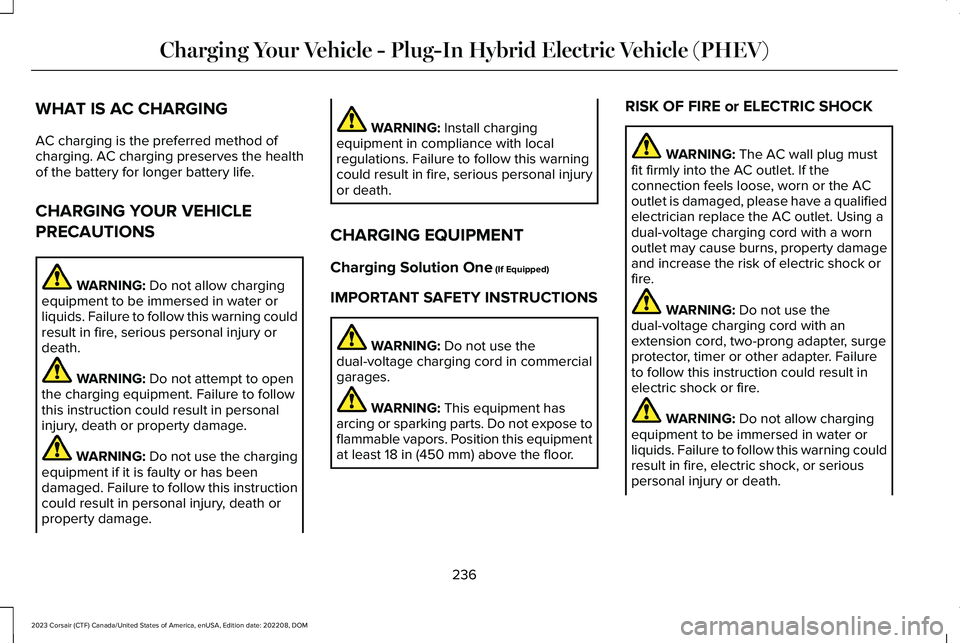

WHAT IS AC CHARGING
AC charging is the preferred method ofcharging. AC charging preserves the healthof the battery for longer battery life.
CHARGING YOUR VEHICLE
PRECAUTIONS
WARNING: Do not allow chargingequipment to be immersed in water orliquids. Failure to follow this warning couldresult in fire, serious personal injury ordeath.
WARNING: Do not attempt to openthe charging equipment. Failure to followthis instruction could result in personalinjury, death or property damage.
WARNING: Do not use the chargingequipment if it is faulty or has beendamaged. Failure to follow this instructioncould result in personal injury, death orproperty damage.
WARNING: Install chargingequipment in compliance with localregulations. Failure to follow this warningcould result in fire, serious personal injuryor death.
CHARGING EQUIPMENT
Charging Solution One (If Equipped)
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Do not use thedual-voltage charging cord in commercialgarages.
WARNING: This equipment hasarcing or sparking parts. Do not expose toflammable vapors. Position this equipmentat least 18 in (450 mm) above the floor.
RISK OF FIRE or ELECTRIC SHOCK
WARNING: The AC wall plug mustfit firmly into the AC outlet. If theconnection feels loose, worn or the ACoutlet is damaged, please have a qualifiedelectrician replace the AC outlet. Using adual-voltage charging cord with a wornoutlet may cause burns, property damageand increase the risk of electric shock orfire.
WARNING: Do not use thedual-voltage charging cord with anextension cord, two-prong adapter, surgeprotector, timer or other adapter. Failureto follow this instruction could result inelectric shock or fire.
WARNING: Do not allow chargingequipment to be immersed in water orliquids. Failure to follow this warning couldresult in fire, electric shock, or seriouspersonal injury or death.
236
